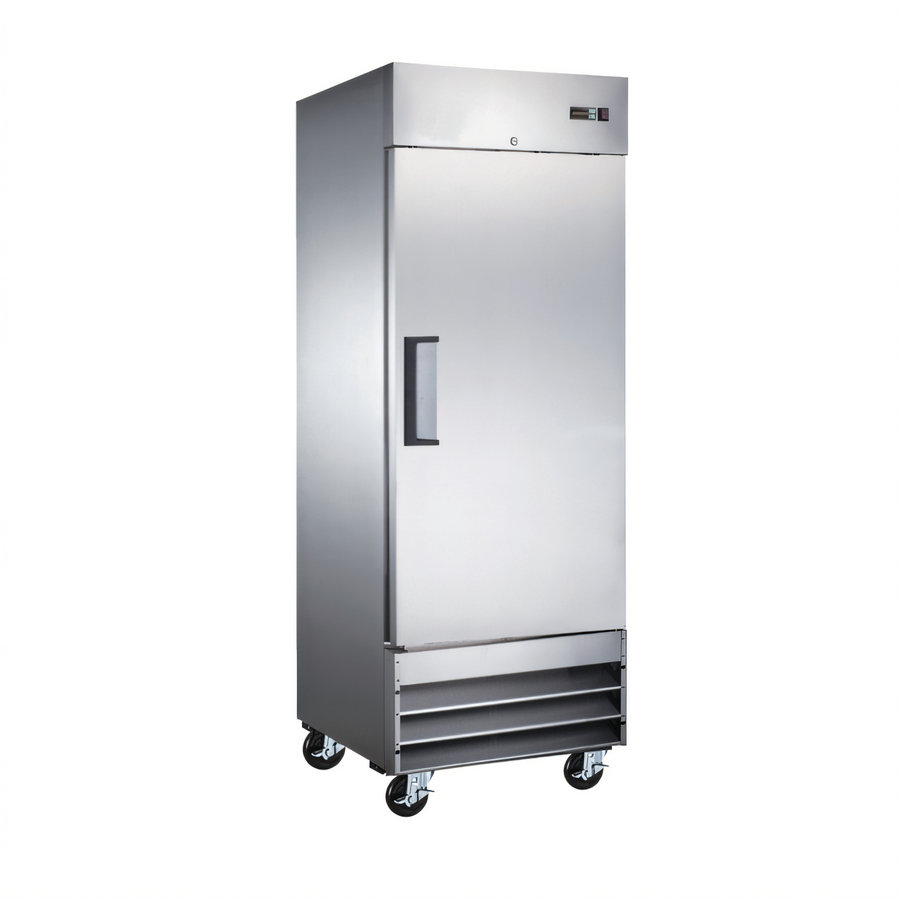

Omcan 23 Cu. Ft. One-Section Reach-In Refrigerator with 1 Solid Door and Bottom-Mount Self-Contained Refrigeration

All Stainless Steel Interior and Exterior, 110V, R290, 3 Shelves

Built for dependable cold storage, this 23 cu. ft. reach-in refrigerator combines stainless steel construction with a bottom-mounted self-contained system and a solid door.

  • 23 cu. ft. one-section reach-in refrigerator for commercial cold storage.
  • Bottom-mounted self-contained refrigeration simplifies installation and service access.
  • Maintains a 33°F to 41°F temperature range for refrigerated holding.
  • Stainless steel interior and exterior construction stands up to daily kitchen use.
  • Includes 3 shelves and casters for organized storage and easier repositioning.
  • Runs on 110V / 60Hz / 1-phase power with a NEMA 5-15P plug and R290 refrigerant.

Overall Dimensions:

29.0"W x 32.25"D x 82.5"H

Product Weight:

272.0 lb

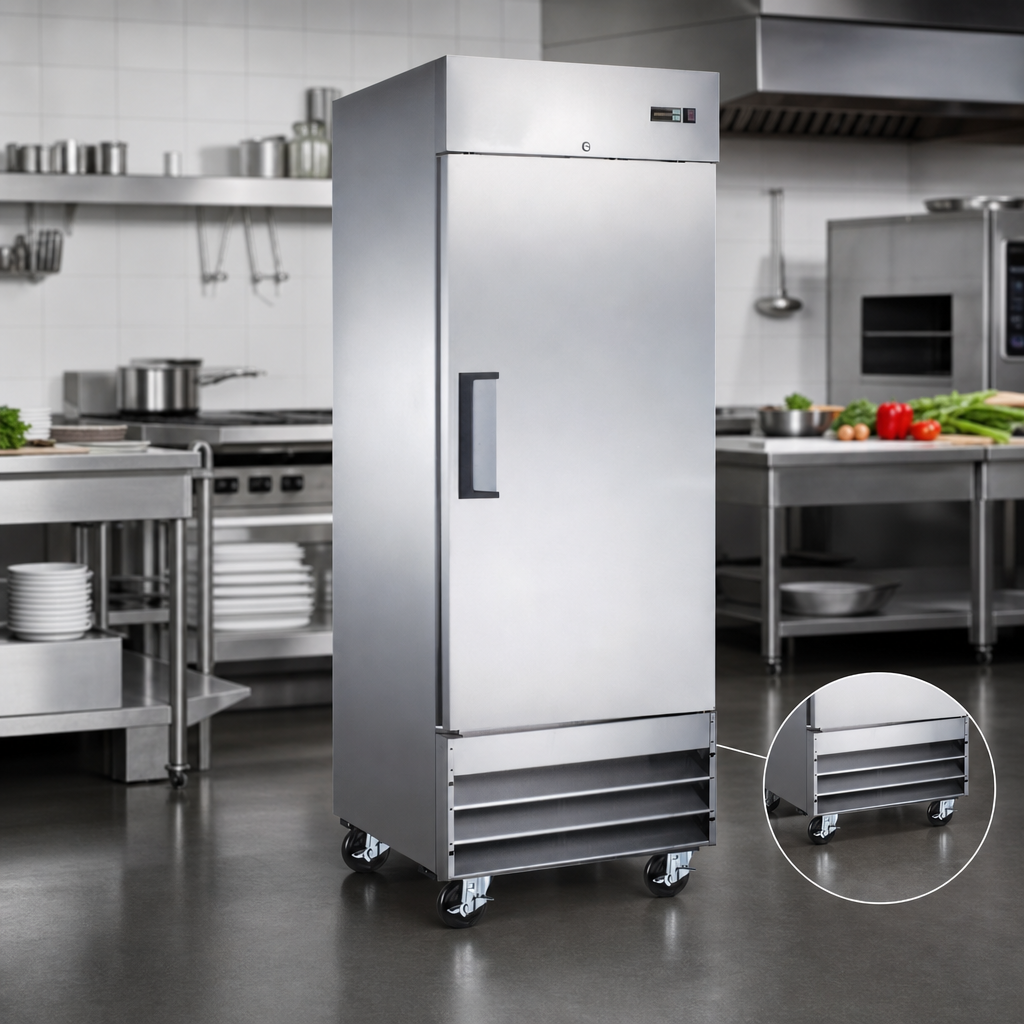

Bottom-Mount Self-Contained Refrigeration

Bottom-mounted, self-contained design keeps the compressor accessible and simplifies installation.

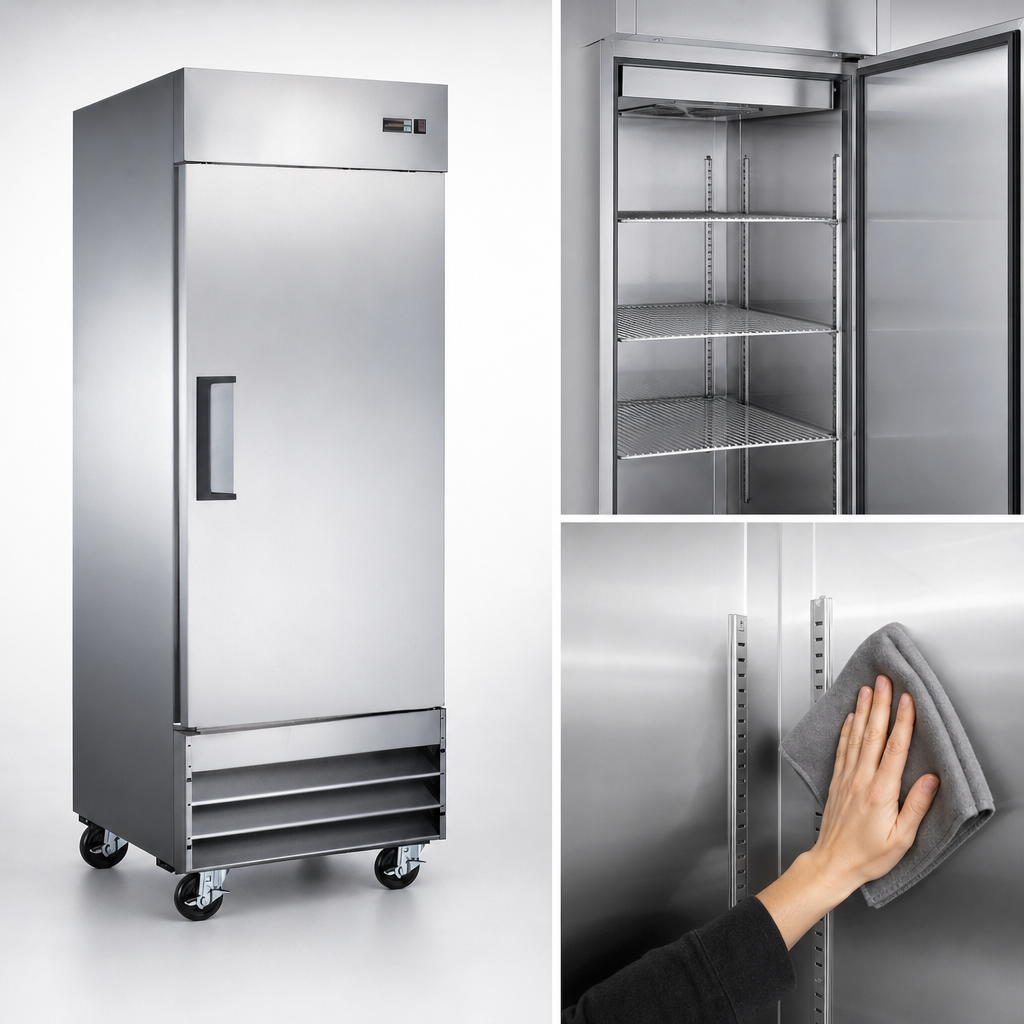

Stainless Steel Interior and Exterior

All-stainless construction is durable and easy to clean.

Solid Hinged Door

Solid door design helps reduce cold-air loss inside the cabinet.

Three Shelves

Three included shelves help organize ingredients and packaged items.

Casters

Casters make the refrigerator easier to move for cleaning or repositioning.

R290 Hydrocarbon Refrigerant

Uses R290 refrigerant in the cooling system.

Ventilated Cooling System

Ventilated cooling helps promote even temperature distribution inside the cabinet.

90°F Ambient Rating

Rated for ambient conditions up to 90°F (32°C).

Type Reach-In Refrigerator
Style One Section
Installation Type Floor Model
Capacity 23 Cubic Feet
Material Stainless Steel
Interior Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Temperature Range 33°F to 41°F (0.5°C to 5°C)
Horsepower 1/5 HP
Voltage 110 Volts
Amps 2.6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Doors 1
Shelves 3
Shipping Width 29 Inches
Shipping Depth 33 Inches
Shipping Height 83 Inches
Shipping Weight 272 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2 years parts and labor; 5 years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It maintains a temperature range of 33°F to 41°F (0.5°C to 5°C).
Three shelves are included.
It runs on 110V / 60Hz / 1-phase power and uses a NEMA 5-15P plug.
It uses R290 hydrocarbon refrigerant.
Yes, it uses a bottom-mounted self-contained refrigeration system.
The unit includes a 2-year parts and labor warranty and a 5-year compressor warranty.
