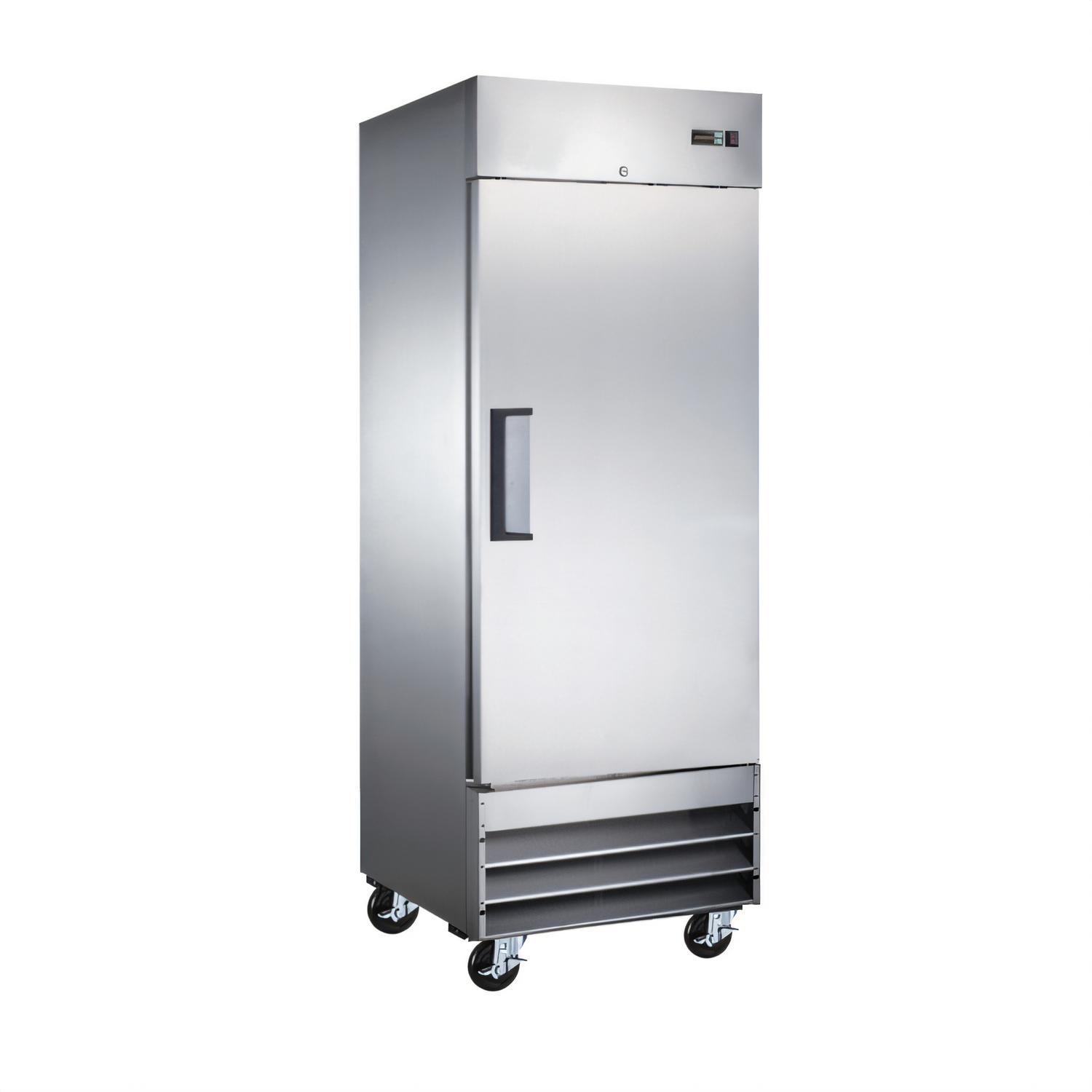

Omcan USA 23 Cu. Ft. One-Section Bottom-Mount Self-Contained Reach-In Freezer with Solid Hinged Door

SKU: 50023
GTIN: 690207500238
$2,178.66
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Frozen Food Storage & Dispensers New Arrivals Omcan USA Reach-in Freezers Reach-In Refrigerators & Freezers Restaurant Equipment

Omcan USA 23 Cu. Ft. One-Section Bottom-Mount Self-Contained Reach-In Freezer with Solid Hinged Door

R290, -8°F to 0°F, 110V, 3 Shelves, Casters

Keep frozen inventory organized and at safe temperatures with a compact reach-in freezer built for reliable bottom-mount self-contained operation.

  • 23 cu. ft. one-section reach-in freezer for compact frozen storage.
  • Bottom-mount, self-contained refrigeration supports easier maintenance access.
  • Maintains a -8°F to 0°F temperature range for dependable freezing.
  • Includes one solid hinged door, three shelves, and casters.
  • Runs on 110V/60Hz/1-phase power with a 1/2 HP compressor.
  • Ships on a pallet for freight delivery.

Overall Dimensions:

29.0"W x 32.25"D x 82.5"H

Product Weight:

373.0 lb

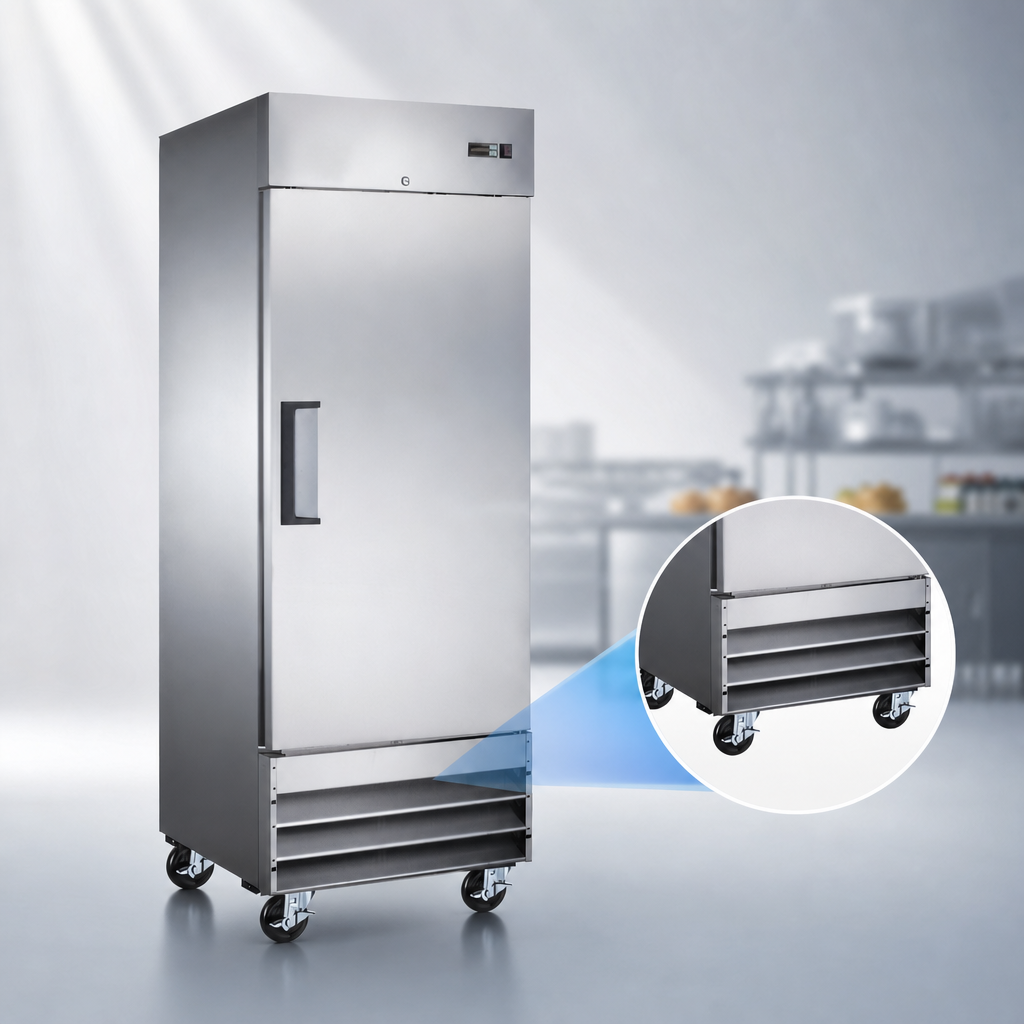

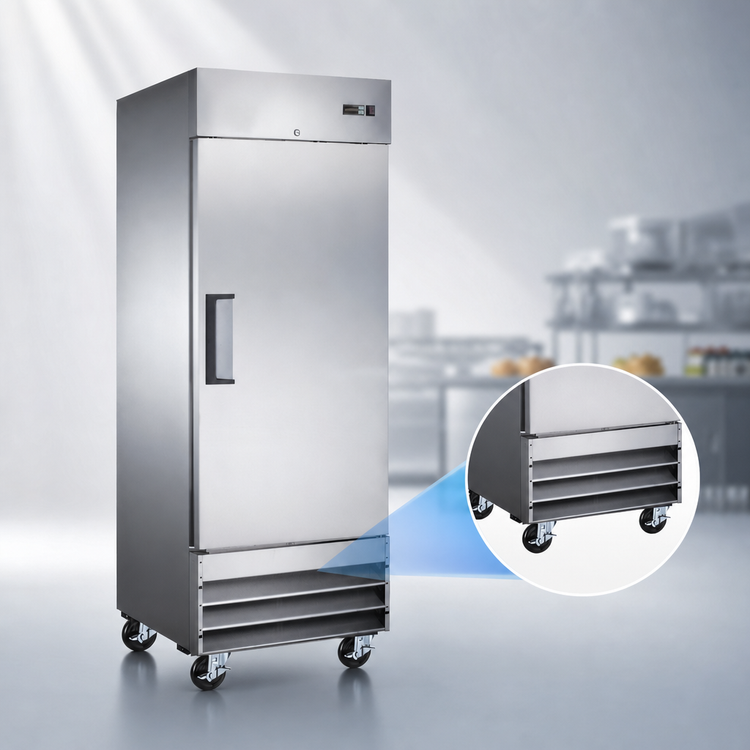

Bottom-Mount Self-Contained Refrigeration

Built-in refrigeration system is located at the bottom of the cabinet for convenient access and straightforward installation.

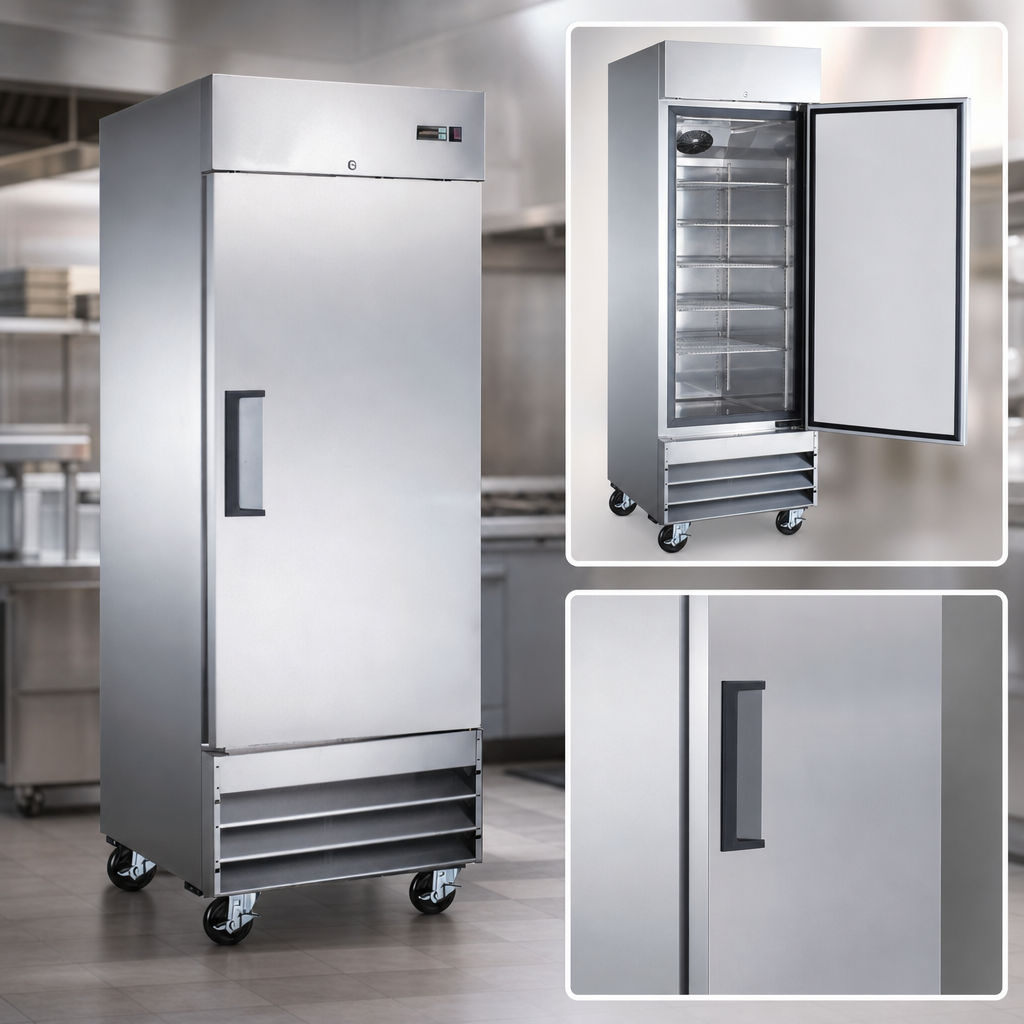

Solid Hinged Door

Single solid door helps retain cold air and provides durable everyday use.

Three Shelves

Includes three shelves to help organize frozen products and maximize usable storage space.

R290 Hydrocarbon Refrigerant

Uses R290 refrigerant for efficient low-temperature performance.

1/2 HP Compressor

Compressor power is sized to support the freezer's temperature range and daily commercial use.

Casters Included

Casters make it easier to move the unit for cleaning, placement, or service access.

Pallet Shipment

Ships on a pallet due to the unit's size and weight.

Type Reach-In Freezer
Style Single Section
Installation Type Floor Model
Capacity 23 Cu. Ft.
Refrigeration Type Bottom Mount Self-Contained
Refrigerant Type R290 Hydrocarbon
Temperature Range -8°F to 0°F (-22°C to -18°C)
Compressor HP 1/2 HP
Voltage 110 Volts
Amps 7.1 Amps
Watts 750 Watts
Hertz 60 Hz
Phase 1-Phase
Shipping Width 29 Inches
Shipping Depth 33 Inches
Shipping Height 83 Inches
Shipping Weight 373 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Omcan provides a warranty against defects in material, manufacturing, and defective assembly; warranty periods vary by product category.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It maintains a temperature range of -8°F to 0°F (-22°C to -18°C).
The freezer includes three shelves.
It uses bottom-mount self-contained refrigeration.
The unit runs on 110V/60Hz/1-phase power and draws 7.1 amps.
It ships on a pallet.
