Omcan USA 49126 Trento Undercounter Dishwashers
Description

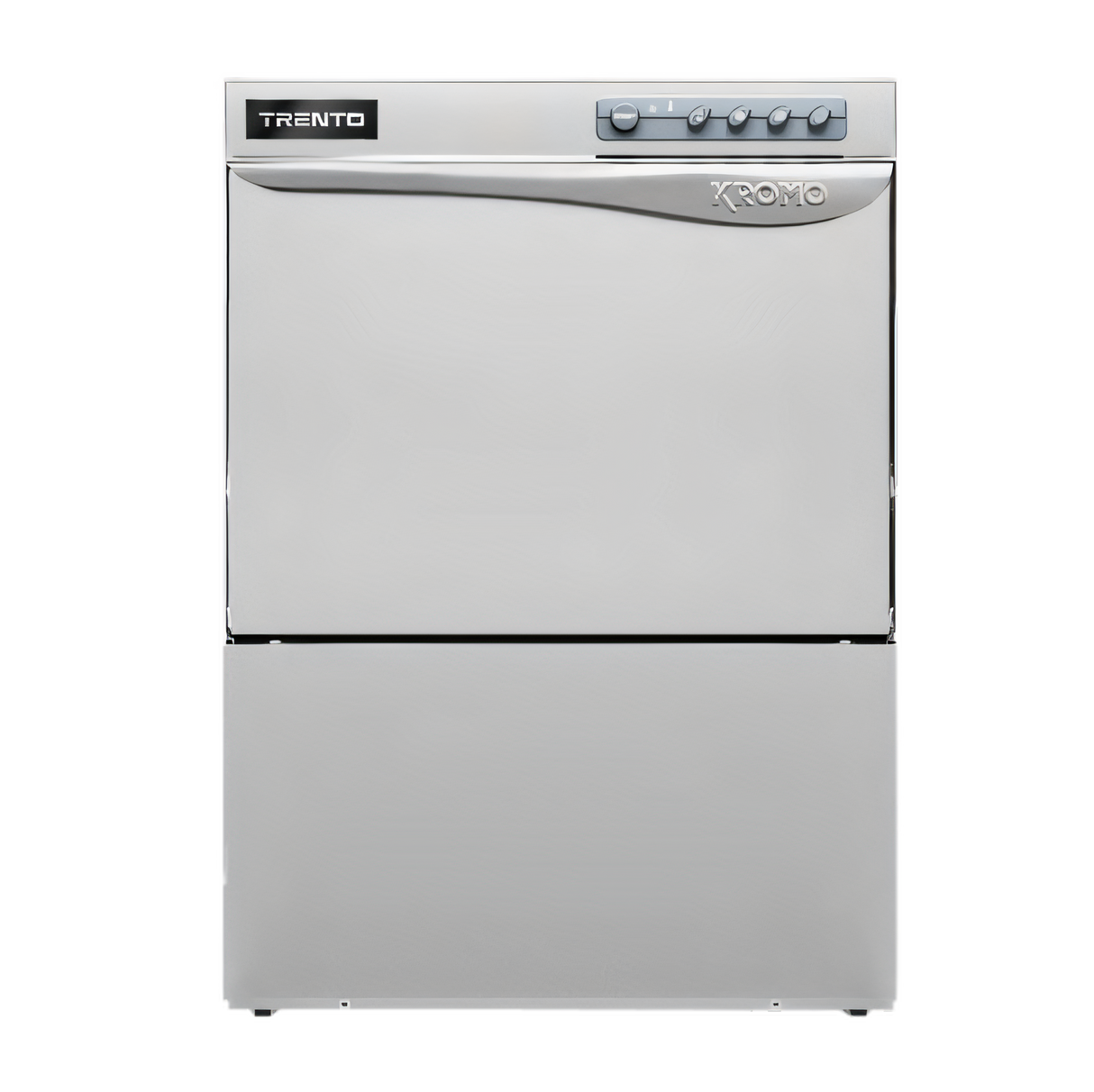

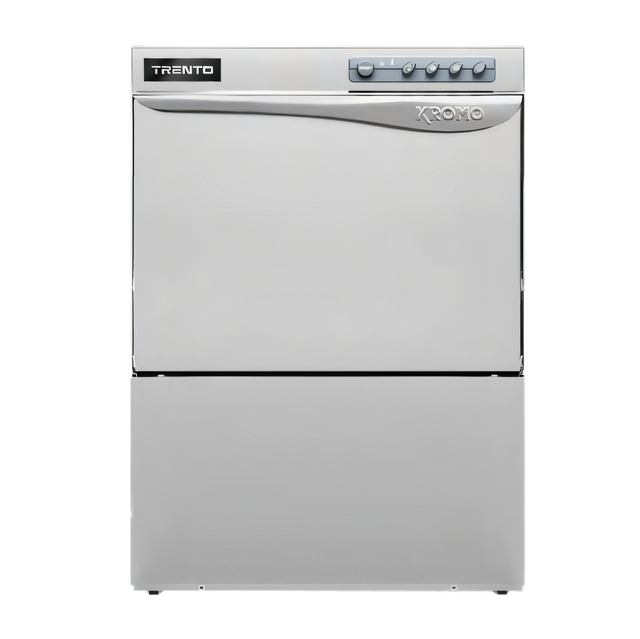

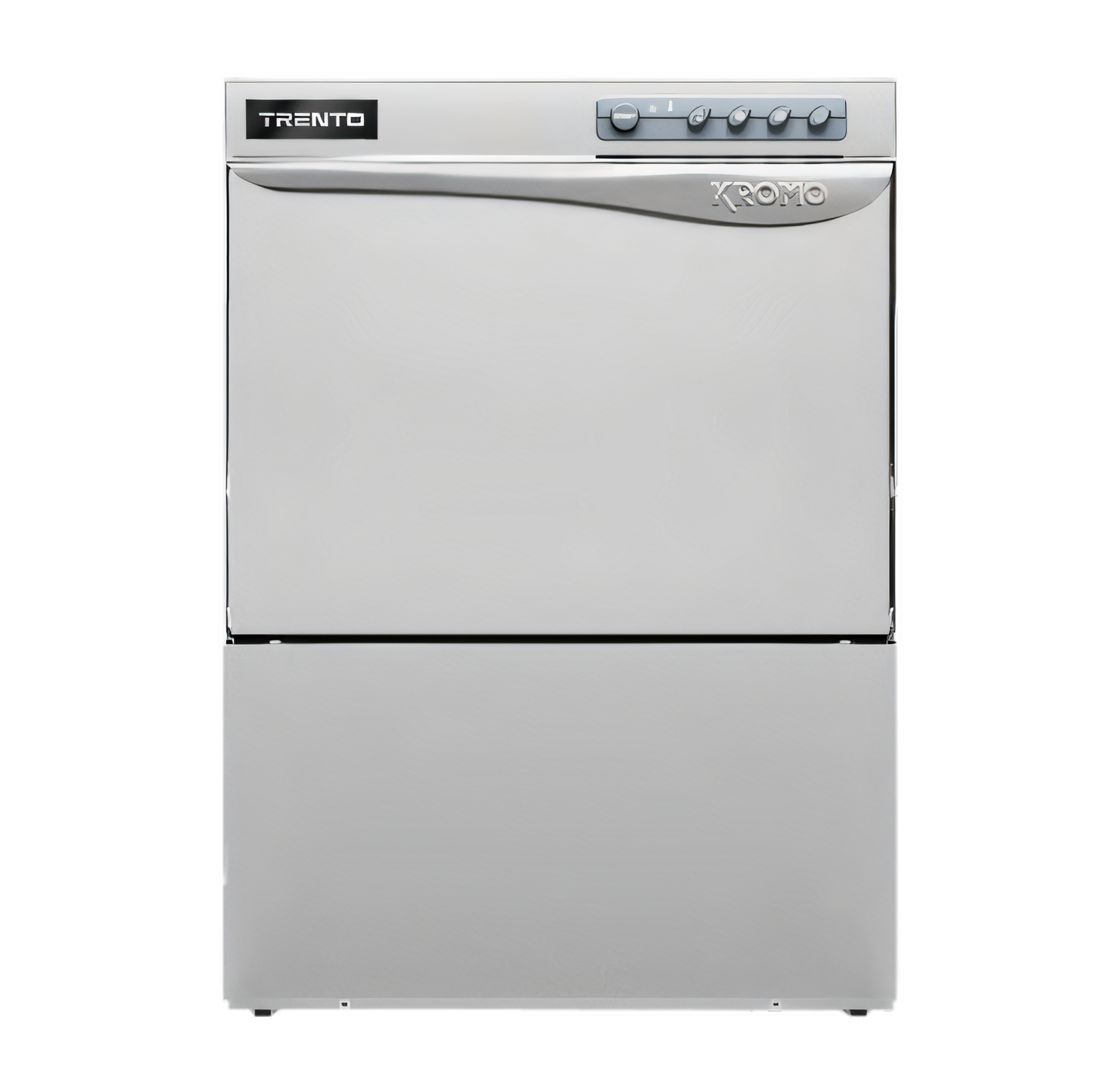

Trento Kromo Dupla Undercounter Dishwasher
Model CD-IT-50-2-DUPLA | Item 49126Engineered for high-volume glassware and dishware turnover, the Italian-made Trento Dupla combines double-walled stainless construction, a powerful 7.09 kW heating system, and a fully automated 2-cycle program to deliver up to 30 sparkling racks per hour in a compact undercounter footprint.
Key Features
- Processes 30 racks/h with 131 °F (55 °C) supply water — 21 racks/h with cold supply.

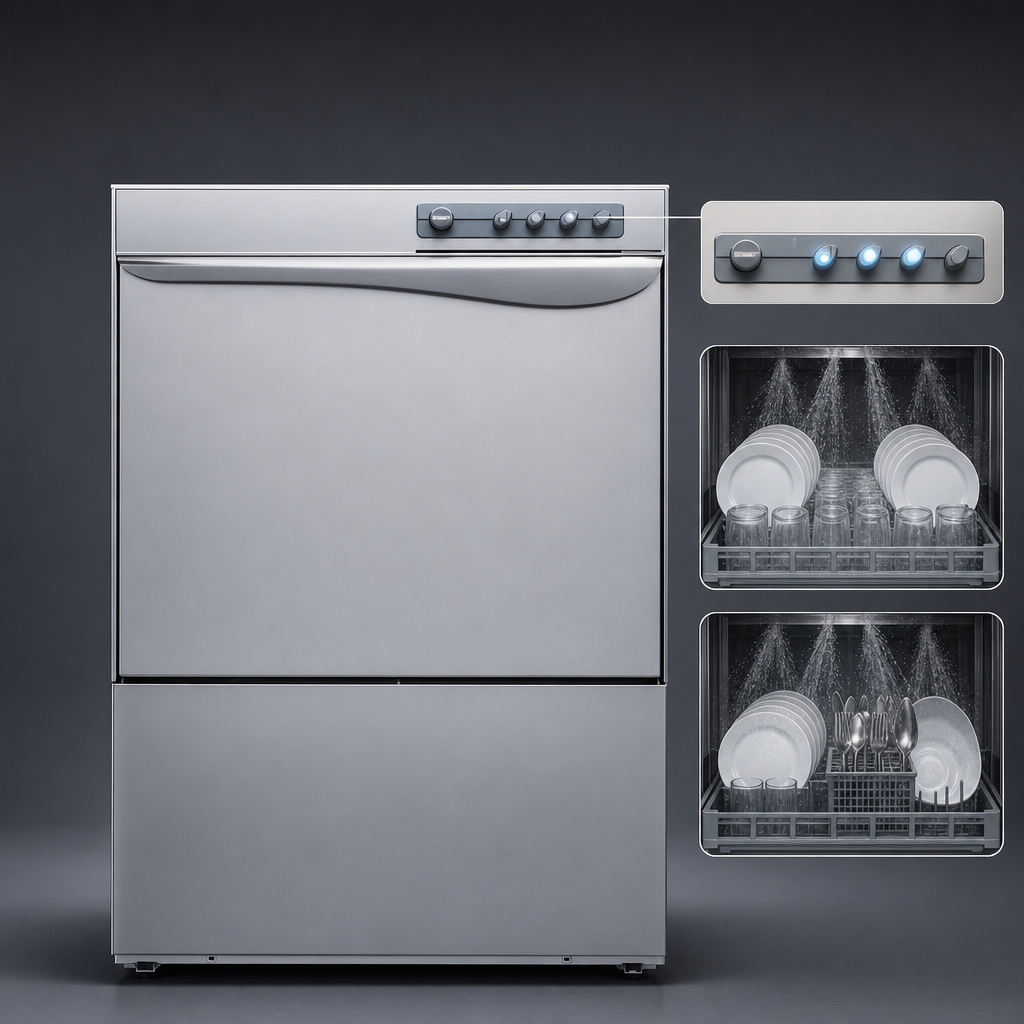

- Two selectable cycles: 120 s quick wash or 180 s intensive wash.

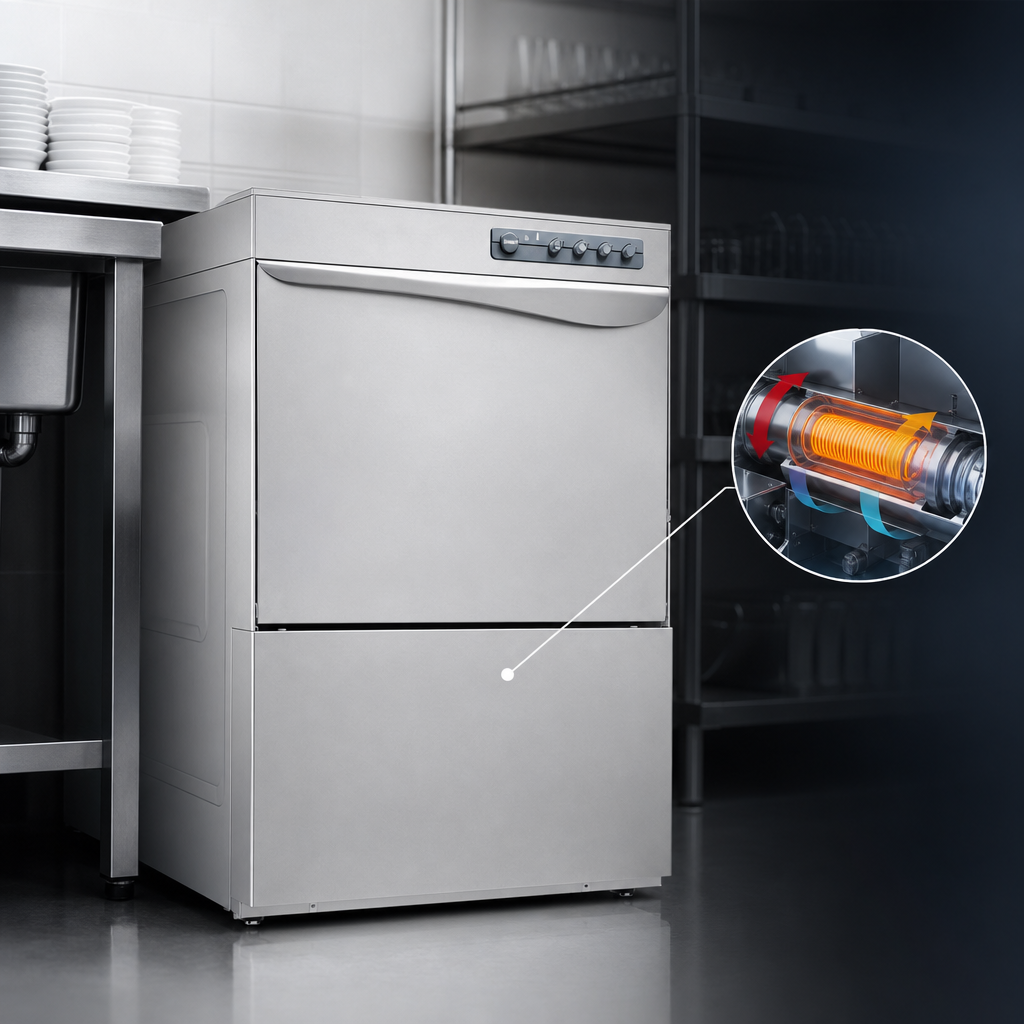

- 6.53 kW booster + 2.94 kW tank heaters reach 185 °F rinse and 160 °F wash temperatures fast.
- Energy-saving, noise-reducing double-walled AISI 304 stainless steel cabinet (59 dB(A)).
- Split wash & rinse arms for full-coverage cleaning; pressed basket supports for stability.
- Built-in rinse-aid and detergent dispensers simplify chemical dosing.
- Integrated overflow & drain piping and standard drain pump protect the wash pump.
- Door security microswitch and anti-drop roof panel enhance operator safety.
- cETLus & ETL-Sanitation listed for electrical and food-service compliance.
- Backed by Omcan’s 1-year parts & labor warranty — Made in Italy.
What’s in the Box
- 1 × Plastic plate basket (20" × 20")
- 1 × Large mesh glass basket (20" × 20")
- 1 × Cutlery basket
Technical Specifications
| Rack size | 20" × 20" (508 × 508 mm) |
|---|---|
| Hourly capacity | 30 racks (131 °F supply) / 21 racks (50 °F supply) |
| Wash cycles | 120 s & 180 s (automatic) |
| Water per cycle | 2.8 L (2.96 qt) |
| Wash temperature | 160 °F (71 °C) |
| Rinse temperature | 185 °F (85 °C) with thermostop |
| Heating elements | Booster 6.53 kW | Tank 2.94 kW |
| Total load | 7.09 kW, 220-240 V, 60 Hz, 1-phase |
| Wash pump | 560 W |
| Drain pump | 43 W (max head 31.5" / 800 mm) |
| Water pressure | 25–90 psi | ¾" G connection |
| Water hardness | 2–8 °fH |
| Interior clearance | Plates Ø 12.81" (325 mm) | Item height 12.18" (309 mm) |
| Noise level | 59.3 dB(A) |
| Exterior dimensions | 23.43" W × 24" D × 33.31" H (595 × 610 × 846 mm) |
| Net / gross weight | 150 lb (68 kg) / 169 lb (76.5 kg) |
| Construction | Double-walled AISI 304 stainless steel |
| Certifications | cETLus, ETL-Sanitation |
| Country of origin | Italy |
Throughput and cycle times may vary with incoming water temperature, pressure, and continuous-use conditions.
