Omcan 48617 (CE-CN-2419) Charbroiler/Griddle, electric, countertop, 24" x 19" cooking area, 1" thick griddle & 1-1/5" thick charbroil plates
$1,148.63
/each
Ships in 5–8 business days
- Amperage
- 15 A + 15 A
- Dimensions
- 26.0"W × 25.0"D × 12.0"H
- Cooking area
- 24 x 19 in
- Maximum temperature
- 570°F (300°C)
- Temperature control
- Thermostat
- Power
- 2 x 3.6 kW
Specifications
Cooking area
24 x 19 in
Maximum temperature
570°F (300°C)
Temperature control
Thermostat
Power
2 x 3.6 kW
Electrical
240 V / 60 Hz / 1 phase
Amperage
15 A + 15 A
Plug type
2 x NEMA 6-20P; 2 power cords
Cooking surface thickness
Charbroil: 1.2 in (30 mm); griddle: 1 in (23 mm)
Number of burners
2
Burner style
Serpentine
Plate material
Cast iron
Plate configuration
Interchangeable grill and griddle plates
Description

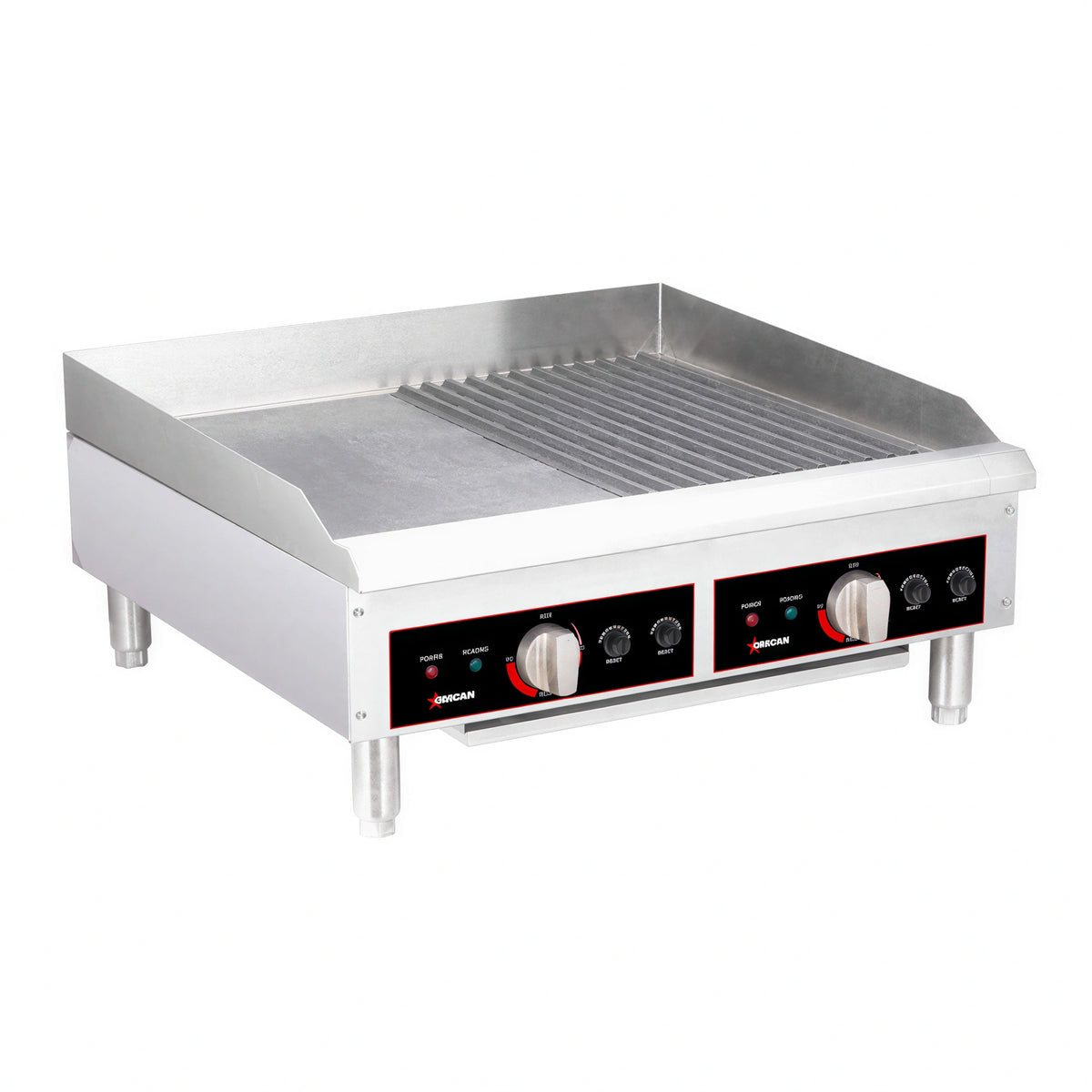

The Omcan 48617 is an electric countertop charbroiler/griddle with a 24 x 19 in cooking area.
- Includes interchangeable cast iron grill and griddle plates.
- Adjustable thermostat controls provide temperature selection up to 570°F.
- The removable top frame supports cleaning.
- Electrical configuration is 240 V, 60 Hz, single-phase with two power cords and NEMA 6-20P plugs.
Overall Dimensions:
26.0"W x 25.0"D x 12.0"HProduct Weight:
115.0 lbInterchangeable grill and griddle plates
The included grill and griddle plates can be interchanged for different cooking surfaces.
Cast iron cooking plates
The included grill and griddle plates are made of cast iron.
Adjustable thermostat controls
Thermostat controls allow temperature adjustment up to a maximum of 570°F.
Large cooking area
The cooking area measures 24 x 19 in.
Removable top frame
The top frame is removable for cleaning.
Dual power configuration
The unit is specified with 2 x 3.6 kW power.
Two power cords
The electrical connection uses two cords with NEMA 6-20P plugs.
Documentation
Frequently Asked Questions
The cooking area is 24 x 19 in.
The unit includes cast iron grill and griddle plates that are interchangeable.
The maximum temperature is 570°F (300°C).
It requires 240 V, 60 Hz, single-phase power and uses two cords with NEMA 6-20P plugs.
