Omcan USA 48528 Electric Ranges
Description

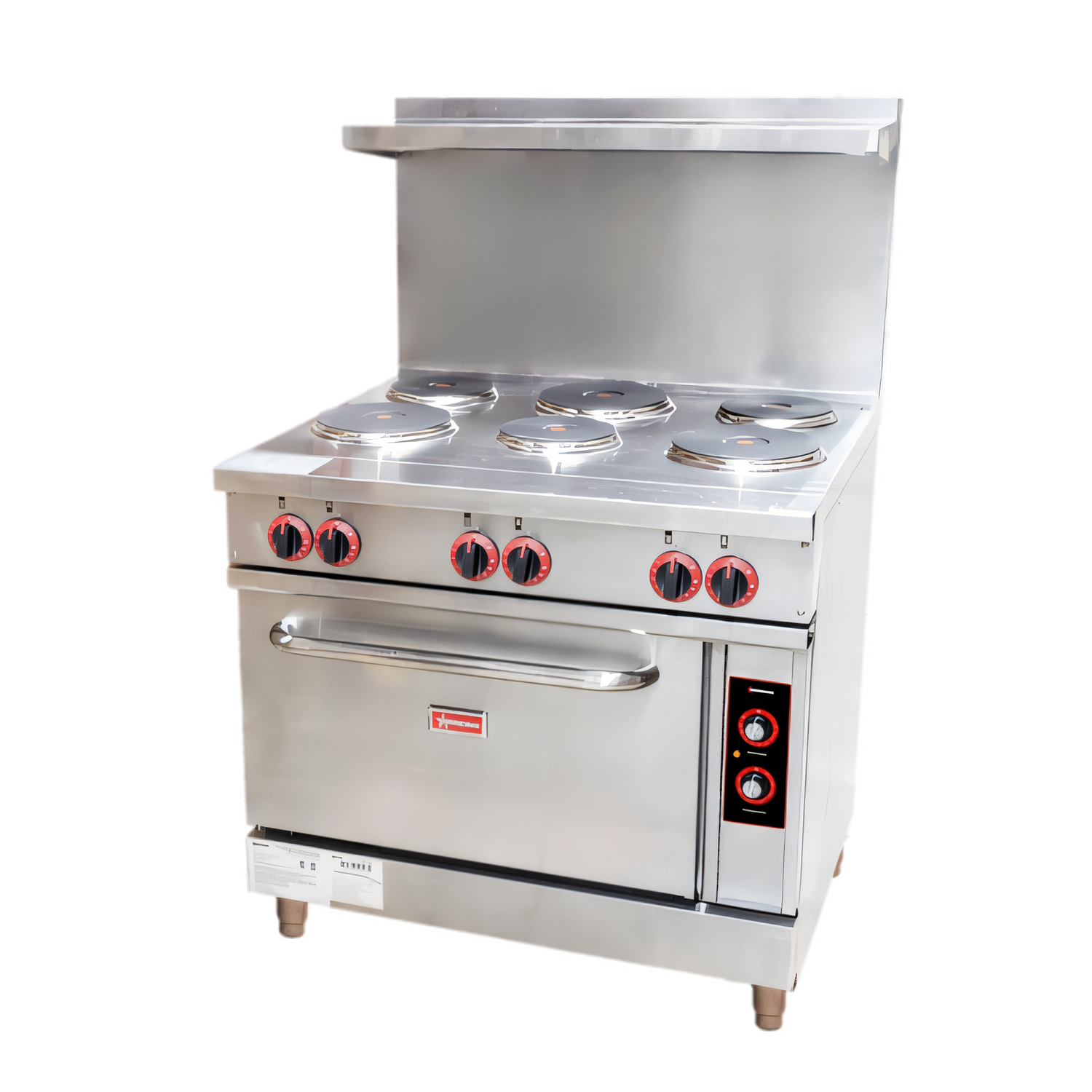

36" Commercial Electric Range with 6 Hot Plates & Standard Oven
Omcan model CE-CN-0036-ET-1 | 18.2 kW | 208-240 V / 60 Hz / 1 PhEngineered for busy restaurants, hotels, and institutional kitchens, this Omcan electric range combines six high-performance hot plates with a spacious, thermostat-controlled oven in a single, heavy-duty footprint. From simmering sauces to baking entrées, you’ll enjoy precise temperature control, rugged stainless construction, and the reliability Omcan has delivered since 1951.
Key Features

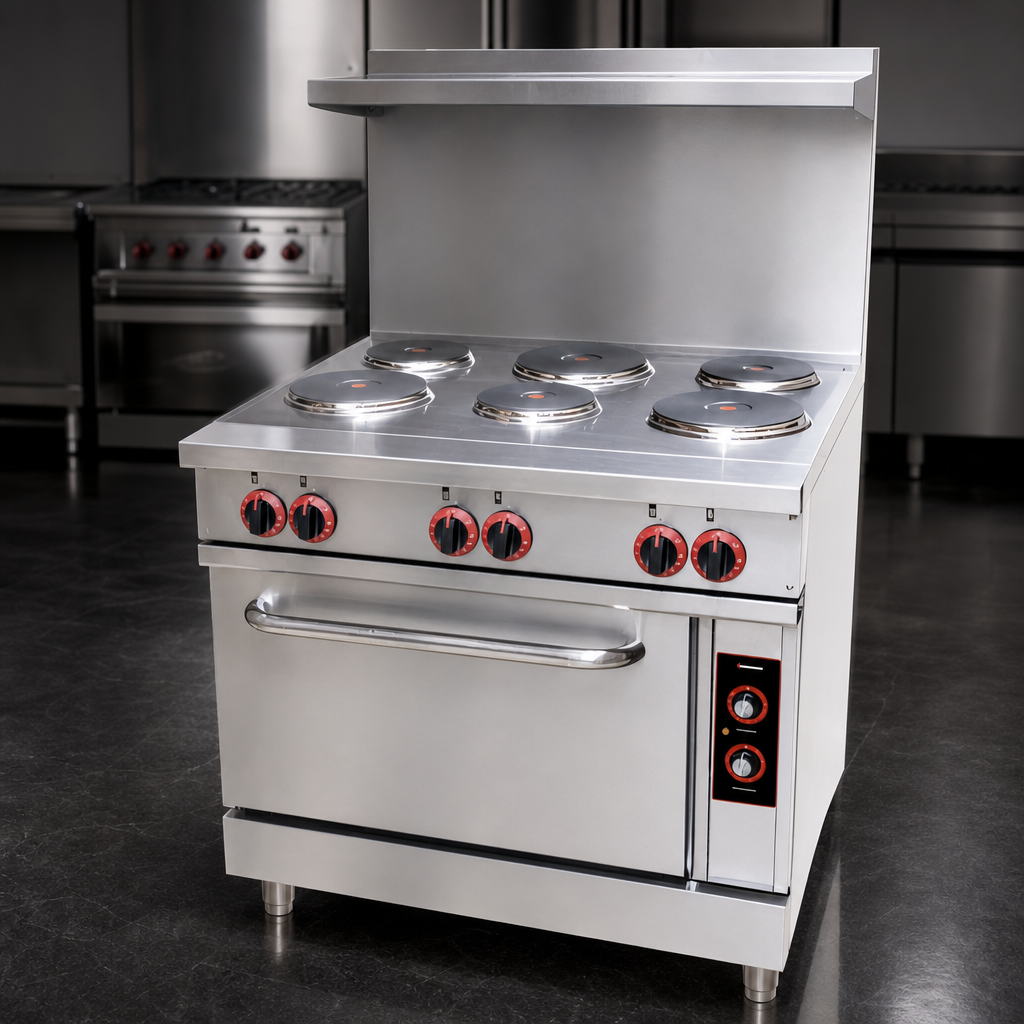

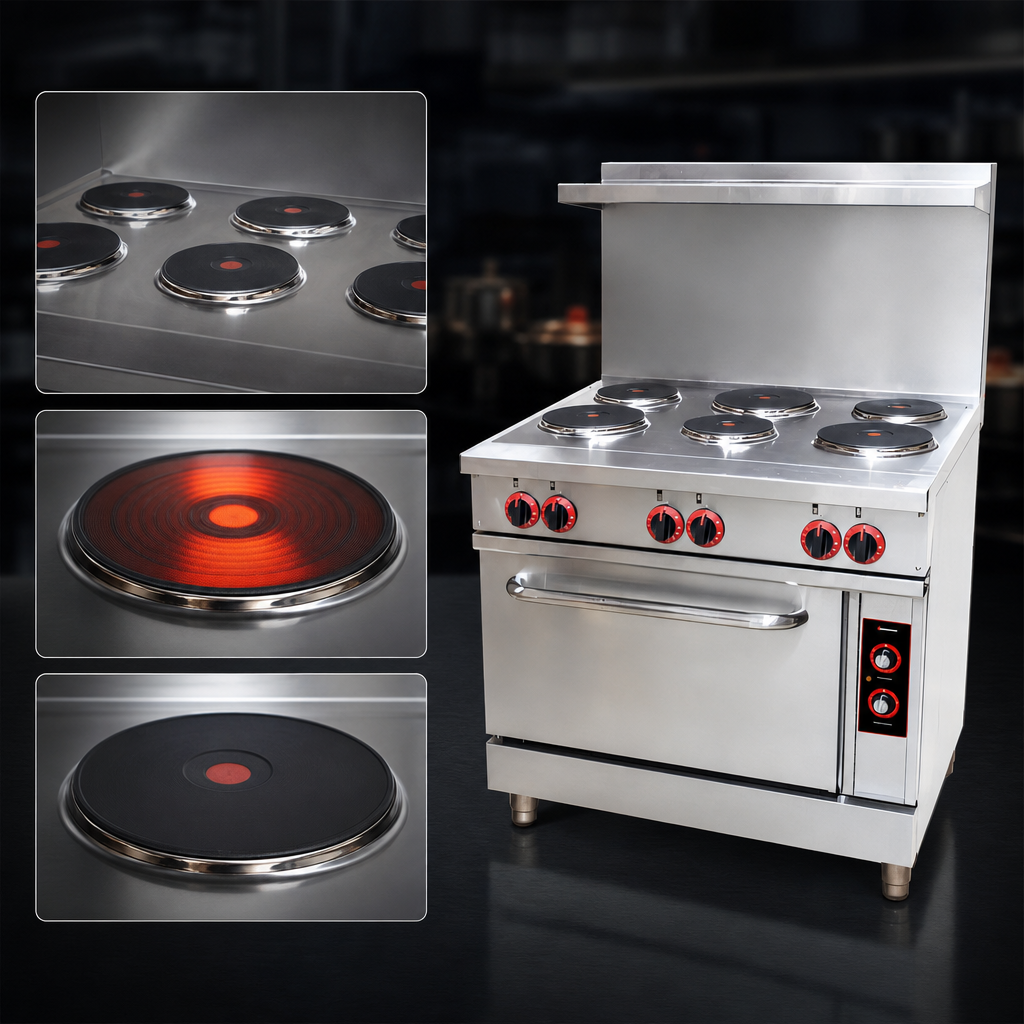

- (6) round solid-top hot plates: mixed 2.6 kW & 2.0 kW elements for flexible cooking zones
- Oven thermostat adjusts 122 °F – 500 °F (50 °C – 260 °C) with independent controls
- Top & bottom oven elements ensure even, consistent results
- Pull-out crumb tray with front-angle handle speeds up daily cleaning
- 18-gauge stainless steel front panel and door; galvanized steel sides resist corrosion
- Welded frame construction maximizes stability and service life
- Back riser with integrated shelf keeps utensils and seasonings within arm’s reach
- Adjustable heavy-duty legs for quick leveling on uneven floors
- Kick plate provides easy access for maintenance
Technical Specifications
| Manufacturer / Model | Omcan USA CE-CN-0036-ET-1 (Item #48528) |
|---|---|
| Range Type | Electric, countertop hot plates with static oven |
| Total Power | 18.2 kW |
| Electrical | 208-240 V / 60 Hz / 1-Phase, 76–88 A (hard-wired connection required) |
| Hot Plates | (6) solid plates – Large: 8.7" Ø (220 mm), Small: 7" Ø (180 mm) |
| Oven Temperature Range | 122 °F – 500 °F (50 °C – 260 °C) |
| Oven Interior (W × D × H) | 26.6" × 25.8" × 13.9" (676 × 655 × 353 mm) |
| Overall Dimensions (W × D × H) | 36" × 33" × 56.7" (915 × 847 × 1440 mm) |
| Net / Gross Weight | 368 lb (167 kg) / 423 lb (192 kg) |
| Certifications | cCSAus – Electrical Safety | CSA-Sanitation |
| Warranty | 1 year parts & labor (commercial use) |
Ideal Applications
- Full-service restaurants & hotel kitchens
- Catering and banquet facilities
- Institutional cafeterias & commissaries
- Food-truck or ghost-kitchen prep stations requiring single-phase power
Compliance & Warranty
This range meets North American safety and sanitation standards (cCSAus & CSA-Sanitation) and is backed by Omcan’s 1-year parts and labor warranty for worry-free ownership.
Specifications and design are subject to change without notice.
