Omcan Countertop Curved Glass Refrigerated Display Case, 60 Inch, 9.78 Cu. Ft., 3-Shelf, Bottom-Mounted Self-Contained

SKU: 47968
$2,248.68
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Omcan Countertop Curved Glass Refrigerated Display Case, 60 Inch, 9.78 Cu. Ft., 3-Shelf, Bottom-Mounted Self-Contained

Digital controller, rear sliding glass doors, and interior lighting

Showcase chilled foods in a 60-inch curved-glass merchandiser with clear visibility, easy rear access, and dependable self-contained refrigeration.

  • 60-inch countertop refrigerated display case with 9.78 cu. ft. of capacity
  • Curved front glass, glass sides, and interior lighting help merchandise stand out
  • Rear sliding glass doors and three fixed shelves make loading and presentation easier
  • Digital temperature control maintains a 35.6°F to 46°F (2°C to 8°C) holding range
  • Bottom-mounted self-contained refrigeration uses R290 hydrocarbon refrigerant
  • 110-120V / 60Hz / 1-phase operation with a NEMA 5-15P plug

Overall Dimensions:

60.0"W x 23.0"D x 34.9"H

Product Weight:

315.3 lb

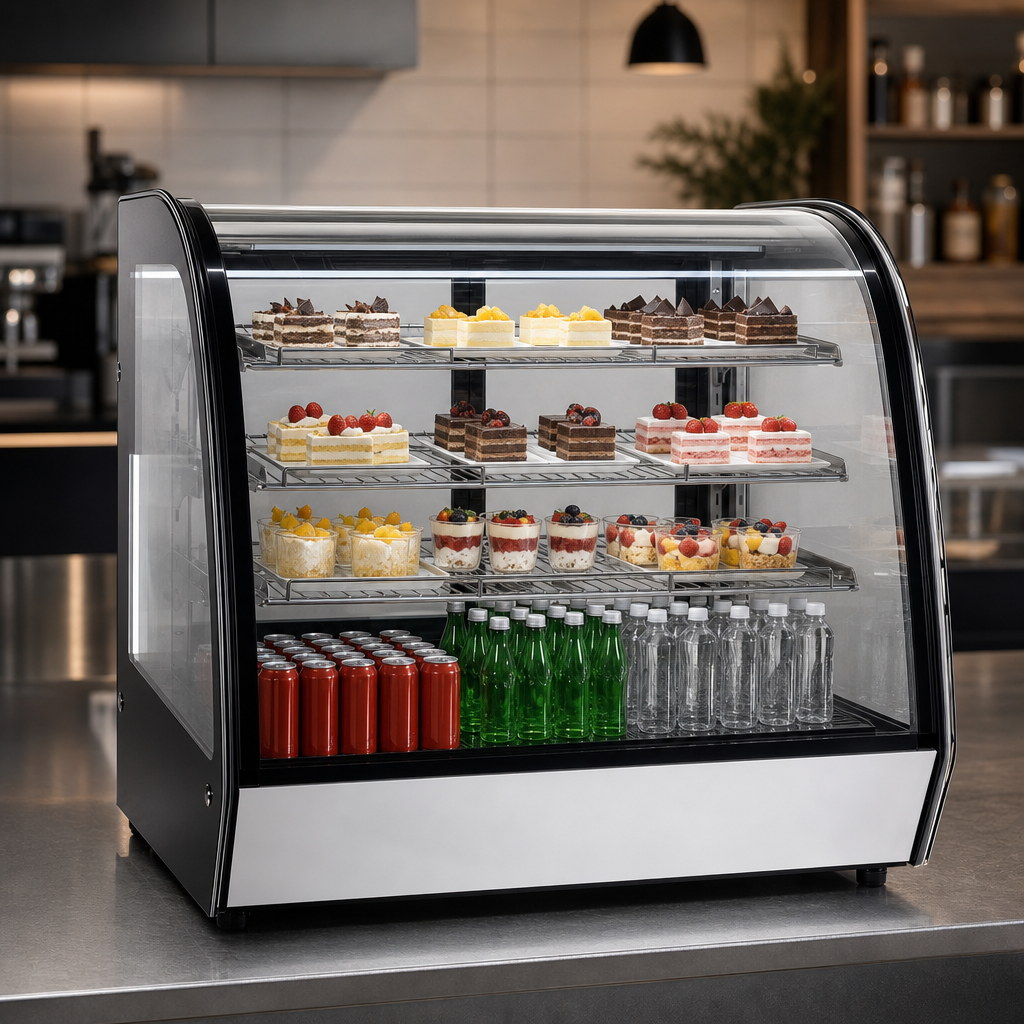

Curved Front Glass Display

Creates an attractive viewing area that helps increase product visibility and impulse sales.

Curved Front Glass Display

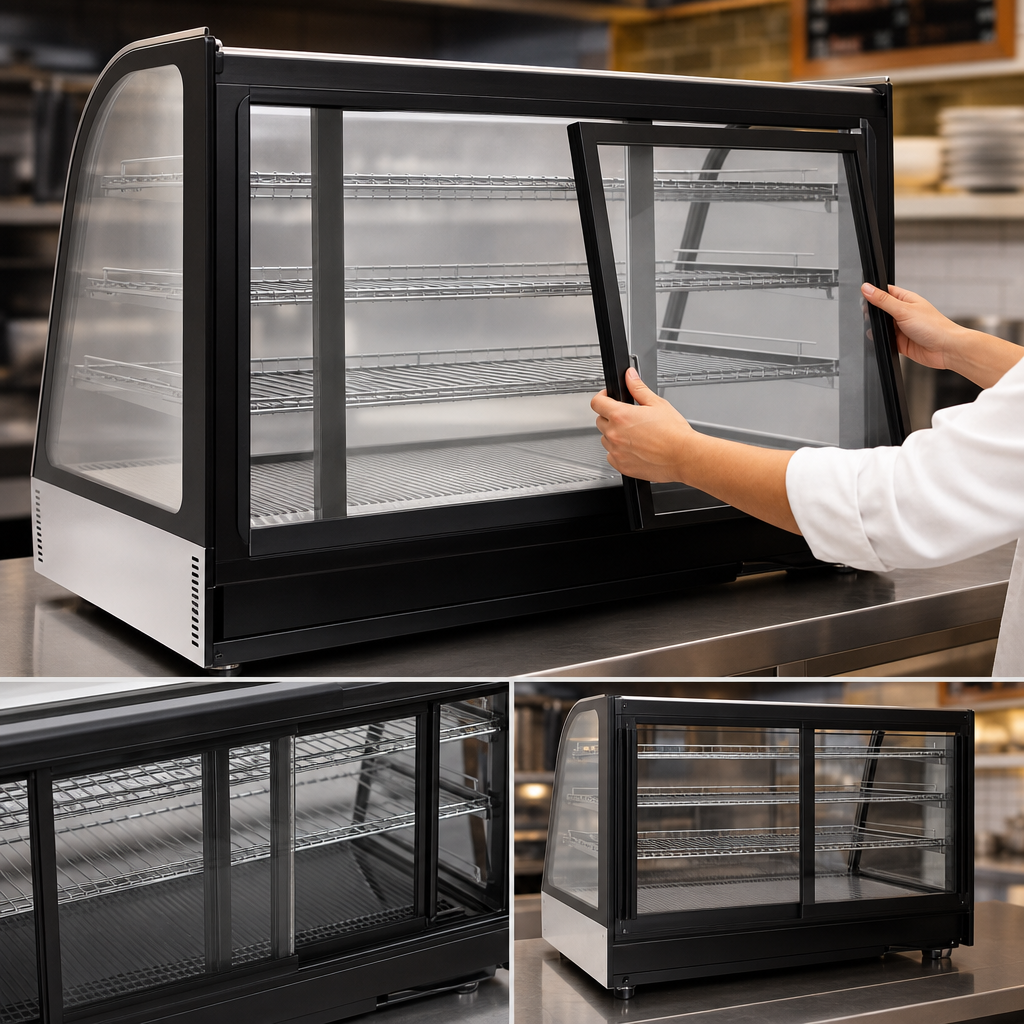

Rear Sliding Glass Doors

Provides convenient back-of-house access for loading and serving displayed items.

Rear Sliding Glass Doors

Three Fixed Shelves

Includes three fixed shelves to organize and present chilled foods.

Interior Lighting

Brightens the display interior to highlight merchandise.

Digital Temperature Controller

Allows operators to monitor and adjust the holding temperature.

Bottom-Mounted Self-Contained Refrigeration

Built-in refrigeration system supports straightforward countertop installation.

R290 Hydrocarbon Refrigerant

Uses an environmentally friendlier R290 refrigerant.

Glass Side Panels

Glass sides give customers a multi-angle view of the displayed products.

Type Refrigerated Display Case
Style Curved Glass
Installation Type Countertop
Service Type Full Service
Capacity 9.78 Cu. Ft. / 277 L
Shelf Quantity 3
Door Quantity 2
Controls Digital
Temperature Range 35.6°F to 46°F (2°C to 8°C)
Refrigeration Type Self-Contained
Compressor Location Bottom Mounted
Refrigerant Type R290 Hydrocarbon
Voltage 110-120 Volts
Amps 15 Amps
Watts 800 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 60 Inches
Shipping Depth 23 Inches
Shipping Height 35 Inches
Shipping Weight 315.3 lb.
Country of Origin China
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1 year parts and labour

Frequently Asked Questions

The unit has a capacity of 9.78 cu. ft. (277 L).
It operates in a 35.6°F to 46°F (2°C to 8°C) temperature range.
It includes 3 fixed shelves and 2 rear sliding glass doors.
It uses bottom-mounted, self-contained refrigeration with R290 hydrocarbon refrigerant.
The unit requires 110-120V / 60Hz / 1-phase power, draws 800 watts, and uses a NEMA 5-15P plug.
Yes, the cutsheet lists a 1-year warranty on parts and labour.
