Omcan USA  |  SKU: 47519

Omcan USA 47519 Bar Equipment

$816.71
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

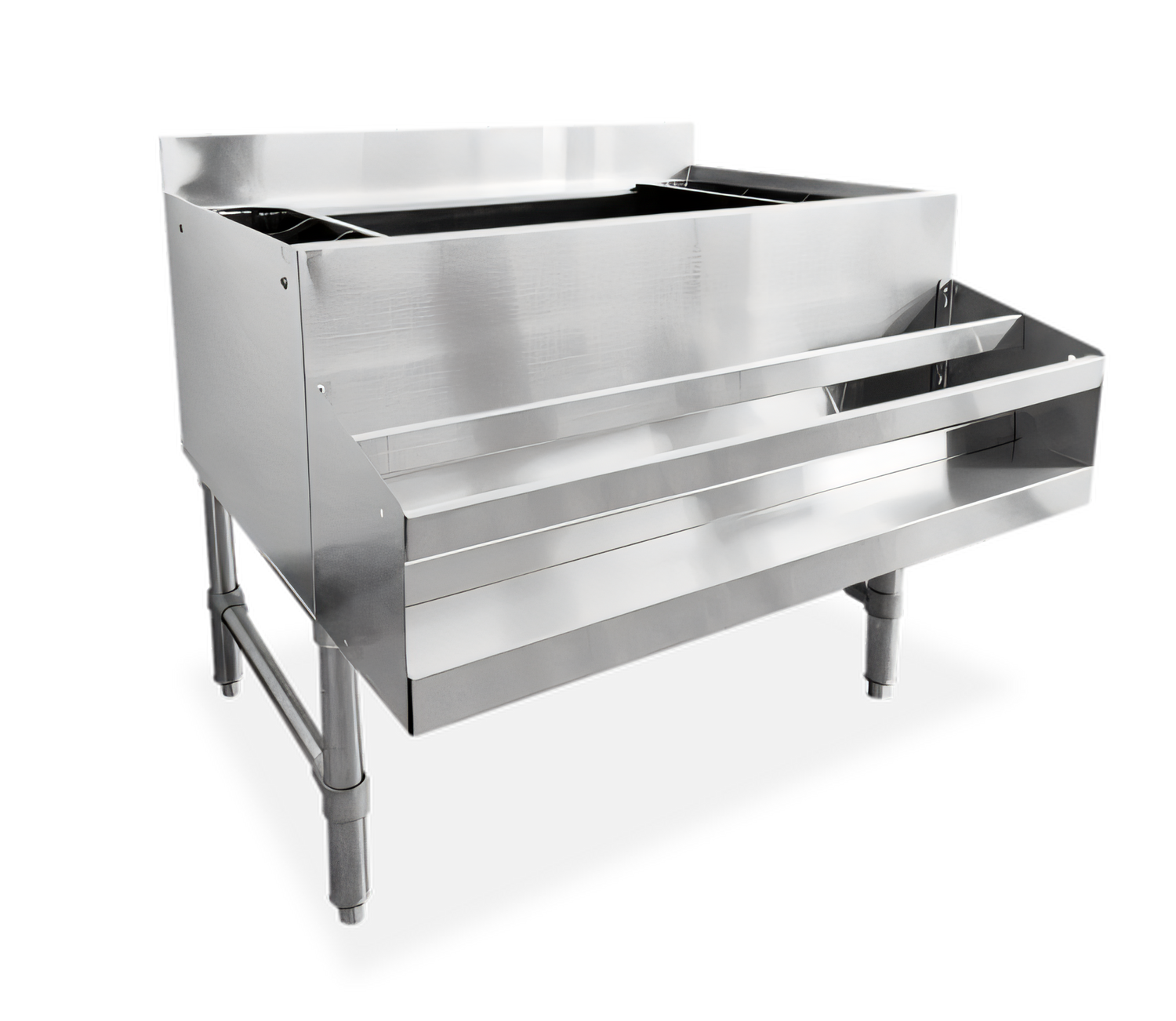

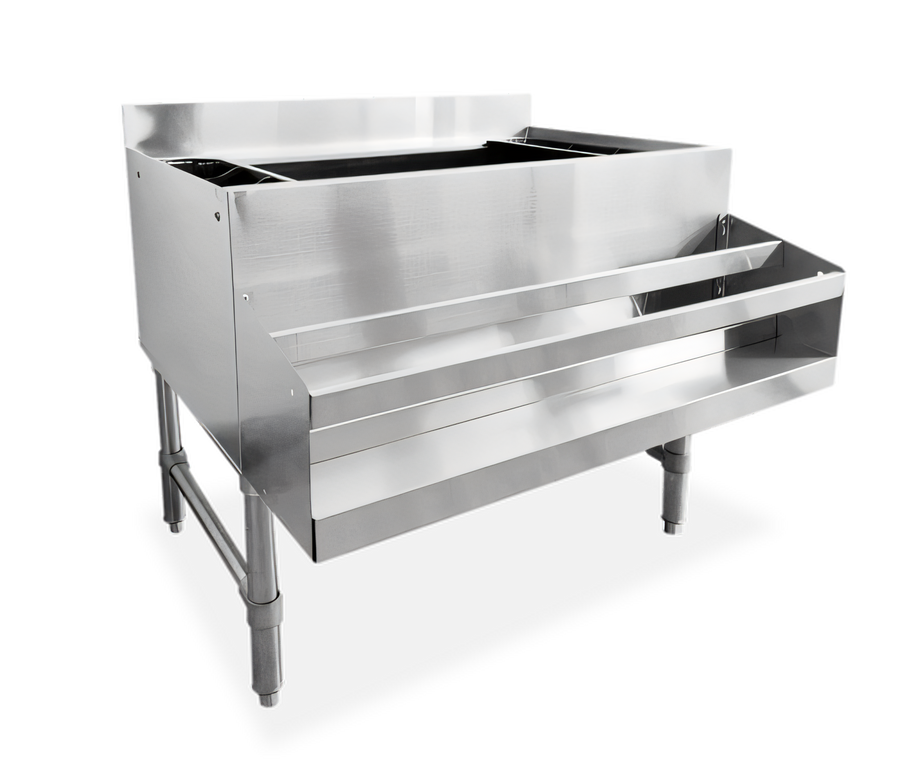

Omcan CS-ICB-24 Stainless Steel Ice Bin

22" W x 14.8" D x 12" Deep • NSF Listed

Designed for busy bars, cafés, and beverage stations, the Omcan CS-ICB-24 keeps ice, mixers, and staff moving smoothly through service. Its food-grade 304 stainless-steel bowl is built to endure daily use while maintaining the pristine look your front-of-house demands.

Key Benefits

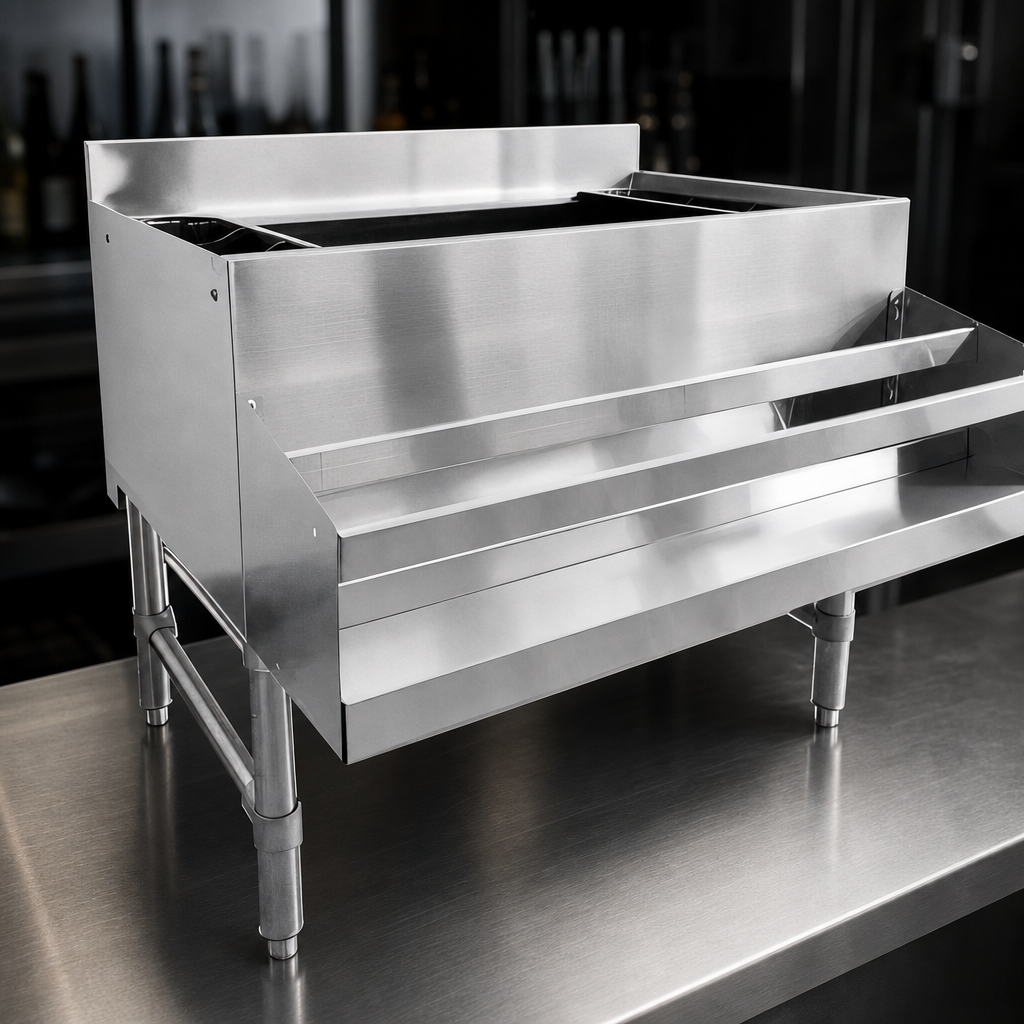

  • 20-gauge 304 SS bowl, top, back & body for superior corrosion resistance.

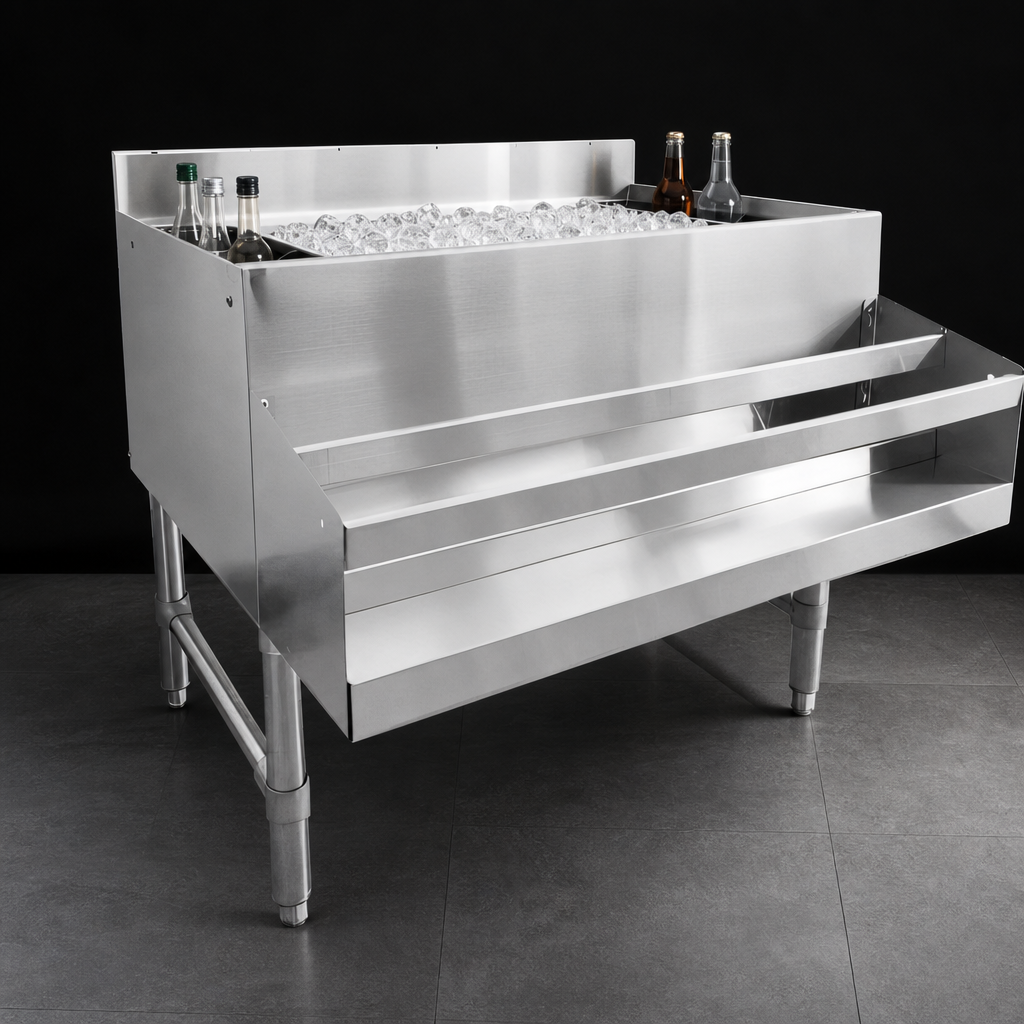

  • Spacious 12" deep bowl holds ample ice for peak service hours.
  • 3" integrated backsplash contains splashes and protects surrounding walls.
  • Includes two removable bottle holders to chill syrups, juices, or liquor.
  • 1" welded drain speeds melt-water removal and clean-up.
  • 18-gauge 430 SS hat channels, sides, bottom & intermediate shelf reinforce structural integrity.
  • Galvanized legs with U-shaped bracing offer rock-solid stability.
  • Adjustable plastic bullet feet level the unit on uneven floors.
  • NSF certified for safe, hygienic ice storage in commercial settings.
Specifications
Model CS-ICB-24
Overall Width 22 in / 559 mm
Overall Depth 14.8 in / 376 mm
Bowl Depth 12 in / 305 mm
Primary Construction 20-ga Type 304 Stainless Steel
Internal Supports & Shelf 18-ga Type 430 Stainless Steel
Legs & Bracing Galvanized Steel Legs with U-Brace
Feet Adjustable Plastic Bullet Feet
Drain Size 1 in (25 mm)
Certifications NSF

Warranty: 6-month limited parts & labor coverage for non-electrical equipment. Refer to Omcan’s warranty terms for full details.

Looking for additional underbar solutions? Explore the full Omcan collection or contact us for expert assistance.

Features & Specs

Manufacturer

Omcan USA

Certifications

NSF

Height

33.0in

Width

24.0in

Depth

29.0in

Shipping Weight

67.0lbs

Construction

stainless steel & galvanized

Cold Plate

without

Depth (front - back) OA

28" - 31"

Width (side - side) OA

19" - 24"

Bin Depth

12" deep ice bin

Splash

3"

Specifications

(CS-ICB-24) Ice Bin, 22"W x 14.8"D x 12" deep bowl, 20 gauge 304 stainless steel bowl, top, back, & body, 3"H backsplash, (2) bottle holders, 1" drain, plastic bottle holder,18 gauge 430 stainless steel hat channel, back, side bottom & intermediate shelf, galvanized legs with "U" shape leg bracing & adjustable plastic bullet feet, NSF
