Description

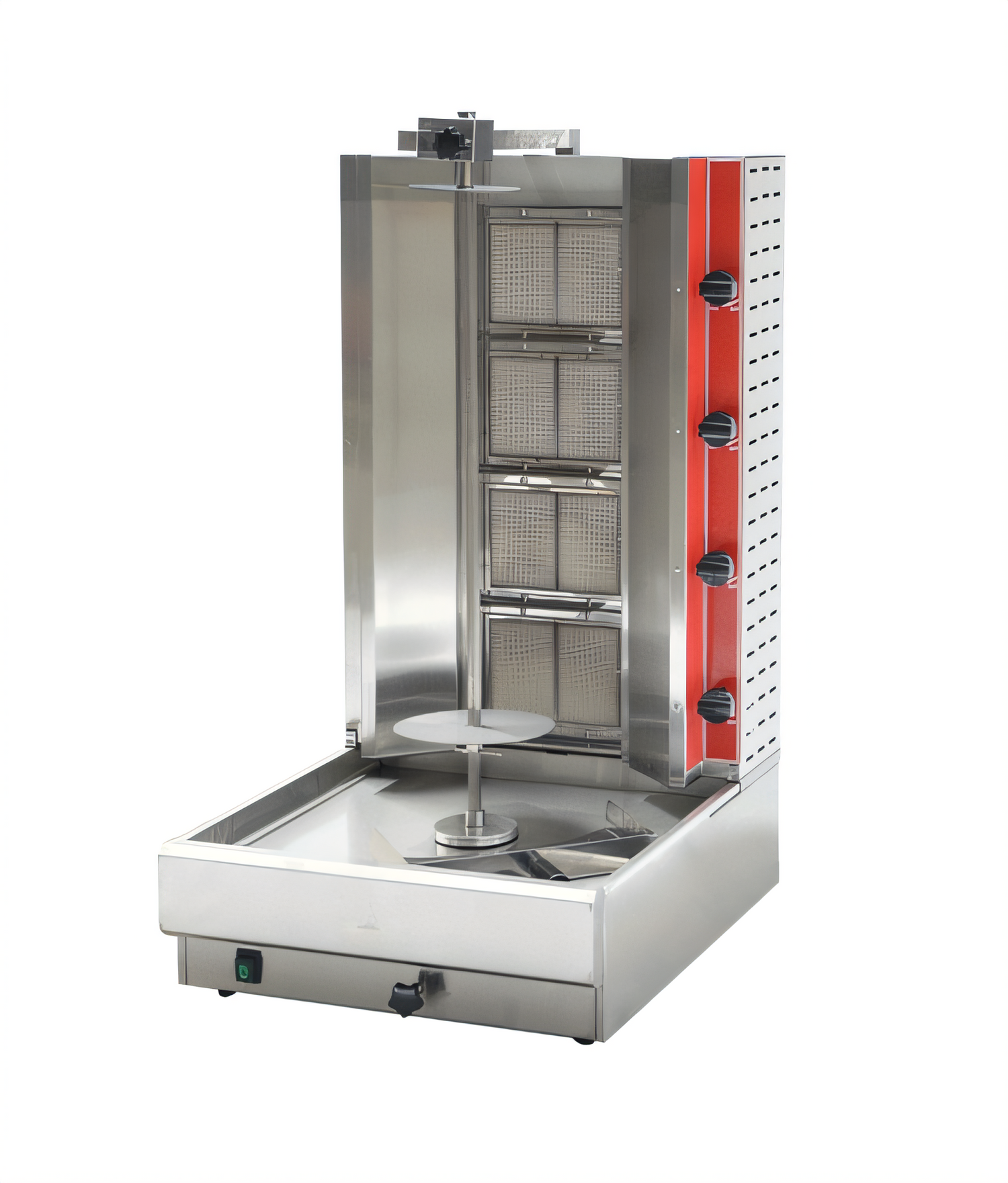

Omcan CE-CN-KB-4 Natural Gas Doner Kebab Machine

4 Infrared Burners • 38,000 BTU • 100 lb Meat Capacity

Serve perfectly caramelized gyro, shawarma, tacos al pastor and more with Omcan’s flagship 4-burner vertical broiler. The CE-CN-KB-4 combines robust 38,000 BTU output, precise burner control and a heavy-duty stainless-steel build in a compact footprint— giving busy kitchens the speed, capacity and consistency they need shift after shift.

Features You’ll Value Every Day

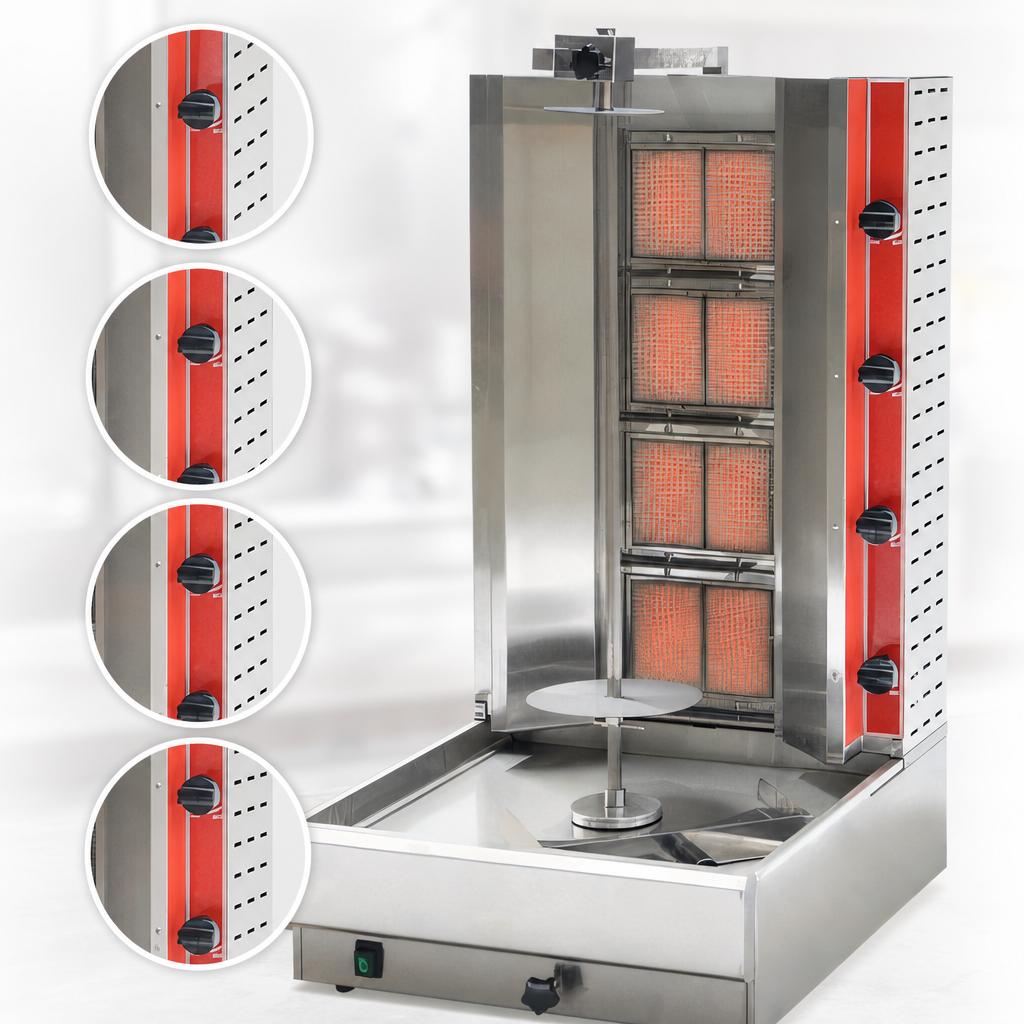

  • Four individually controlled infrared burners for custom heat zones and energy savings.

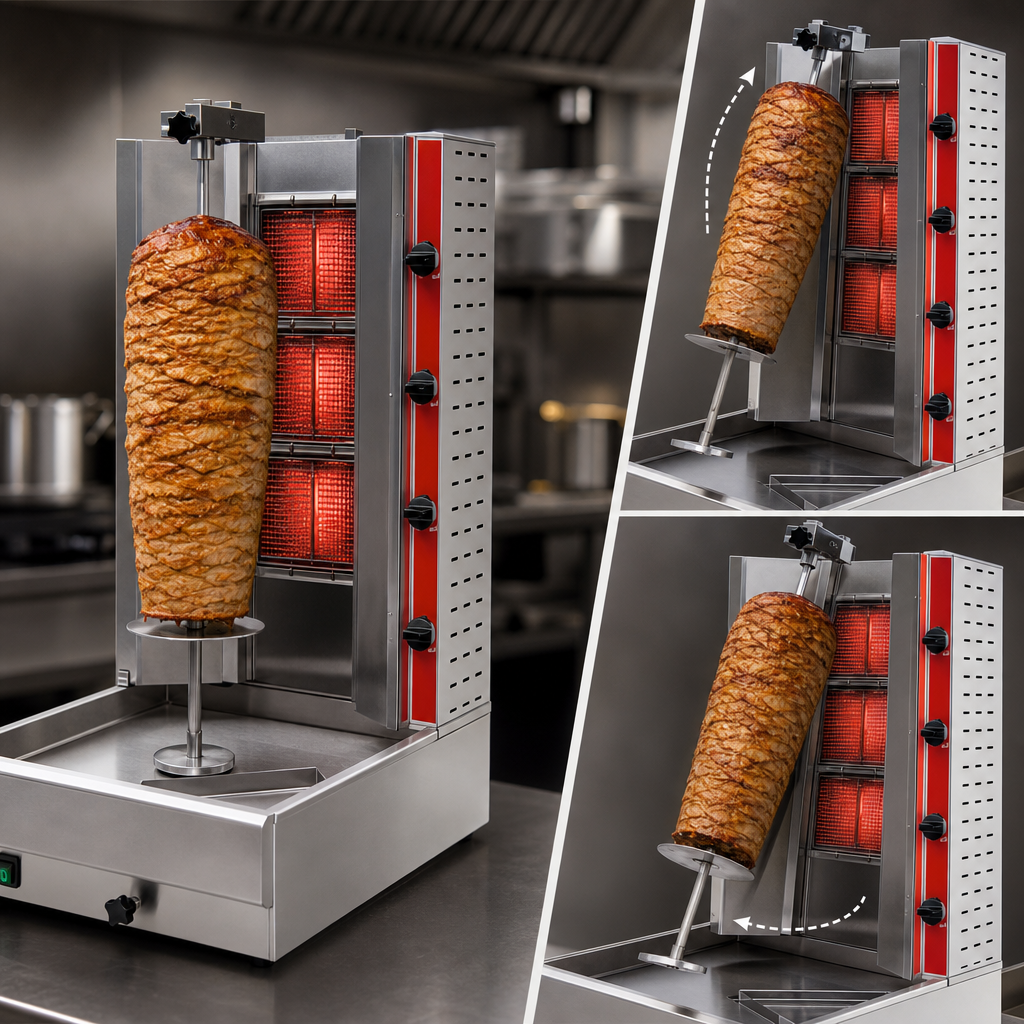

  • Adjustable spit angle lets you position meat closer or farther from the burners for flawless browning.
  • Natural gas factory-set; LP conversion kit (jets & regulator) included for maximum installation flexibility.
  • Stainless-steel cabinet, spit and drip pan resist corrosion and clean up fast.
  • 120 V motor keeps up to 100 lb (45 kg) meat cone turning smoothly for even cooking.
  • Generous drip tray captures juices for sauces and keeps work areas clean.
  • Certified cETLus & ETL Sanitation—approved for commercial kitchens across North America.
Technical Specifications
Model / Item # CE-CN-KB-4 / 47497
Meat Capacity 100 lb (45 kg)
Burners 4 infrared, individually controlled
Total Heat Output 38,000 BTU (NG) / 32,000 BTU (LP)
Gas Connection Natural gas ¾″ NPT (field convertible to LP)
Electrical 120 V / 60 Hz / 1 Ph – NEMA 5-15 plug
Dimensions (W × D × H) 21″ × 22.7″ × 37″ (533 × 577 × 940 mm)
Shipping Dimensions 30″ × 25″ × 44″
Net / Ship Weight 70 lb / 110 lb
Construction All stainless steel
Certifications cETLus, ETL Sanitation
Warranty 1 year parts & labor

Propane jets and regulator included—conversion must be performed by a licensed technician.

Perfect For
  • Greek, Turkish & Middle-Eastern restaurants
  • Taquerías & food-truck al pastor operations
  • Catering kitchens needing a high-capacity, countertop broiler
Installation Notice: All gas equipment must be installed and connected by a qualified professional in accordance with local codes. A dedicated 120 V outlet is required for motor operation.

Features & Specs

Manufacturer

Omcan USA

Certifications

cETLus, ETL-Sanitation

Height

37.0in

Width

21.0in

Depth

22.7in

Shipping Weight

110.0lbs

Height

30" - 39"

Capacity

100 - 144 lbs

Specifications

(CE-CN-KB-4) Doner Kebab Machine / Vertical Broiler / Shawarma Grill, (4) burners, natural gas, 100 lbs meat capacity, (4) individual controlled infrared burners, 38,000 BTU, gas vertical broiler (Gyro), adjustable spit angle, includes LP conversion kit, 120v/60/1-ph, cETLus, ETL Sanitation
