Omcan USA 46798 Undercounter Dishwashers
Description

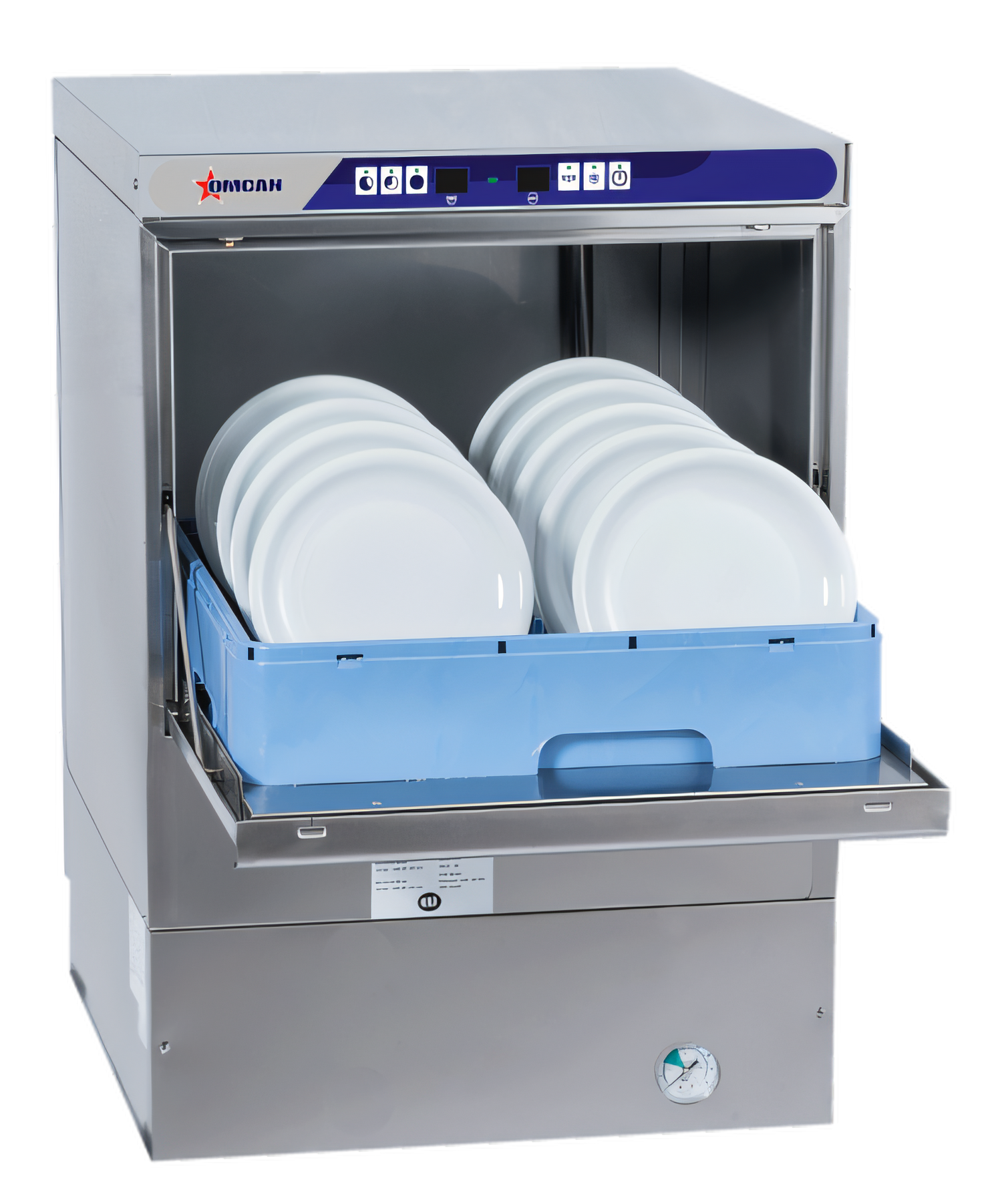

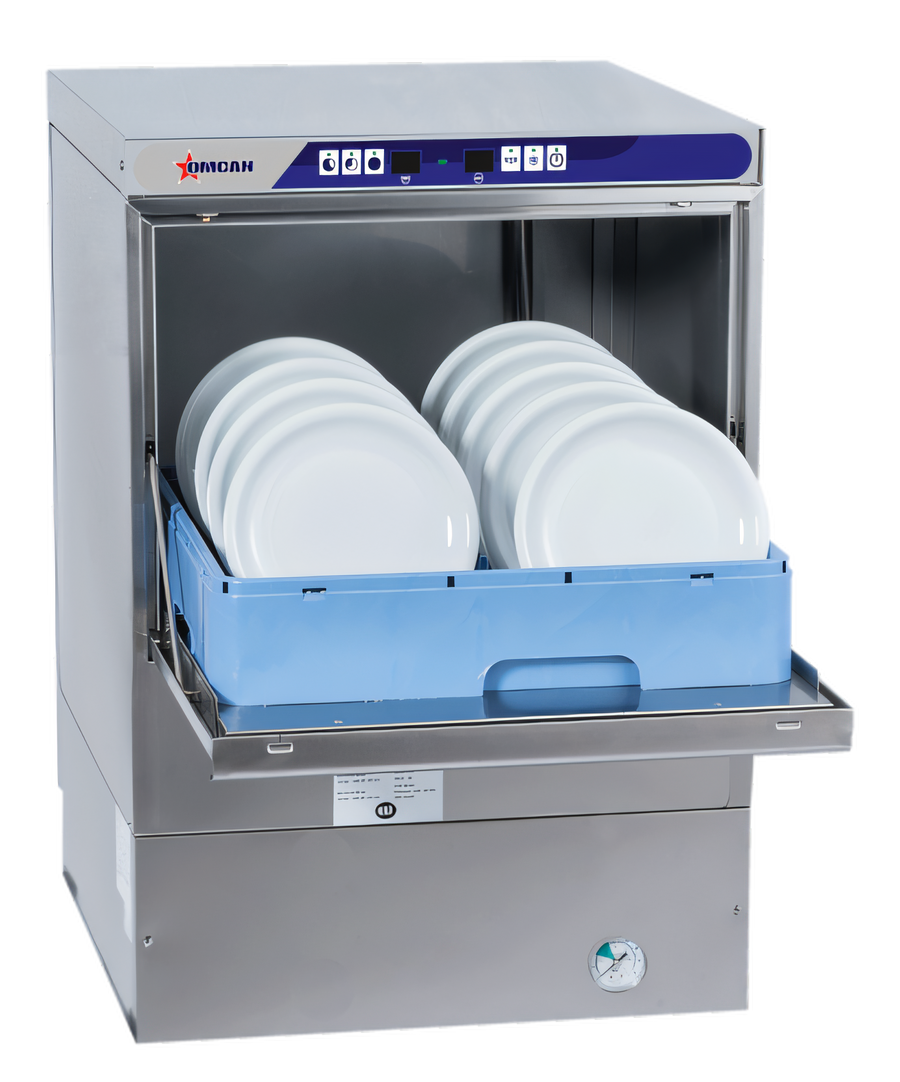

Omcan CD-GR-0500 High-Temperature Undercounter Dishwasher
20" x 20" rack • up to 1,080 dishes/hr • built-in digital controlsEngineered for busy cafés, bars, and restaurants, the Omcan CD-GR-0500 packs heavy-duty cleaning power into a compact 23"-wide footprint. A 3.0 kW booster heater delivers 161 °F sanitizing rinse temperatures every cycle—no external booster or chemical sanitizers needed—while the double-skinned stainless-steel door keeps noise and heat where they belong: inside the machine.
Why you’ll love it
- Three configurable wash programs (103 s, 163 s, 223 s) for light, standard, or heavy loads.

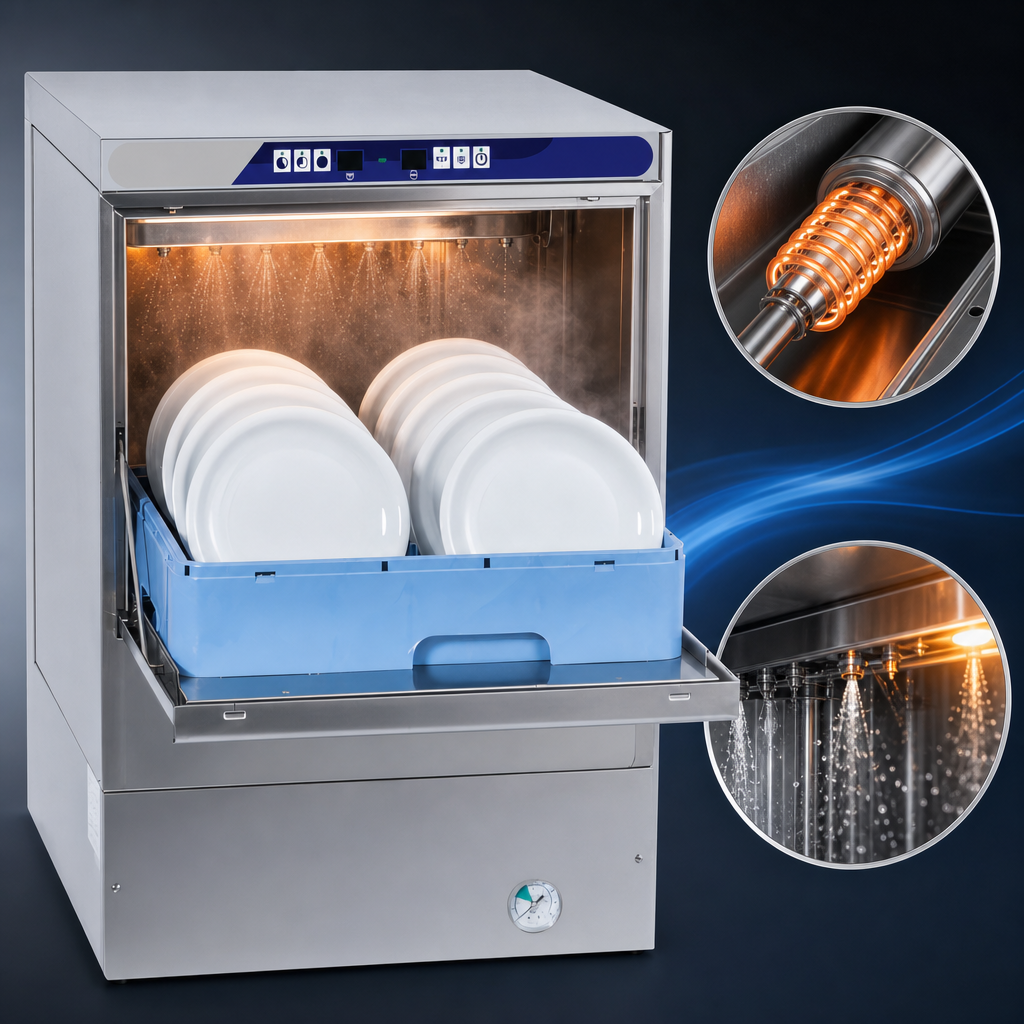

- High-temperature sanitizing rinse with built-in 3 kW booster—NSF proof rinse feature guarantees ≥161 °F.
- Built-in chemical pumps, automatic fill, and self-cleaning mode streamline daily operation.
- Thermal protection on wash & booster tanks extends component life.
- 304 stainless-steel cabinet, wash arms, and handle resist corrosion in the harshest kitchens.
- IP44-rated ¾ HP wash pump provides powerful, reliable water flow.
- Digital interface with tank & boiler thermometers plus self-diagnostics.
- Includes (1) peg rack, (1) flat rack, and (1) cutlery tray—ready to work right out of the box.
- cETLus & NSF certified; ships on a pallet for damage-free delivery.
Technical specifications
| Model / Item | CD-GR-0500 / 46798 |
|---|---|
| Rack size | 20" × 20" (500 × 500 mm) |
| Production | Up to 28 racks / hr | approx. 1,080 dishes / hr* |
| Wash pump | ¾ HP (0.75 HP) – IP44 rated |
| Heating elements | Booster 3.0 kW | Wash tank 2.8 kW |
| Total power / amps | 3.6 kW | 16 A |
| Electrical | 208-240 V, 60 Hz, 1-phase (hard-wired) |
| Water consumption | 0.58 gal per rack (2nd program) | 11 gal / hr |
| Water connection | ¾" inlet, 20 psi ± 5 (min 55 °C supply) |
| Drain connection | 1" with automatic drain pump |
| Tank capacities | Booster – 6 L | Wash – 35 L |
| Clearance | 14" dish clearance | 12.8" useful door opening |
| Net dimensions (W × D × H) | 22.5" × 24" × 33" (573 × 617 × 836 mm) |
| Height w/ door open | 38" (966 mm) |
| Shipping (gross) | 23" × 27" × 38.5" | 132 lb (60 kg) – ships on pallet |
*Dish per hour estimate based on 36 plates per rack.
Installation requirements
- Dedicated 208-240 V / 1-phase circuit, hard-wired by a licensed electrician.
- ¾" hot water supply (≥131 °F / 55 °C) at 20 psi ± 5.
- 1" drain connection to floor or wall standpipe.
- Allow steam ventilation; stainless-steel surrounding surfaces recommended.
What’s in the box
- (1) 20" × 20" peg rack
- (1) 20" × 20" flat rack
- (1) Cutlery tray
- User & installation manual
- One-year parts & labor warranty documentation
Upgrade your dish room with the Omcan CD-GR-0500 and enjoy spotless, fully sanitized wares every time—no compromises, no chemicals, no hassle.
