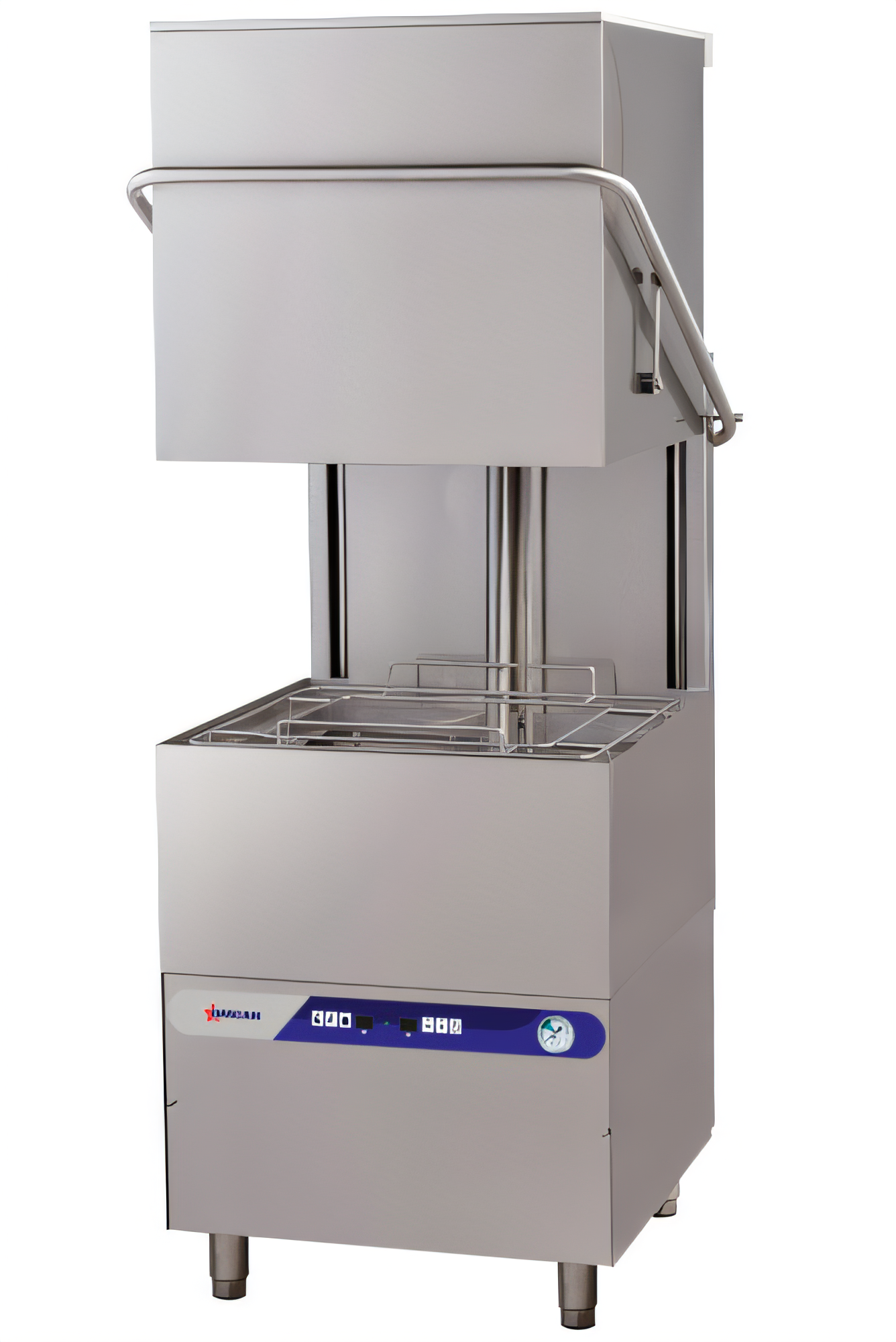

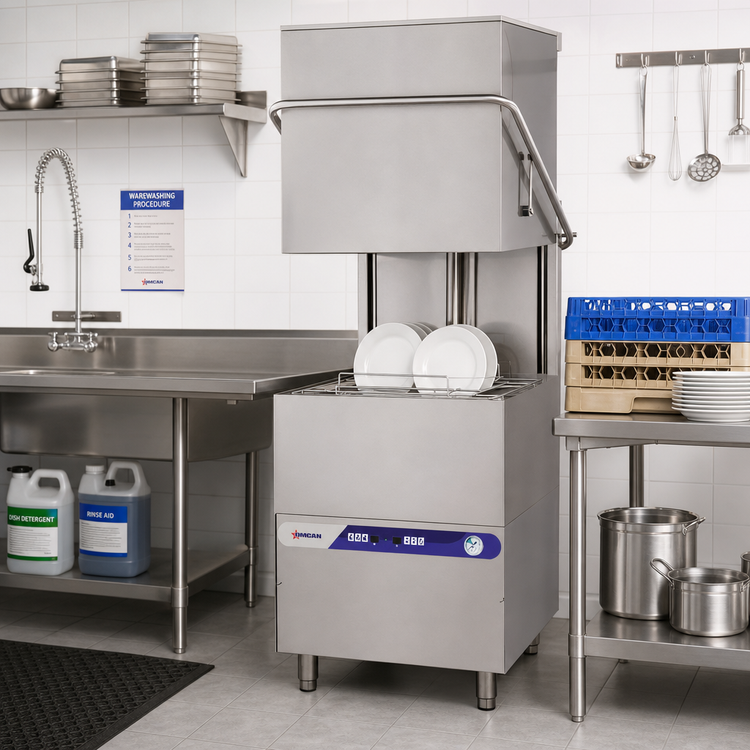

Omcan Upright High-Temperature Door-Type Dishwasher with Digital Control, 20 x 20 Rack, 208-240V

Universal Straight-Thru/Corner Design, Built-In Booster Heater, 3 Wash Cycles

Built for demanding kitchens, this universal upright dishwasher combines high-temperature sanitizing, digital controls, and a built-in booster heater for reliable, fast rack turnover.

  • Universal straight-thru or corner design helps it fit a variety of kitchen layouts.
  • High-temperature sanitizing with fresh-water rinse and built-in booster heater supports reliable rinse performance.
  • Three wash programs, self-diagnostic mode, and self-cleaning mode help streamline daily operation.
  • 20" x 20" rack capacity and 1080 dishes per hour output support high-volume service.
  • 304 stainless steel construction and double-skin door improve durability in commercial use.
  • Includes a peg rack, flat rack, and cutlery tray to get started.
  • Requires 208-240V single-phase power; plug and wire are not included.

Overall Dimensions:

29.5"W x 34.6"D x 55.6"H

Product Weight:

299.0 lb

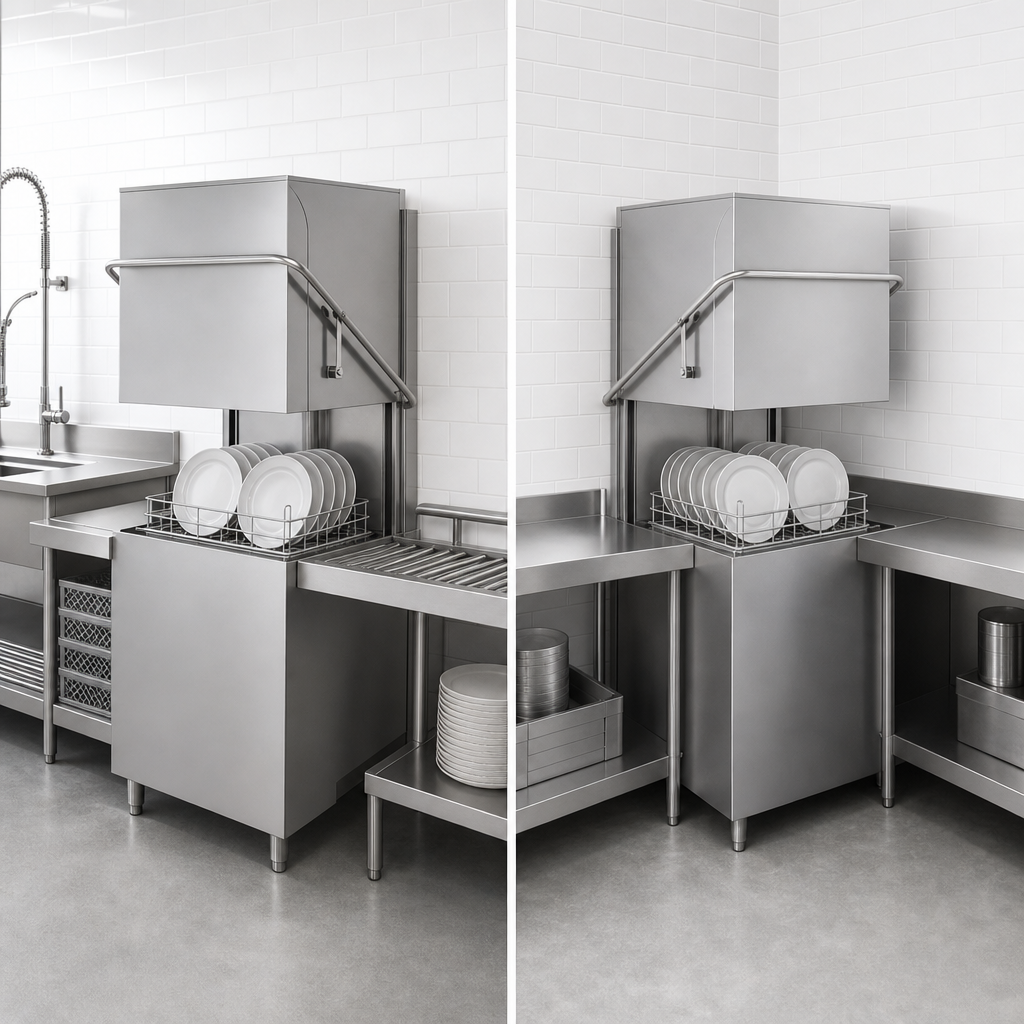

Universal Straight-Thru/Corner Design

Flexible layout supports either straight-through or corner installation.

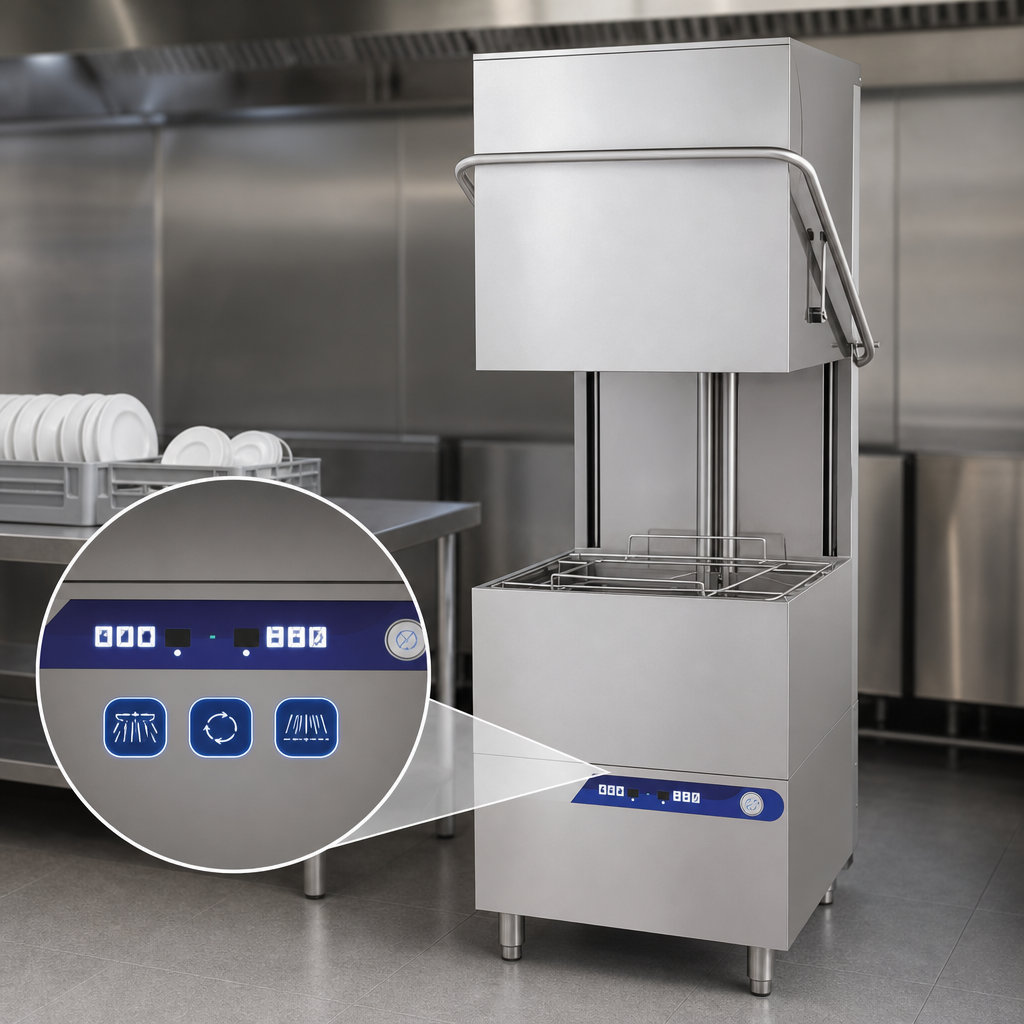

Digital Control With Three Wash Programs

Digital controls make operation simple and provide access to three wash cycles.

High-Temperature Sanitizing

Designed for high-temperature washing and rinsing with fresh-water rinse performance.

Built-In Booster Heater

Integrated booster heater helps guarantee rinse temperature for sanitary results.

304 Stainless Steel Construction

Body and handle are built from corrosion-resistant 304 stainless steel for long-term durability.

Automatic Fill And Drain Pump

Automatic fill and an automatic drain pump help simplify setup and daily operation.

Self-Cleaning And Self-Diagnostic Modes

Self-cleaning mode and built-in diagnostics help reduce maintenance effort and downtime.

Thermal Protection And Temperature Monitoring

Thermal protection for the wash and booster systems plus tank and boiler thermometers help protect operation.

Type Dishwasher
Style Door-Type
Installation Type Floor Model
Controls Digital
Capacity 1080 Dishes Per Hour
Material 304 Stainless Steel
Voltage 208-240 Volts
Amps 39 Amps
Watts 10.5 kW
Hertz 60 Hz
Phase 1-Phase
Water Connection Required
Drain Connection Required
Water Inlet Size 3/4 Inch
Drain Connection Size 1.2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 56 Inches
Shipping Weight 299 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Web page PDF Download PDF Techincal drawing PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses a 20" x 20" (500 x 500 mm) basket size.
It requires 208-240V / 60Hz / 1-phase power, draws 39 amps, and has a 10.5 kW power rating. Plug and wire are not included.
The dishwasher includes 1 peg rack, 1 flat rack, and 1 cutlery tray.
Yes. The unit is designed for straight-thru or corner installation.
The cutsheet notes a connection to a minimum 55°C water supply.
The cutsheet lists a 1-year warranty for parts and labor.
