Description

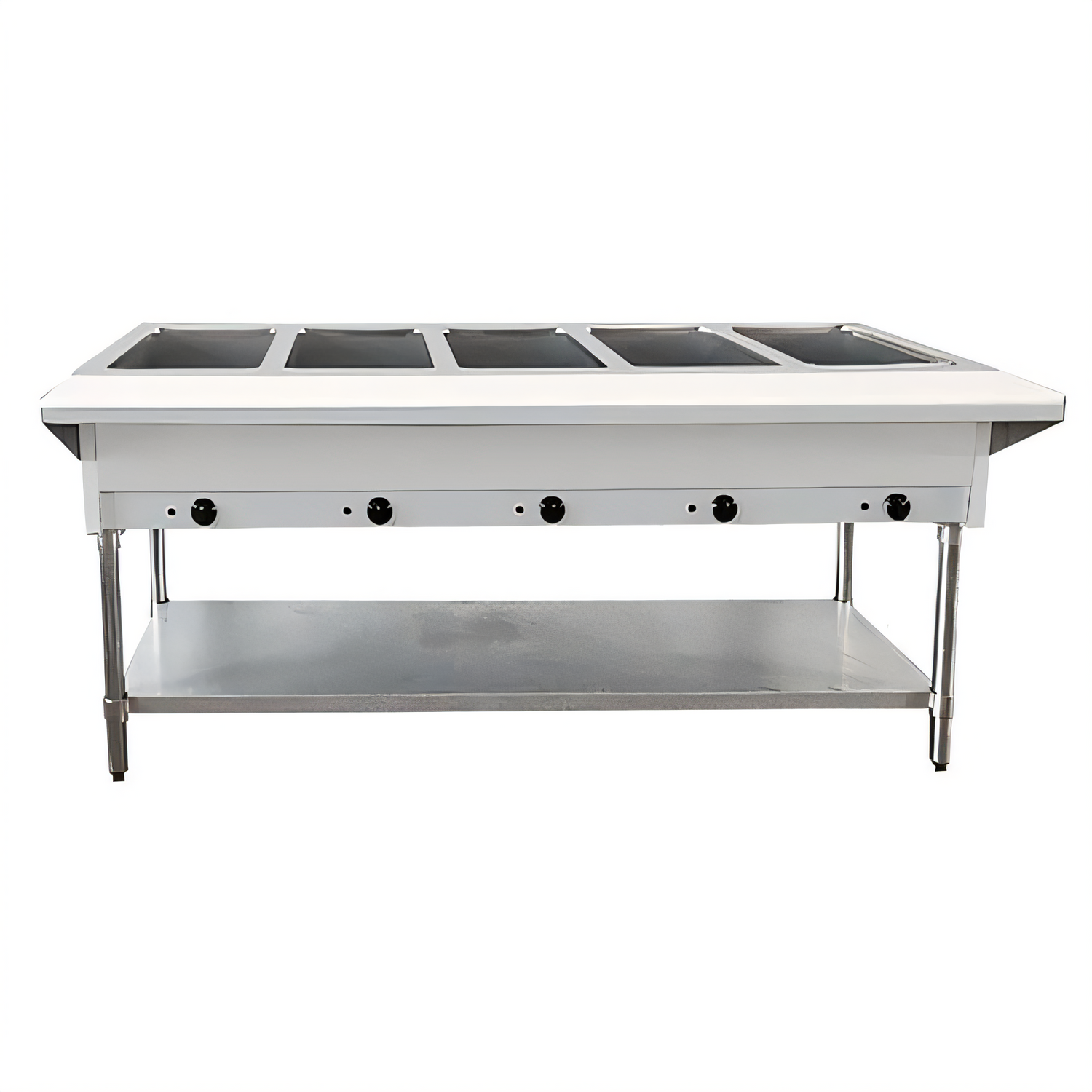

Omcan FW-CN-0005-FH 5-Well Electric Steam Table

72" open-well | 5 kW | 240 V | cETLus & ETL-Sanitation

Built for busy buffet lines, cafeterias, and catering operations, this heavy-duty stainless steel steam table keeps entrées, sides, and sauces hot, safe, and ready to serve. Five independently controlled open wells let you hold multiple menu items at their perfect temperature—all in one compact footprint.

Key Features

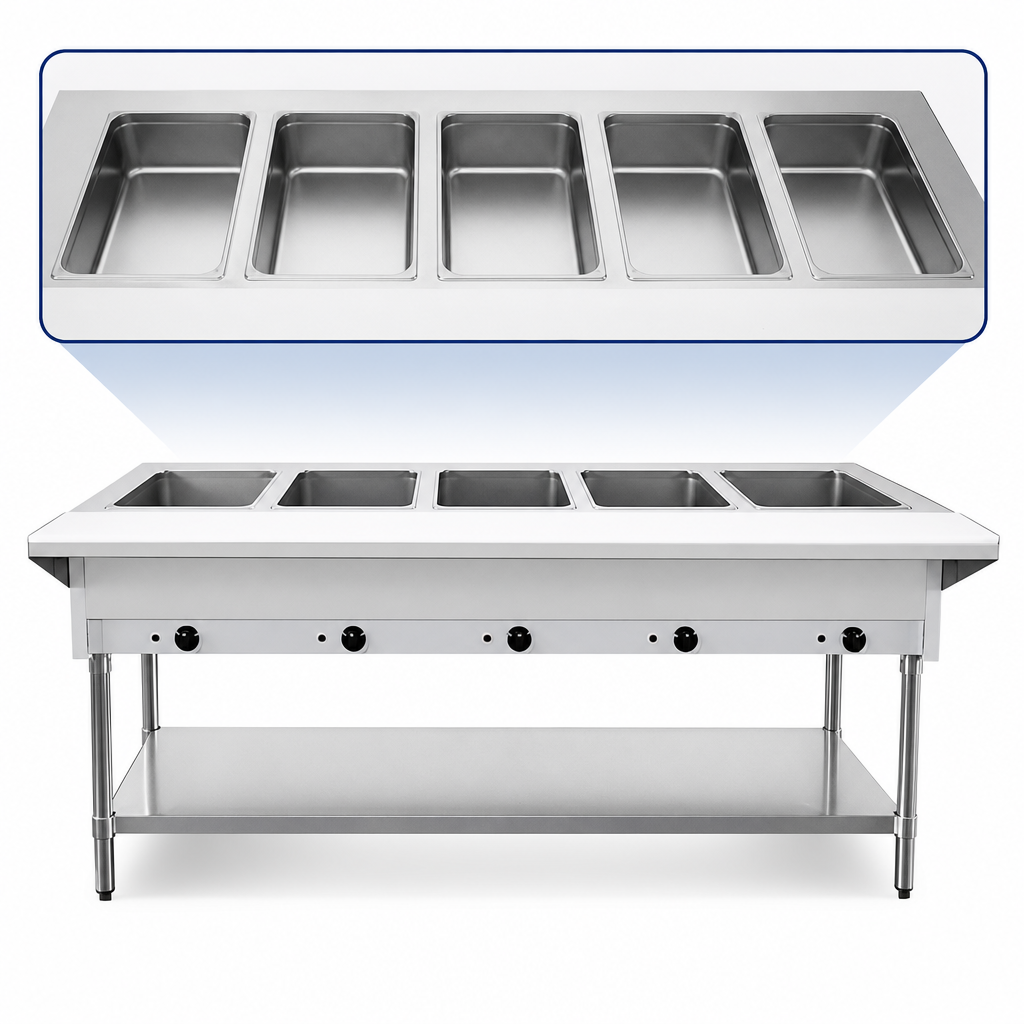

  • Holds five standard 12" × 20" full-size pans up to 6" deep (pans sold separately).
  • Five independent infinite-control knobs—fine-tune each well from ambient to 212 °F (100 °C).
  • All-stainless construction—body, wells, heating elements, feet, and undershelf—for exceptional durability and easy cleaning.
  • Removable 8"-deep polyethylene cutting board adds a convenient plating and prep station.
  • Height-adjustable stainless steel undershelf keeps lids, utensils, or extra pans within reach.
  • Adjustable stainless bullet feet ensure a level, rock-solid workstation on any floor.
  • Factory-wired power cord with NEMA 6-30P plug—no hardwiring required.
  • Certified cETLus & ETL-Sanitation for electrical and food-safety compliance.

Perfect For

Restaurants • Hotel breakfast & banquet lines • School & corporate cafeterias • Senior living facilities • Catered events

Specifications

Model / Item # FW-CN-0005-FH / 46648
Pan Capacity 5 full-size pans (12.78" × 20.78" × 6")
Overall Dimensions 72" W × 30" D × 34" H (1830 × 772 × 870 mm)
Cutting Board Size Approx. 69.7" W × 18" D × 2" H (polyethylene)
Undershelf Size 69.7" W × 18" D (adjustable)
Temperature Range Ambient to 212 °F / 100 °C
Electrical 5 kW, 240 V, 60 Hz, 1-phase, 20.8 A
Plug Type NEMA 6-30P (cord included)
Net Weight 150 lb / 68 kg
Certifications cETLus, ETL-Sanitation
Country of Origin Made in China for Omcan USA

Ships on a pallet for secure transport. Minimal assembly required—attach feet, position the cutting board, and connect to a dedicated 240 V outlet.

Note: Food pans and lids are not included. Always keep wells filled to the recommended water level and use NSF-listed pans for best results.

Features & Specs

Manufacturer

Omcan USA

Certifications

cETLus, ETL-Sanitation

Height

34.0in

Width

72.0in

Depth

30.0in

Shipping Weight

194.0lbs

Working Height

34"

Design

open shelf base

Pan Capacity

(5) pan

Top Construction

stainless steel

Type

stationary

Base Finish

stainless steel

Overall Width (side - side)

61" - 72"

Specifications

(FW-CN-0005-FH) Electric Open Well Steam Table, 72"W x 30"D x 34"H, (5) full size pan capacity (pans not included), (5) independent infinite controls, removable polyethylene cutting board, undershelf, adjustable stainless steel feet, stainless steel construction, 5 kW, 240v/60/1-ph, 20.8 amps, cord, NEMA 6-30P, cETLus, ETL-Sanitation (shipped on pallet)
