Description

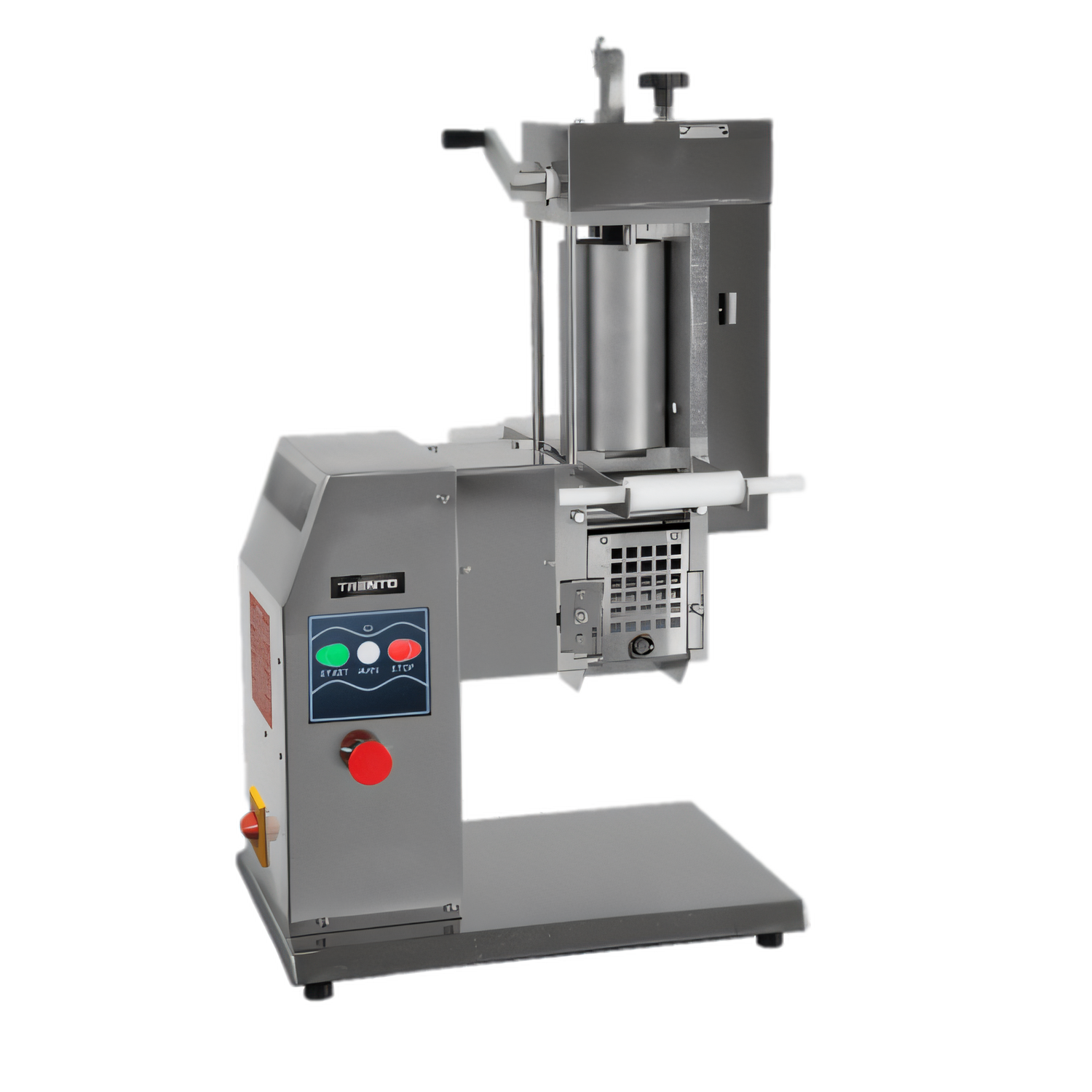

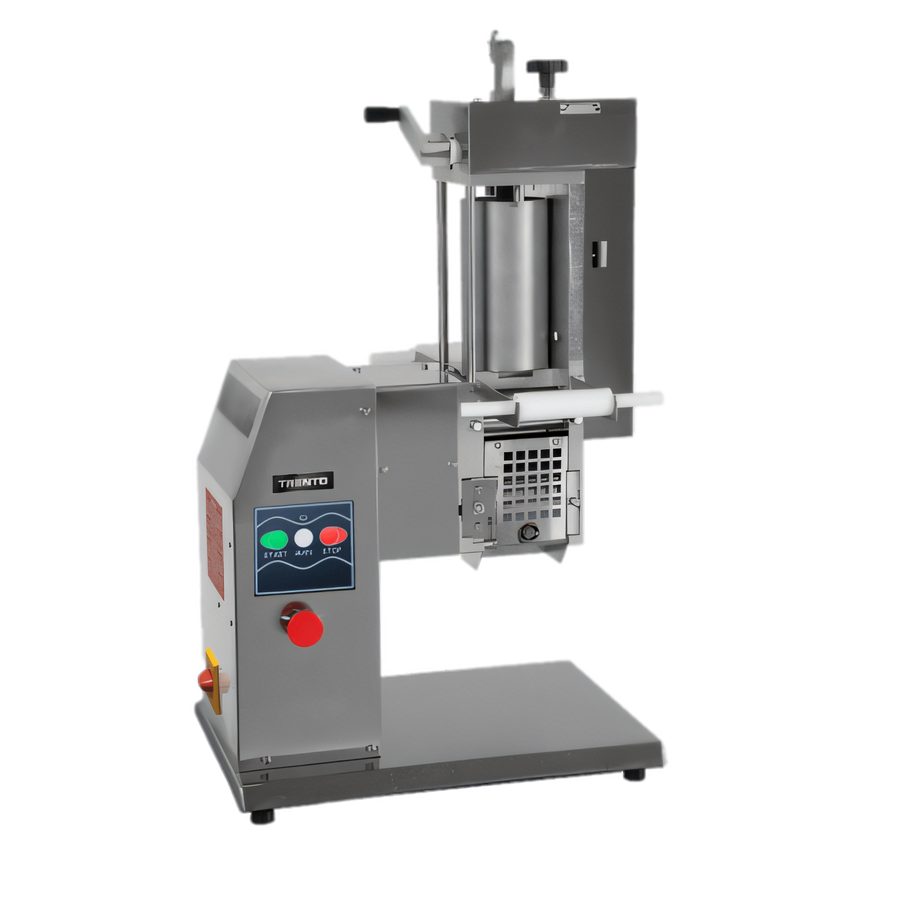

Omcan PM-IT-0030-R Countertop Ravioli Machine
44-55 lb/hr • 0.25 kW • 220 V Single-Phase • Made in ItalyTurn fresh pasta dough into perfectly sealed ravioli in minutes. Built for busy pasta shops, bakeries, delis, and catering kitchens, the Omcan PM-IT-0030-R delivers professional output without taking up valuable floor space.
Key Features
- Produces 20-25 kg (44-55 lb) of ravioli per hour.
- Quick-swap, interchangeable moulds – one mould of your choice is included.
- Adjustable filling regulator for the ideal pasta-to-filling ratio.
- Accepts any soft filling: meat, cheese, vegetables, and more.
- 4″ pasta sheet width for uniform products in every batch.
- Food-grade stainless steel construction for durability and fast clean-up.
- Compact countertop footprint (19″ W) and light weight (99 lb).
- Energy-efficient 0.25 kW motor with factory-installed NEMA 6-15P plug.
Compatible Ravioli Moulds
Choose one mould at the time of purchase. Additional moulds are sold separately for limitless menu creativity.
| Shape | Finished Size | Item # |
|---|---|---|
| Crescent | 2.75″ × 1.5″ (70 × 40 mm) | 47404 |
| Square – Small | 1″ (28 mm) | 47405 |
| Square – Medium | 1.75″ (43 mm) | 47406 |
| Square – Large | 2″ (55 mm) | 47407 |
| Triangle | 2″ × 2.75″ (60 × 50 mm) | 47408 |
| Round | 1.75″ (42 mm) | 47409 |
| Oval | 3.25″ × 1.5″ (83 × 70 mm) | 47410 |
Technical Specifications
| Item / Model | #46296 / PM-IT-0030-R |
|---|---|
| Output Capacity | 20-25 kg (44-55 lb) per hour |
| Pasta Sheet Width | 4″ (100 mm) |
| Motor Power | 0.25 kW |
| Electrical | 220 V / 60 Hz / 1-Phase |
| Plug Type | NEMA 6-15P |
| Net Dimensions (W × D × H) | 19″ × 17.7″ × 29″ |
| Net Weight | 99 lb (45 kg) |
| Construction | Stainless steel |
| Country of Origin | Italy |
| Shipping | Ships on pallet – 128 lb (58 kg); 28″ × 17.7″ × 35″ |
| Warranty | 1 year parts & labor |
Recommended Accessories
- Sheet Roller (Item 46297) – prepares consistent pasta sheets for continuous feeding.
- Special Sheet Die (Item 46298) – adapts select pasta machines (Models 13364 / 49118) for direct feed.
Important: This unit is intended for commercial use. Read the operator’s manual before first use and connect only to a properly grounded 220 V circuit.
Features & Specs
Features & Specs
Manufacturer
Omcan USA
Certifications
Made in Italy
Height
29.0in
Width
17.7in
Depth
18.8in
Shipping Weight
127.8lbs
Specifications
(PM-IT-0030-R) Ravioli Machine, countertop, 44-55 lb output/hour, adjustable filling amount, interchangeable molds, 0.25kW, 220v/60/1-ph, NEMA 6-15P, stainless steel construction, Made in Italy (shipped on pallet)
