Key specifications

Amps
12.5 Amps
Phase
3-Phase
Dimensions
100.0"W × 69.0"D × 101.0"H
Type
Curing Cabinet
Style
Freestanding
Installation Type
Floor Model
Spec sheet
Omcan SKU: 45487 UPC: 690207454876

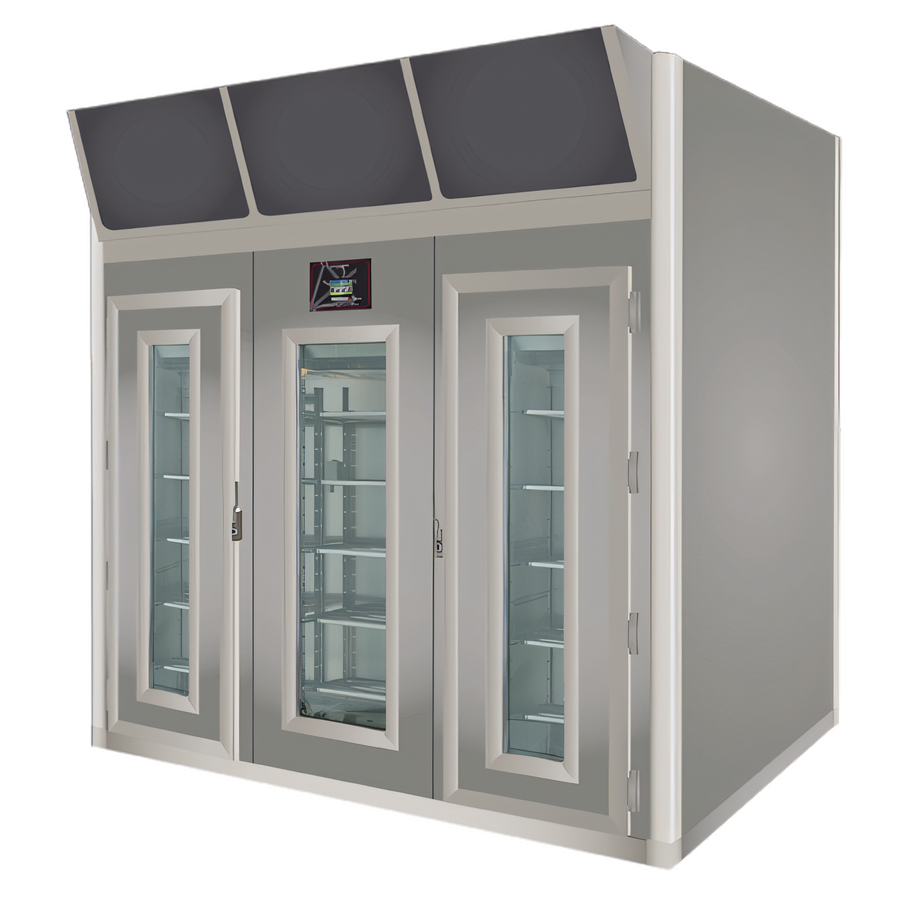

Omcan EVO® 45487 Meat Curing Cabinet, 200 + 600 kg Capacity

$121,984.71
/each
Estimated to ship in 5–8 business days
Included: Omcan warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $11,284/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Curing Cabinet
Style Freestanding
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin Italy
Capacity 200 + 600 kg
Controls Climatouch Touchscreen
Preset Recipe Count 30
Probe Count 4
Temperature Range 35.6°F to 95°F
Defrost Type Hot Gas
Door Type Dual-Insulated Glass
Refrigerant Type R404A
Voltage 220 Volts
Amps 12.5 Amps
Watts 8.6 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA L15-20P

Description

The Omcan 45487 is a freestanding meat curing cabinet with a 200 + 600 kg load capacity and a 35.6°F to 95°F temperature range.

  • Climatouch automatic control system with touchscreen display, four probes, and 30 preset recipes.
  • Fumotic dual-purpose regulating system.
  • 304 stainless steel construction with adjustable legs.
  • Dual-insulated glass door with lock, interior lighting, air exchange, and hot gas defrost.
  • Electrical specification: 220 Volts, 12.5 Amps, 8.6 kW, 60 Hz, 3-phase, with a NEMA L15-20P plug.

Overall Dimensions:

100.0"W x 69.0"D x 101.0"H

Product Weight:

1543.2 lb

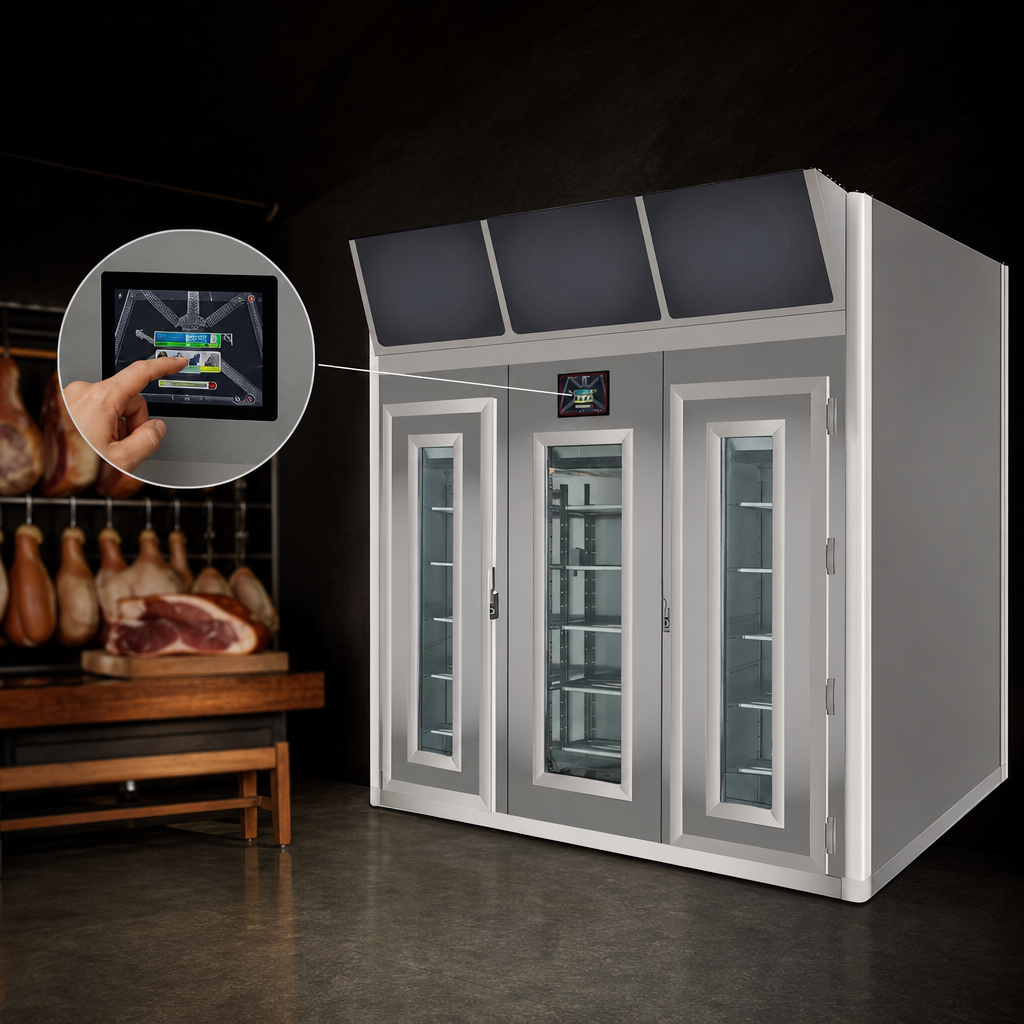

Touchscreen Control

Climatouch automatic control system with touchscreen display.

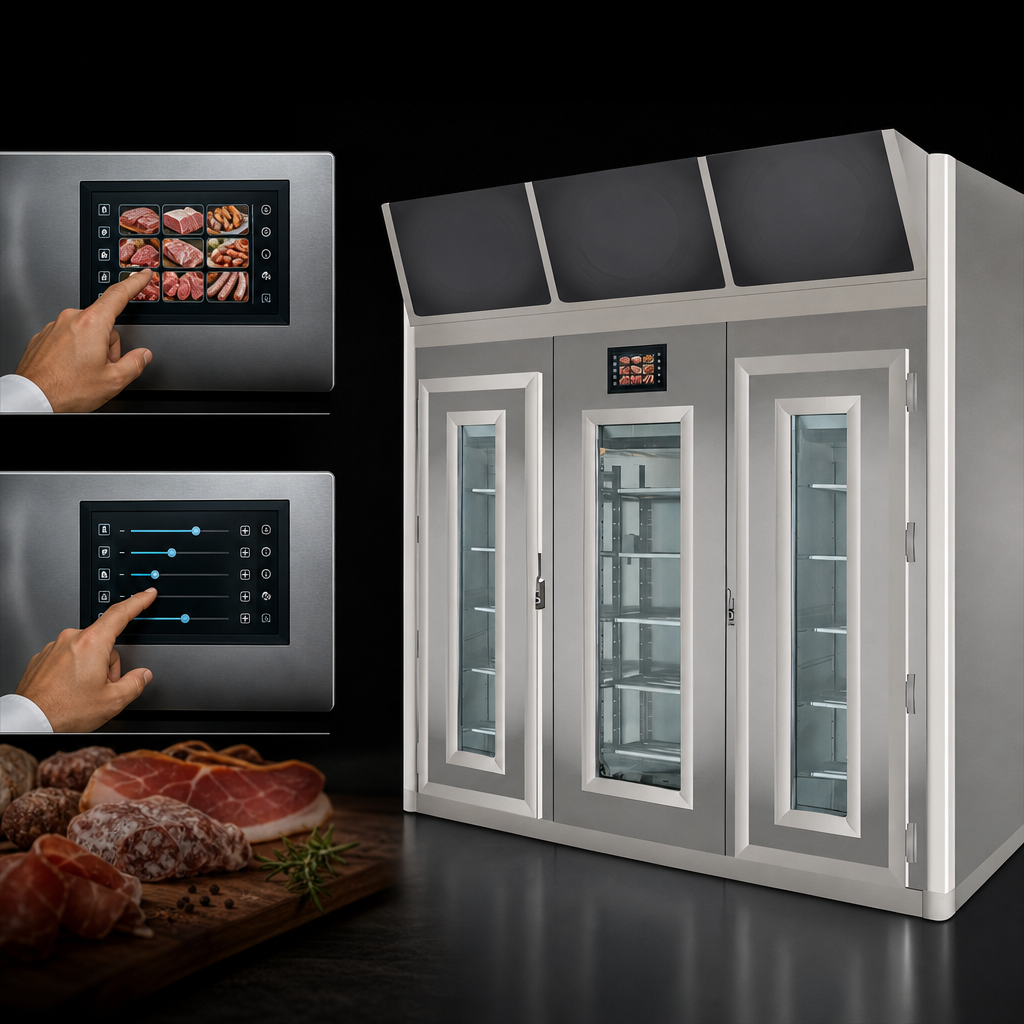

Preset Recipes

Includes 30 preset recipes.

Probes

Includes four probes.

Fumotic System

Includes the Fumotic dual-purpose regulating system.

Door

Dual-insulated glass door with lock.

Air Exchange and Defrost

Includes air exchange and hot gas defrost.

Construction

304 stainless steel construction with adjustable legs.

Interior Lighting

Includes interior lighting.

Frequently Asked Questions

The cabinet has a 200 + 600 kg load capacity.
The temperature range is 35.6°F to 95°F.
It uses the Climatouch automatic control system with a touchscreen display.
It includes 30 preset recipes and four probes.
The unit requires 220 Volts, 12.5 Amps, 8.6 kW, 60 Hz, and 3-phase power, with a NEMA L15-20P plug.
The cabinet measures 100 inches wide by 69 inches deep by 101 inches high.
The cabinet is made in Italy.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
