Omcan USA | SKU:
44389
Omcan USA 44389 Planetary Mixers
$9,566.06
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Omcan USA 44389 Planetary Mixers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Omcan USA 44389 Planetary Mixers
$9,566.06
Unit price
/
Unavailable
Description

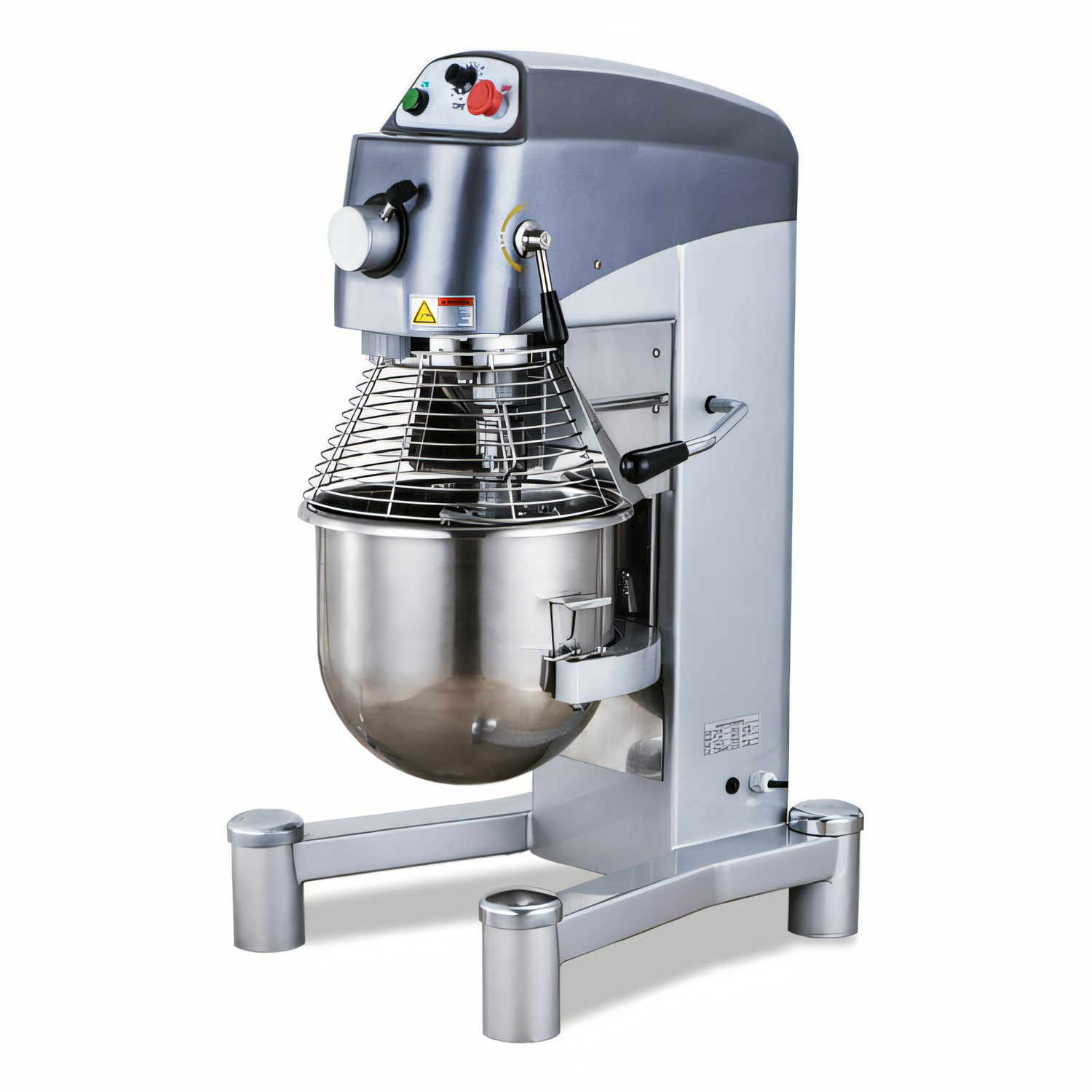

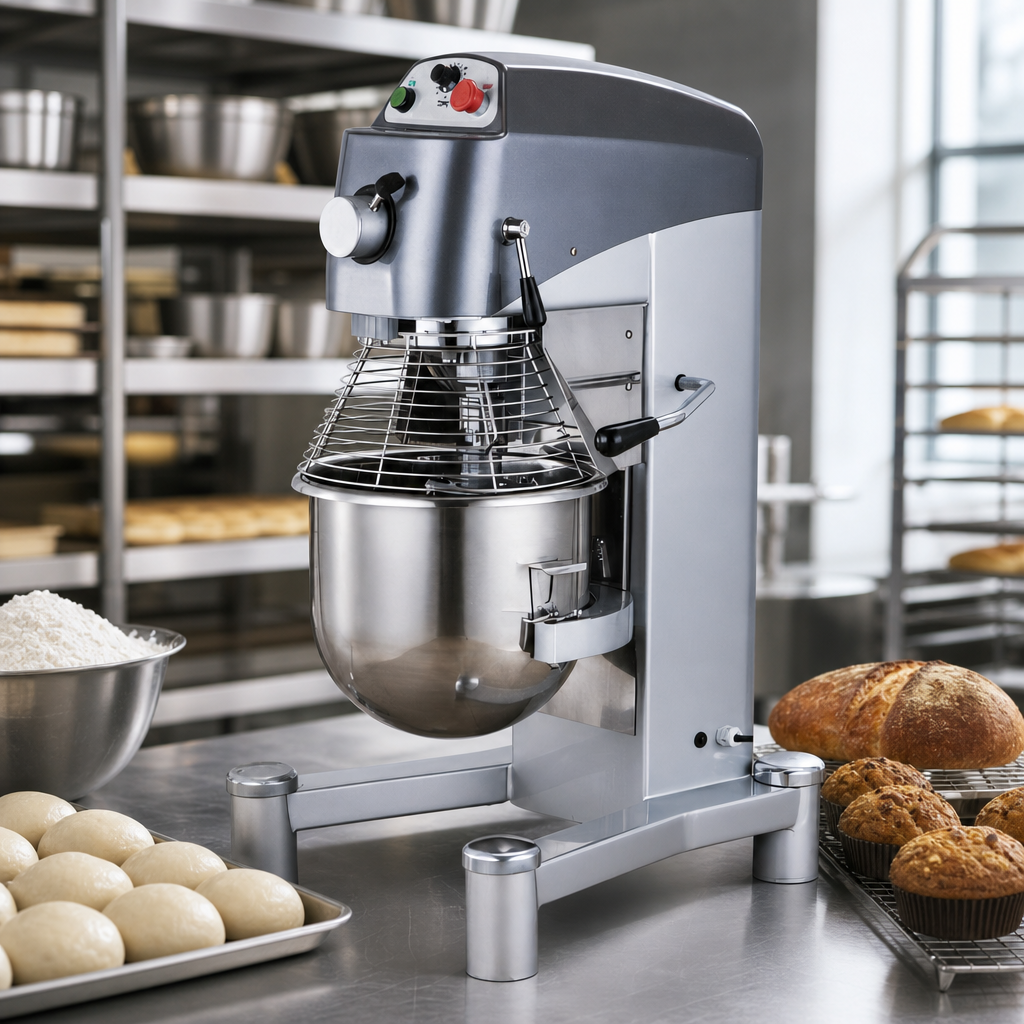

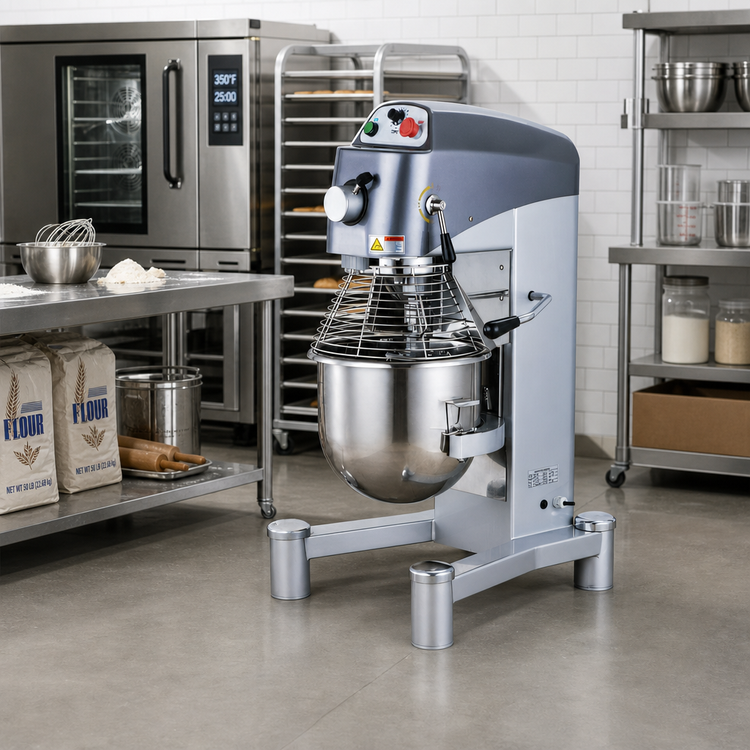

Omcan 40-Qt Heavy-Duty Planetary Mixer – MX-CN-0040
Item 44389 | 2.9 HP | 220 V / 60 Hz / 3-PhBuilt for busy bakeries, pizzerias, and institutional kitchens, the Omcan MX-CN-0040 delivers rock-solid power with a 40-quart bowl, three fixed gears, and a rugged gear-driven transmission. A safety guard and 30-minute timer ensure consistent, worry-free results—batch after batch.
Key Features
- 40 Qt (10 gal) stainless-steel bowl handles up to 13 kg flour or 20.8 kg dough (60 % absorption).
- 2.9 HP / 2,200 W motor with three speeds: 120, 268 & 372 RPM.

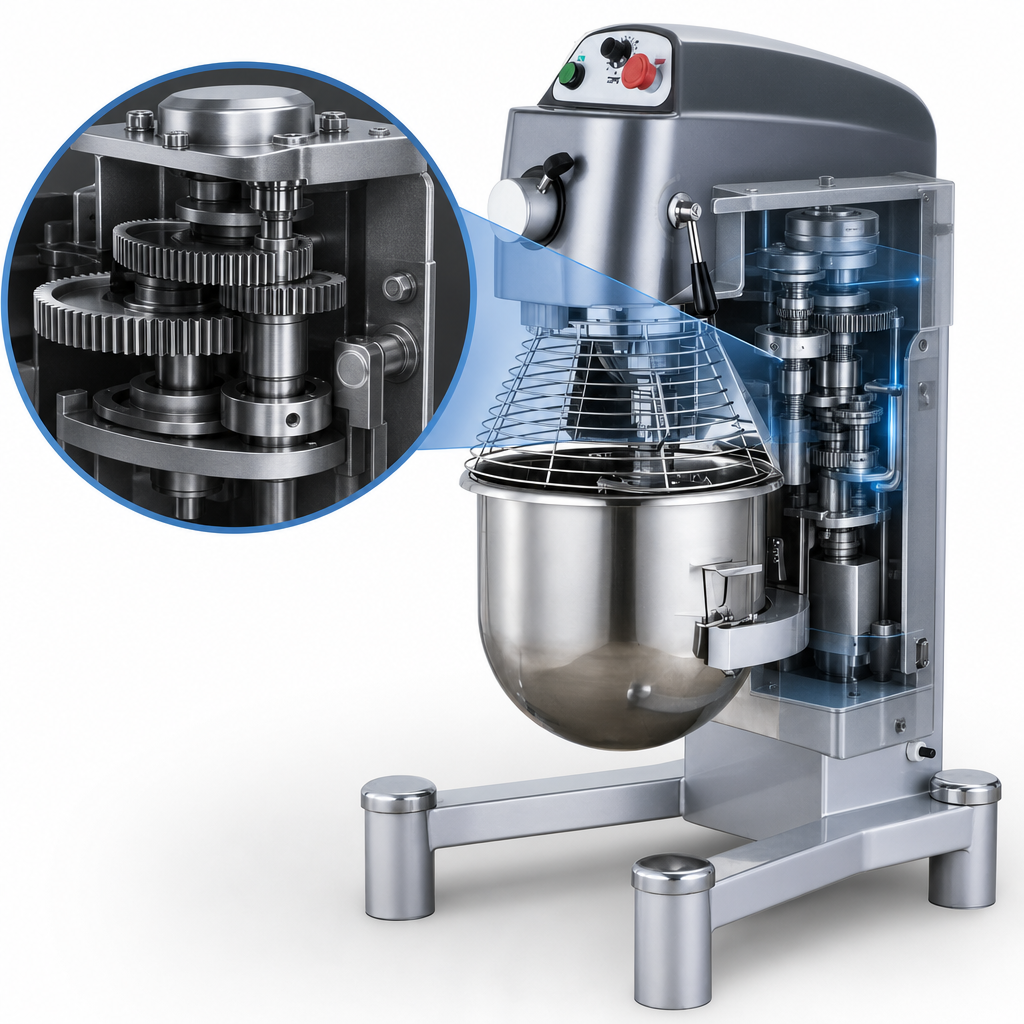

- Gear-driven transmission delivers steady torque for dense doughs.
- Interlocked stainless safety guard—mixer stops if the guard is lifted.
- 0–30 min front-mounted timer for repeatable mixing cycles.
- Includes three heavy-duty attachments:
- Wire whip – light aeration, meringues, whipped cream
- Dough hook – breads, rolls, pizza dough
- Flat beater – cake batters, icings, mashed potatoes
- NEMA L15-20P locking cord—ready for a 220 V / 20 A 3-phase receptacle.
- Ships on a pallet, fully assembled and test-run at the factory.
Performance Guide (40 Qt Bowl)
| Raised doughnuts (65 % AR) | Up to 11 kg – 1st/2nd speed |
|---|---|
| Heavy bread dough (55 % AR) | Up to 18 kg – 1st speed |
| Pizza dough, medium (50 % AR) | Up to 18 kg – 1st speed |
| Whipped cream | 9.5 L – 3rd speed |
| Waffle or cake batter | 17.5 L – 2nd speed |
Technical Specifications
| Model / Item | MX-CN-0040 / 44389 |
|---|---|
| Bowl capacity | 40 Qt (10 gal) |
| Motor power | 2.9 HP / 2,200 W |
| Speeds (shaft RPM) | 120 | 268 | 372 |
| Transmission | Permanently-lubricated, gear-driven |
| Timer | 0–30 min mechanical |
| Electrical | 220 V / 60 Hz / 3-Ph, 20 A, NEMA L15-20P |
| Dimensions (D × W × H) | 30.9″ × 27.8″ × 51.8″ (784 × 707 × 1316 mm) |
| Net weight | 496 lb (225 kg) |
| Ship weight / packed size | 606 lb; 33.9″ × 31.3″ × 58.6″ |
| Origin | Made in China |
| Warranty | 1 year parts & labor |
Important: Always start dense doughs in 1st speed and do not exceed the recommended capacities. Operate only with the bowl guard closed and by trained personnel aged 18 years or older.
Specifications and design are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Omcan USA
Height
51.8in
Width
27.8in
Depth
30.9in
Shipping Weight
606.3lbs
Type
floor model
Timer
with timer
Bowl Capacity
30 - 40 quart
Speed
3-speed
Specifications
(MX-CN-0040) 40-QT Heavy-Duty Planetary Mixer, 27.8"W x 30.9"D, 40 qt. capacity, 3 speed gear driven, safety guard, timer, 220v/60/3-ph, 15 amp, 22.0kW, cord, NEMA L15-20P, Made in China (shipped on pallet)
