Omcan 20 Quart Floor Model Planetary Mixer with 3-Speed Gear Drive, Timer and Safety Guard

SKU: 43560
GTIN: 690207435608
$6,693.31
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Mixers Food Prep Equipment Mixers New Arrivals Omcan USA Planetary Mixers Restaurant Equipment

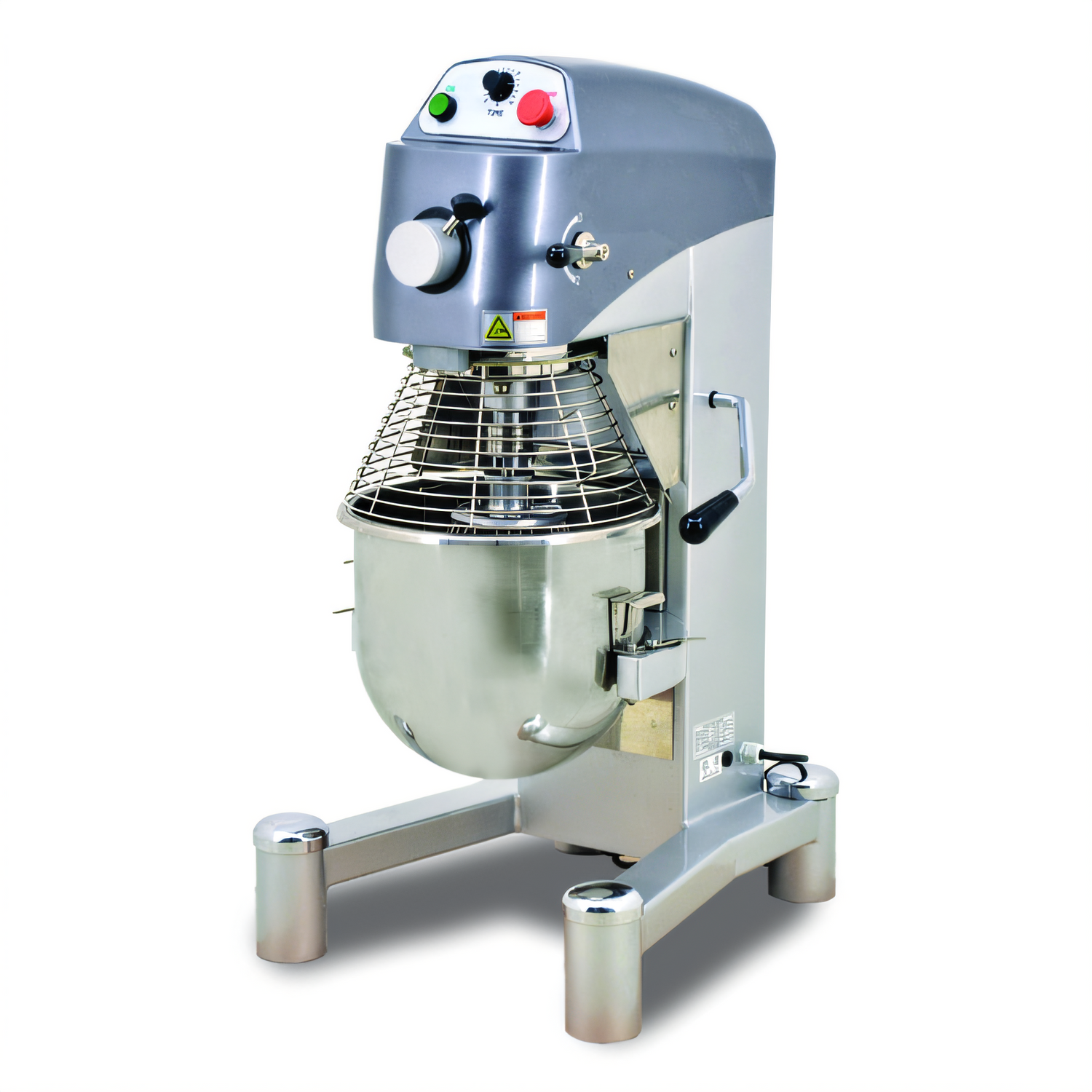

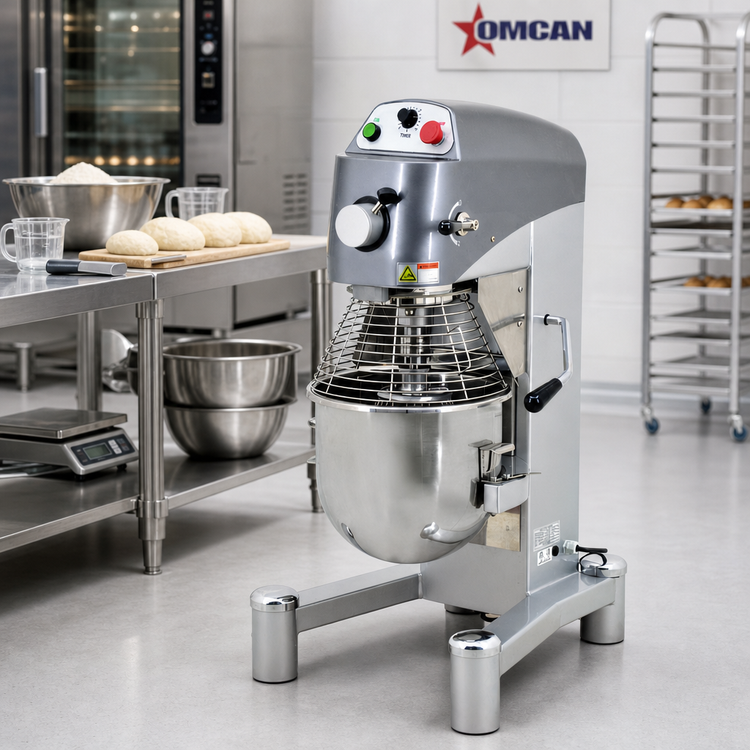

Omcan 20 Quart Floor Model Planetary Mixer with 3-Speed Gear Drive, Timer and Safety Guard

2 HP Motor, #12 Drive Hub, 110V, Metallic Gray Finish

This heavy-duty 20-quart floor mixer delivers reliable batch mixing with a 2 HP gear-driven motor, timer, guard, and included stainless attachments.

  • 20-quart floor-model planetary mixer built for commercial batch prep.
  • Upgraded 3-speed gear-driven transmission for strength and efficiency.
  • Heavy-duty 2 HP motor supports consistent mixing performance.
  • Built-in timer and safety guard help support controlled operation.
  • #12 drive hub expands attachment compatibility.
  • Includes stainless steel bowl, wire whip, flat beater, and hook.
  • Standard 110V single-phase power with NEMA 5-15P plug.

Overall Dimensions:

21.0"W x 24.76"D x 39.21"H

Product Weight:

360.0 lb

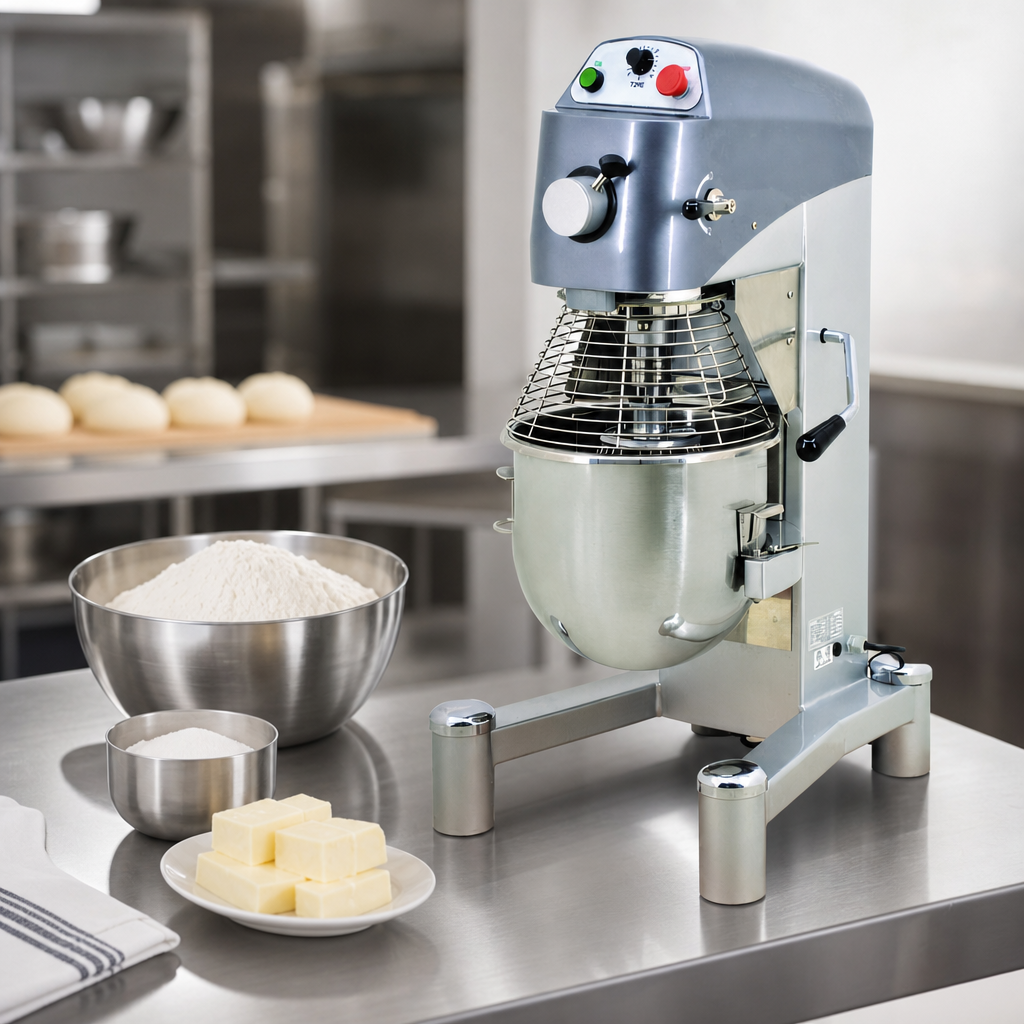

20-Quart Capacity

Sized for commercial mixing tasks and medium-batch prep.

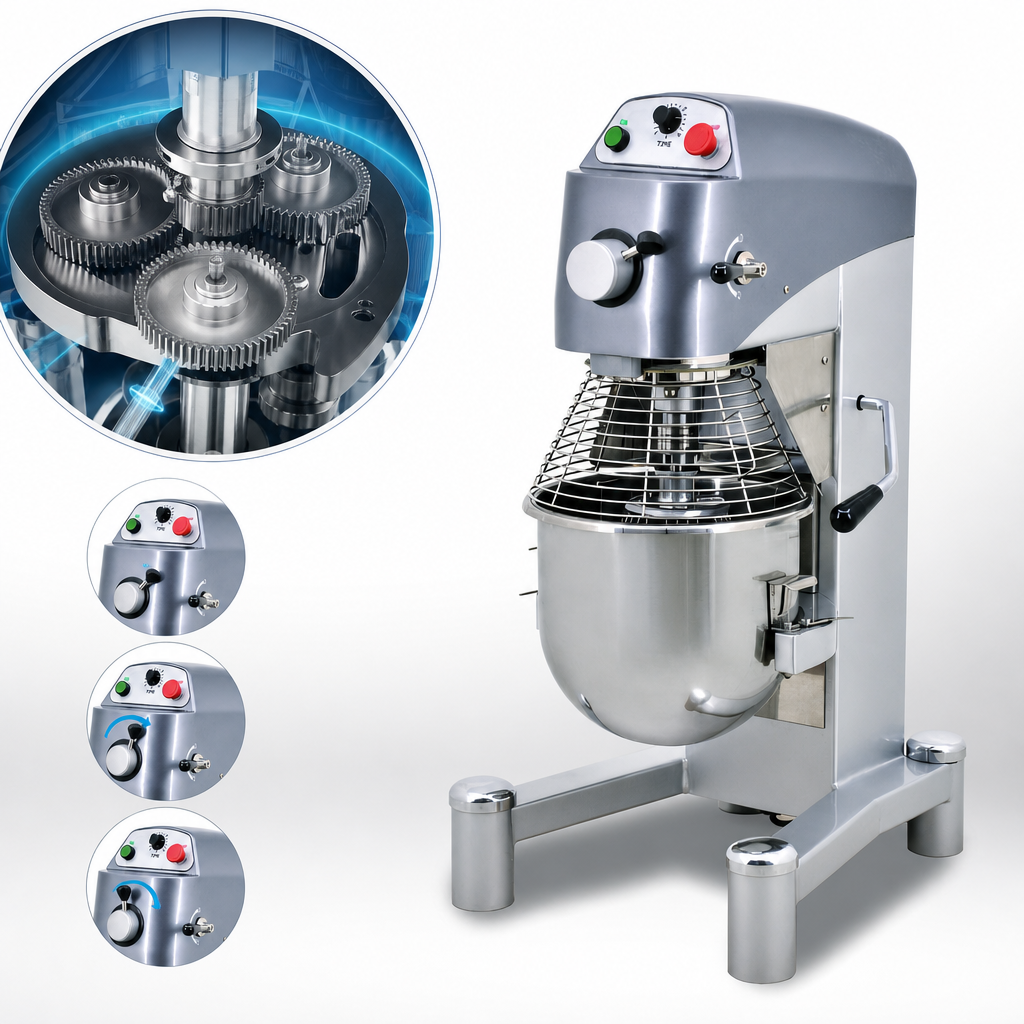

3-Speed Gear-Driven Transmission

Upgraded gear drives provide maximum strength and efficiency across three shaft speeds.

2 HP Motor

Heavy-duty motor delivers the power needed for demanding kitchen use.

Timer and Safety Guard

A built-in timer supports repeatable mixing, and the guard adds operator protection.

#12 Drive Hub

Compatible with #12 hub attachments for added versatility.

Stainless Steel Accessories Included

Comes with a stainless steel bowl, wire whip, flat beater, and hook.

Overload Protection

Designed to help support long-life service under heavy use.

Standard 110V Electrical Connection

Operates on 110V/60Hz single-phase power and uses a NEMA 5-15P plug.

Type Planetary Mixer
Style Gear Driven
Installation Type Floor Model
Capacity 20 Quarts
Speed 3-Speed
Hub Size #12
Controls Timer
Finish Metallic Gray
Voltage 110 Volts
Amps 15 Amps
Watts 1.5 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 21 Inches
Shipping Depth 25 Inches
Shipping Height 40 Inches
Shipping Weight 360 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The mixer includes a stainless steel bowl, wire whip, flat beater, and hook.
Yes, the unit is equipped with a guard.
It requires 110V / 60Hz / 1-phase power and uses a NEMA 5-15P plug.
The cutsheet lists a 1-year warranty for parts and labor.
It is equipped with a #12 drive hub.
The mixer has three shaft speeds listed in the technical specifications.
