Omcan USA 43478 Bar Equipment
Omcan USA 43478 Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

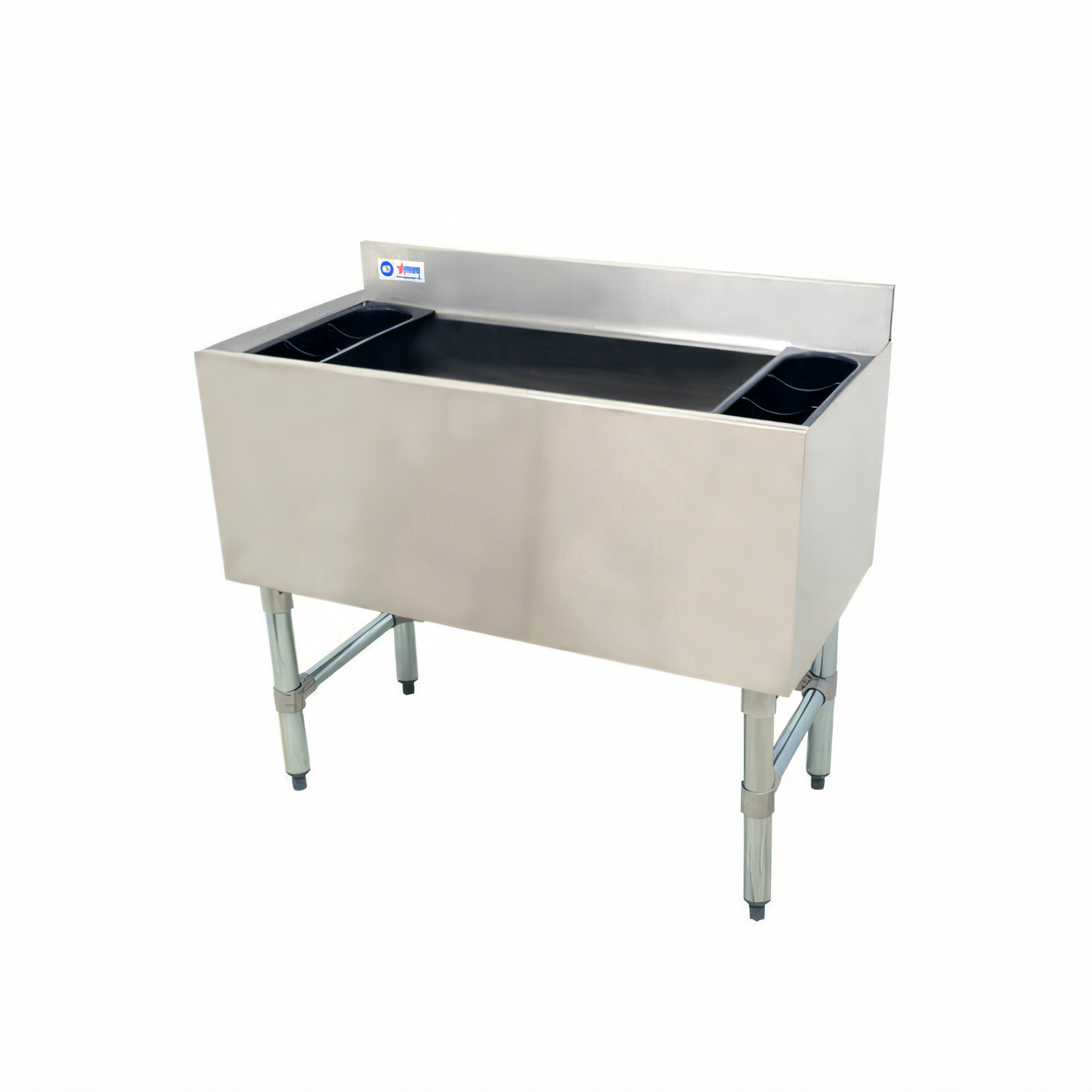

Omcan 36" Insulated Stainless Steel Ice Bin
Model 43478 • 7-Circuit Post-Mix Cold Plate • NSF ListedBuilt for busy bars and beverage stations, the Omcan 43478 delivers ice, mixes, and reliability in one rugged station. A fully insulated 119 lb capacity bin keeps your ice solid for hours, while the integrated 7-circuit aluminum cold plate chills post-mix soda lines for frosty, great-tasting drinks glass after glass.
Why You’ll Love It
- High volume capacity – holds up to 119 lbs (54 kg) of ice.

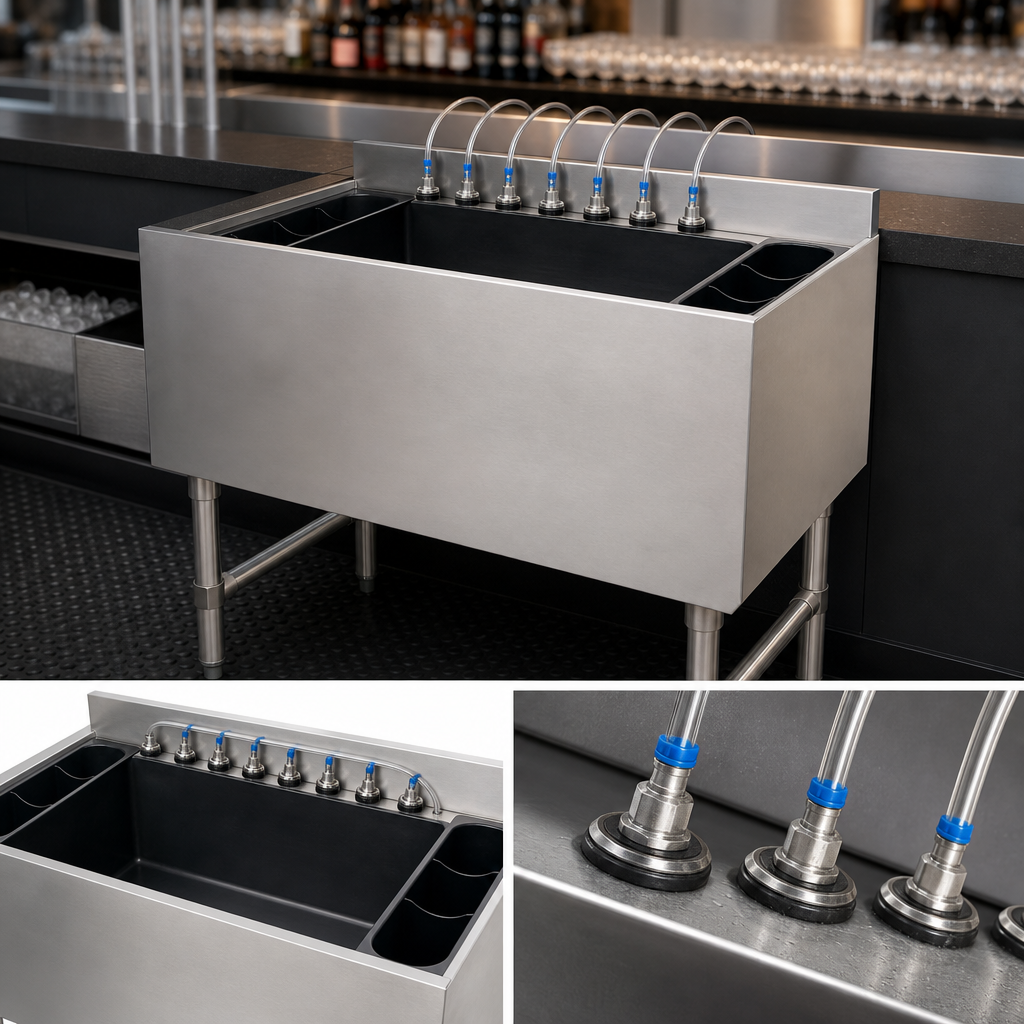

- Integrated 7-circuit post-mix cold plate with stainless steel tubing for superior corrosion resistance.
- Durable 20-gauge 304 stainless steel bowl, top, back, and body stand up to commercial abuse.

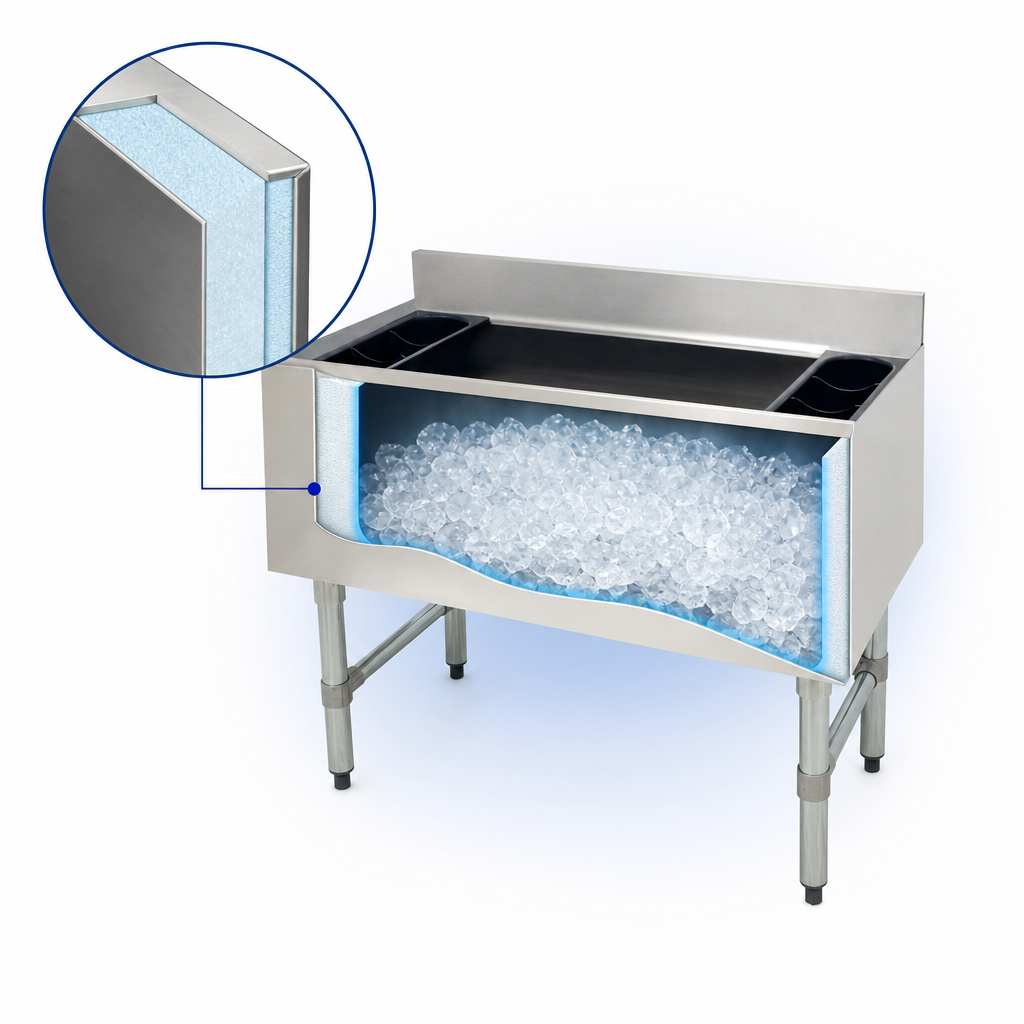

- Full foam insulation keeps ice colder, reducing melt-water and product waste.
- 3" backsplash protects surrounding walls and counters from splashes.
- Galvanized legs with U-shaped leg bracing add stability; adjustable plastic bullet feet level the unit on uneven floors.
- Side plastic bottle holders keep mixers and juices chilled and within arm’s reach.
- Easy-drain design featuring a 0.8" drain outlet for quick, mess-free cleaning.
- NSF listed for safe, sanitary operation in any commercial environment.
Technical Specifications
Model | 43478 |
---|---|
Ice Storage Capacity | 119 lbs / 54 kg |
Bowl Interior (W × D × H) | 34" × 14.8" × 12" (863.6 × 375.9 × 304.8 mm) |
Overall Dimensions (L × W × H) | 36" × 18.5" × 33" (914.4 × 469.9 × 838.2 mm) |
Unit Weight | 134.4 lbs / 60.1 kg |
Cold Plate | Aluminum, 7 post-mix circuits, stainless steel tubing |
Backsplash Height | 3" |
Drain Size | 0.8" O.D. |
Leg Construction | Galvanized steel with adjustable plastic bullet feet & U-brace |
Certification | NSF |
Optional Accessories (Sold Separately)
- Sliding Stainless Cover – Item 44623
- Stainless Steel Leg Brace for 18" × 36" bins – Item 44626
- 14" Stainless Legs Kit – Item 44624
Specifications supplied by manufacturer and are subject to change without notice.
