Omcan USA 42154 Dough Sheeters
$6,015.01
Unit price
/
Unavailable
Description

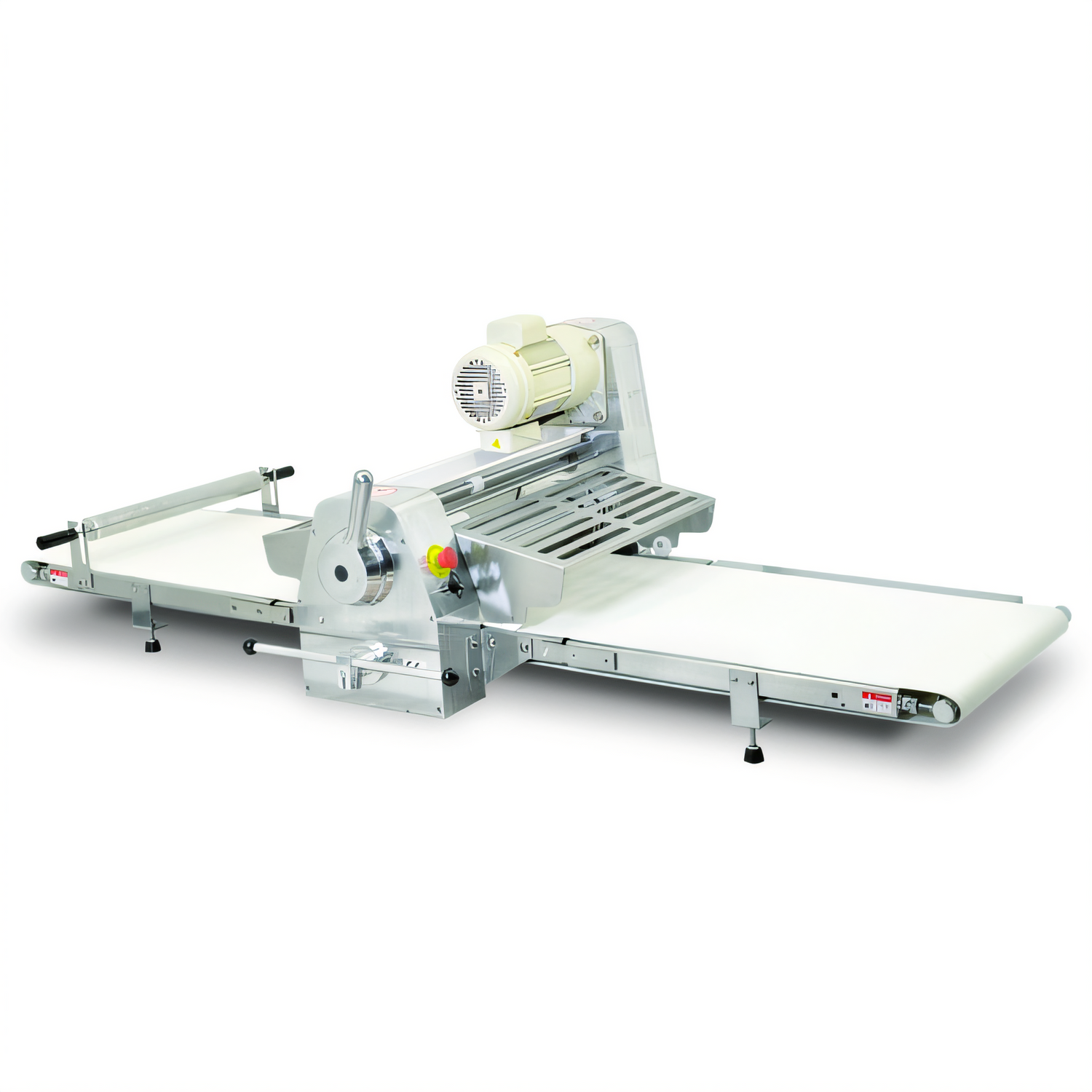

Omcan Countertop Reversible Dough Sheeter
Model BE-CN-2083-CSS | Item 42154Turn tough dough blocks into perfectly even sheets in seconds. Built entirely from food-grade stainless steel and sized for any work-bench, the Omcan BE-CN-2083-CSS delivers commercial-grade sheeting power while folding up small enough to store under the counter.
Why You’ll Love It

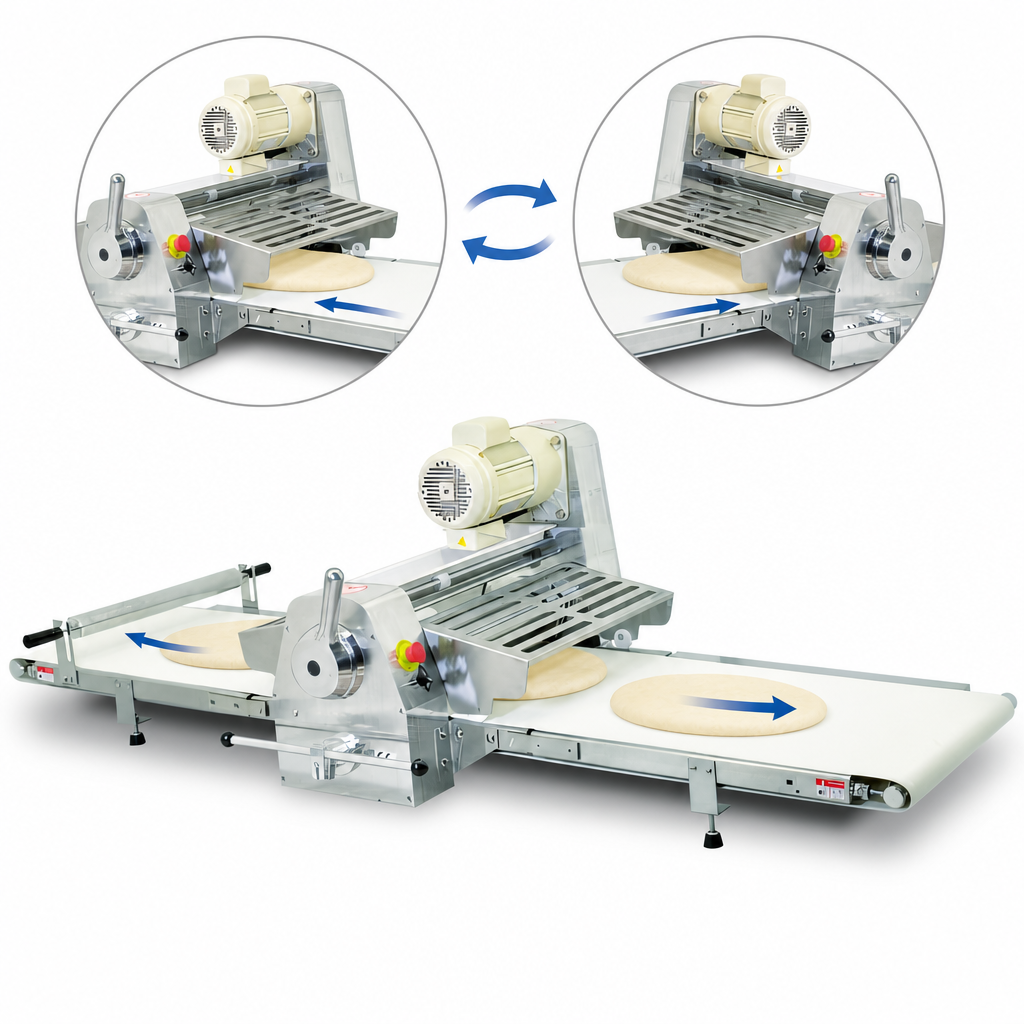

- True 2-way sheeting – reversible belt eliminates manual flipping for faster lamination.
- 20-½ in seamless rollers with gap control from 1–35 mm for precise croissants, puff pastry, pizza and more.
- Space-saving design – both 22-½ in tables fold upright, reducing storage depth to only 37 in.

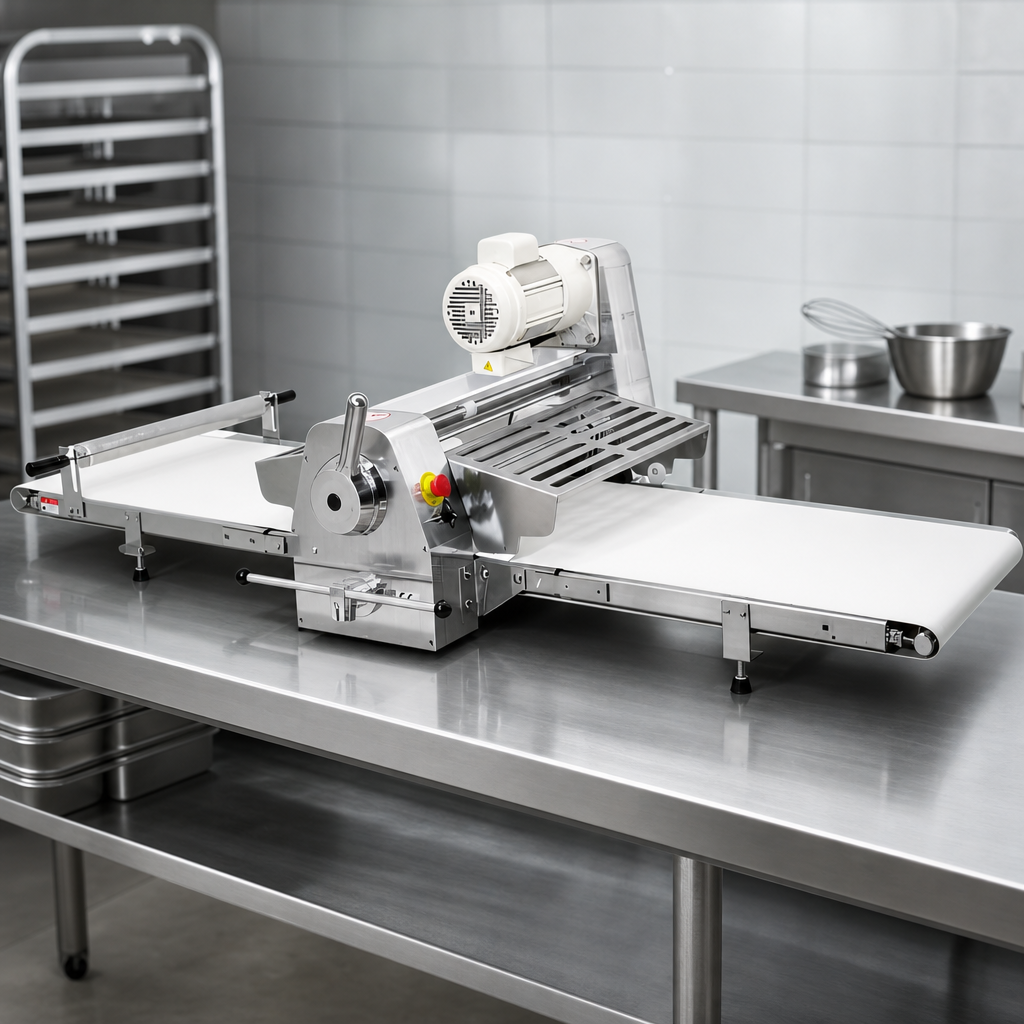

- Rugged construction – 304 stainless-steel frame, scrapers and catch-tray clean up fast and resist corrosion.
- Baked-in safety – swing-up guards, emergency stop button and thermal overload motor protection.
- Plug-and-play – shipped fully assembled on a pallet with 6-15P cord set; just place, plug and produce.
Technical Specifications
| Model / Item | BE-CN-2083-CSS / 42154 |
|---|---|
| Roller Size | 2" ⌀ × 29.75" W (51 mm ⌀ × 755.7 mm) |
| Roller Gap | 1 – 35 mm (manual) |
| Max Dough Load | 5 kg / 11 lb per pass |
| Conveyor Belt Width | 19.75" / 501.7 mm |
| Table Width | 22.5" / 571.5 mm |
| Belt Speed | 18 – 32 m / min (fixed) |
| Roller Speed | 124 rpm |
| Motor | 0.75 HP / 0.55 kW, single-phase |
| Electrical | 220 V / 60 Hz / 1 Ph – 15 A, NEMA 6-15P |
| Dimensions – Working | 36" D × 88" W × 24" H (912 × 2230 × 604 mm) |
| Dimensions – Folded | 32" D × 37" W × 17" H (805 × 930 × 440 mm) |
| Net / Gross Weight | 275.6 lb / 341 lb (125 kg / 155 kg) |
| Shipping | Palletized, LTL freight |
| Warranty | 1-year parts & labor (Omcan USA) |
Perfect For
- Artisan & commercial bakeries
- Hotel pastry departments
- Pizzerias & commissaries
- Catering kitchens & culinary schools
Important: For food dough only. Do not process frozen dough, nuts or non-food products.
Always engage safety guards and disconnect power before cleaning or maintenance.
Need a PDF spec sheet or replacement parts? Email our team at sales@omcan.com and we’ll be happy to help.
Features & Specs
Features & Specs
Manufacturer
Omcan USA
Height
24.0in
Width
88.0in
Depth
36.0in
Shipping Weight
386.0lbs
Bench or Floor
bench
Roller size
20"
Rollers
steel
Specifications
(BE-CN-2083-CSS) Dough Sheeter, counter top, fixed conveyor speed, reversible, manual roller adjustment, seamless steel 20-1/2" rollers, foldable tables, stainless steel construction, 3/4 HP, 220v/60/1-ph, 15 amps, 0.55kW, cord, NEMA 6-15 (shipped on pallet)
