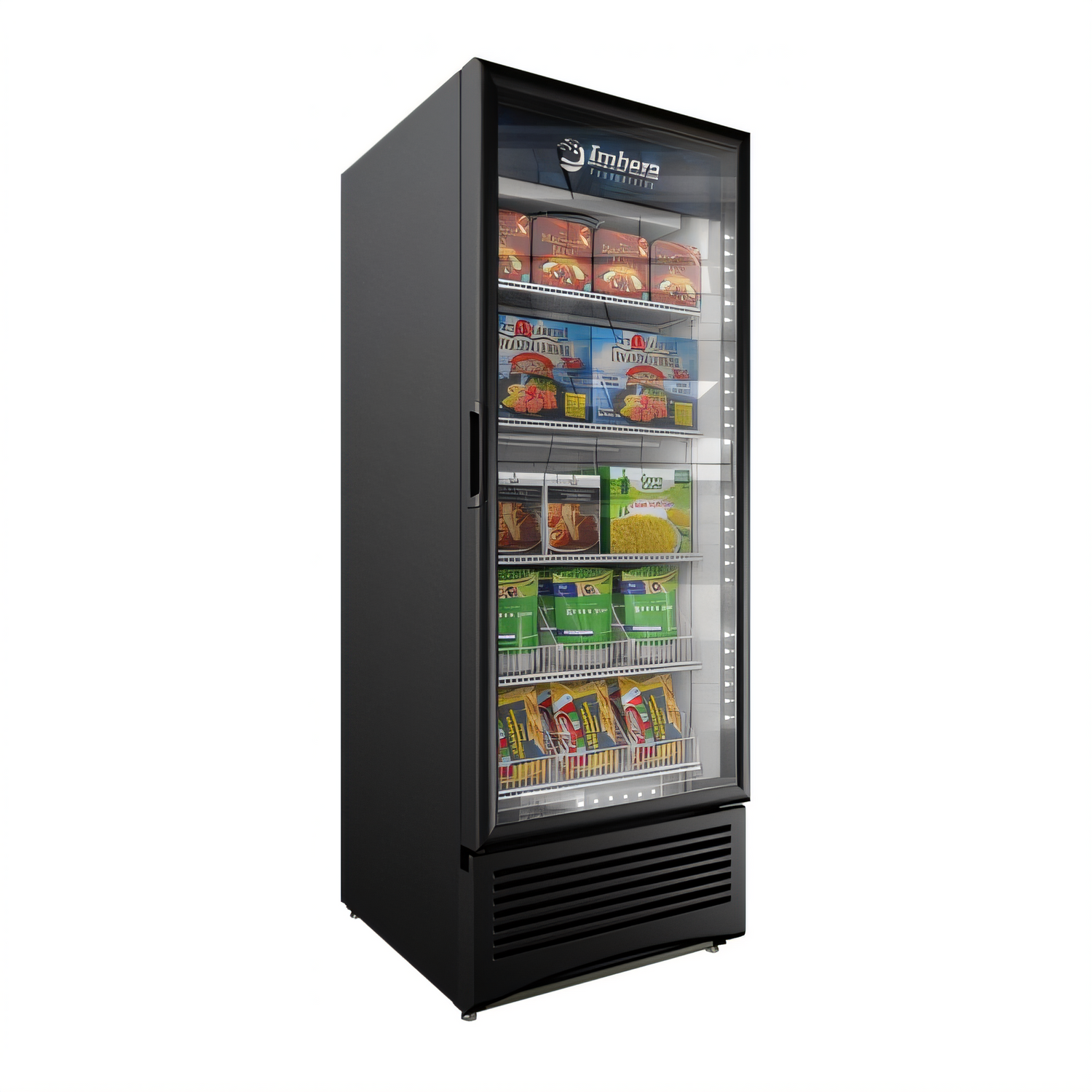

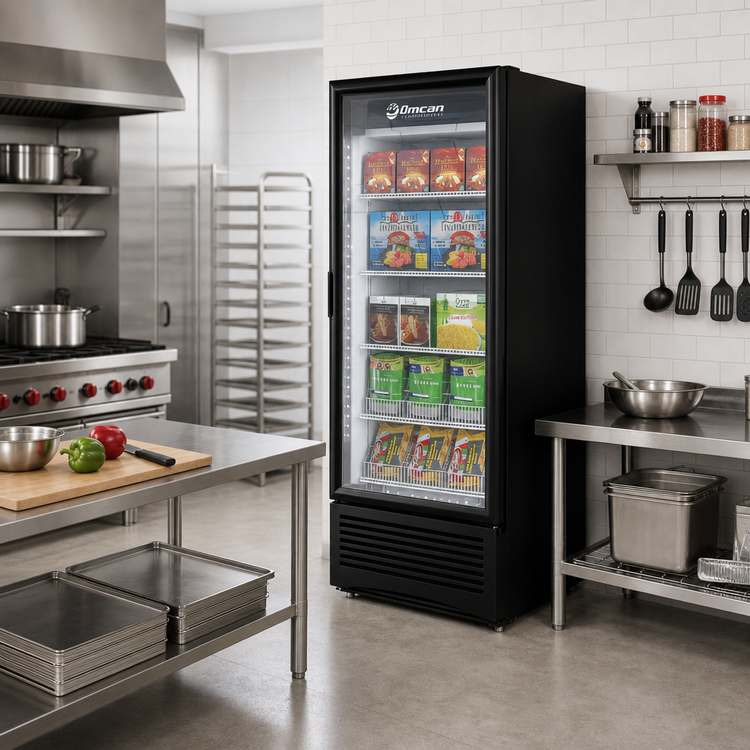

Omcan Elite Series 1-Section Glass Door Reach-In Display Freezer, 23.7 Cu. Ft.

Bottom-Mounted Self-Contained Refrigeration, LED Lighting, Black Exterior

A high-visibility frozen merchandising freezer that pairs a glass door with bottom-mounted self-contained refrigeration for easier installation and product presentation.

  • 23.7 cu. ft. one-section reach-in design provides generous frozen storage and display capacity.
  • Double-pane hinged self-closing glass door helps retain cold air while showcasing product.
  • Self-contained, bottom-mounted refrigeration simplifies installation and service access.
  • LED lighting and 5 shelves improve visibility and help organize inventory.
  • 115V/60Hz/1-phase operation with a NEMA 5-15P plug for standard electrical hookup.
  • ENERGY STAR certified; listed as cULus / UL EPH Classified and noted as Canada-only for ENERGY STAR availability.

Overall Dimensions:

30.12"W x 30.87"D x 78.75"H

Product Weight:

463.0 lb

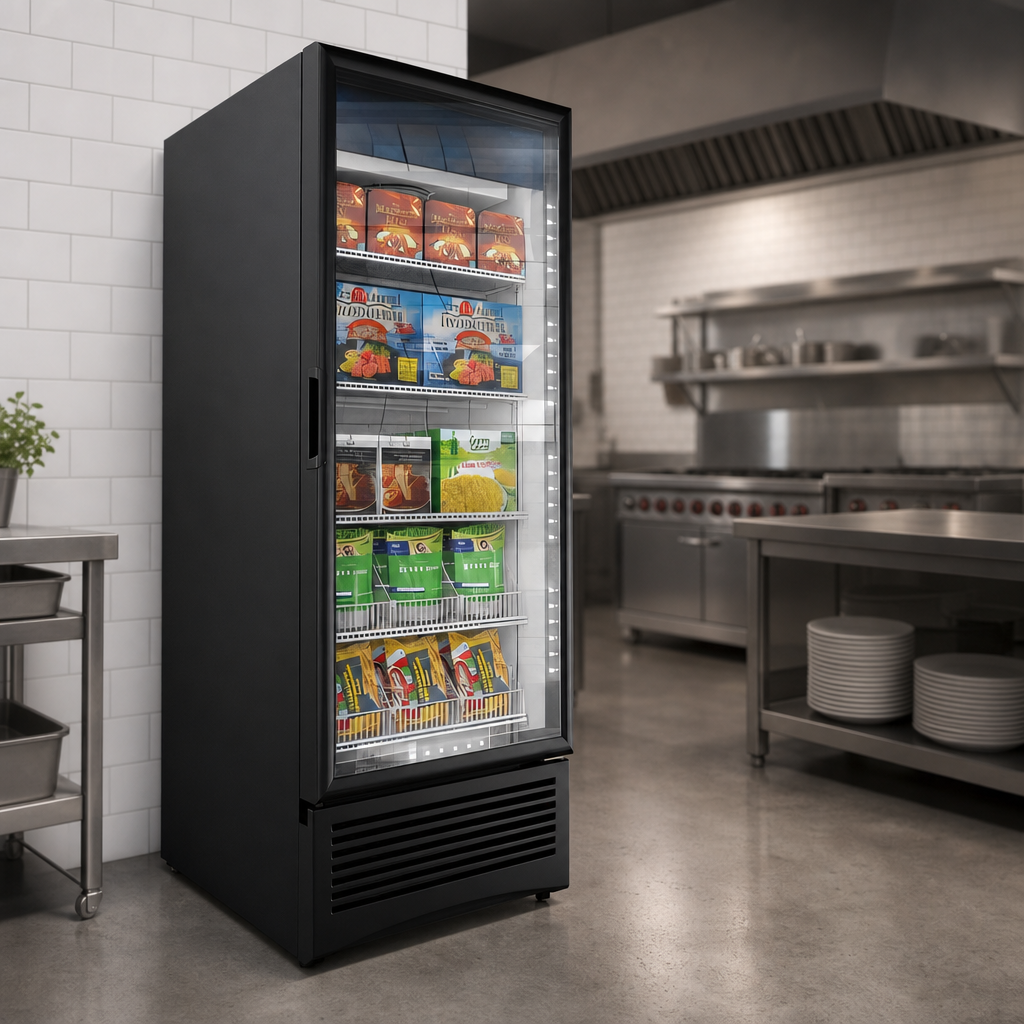

One-Section Capacity

Single-section cabinet offers 23.7 cu. ft. of storage and merchandising space.

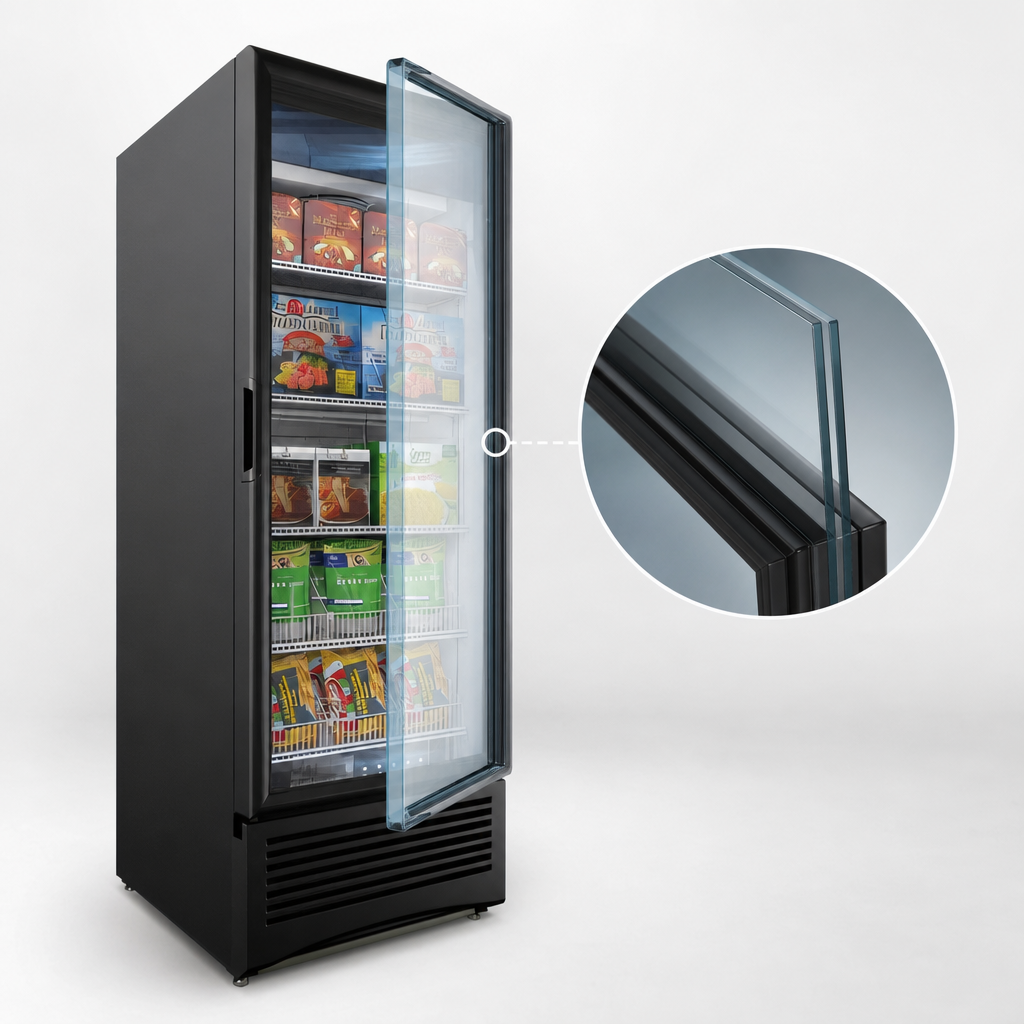

Double-Pane Glass Door

Hinged, self-closing glass door keeps products visible while helping reduce cold air loss.

Bottom-Mounted Self-Contained Refrigeration

Built-in refrigeration system simplifies setup and places service components in the lower cabinet area.

LED Interior Lighting

Bright LED lighting improves product visibility inside the display cabinet.

Five Shelves

Included shelving helps organize frozen products across multiple display levels.

Electrical Service

Operates on 115V, 60Hz, single-phase power and uses a NEMA 5-15P plug.

Energy And Safety Listings

ENERGY STAR certified and listed as cULus / UL EPH Classified; ENERGY STAR availability is noted as Canada-only.

Pallet Shipment

Ships on a pallet due to the size and weight of the unit.

Type Reach-In Display Freezer
Style One Section
Refrigeration Type Self-Contained, Bottom-Mounted
Capacity 23.7 Cubic Feet
Temperature Range -18.4°F to -9.4°F (-28°C to -23°C)
Finish Black
Compressor Horsepower 3/4 HP
Number Of Shelves 5
Voltage 115 Volts
Amps 7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Shipping Width 31 Inches
Shipping Depth 31 Inches
Shipping Height 79 Inches
Shipping Weight 463 lb.

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Warranty against defects in material, manufacturing, and defective assembling.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 23.7 cu. ft. (670.3 L) capacity.
The temperature range is -18.4°F to -9.4°F (-28°C to -23°C).
It runs on 115V/60/1-phase power, draws 7 amps, and uses a NEMA 5-15P plug.
It includes one double-pane glass hinged self-closing door and five shelves.
Yes. It uses self-contained, bottom-mounted refrigeration.
It is shipped on a pallet.
