Omcan USA  |  Compact Series  |  SKU: 40634  |  UPC: 690207406349

Omcan USA 40634 Compact Series Pizza Ovens

$1,780.17
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Instruction manual Warranty sheet
Related Searches
Commercial Ovens Deck Ovens Deck Ovens Ovens Pizza Ovens Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

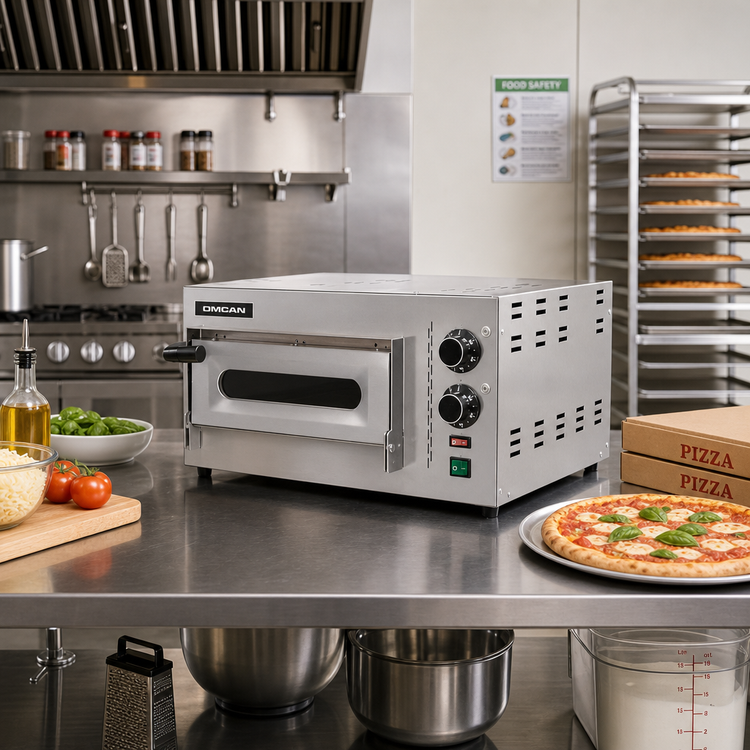

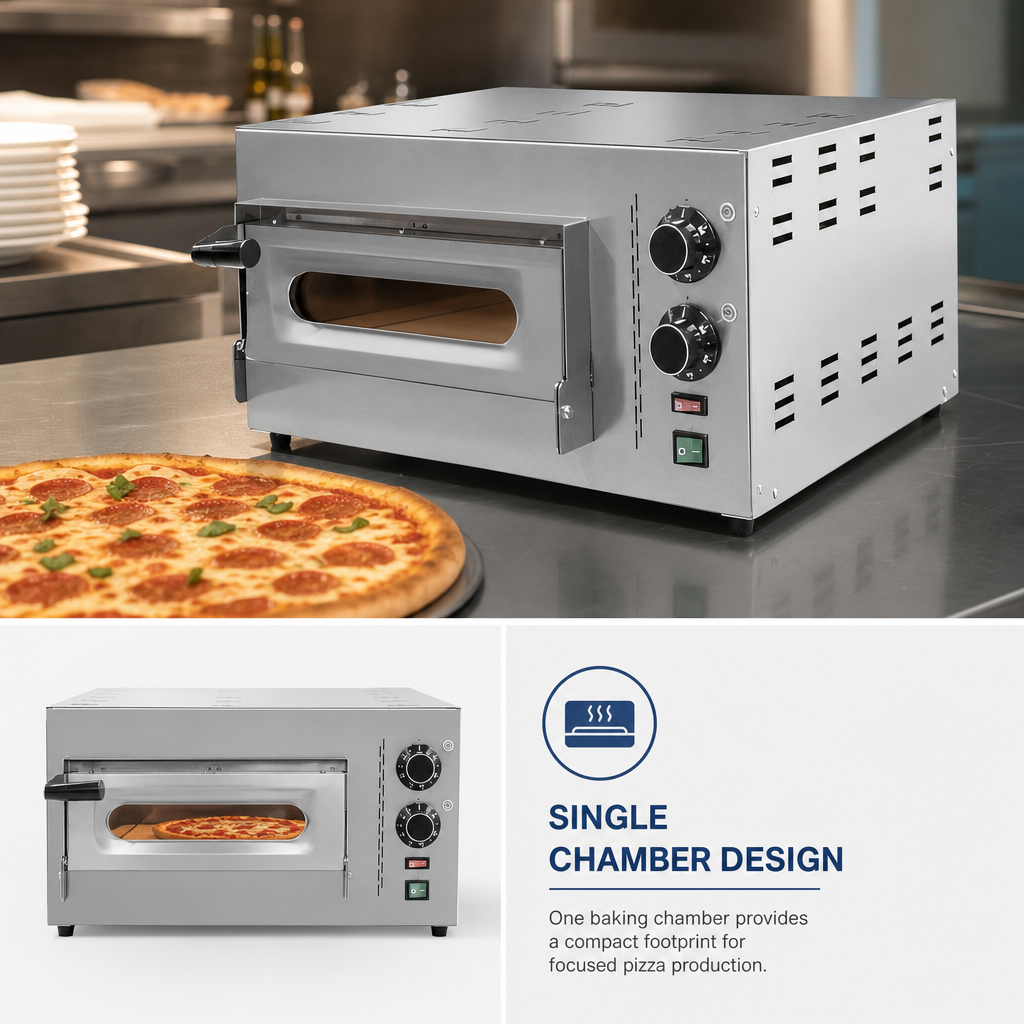

Omcan “Compact Series” Single-Chamber Pizza Oven – Model PE-IT-0010

3.6 kW • 842 °F Max • Made in Italy

Enjoy authentic stone-deck results without surrendering countertop space. The Omcan PE-IT-0010 reaches a blistering 842 °F, bakes up to an 18" pie, and is engineered in Italy for the busy pizzeria, café, bar, or ghost kitchen that needs speed, consistency, and compact convenience.

Key Benefits

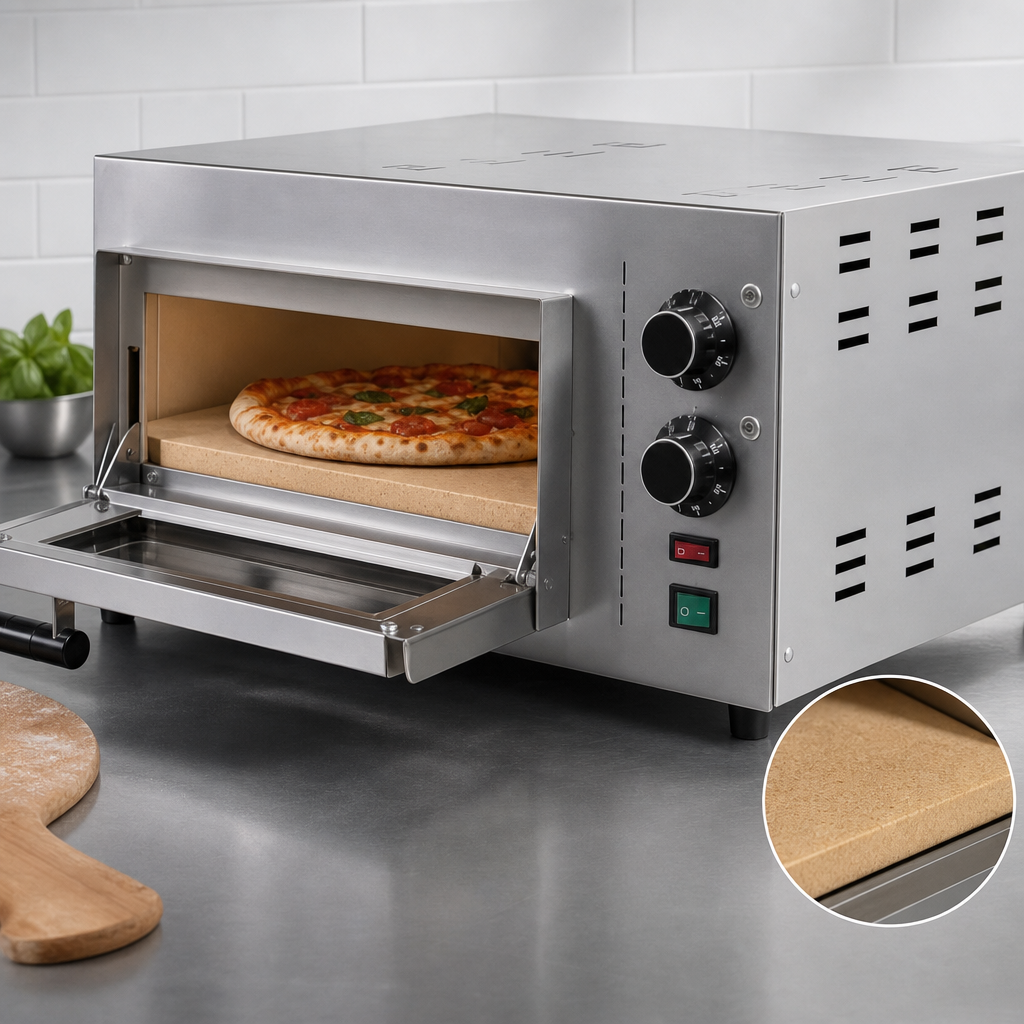

  • Refractory brick deck stores and radiates heat for crisp, evenly baked crusts.
  • High 842 °F (450 °C) ceiling slashes bake times and boosts throughput.
  • 19.6" × 19.6" × 5.1" chamber fits one 18" or two 10" pizzas at once.
  • Separate top & bottom thermostats plus 30-minute timer for dial-in control.
  • Ventilated, double-walled steel cabinet stands up to commercial abuse.
  • Just 29.3" W × 12.6" H footprint—ideal for food trucks and tight prep lines.
  • Backed by a 1-year Omcan parts & labor warranty for worry-free operation.

Specifications

Item / Model 40634 / PE-IT-0010
Chamber (W × D × H) 19.6" × 19.6" × 5.11" (500 × 500 × 130 mm)
Exterior (W × D × H) 29.3" × 26" × 12.6" (744 × 660 × 320 mm)
Deck Material Refractory brick
Temperature Range Up to 842 °F (450 °C)
Electrical 220 V / 60 Hz / 1-Phase
Power 3.6 kW (3600 W)
Plug NEMA 6-20P (20 A)
Net / Gross Weight 77 lb / 88 lb (35 kg / 40 kg)
Country of Origin Italy

Ideal Applications

  • Neapolitan & New-York–style pizzas
  • Flatbreads, focaccia & garlic knots
  • Par-baked or frozen dough products
  • Stromboli, calzones & small artisan breads
Electrical & Shipping Notice: Requires a dedicated 220 V / 20 A circuit with NEMA 6-20 receptacle. Ships on a pallet—forklift or lift-gate service may be necessary at delivery.

Warranty

Protected by Omcan’s 1-year parts & labor warranty. Refer to the manufacturer’s warranty statement for complete terms and conditions.

Features & Specs

Manufacturer

Omcan USA

Brand_name

Compact Series

Certifications

Made in Italy

Height

12.6in

Width

29.3in

Depth

26.0in

Shipping Weight

88.0lbs

Deck Depth (front - back)

19"

Deck Width (side - side)

12" - 23"

Deck Construction

brick

Height (per deck)

5"

Number of Decks

1

Exterior Finish

all stainless steel exterior

Specifications

(PE-IT-0010) Compact Series Pizza Oven, deck-type, electric, 29-1/3"W, single chamber, 9.5 cu.ft. interior capacity, 842°F (450°C) max temperature, refractory brick baking surface, 3600 watts, 220v/60/1-ph, NEMA 6-20P, Made in Italy (shipped on pallet)
