Omcan Elite Series Countertop Pass-Thru Heated Display Case, 35-Inch, Full/Self-Service

SKU: 39999
GTIN: 690207399993
$1,011.68
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

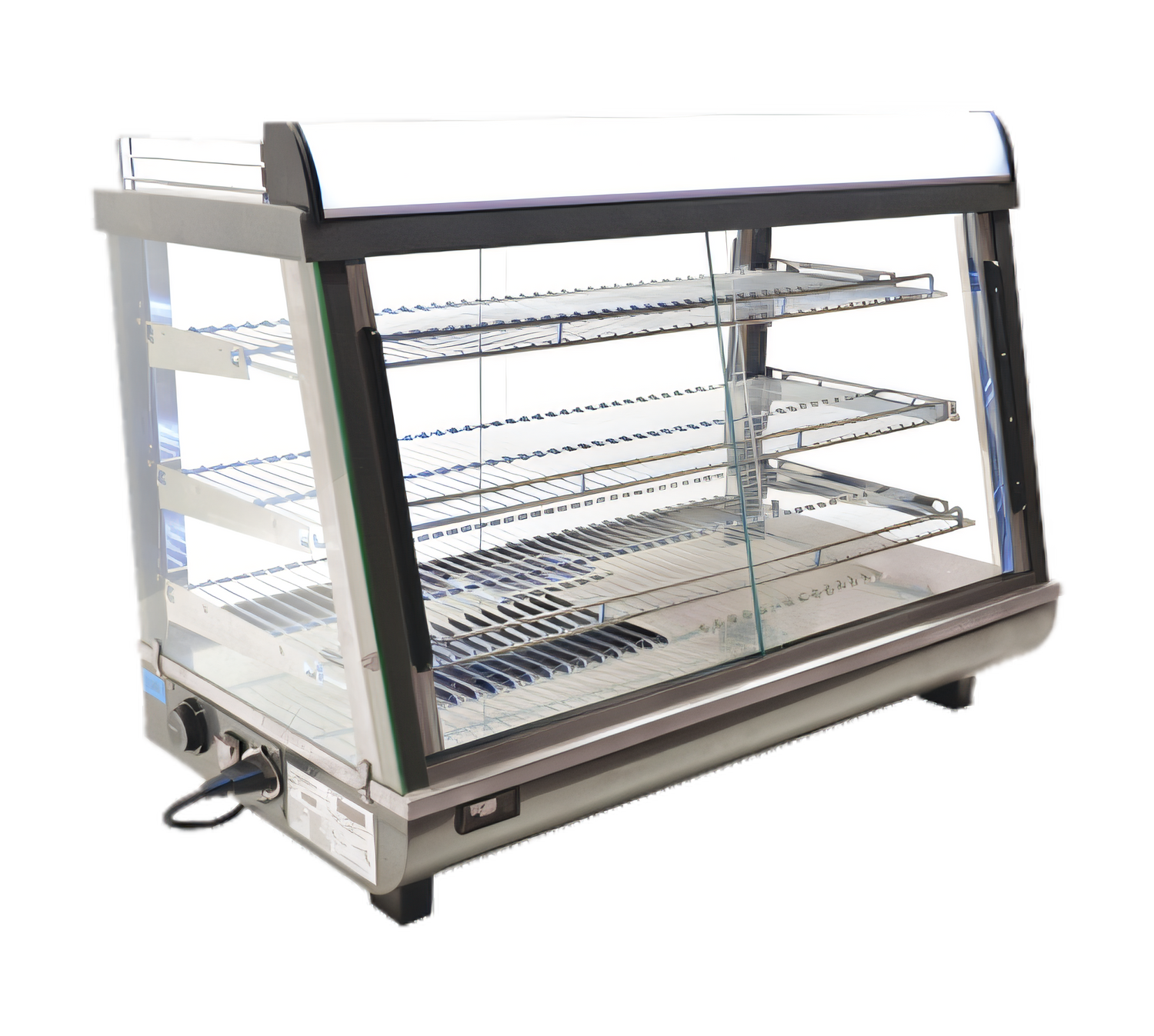

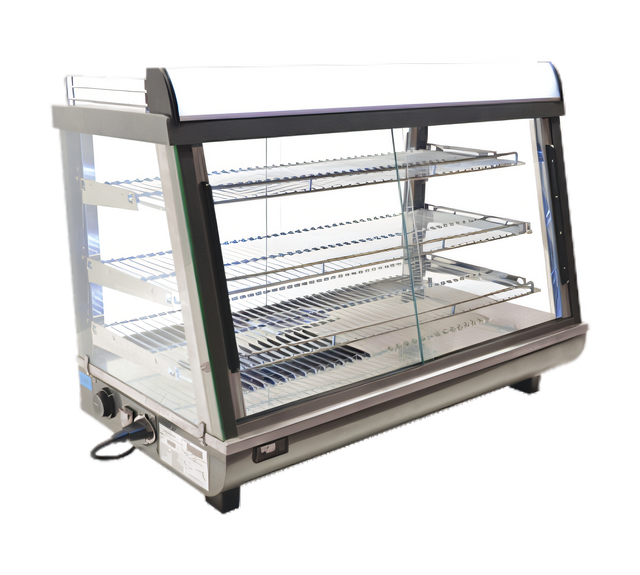

Omcan Elite Series Countertop Pass-Thru Heated Display Case, 35-Inch, Full/Self-Service

4.8 Cu. Ft. Interior, 86°F to 194°F, Front and Rear Sliding Glass Doors

Merchandise and hold hot foods in a compact pass-thru countertop case designed for both self-service and server-side access.

  • Pass-thru design with front and rear sliding glass doors supports self-service and staff service.
  • 4.8 cu. ft. interior with 3 adjustable chrome-plated shelves for flexible display setup.
  • Adjustable temperature controller with temperature display helps maintain proper hot-holding conditions.
  • LED canopy lighting and 3 interior lamps improve product visibility and presentation.
  • Glass sides and a 35-inch countertop footprint make it easy to showcase hot foods in tight spaces.

Overall Dimensions:

35.0"W x 18.8"D x 26.2"H

Product Weight:

92.0 lb

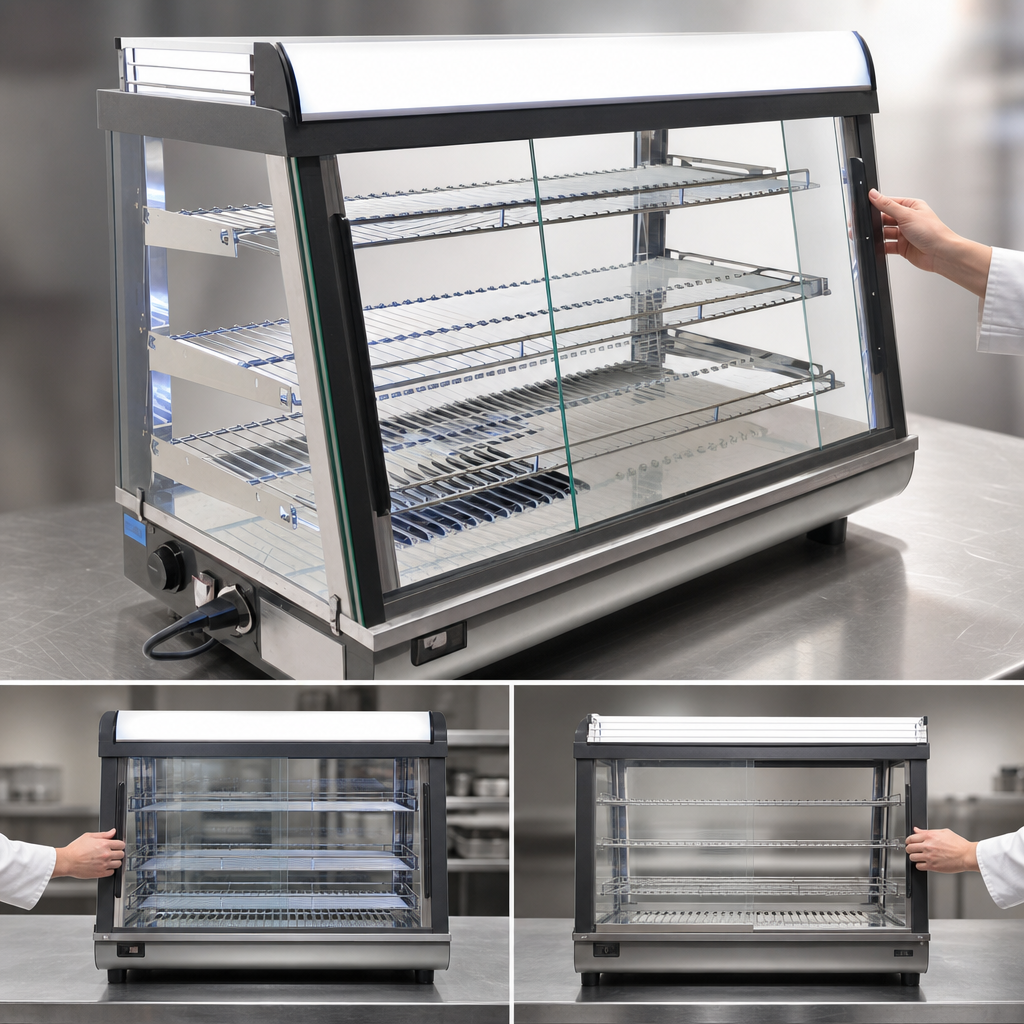

Pass-Thru Sliding Glass Doors

Front and rear sliding doors allow access from both sides for self-service or kitchen-to-server use.

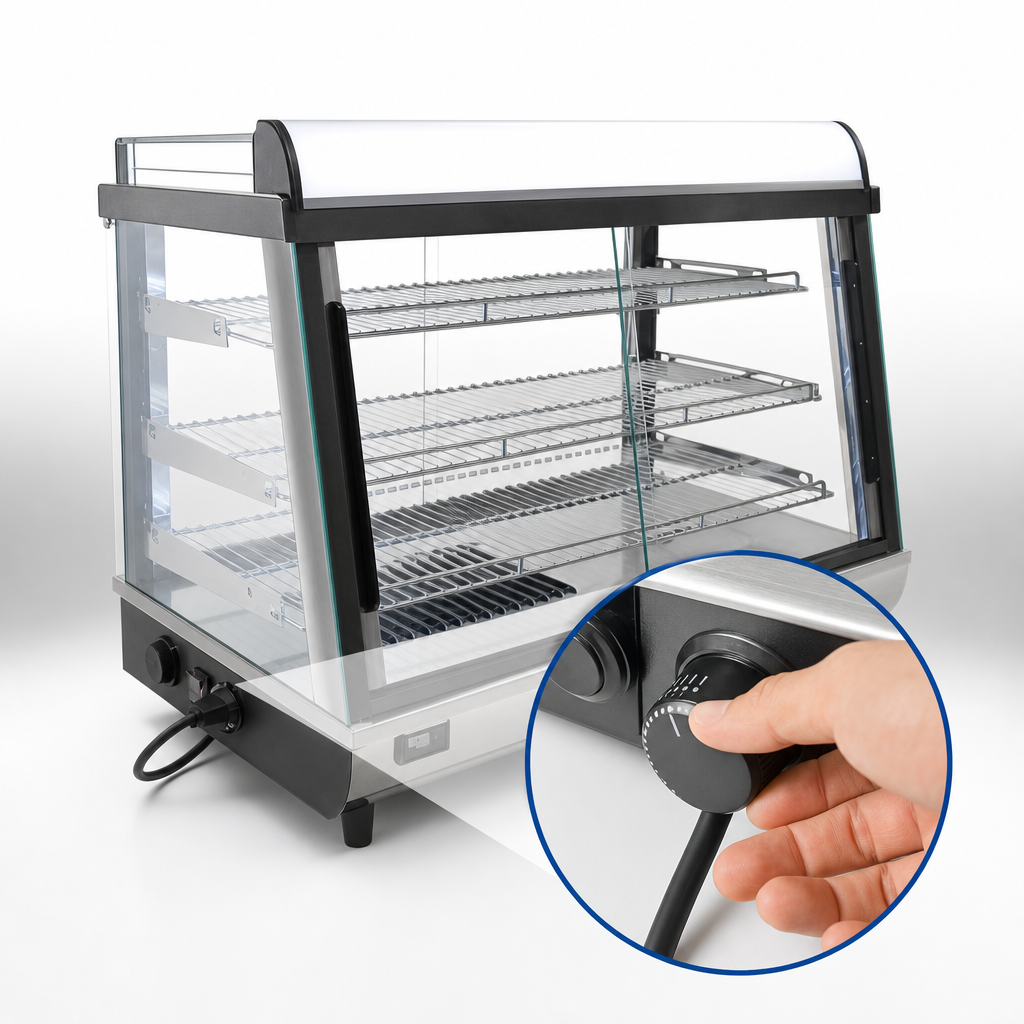

Adjustable Temperature Control

User-adjustable controller with temperature display for easier monitoring and food holding.

Three Adjustable Chrome-Plated Shelves

Includes three shelves that can be repositioned to accommodate different foods and display heights.

LED Canopy and Interior Lamps

Top LED illumination and three interior lamps help highlight merchandise and improve visibility.

Glass Side Panels

Clear side panels provide additional product visibility from multiple angles.

Countertop Footprint

Compact 35-inch-wide countertop design is suited for front-of-house merchandising.

Type Heated Display Case
Style Pass-Thru
Installation Type Countertop
Service Type Full-Service/Self-Service
Capacity 4.8 Cubic Feet
Temperature Range 86°F to 194°F
Voltage 110 Volts
Amps 9.4 Amps
Watts 1.02 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 38.3 Inches
Shipping Depth 21.7 Inches
Shipping Height 27.4 Inches
Shipping Weight 136 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

General warranty against defects of material, manufacturing, and assembly.

Frequently Asked Questions

It is designed for both full-service and self-service use with front and rear sliding doors.
The temperature range is 86°F to 194°F (30°C to 90°C).
It includes 3 adjustable chrome-plated shelves.
It operates on 110V/60Hz/1-phase power, draws 9.4 amps, uses 1.02 kW, and comes with a NEMA 5-15P plug.
The interior capacity is 4.8 cubic feet, or 136 liters.
