Omcan USA 25261 Compartment Sinks
Description

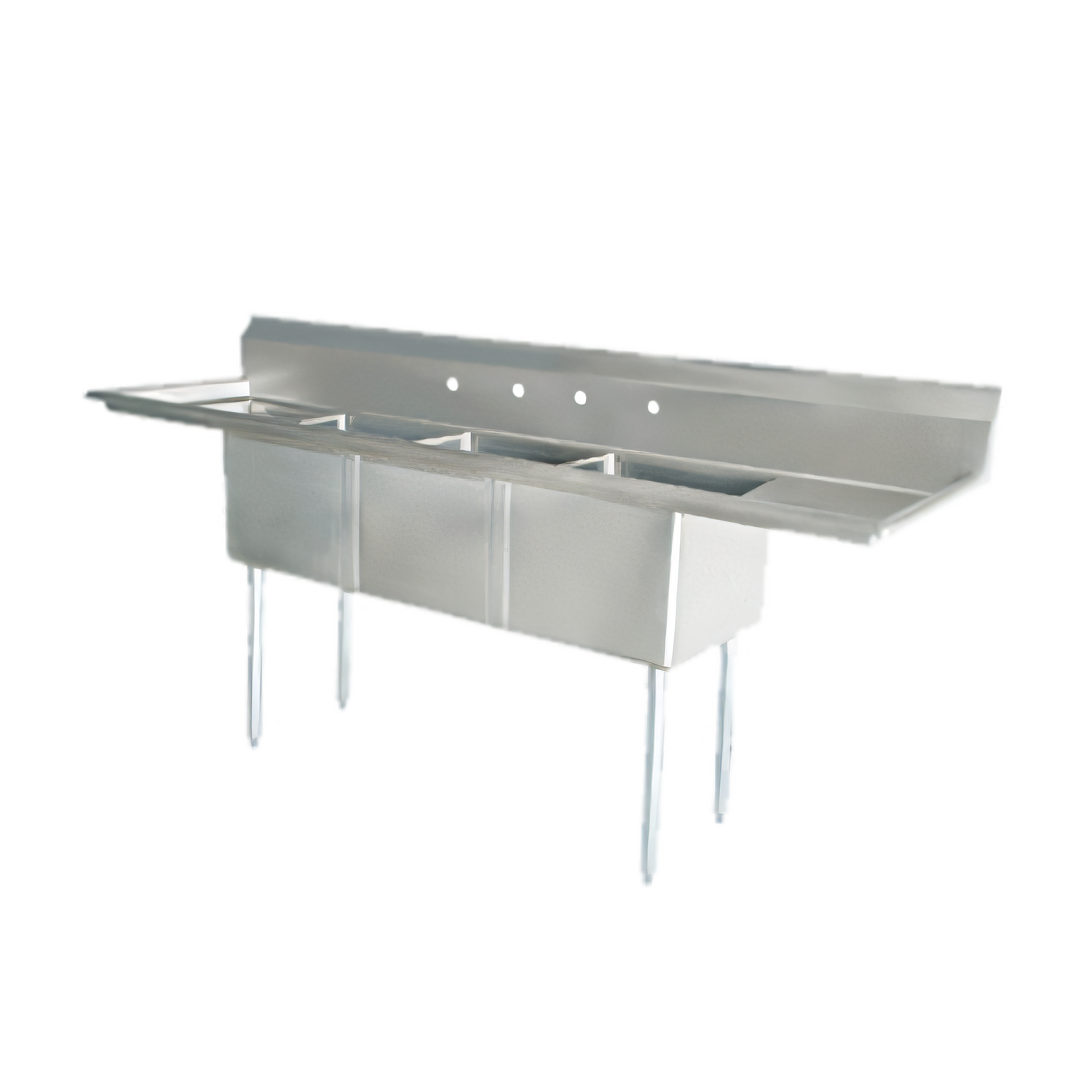

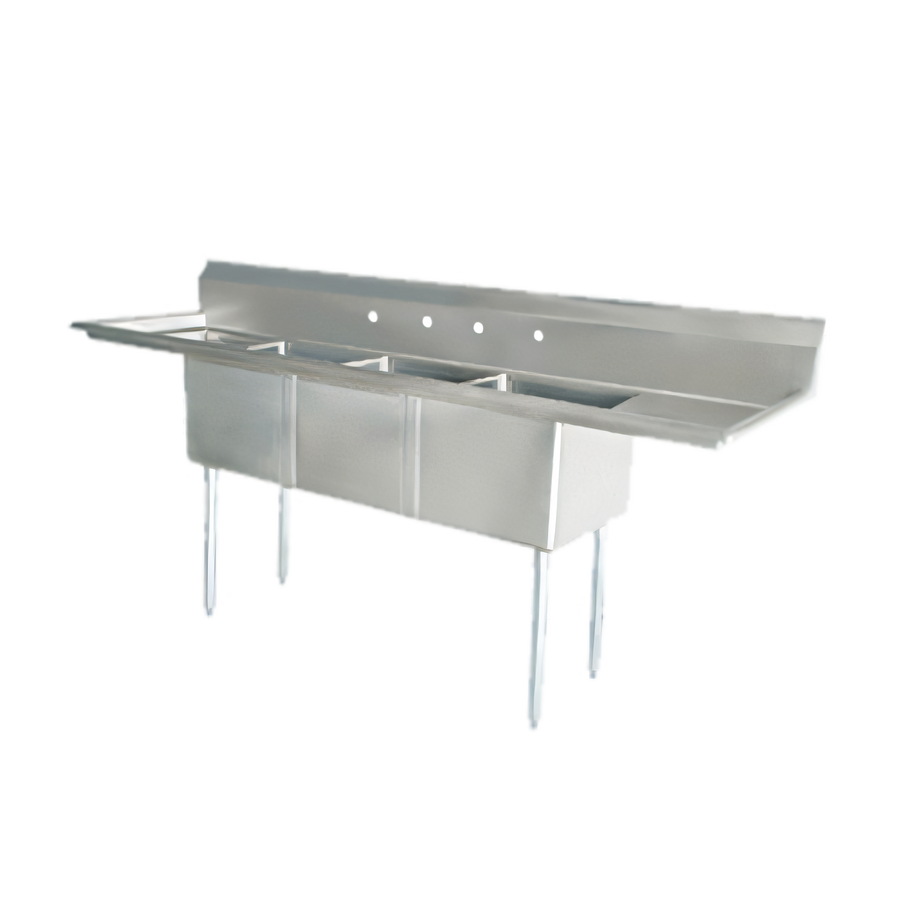

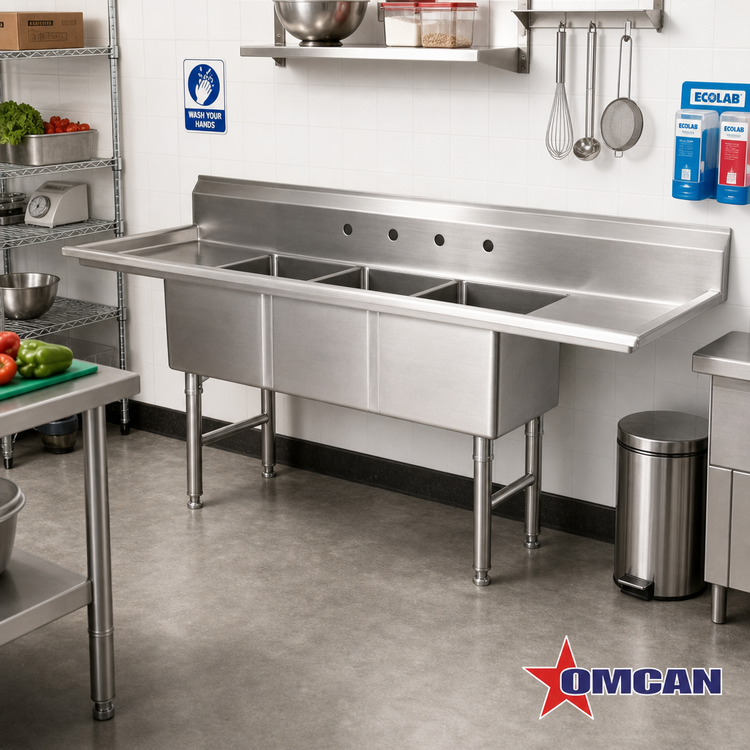

Omcan 25261 Three-Compartment Pot Sink – 120" Wide
24" x 24" x 14" Bowls | Dual Drain Boards | NSF CertifiedBuilt for the toughest back-of-house environments, the Omcan 25261 pot sink delivers generous bowl capacity, convenient staging space on both sides, and durable 18-gauge 304 stainless-steel construction that stands up to years of heavy scrubbing and sanitising.
Key Features

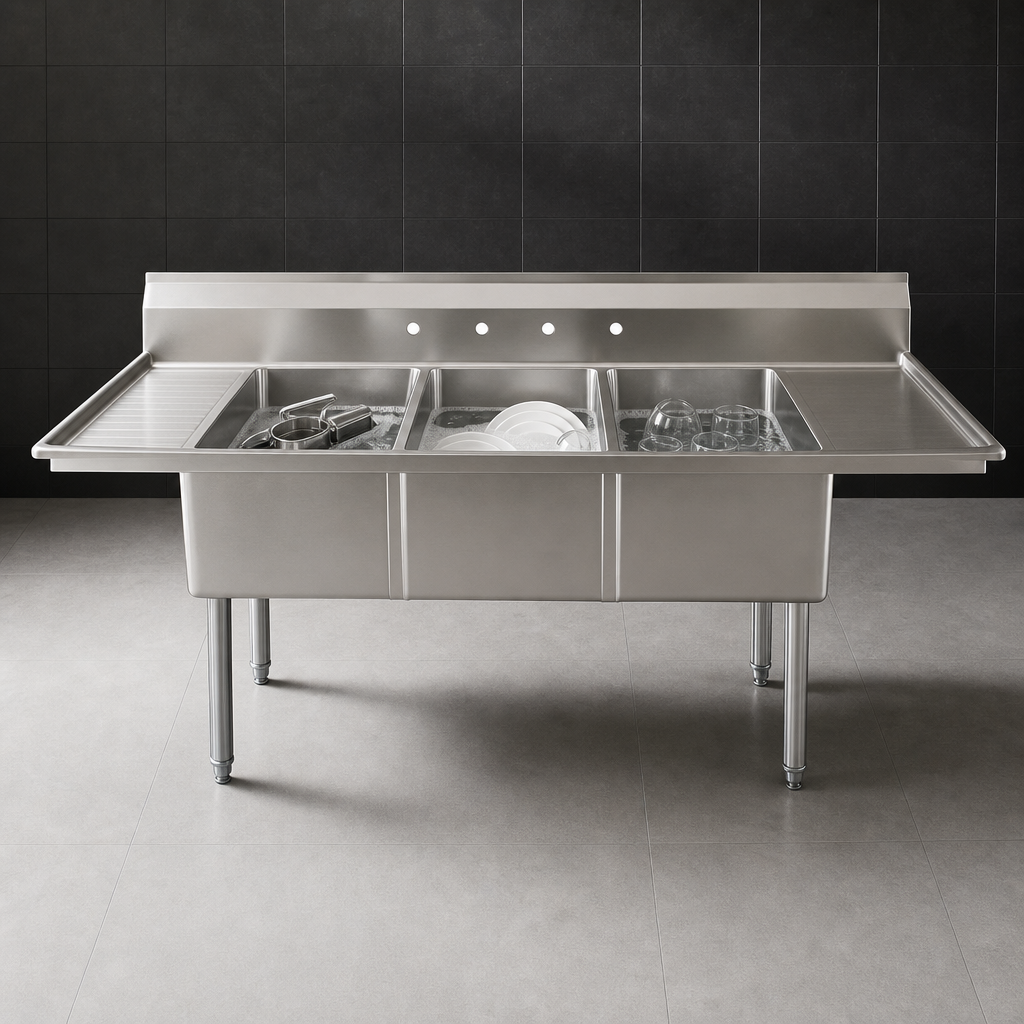

- (3) oversized 24" front-to-back x 24" wide x 14" deep compartments easily fit large stock pots and food-prep tubs.
- Left & right integrated drain boards keep dirty and clean wares organised while freeing up counter space.
- Four pre-drilled 1" faucet holes on 8" centres accept standard commercial wall-mount faucets and add-on sprayers.
- 9-3/4" high backsplash with faucet rail protects surrounding walls from splashes.
- Corner-mounted 1.8" drains with included basket strainers promote rapid water evacuation.
- 18-gauge, type 304 stainless steel resists corrosion from detergents, bleach, and acidic foods.
- Galvanised tubular legs with adjustable bullet feet level the sink on uneven floors.
- NSF listed for safe use in regulated food-service establishments.
- Ships knocked-down on a pallet; legs bolt on in minutes for fast set-up.
Technical Specifications
| Model / Item # | 25261 |
|---|---|
| Compartments | 3 |
| Bowl size (W × F/B × D) | 24" × 24" × 14" (609.6 × 609.6 × 355.6 mm) |
| Drain location / size | Corner, 1.8" Ø (4.6 cm) |
| Drain boards | 2 (left & right) |
| Faucet holes | 4 holes, 1" Ø on 8" centres |
| Backsplash height | 9-3/4" (248 mm) |
| Overall dimensions (W × D × H) | 120" × 29-1/2" × 44" (3048 × 749 × 1117.6 mm) |
| Material thickness | 18-gauge (≈1.2 mm) |
| Stainless grade | 304 |
| Legs / feet | Galvanised steel, adjustable bullet feet |
| Net / shipping weight | 150 lb (68 kg) – ships on pallet |
| Certifications | NSF |
Perfect For
- High-volume restaurants, cafeterias, and commissary kitchens
- Catering halls and banquet facilities
- School, hospital, and institutional food-service operations
- Breweries, bakeries, and other production facilities needing large-capacity pot washing
Faucet, pre-rinse sprayer, and plumbing fittings are sold separately. Optional leg braces and replacement drain boards are available—contact us for details.
