Omcan USA 25258 Compartment Sinks
Description

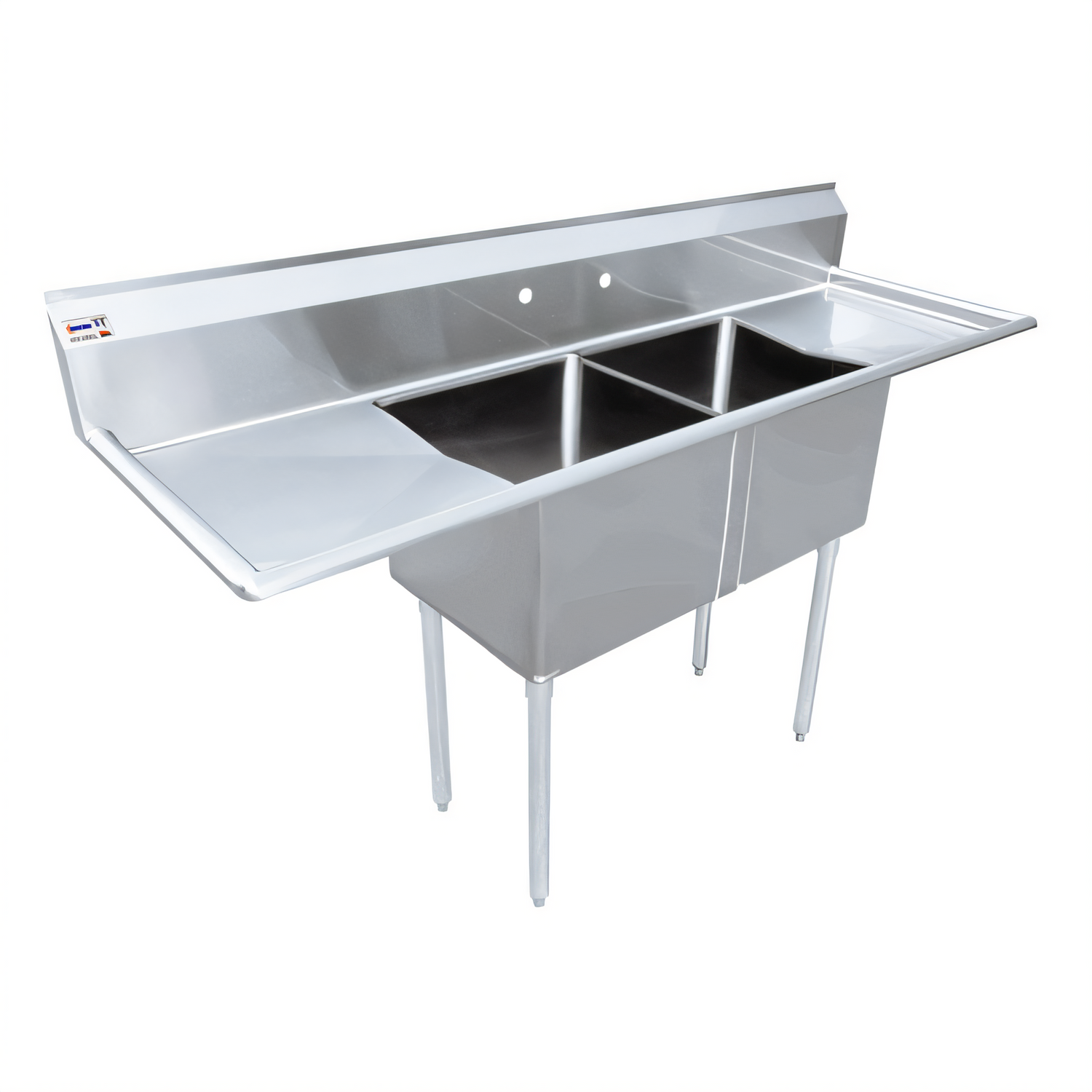

Omcan 25258 Two-Tub Pot Sink with Dual Drain Boards
24" x 24" x 14" Bowls • 304 Stainless Steel • NSF & CSA ListedBuilt for the busiest commercial kitchens, this Omcan pot sink delivers generous work space, lasting durability and food-safe sanitation in one heavy-duty package. Two extra-large bowls handle oversized stock pots while the full-length left and right drain boards keep workflows organized and efficient.
Key Features

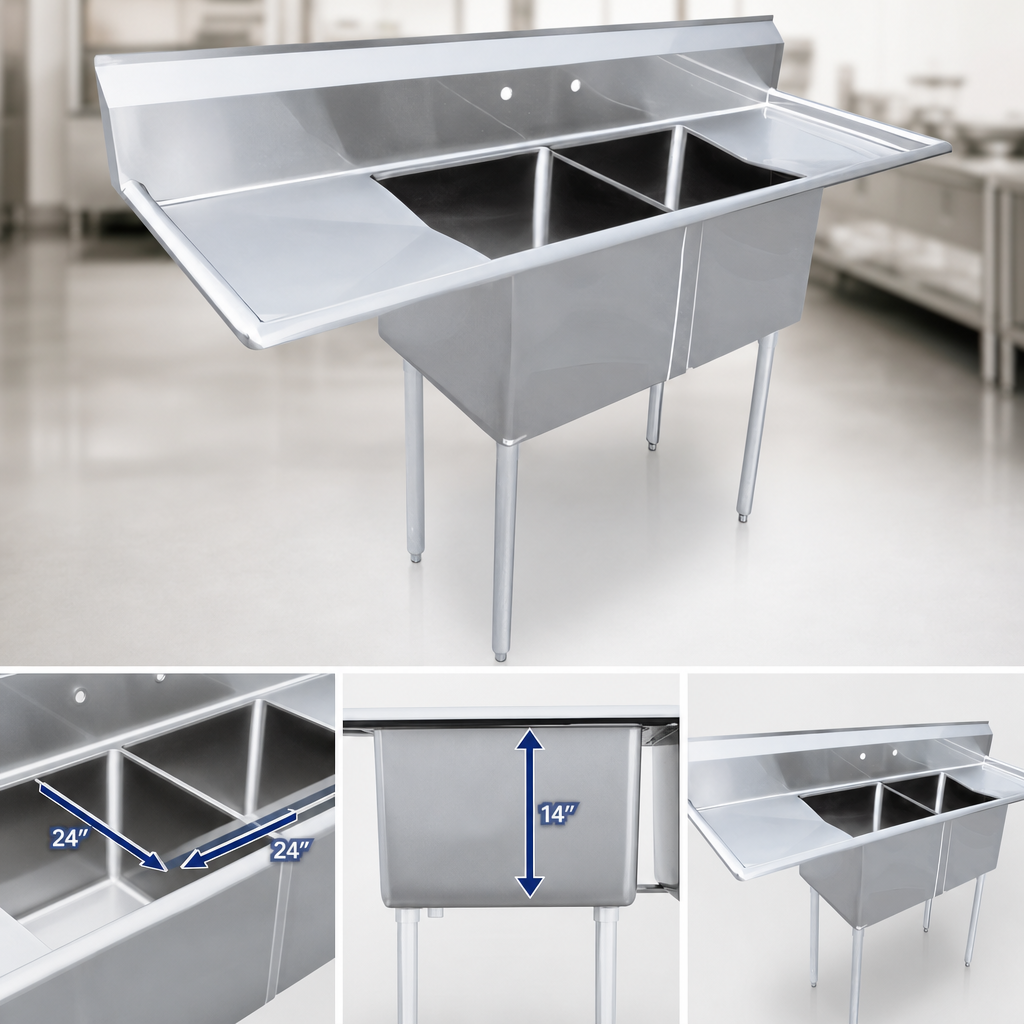

- Two 24" front-to-back x 24" wide x 14" deep bowls for large cookware and sheet pans
- Dual drain boards (left & right) provide a combined 48" of landing area
- 18-gauge, Type 304 stainless steel construction resists corrosion, stains and dents
- 9 ¾" backsplash with pre-punched 8"-on-center faucet holes
- Space-saving corner drains with included drain guards (1.8" / 4.6 cm outlets)
- Galvanized steel legs with adjustable bullet feet for fast leveling on uneven floors
- Ships knocked-down on a pallet for easier on-site handling and reduced freight cost
- NSF & CSA certified for guaranteed code compliance
Technical Specifications
| Item number | 25258 |
|---|---|
| Number of bowls | 2 |
| Individual bowl size (W × F/B × D) | 24" × 24" × 14" (609.6 × 609.6 × 355.6 mm) |
| Drain boards | 2 (left & right) |
| Overall dimensions (L × W × H) | 96" × 29 ½" × 44" (2438 × 749 × 1117.6 mm) |
| Backsplash height | 9 ¾" (247 mm) |
| Faucet holes | 8" on center, 1 ⅛" Ø |
| Drain size | 1.8" (4.6 cm) |
| Material / gauge | 18 ga 304 stainless steel |
| Legs & feet | Galvanized legs, adjustable bullet feet |
| Shipping weight | 120 lb / 54.4 kg |
| Certifications | NSF, CSA |
| Warranty | 180-day limited parts & labor |
Popular Accessories (sold separately)
- 21140 – Stainless steel leg brace for added rigidity
- 21143 – Knock-down drain board kit (24" × 24") for replacement or expansion
Omcan reserves the right to modify specifications without prior notice. All dimensions and weights are approximate.
