Omcan USA  |  SKU: 22120  |  UPC: 690207221201

Omcan USA 22120 Compartment Sinks

$837.82
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

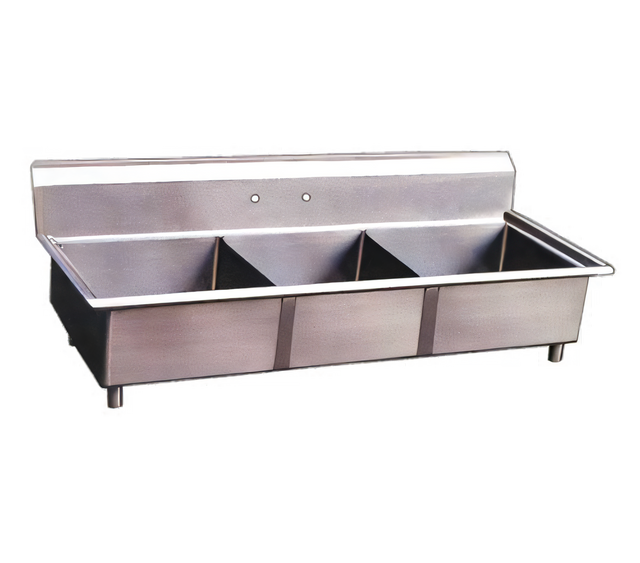

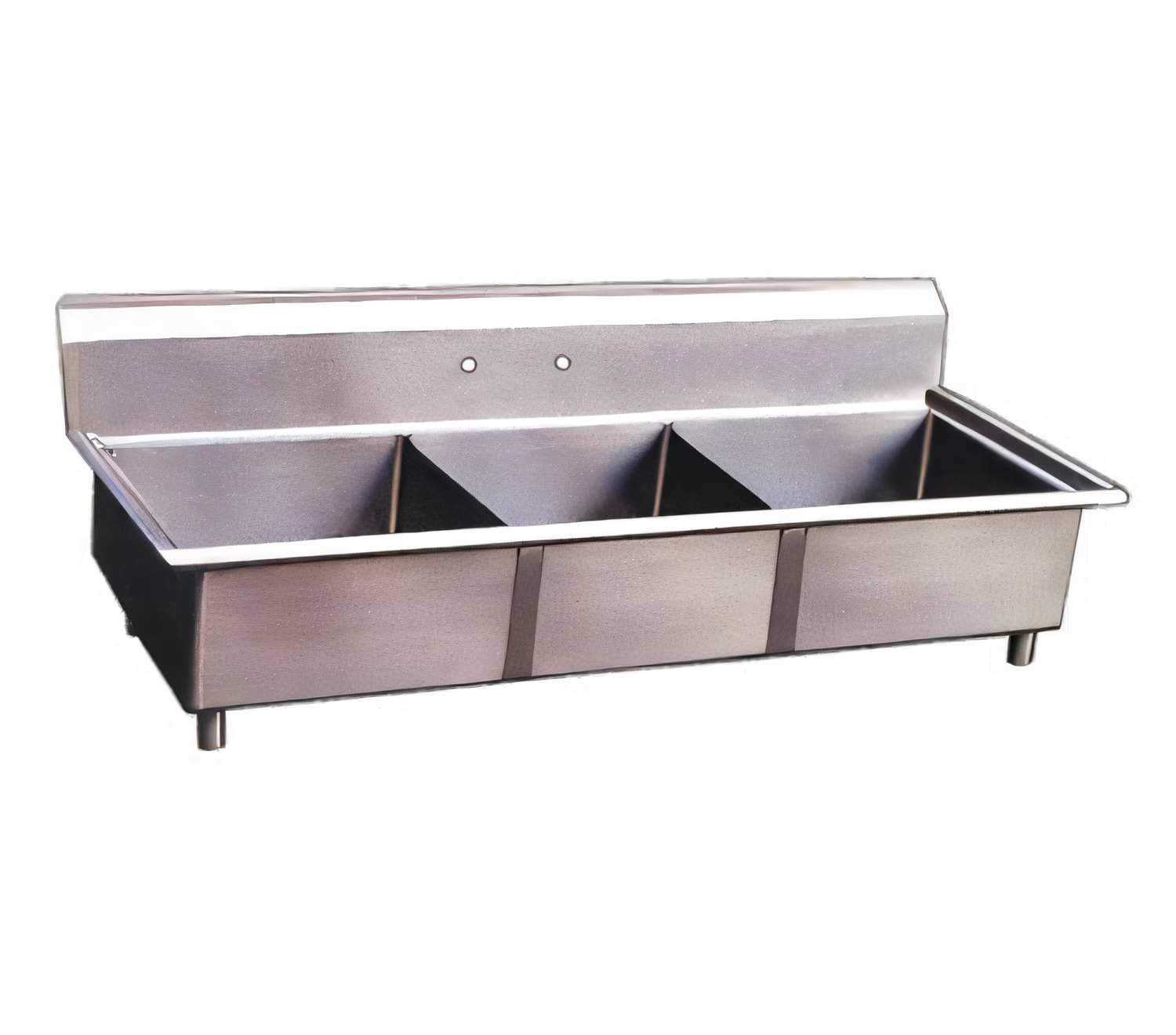

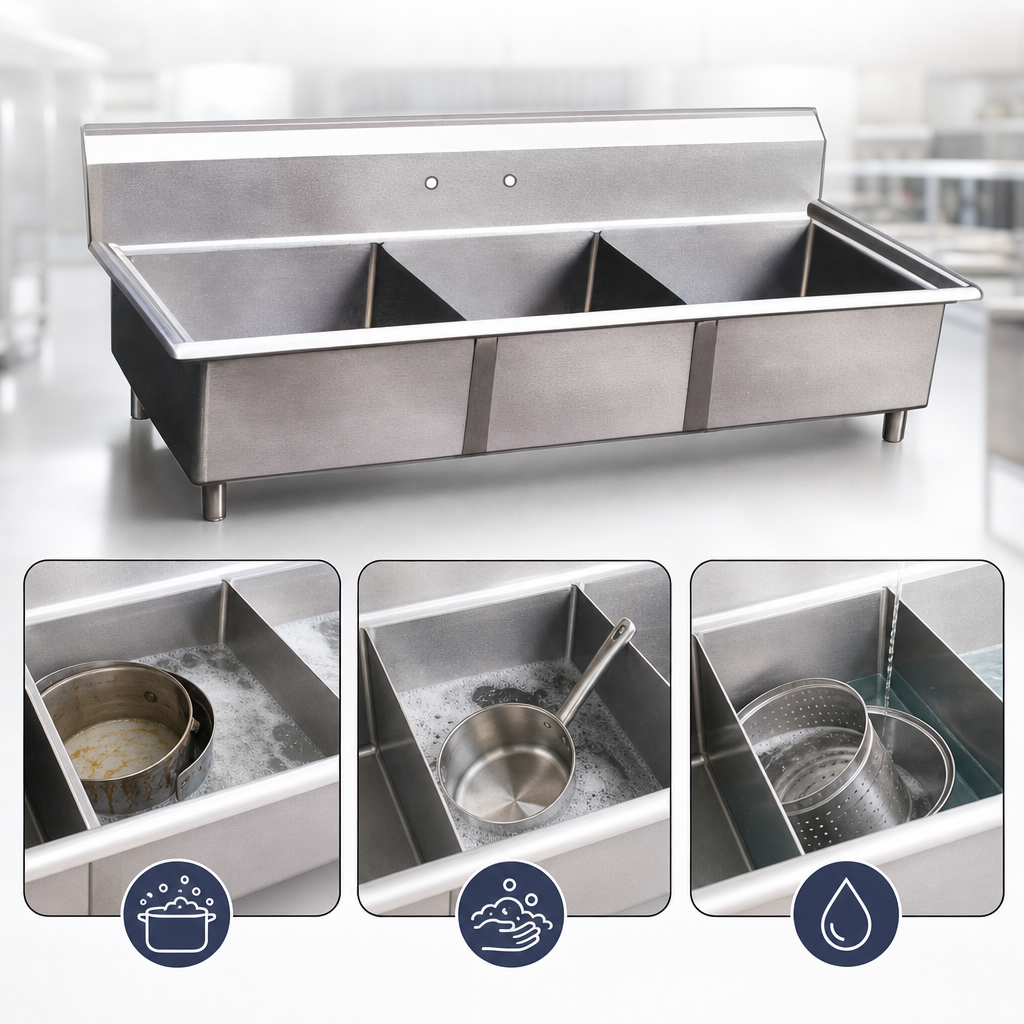

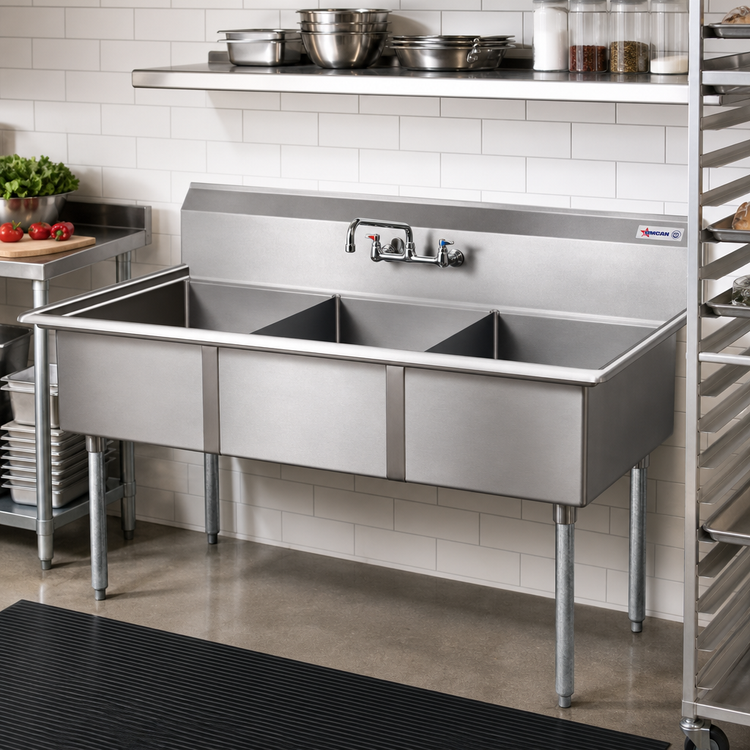

Omcan 3-Compartment Pot Sink – 24" x 24" x 14"

Item #22120 • Corner Drain • No Drain Board • NSF Certified

Designed for relentless daily use in high-volume kitchens, the Omcan 22120 three-tub pot sink provides generous bowl capacity, food-safe 304 stainless construction, and the worry-free sanitation approval you need to keep service moving smoothly.

Key benefits

  • Oversized 24" x 24" x 14" bowls easily accommodate stock pots, sheet pans & bulk food containers.
  • Corner drains keep the work area clear while maximizing usable sink space.
  • 18-gauge, 304 stainless steel resists corrosion, dents, and harsh cleaning chemicals.
  • 9-3/4" backsplash with four pre-punched 1" faucet holes on 8" centers—ready for your choice of wall-mounted faucet.
  • Galvanized tube legs with adjustable bullet feet level the sink on uneven floors.
  • Comes with stainless steel drain guards to help prevent clogs.
  • NSF listed for use in all regulated food-service operations.

Ideal for

  • Full-service & quick-service restaurants
  • Commissaries and ghost kitchens
  • Bakeries, breweries & food-production facilities
  • School, hospital & corporate cafeterias
  • Catering prep stations

Specifications

Item number 22120
Compartments 3
Individual bowl size (W × F/B × D) 24" × 24" × 14" (609.6 × 609.6 × 355.6 mm)
Overall dimensions (L × W × H) 77" × 29.5" × 44" (1956 × 749 × 1117.6 mm)
Backsplash height 9-3/4"
Faucet holes 4 holes, 1" Ø, 8" on center
Drain size / location 1.8" (4.6 cm) corner drains
Material 18-gauge 304 stainless steel sink top & bowls; galvanized legs
Feet Adjustable bullet feet
Weight 110 lb / 50 kg
Certification NSF
Shipping Ships knocked-down on pallet; legs packed separately

Optional accessories (sold separately)

  • 21141 – Stainless steel leg brace kit for additional lateral stability
  • 21143 – Knock-down drain board attachment for 24" × 24" bowls (left, right or double)
Plumbing notice: Faucet set, P-trap and supply lines are not included. Install and connect per all local plumbing codes.

Questions about installation or compatible faucets? Contact our equipment specialists—we’re happy to help.

Features & Specs

Manufacturer

Omcan USA

Certifications

NSF

Height

44.0in

Width

77.0in

Depth

29.5in

Shipping Weight

110.0lbs

Overall Length

73" - 84"

Sink Depth (rim - drain)

14"

Compartment Width (side - side)

24"

Base Construction

galvanized

Base Type

legs with side crossrails

Compartment (front - back)

24"

Splash Height

9-3/4"

Top Gauge

18 gauge

Drainboards

without drainboards

Top Stainless Series

300 series

Specifications

(22120) Pot Sink, (3) 24" front to back x 24" wide x 14" deep bowls, 8" center faucet holes, 9-3/4" backsplash, corner drains, galvanized legs with adjustable bullet feet, 18 gauge, 304 stainless steel, NSF (no drain board) (shipped on pallet)
