Omcan USA 17836 Planetary Mixers
Description

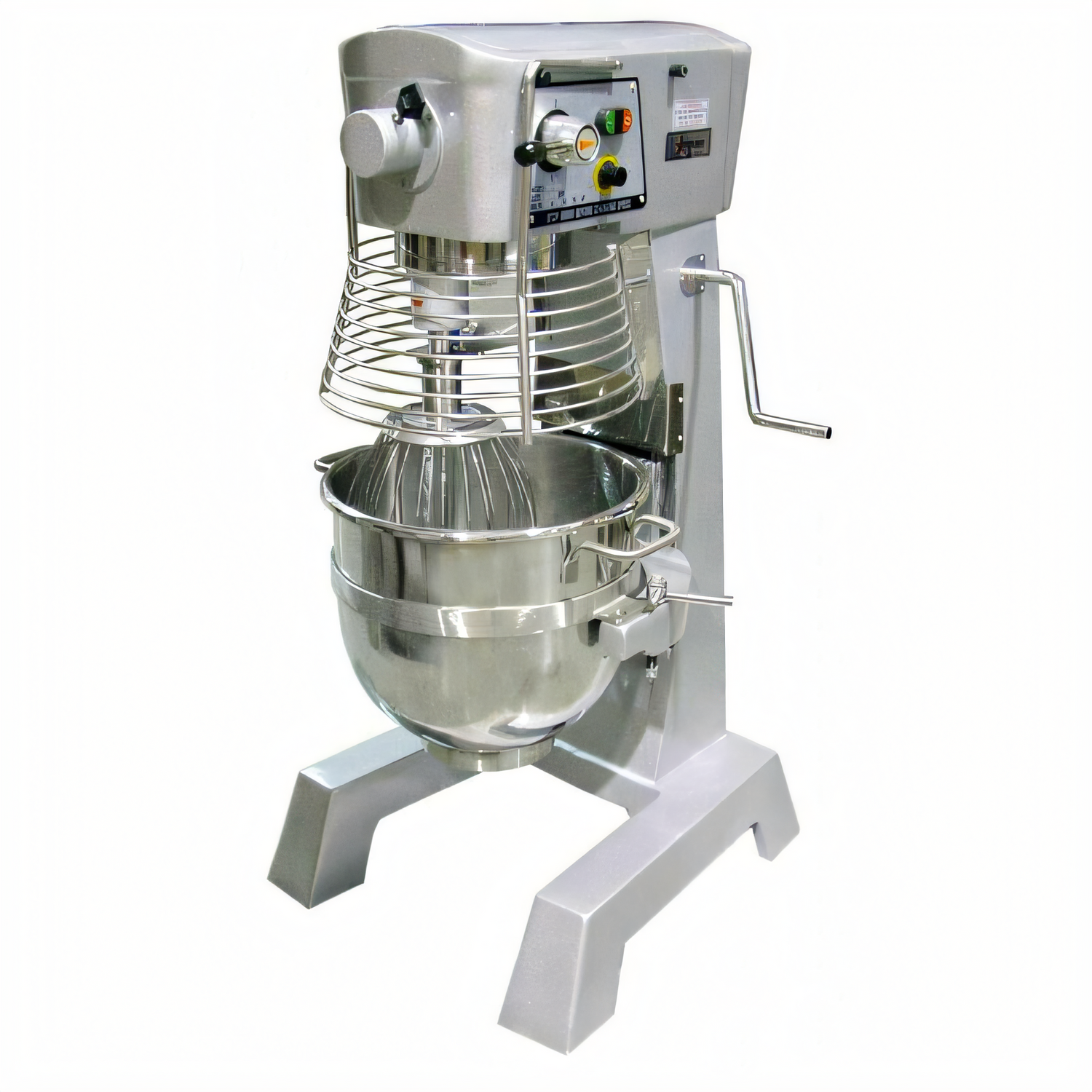

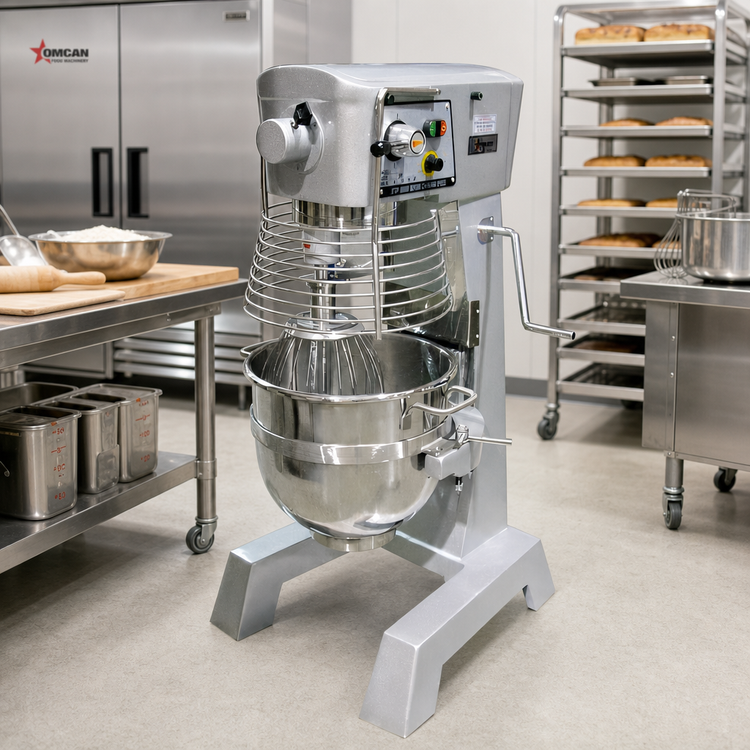

30-Qt Planetary Mixer with Guard & Timer
Omcan USA • Model MX-CN-0030-T • Item 17836Built to power through demanding commercial kitchens and bakeries, the Omcan 30-quart planetary mixer pairs a rugged 2 HP motor with a smooth, 3-speed gear drive. From airy meringues to dense pizza dough, every batch comes out perfectly mixed—quickly, quietly, and consistently.
Why you’ll love it
- High-torque 2 HP motor tackles thick dough without stalling.

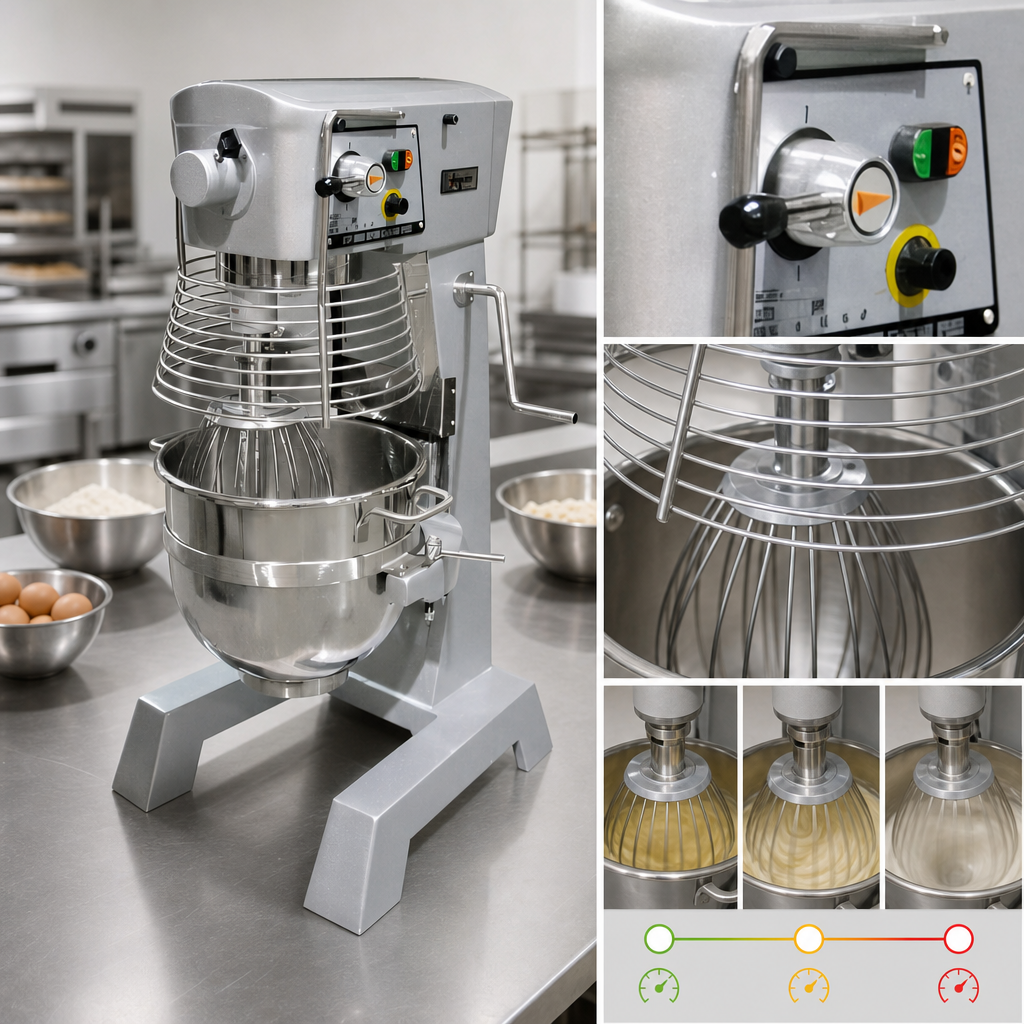

- 3 gear-driven speeds (91 / 166 / 282 RPM) give you total control—from slow kneading to high-speed whipping.

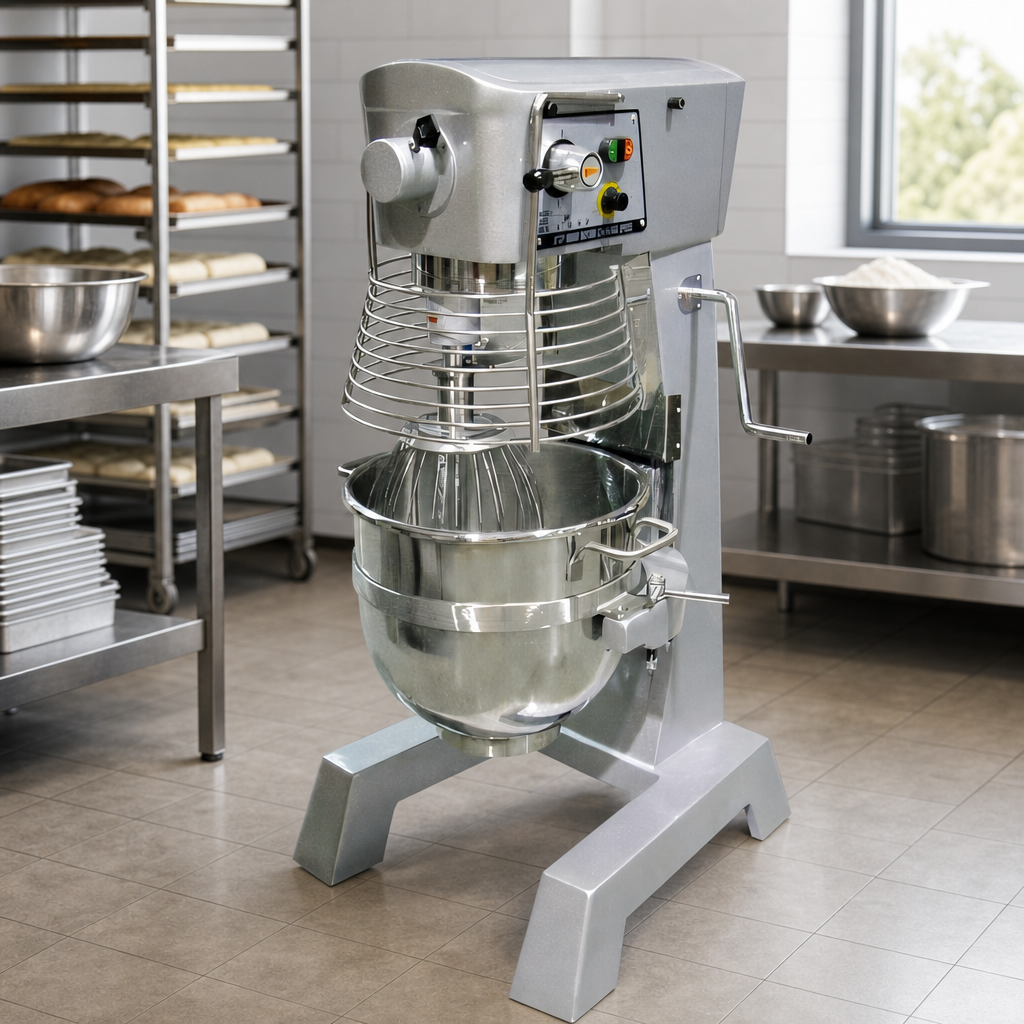

- 30-qt stainless steel bowl handles up to 40 lb of dough or 18 lb of flour.*
- Countdown timer (0-30 min) frees staff for other tasks and ensures batch-to-batch consistency.
- #12 power-drive hub accepts standard hub attachments (grinders, shredders etc.) for added versatility.
- Full safety guard keeps hands clear of moving parts and helps you meet food-service regulations.
- Durable cast construction with a metallic-gray finish stands up to daily commercial use.
- ETL & cETLus listed for electrical safety and sanitation—ideal for U.S. & Canadian operations.
What’s included
- 30-qt stainless steel bowl (24955)
- Dough hook (24951)
- Flat beater (24952)
- Wire whip (24953)
- Removable stainless safety guard
- Factory-installed power cord with NEMA 5-20P plug
Technical specifications
| Capacity | 30 qt (28.4 L) |
|---|---|
| Motor | 2 HP / 1.5 kW |
| Speeds (shaft RPM) | 1st 91 • 2nd 166 • 3rd 282 |
| Transmission | Gear-driven, permanently lubricated |
| Timer | 0–30 min, mechanical countdown |
| Power requirements | 110 V • 60 Hz • 1-phase • 19 A • NEMA 5-20P |
| Dimensions (D × W × H) | 23.5 × 21 × 44.5 in 596.9 × 533.4 × 1130.3 mm |
| Ship weight | 433 lb / 196.8 kg (ships on pallet) |
| Ship dimensions | 29 × 26 × 50 in 736.6 × 660.4 × 1270 mm |
| Approvals | ETL, cETLus |
| Warranty | 1 year parts & labor |
Replacement & optional accessories (sold separately)
- Wire whip (24953)
- Dough hook (24951)
- Flat beater (24952)
- Additional 30-qt bowl (24955) for continuous production
- Stainless-steel hopper (28718) for quick ingredient loading
*Capacity will vary depending on ingredient type and recipe. Always follow recommended batch sizes in the operator’s manual for optimal results.
