Omcan USA 17835 Planetary Mixers
Description

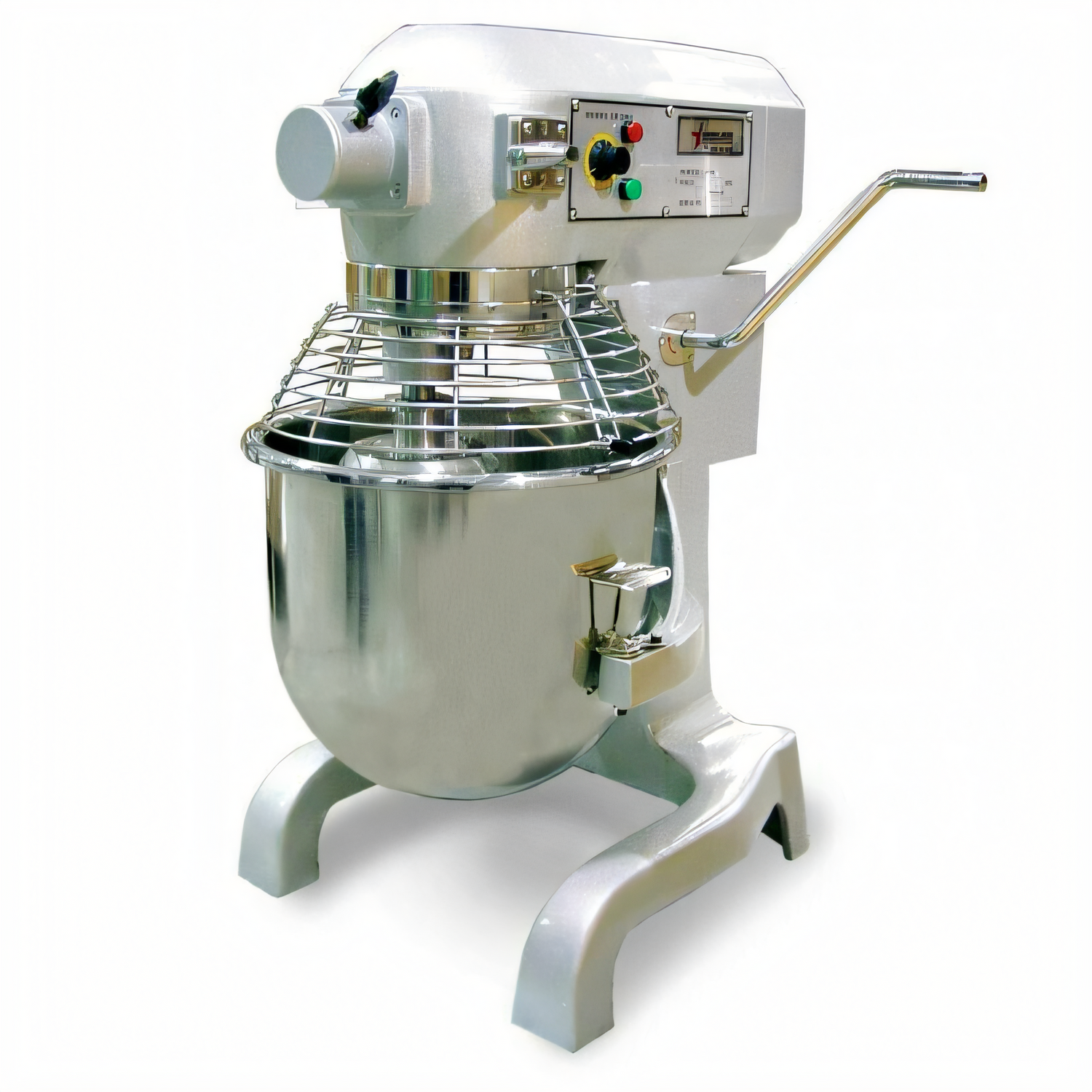

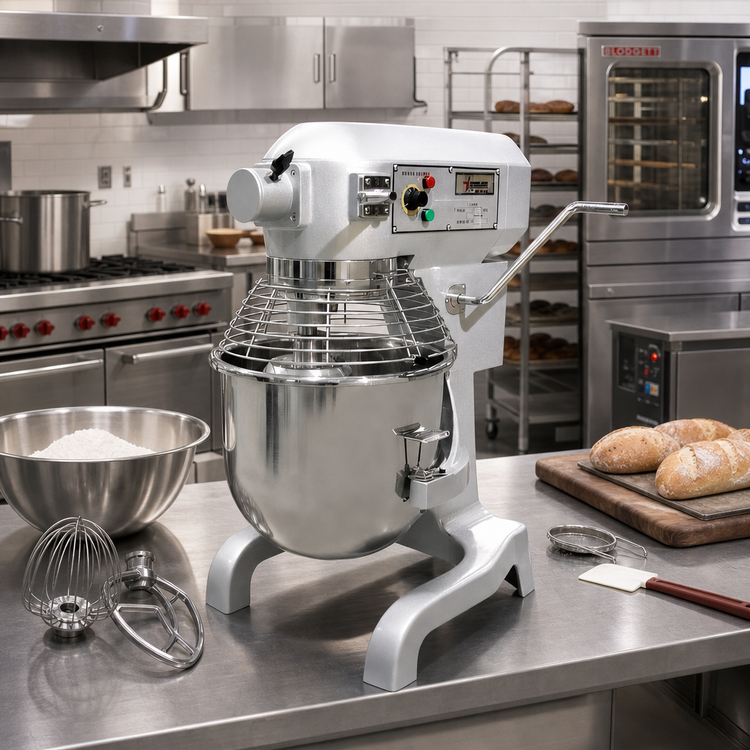

Omcan 20-Qt Planetary Mixer with Timer – Model MX-CN-0020-T
Gear-driven power, precise three-speed control & built-in #12 hubFrom airy meringues to pizza dough, this 20-quart planetary mixer delivers the versatility cafés, bakeries, and catering kitchens count on. A heavy-duty 1.5 HP motor, rugged gear transmission, and convenient built-in timer keep your production running smoothly while the included stainless bowl and full set of tools let you start mixing right out of the box.
Why You’ll Love It
- 20 qt stainless steel bowl—ideal capacity for up to 18 lb of dough or 18 dozen cookies*

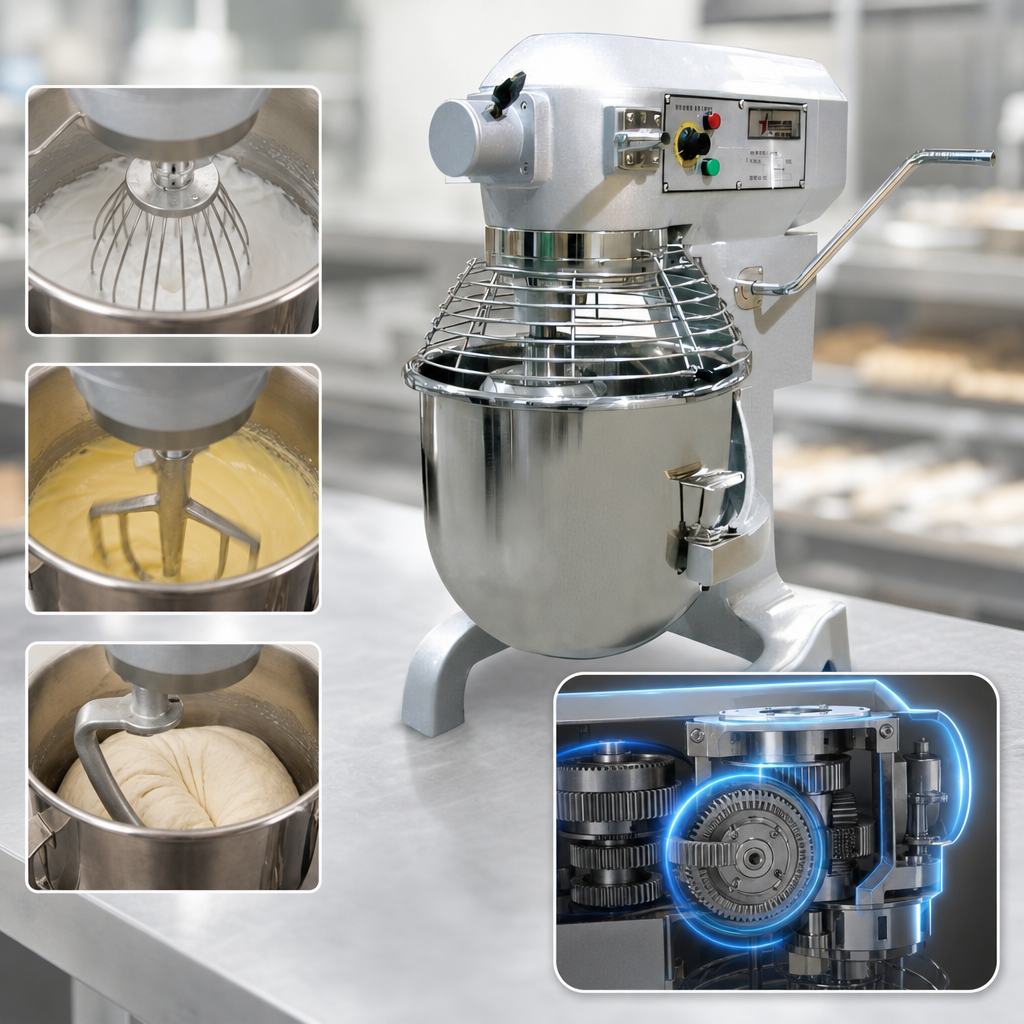

- Three fixed gears (108 / 195 / 355 RPM) for gentle folding, standard mixing, or high-speed whipping

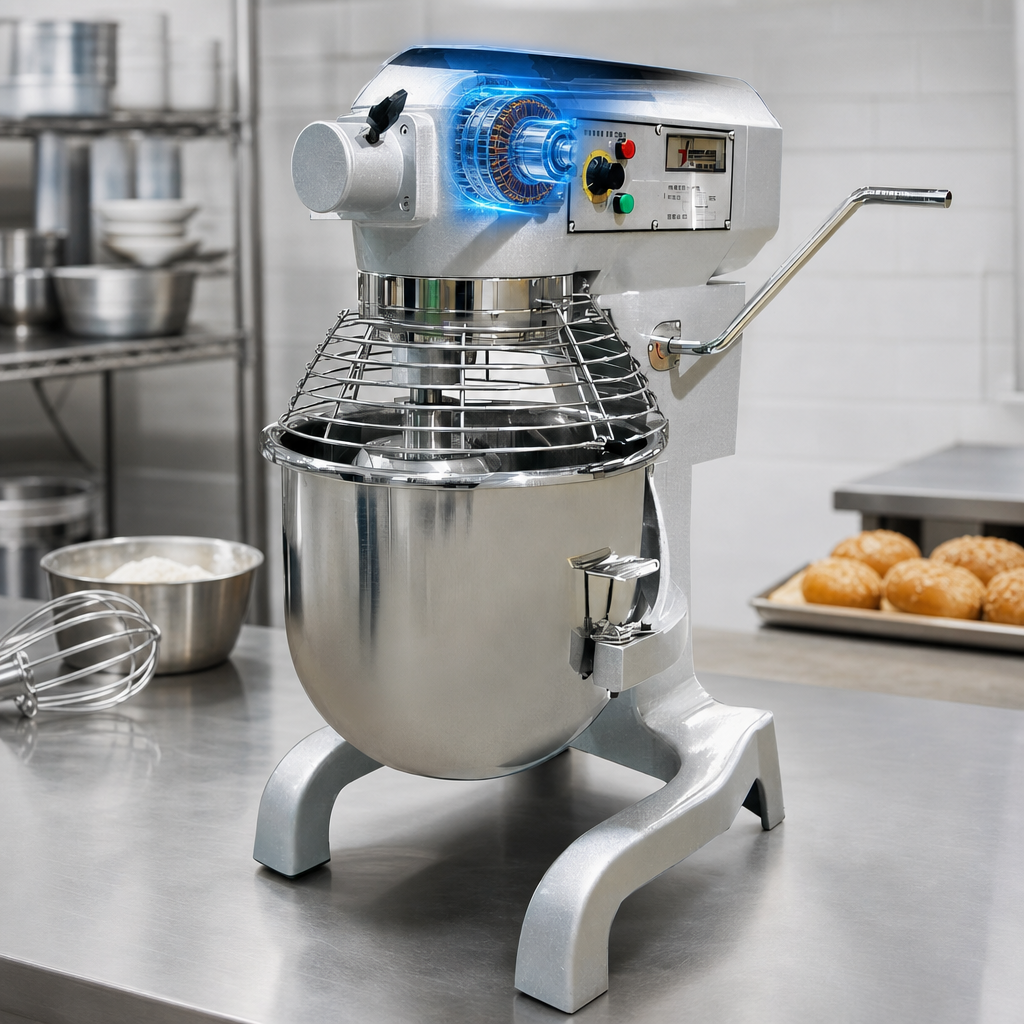

- 1.5 HP, 110 V single-phase motor with overload protection
- Integrated 0–30 min timer—set it and walk away for repeatable results
- #12 power-drive hub accepts compatible meat-grinder, vegetable-slicer & pasta attachments (sold separately)
- Safety guard with automatic bowl-lift interlock meets ETL & ETL-Sanitation standards
- Heavy cast body in durable metallic-gray finish; shipped on pallet for transit protection
*Production volumes are approximate and depend on recipe.
Included Attachments
- Stainless steel bowl (20 qt)
- Flat beater (paddle) – for creaming & batters
- Wire whip – for whipped cream, mousse, meringue
- Dough hook – for yeast doughs & pizza bases
Technical Specifications
| Model / Item # | MX-CN-0020-T / 17835 |
|---|---|
| Capacity | 20 quarts (18.9 L) |
| Motor | 1.5 HP | 1.12 kW, gear driven |
| Mixing Speeds (shaft RPM) | 1st 108 | 2nd 195 | 3rd 355 |
| Timer | 0–30 minutes, mechanical |
| Power Requirements | 110 V / 60 Hz / 1-ph, 9.5 A, NEMA 5-15P plug (pre-wired cord) |
| Attachment Hub | #12 PTO (power take-off) |
| Overall Dimensions (D × W × H) | 21.5 in × 16 in × 30.5 in (546 × 406 × 775 mm) |
| Shipping Weight | 262 lb (119 kg) – ships on pallet |
| Certifications | ETL Listed, ETL-Sanitation, CE |
| Warranty | 1 year parts & labor |
Perfect For
- Independent bakeries & pastry shops
- Pizza restaurants and commissaries
- Cafés, coffee houses & small bistros
- Catering operations and test kitchens
Always read the supplied operation manual and follow local electrical codes. Use is recommended for light-duty commercial applications.
