Omcan USA 13286 Trento Dough Mixer Accessories
Omcan USA 13286 Trento Dough Mixer Accessories is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Omcan USA 13286 Trento Dough Mixer Accessories
Description

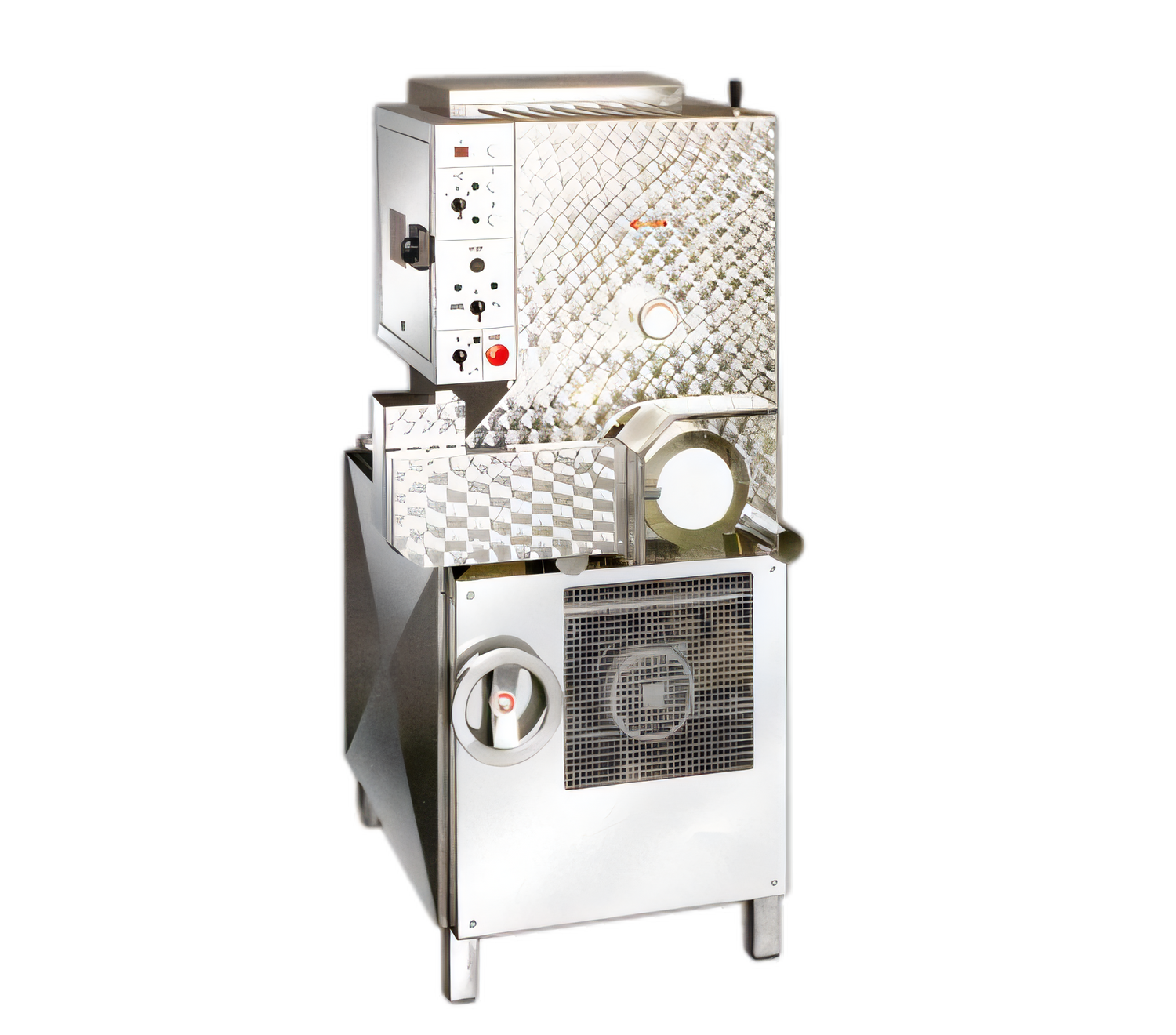

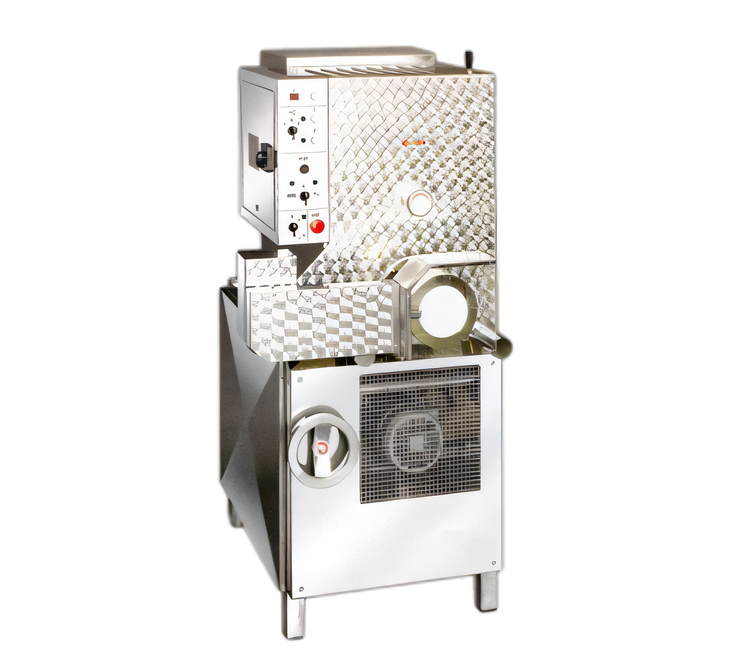

Trento PM-IT-0080 Heavy-Duty Floor Model Pasta Machine
176 lb/hr Output • 110 lb Hopper • Water-Cooled • Made in ItalyEngineered for the busiest commercial kitchens, the Trento PM-IT-0080 extrudes flawless fresh pasta around the clock. Its massive 110 lb (50 kg) hopper, integrated cooling system and motorized cutting assembly let you mix, knead, extrude and cut perfect strands or shapes with authentic Italian texture—without slowing your service.
Key Features

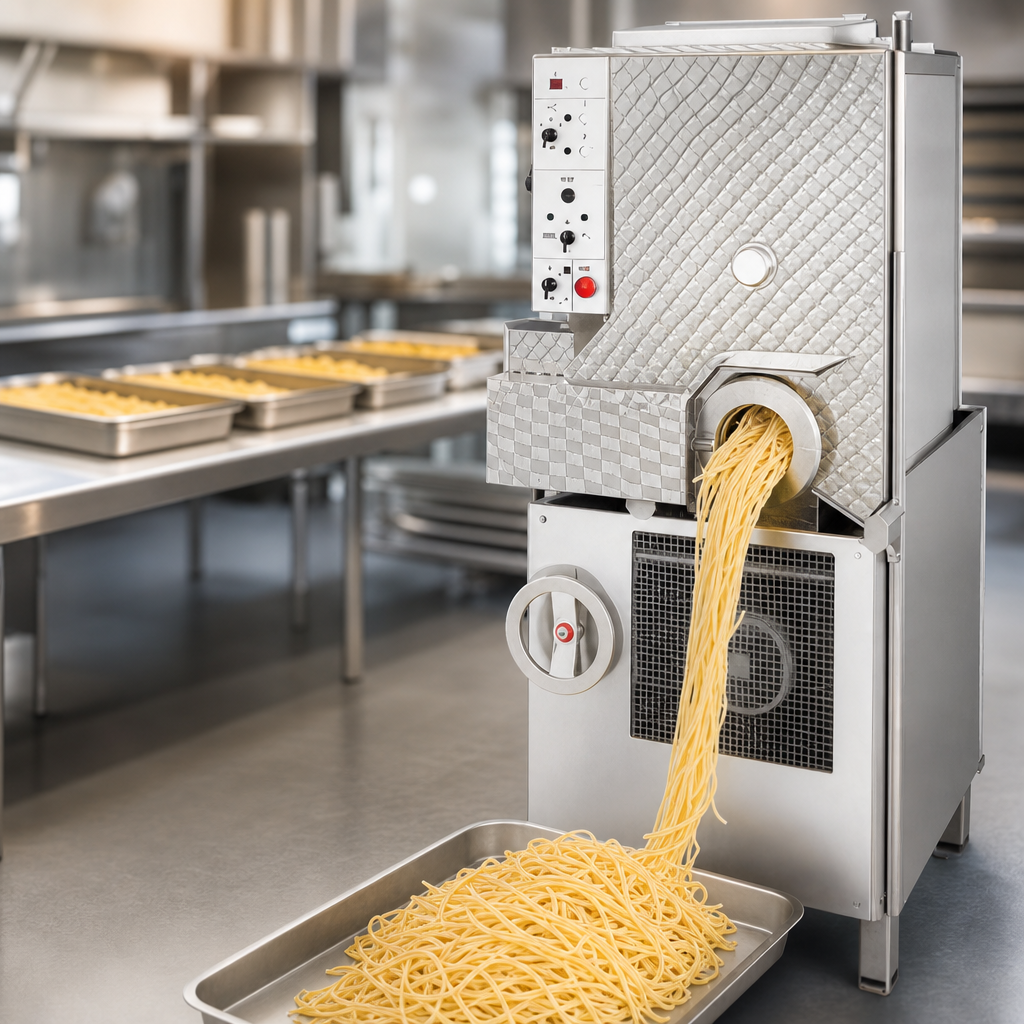

- High-capacity output: 176 lb (80 kg) of pasta per hour.

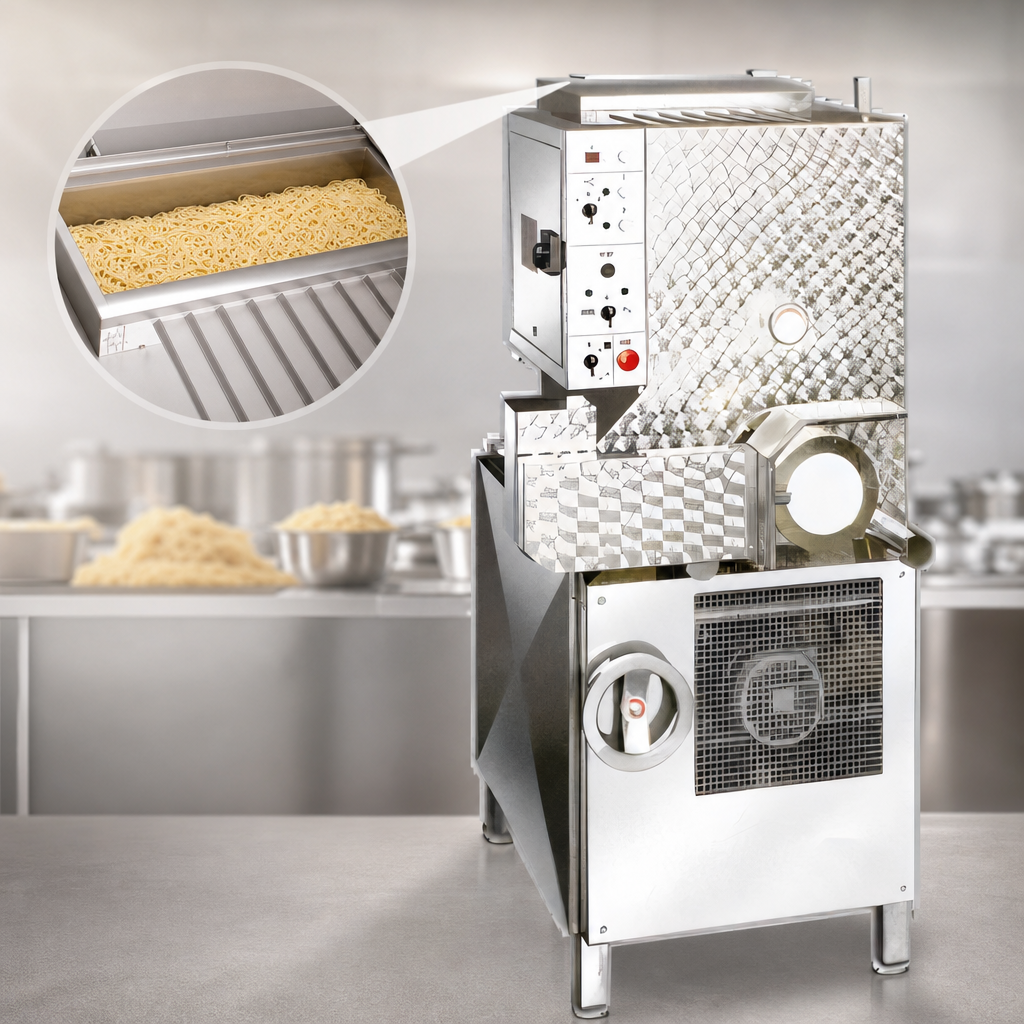

- Oversized 110 lb (50 kg) stainless-steel tank for nonstop production.
- Dual motors: 5.5 HP worm screw + 2.5 HP paddle mixer for consistent, air-free extrusion.
- Water-cooling sleeve & twin fan coolers maintain ideal dough temperature during continuous runs.
- Motorized cutting assembly (included) automatically portions long or short cuts.
- Compatible with a wide range of interchangeable bronze dies (sold separately) for limitless shape variety.
- Robust stainless-steel floor model, QPS certified and built in Italy.
- Supplied with L15-20P plug for 208 V / 60 Hz / 3-phase power.
Need even more throughput? Pair the PM-IT-0080 with the optional NS TR conveyor belt and MS 80 mixer to reach up to 330 lb (150 kg) per hour.
Technical Specifications
| Model | PM-IT-0080 |
|---|---|
| Item # | 13286 |
| Tank Capacity | 110 lb (50 kg) |
| Hourly Output | 176 lb (80 kg) |
| Motors | Worm: 4100 W / 5.5 HP | Paddle: 1860 W / 2.5 HP |
| Electrical | 208 V / 60 Hz / 3-phase | L15-20P plug |
| Cooling System | Water-cooled sleeve + integrated fans |
| Net Dimensions (W × D × H) | 33″ × 53.1″ × 63″ (840 × 1350 × 1600 mm) |
| Net Weight | 948 lb (430 kg) |
| Shipping Dimensions | 40″ × 60″ × 72″ |
| Shipping Weight | 990 lb (450 kg) |
| Included | Motorized cutting assembly, cooling sleeve |
| Optional | Bronze dies, NS TR conveyor belt, MS 80 mixer |
| Origin | Made in Italy |
| Warranty | 1-year parts & labour commercial warranty |
What to Know Before You Order
Electrical requirement: 208 V / 60 Hz / 3-phase. Must be installed by a qualified electrician.
Pasta dies: Extrusion dies are not included and must be purchased separately.
