Omcan USA 13174 Elite Series Spiral Dough Mixers
Description

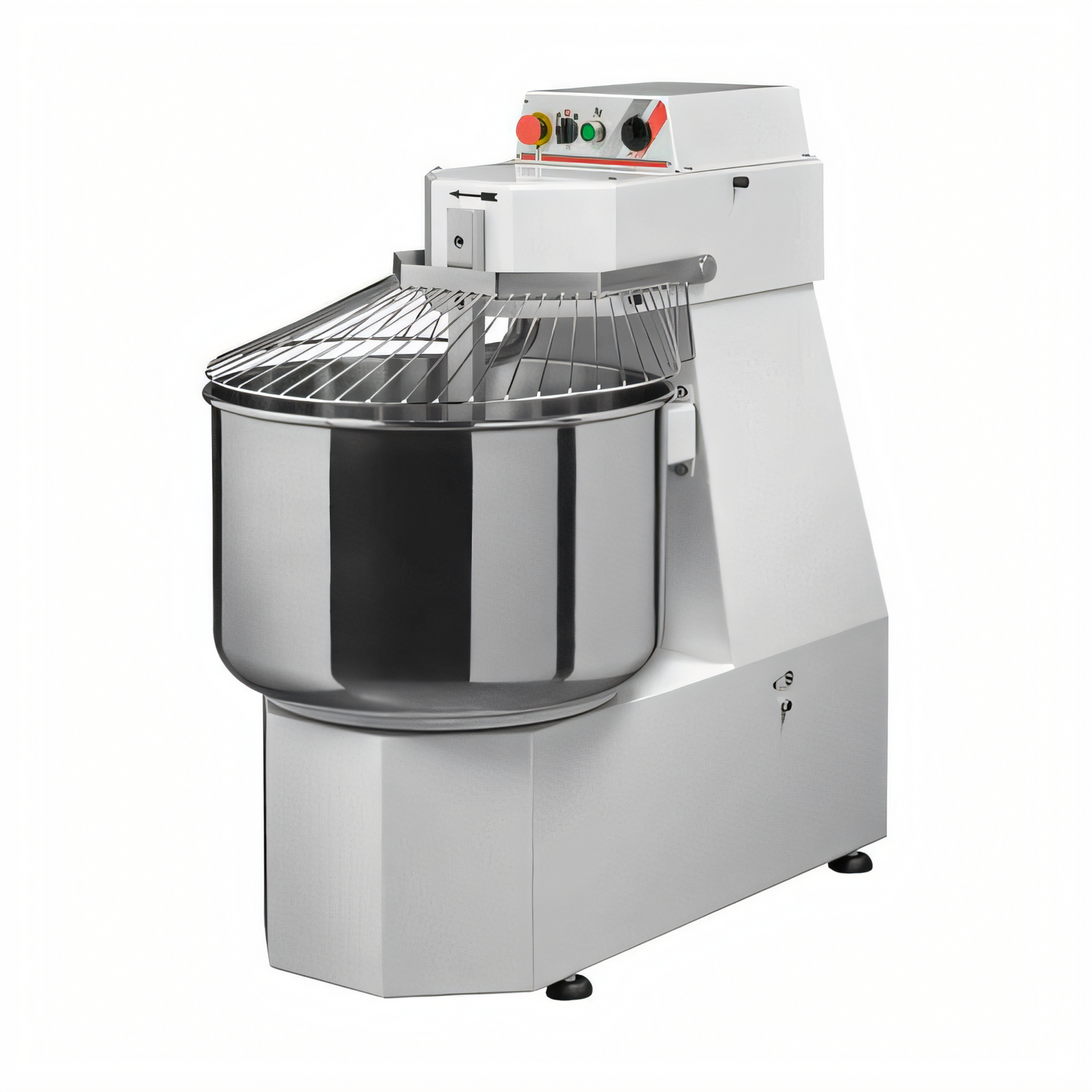

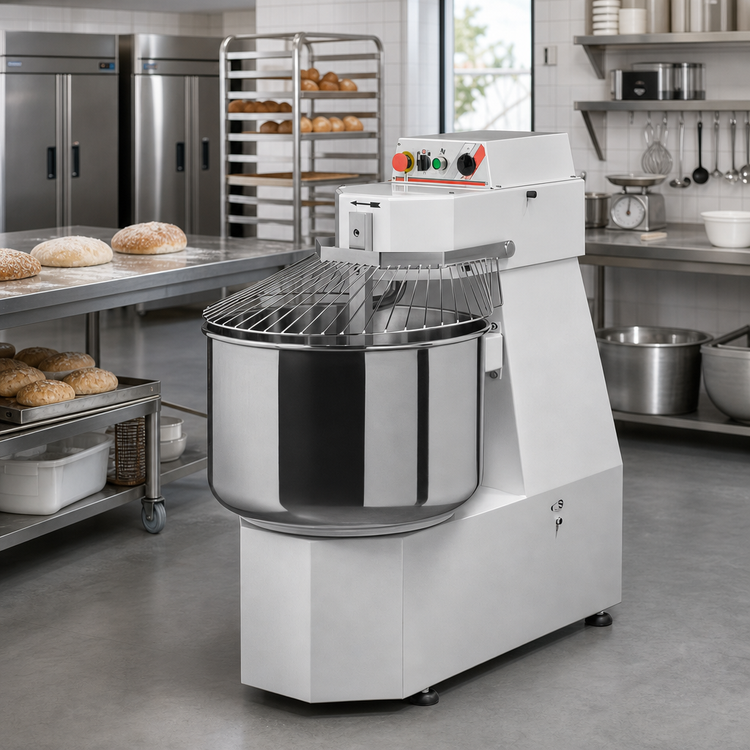

Elite Series Spiral Dough Mixer – MX-IT-0060

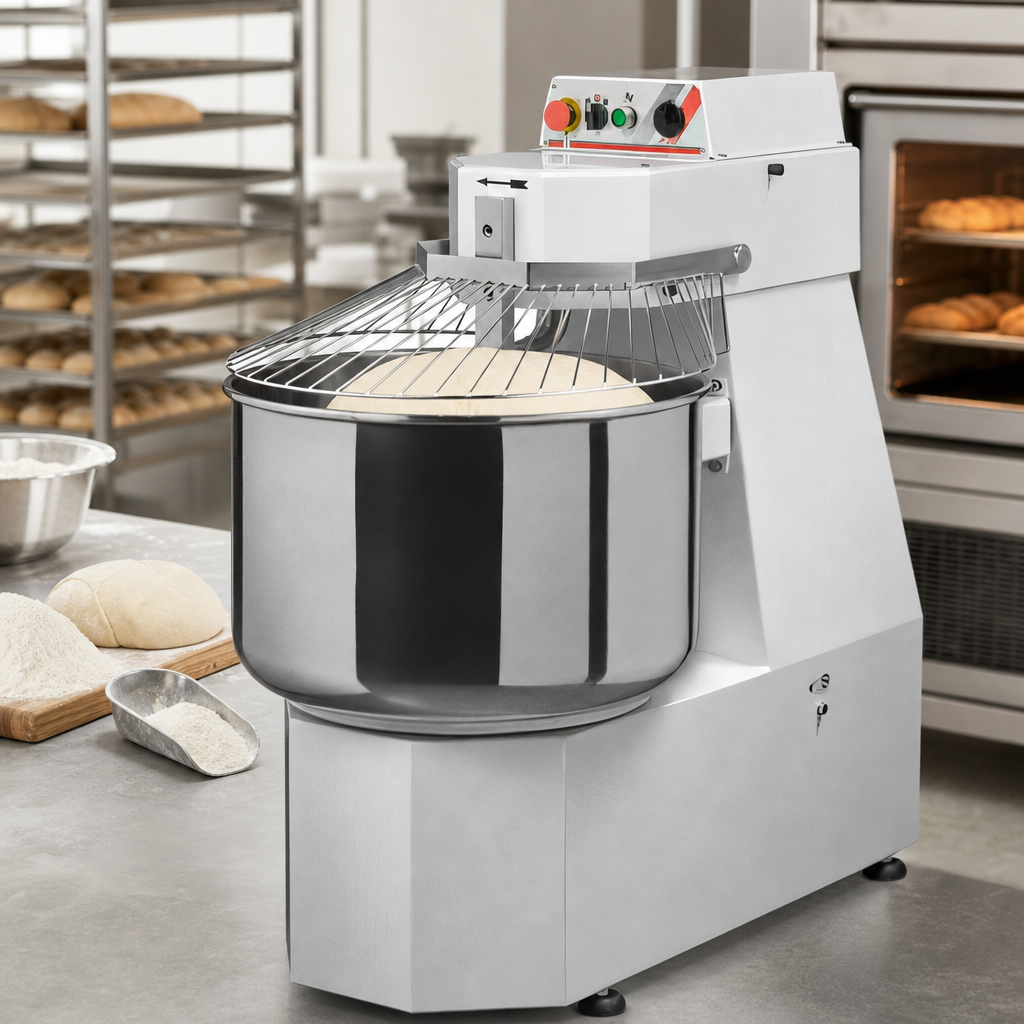

132 lb (60 kg) Dough | 90 QT Bowl | 2-Speed | 208 V / 3-PhBuilt for serious, high-output kitchens, Omcan’s Elite Series MX-IT-0060 delivers the muscle to transform up to 132 lb of dough in one effortless batch. Its fixed, high-strength stainless steel spiral works the dough quickly and gently, preserving gluten structure while slashing mix times—perfect for artisan breads, pizza, bagels and more.
Why You’ll Love It
- Heavy-duty 4 / 2 HP motor (3000 / 1500 W) built for continuous commercial use.
- Two mixing speeds (70 / 140 RPM spiral) give you precise control for both first and second mixing phases.
- Generous 90 QT stainless steel bowl rotates at 7 / 14 RPM for uniform hydration.
- Safety grate with interlock instantly stops the mixer when lifted—no shortcuts on operator safety.

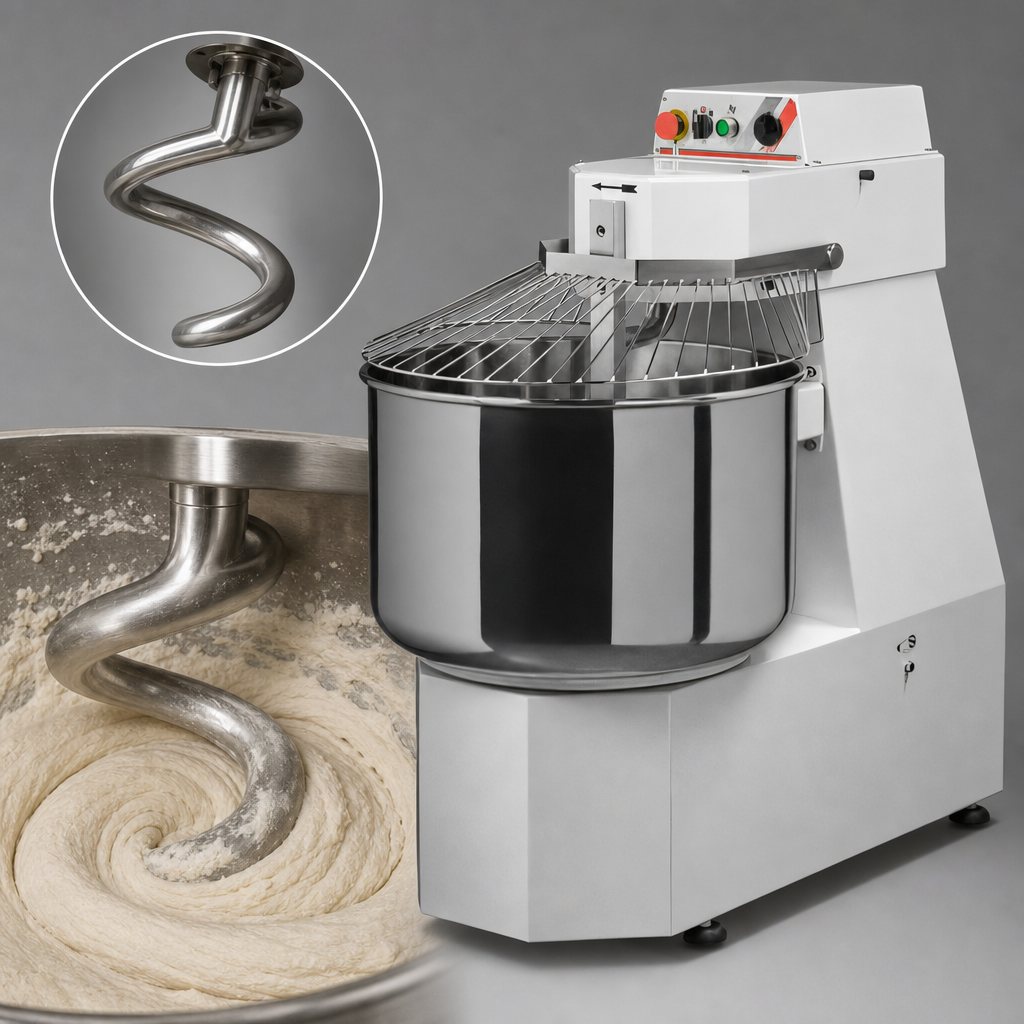

- Fixed one-piece spiral resists flexing and tackles stiff, low-hydration doughs without strain.
- CE listed and Made in Italy for premium craftsmanship and reliability.
- Ships on a pallet, fully assembled and ready for service.
Ideal For
- High-volume pizzerias
- Artisan & wholesale bakeries
- Hotel, resort and resort commissaries
- Bagel, pretzel & pita production
Technical Specifications
| Model / Item | Elite Series MX-IT-0060 / 13174 |
|---|---|
| Dough Capacity (max) | 132 lb (60 kg) |
| Dry Flour Capacity (max) | 82 lb (37 kg) |
| Bowl Capacity | 90 QT | Ø 21.7" × 14.2" H (551 × 361 mm) |
| Speeds | Bowl 7 / 14 RPM | Spiral 70 / 140 RPM |
| Motor Power | 4.0 / 2.0 HP (3000 / 1500 W) |
| Electrical | 208 V | 60 Hz | 3-Phase | 10 / 5.2 A | NEMA L15-20P |
| Overall Dimensions (W × D × H) | 39" × 23" × 42" (991 × 584 × 1067 mm) |
| Net Weight | 407 lb (184.6 kg) |
| Shipping (pallet) | 47" × 36" × 58" • 534 lb (gross) |
| Certifications | CE |
| Country of Origin | Italy |
Backed by Omcan’s 1-year parts & labor warranty.
Need a smaller or larger capacity? Explore the full Omcan Elite Series for batch sizes from 22 lb up to 132 lb.
