Description

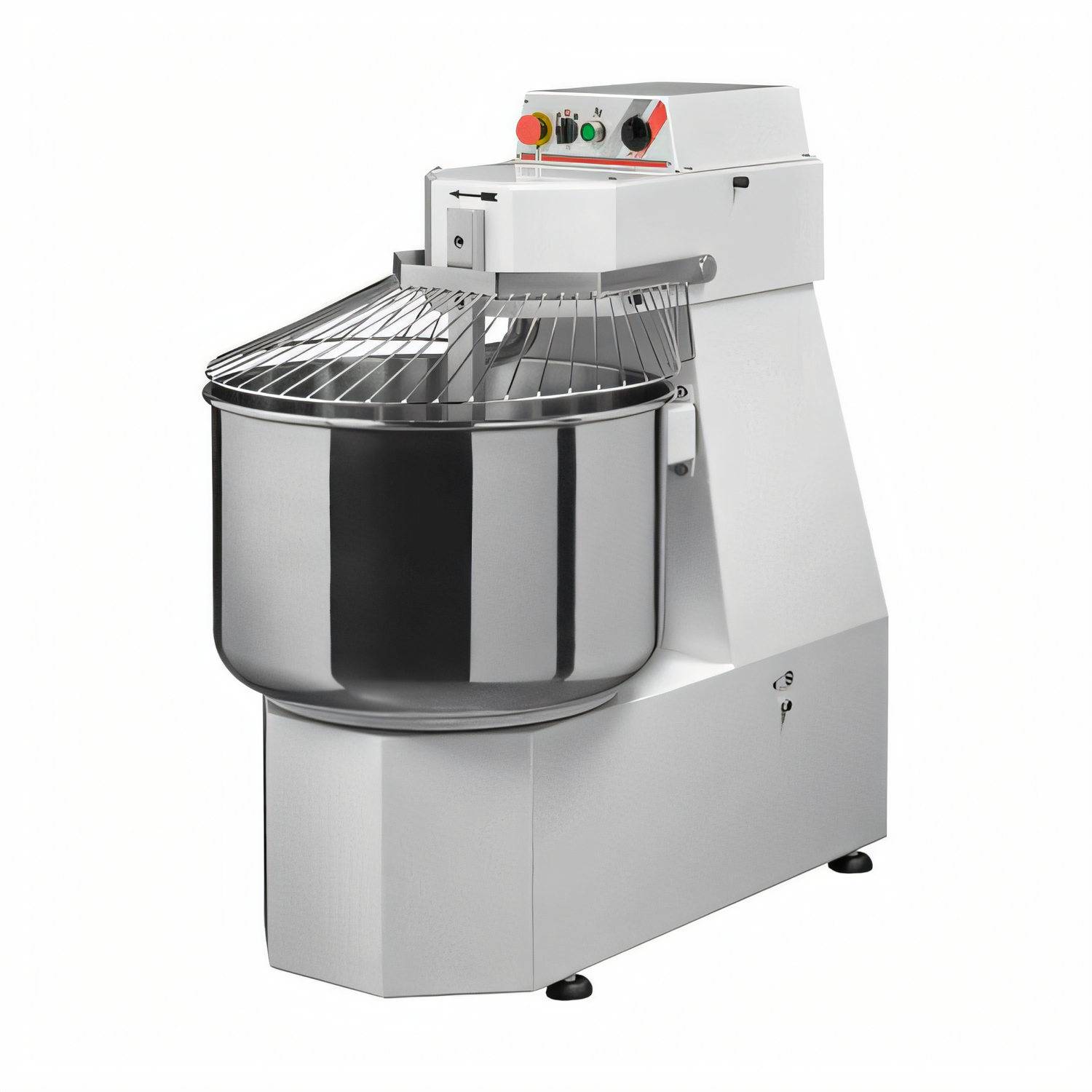

Omcan Elite Series Spiral Dough Mixer – 52 QT / 88 lb

Model MX-IT-0040 | Made in Italy | CE Certified

Give your bakery or pizzeria the power to mix perfectly-developed dough in minutes. The Elite Series MX-IT-0040 combines a robust 1.5 HP motor with a fixed stainless-steel spiral and bowl, delivering consistent results batch after batch while a built-in safety grate keeps staff protected.

Key Advantages

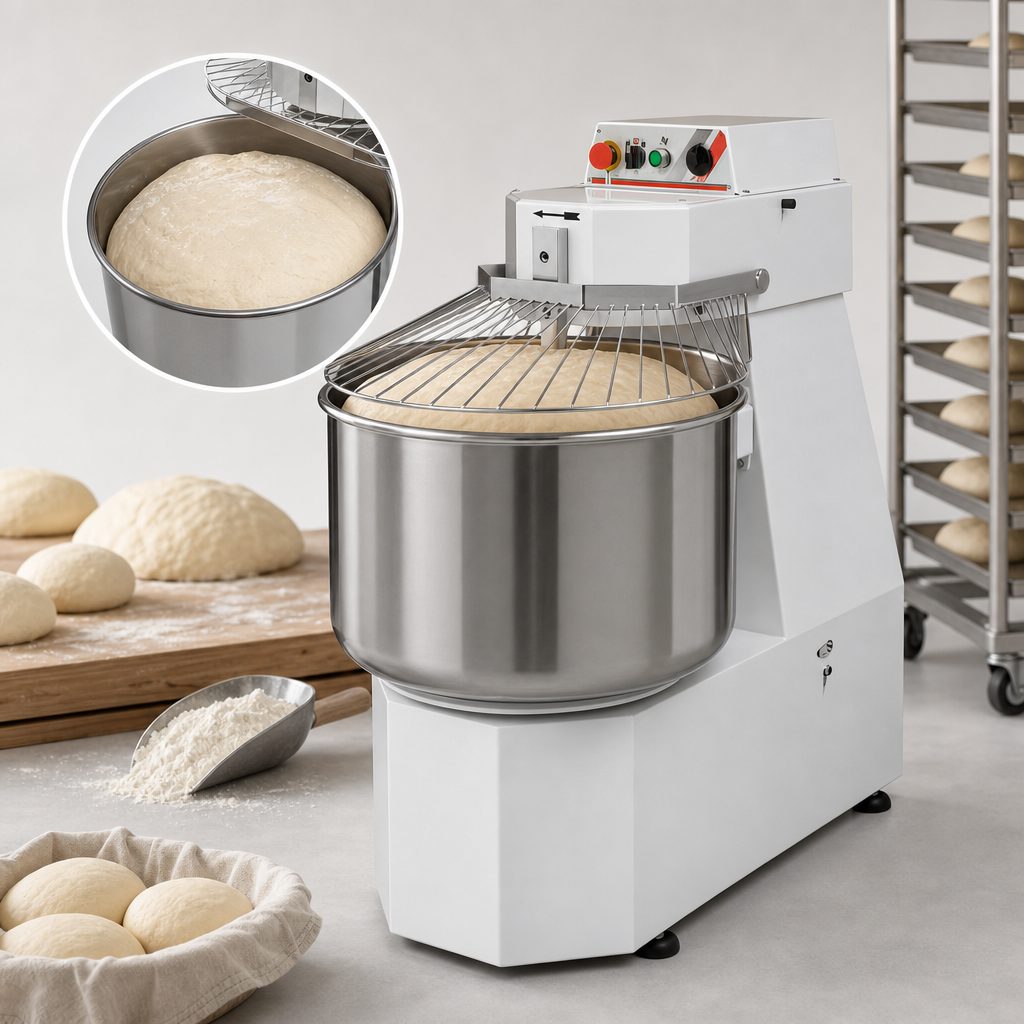

  • Handles up to 55 lb (25 kg) dry flour or 88 lb (40 kg) finished dough.
  • Single-speed design (95 RPM spiral / 7 RPM bowl) simplifies training and operation.

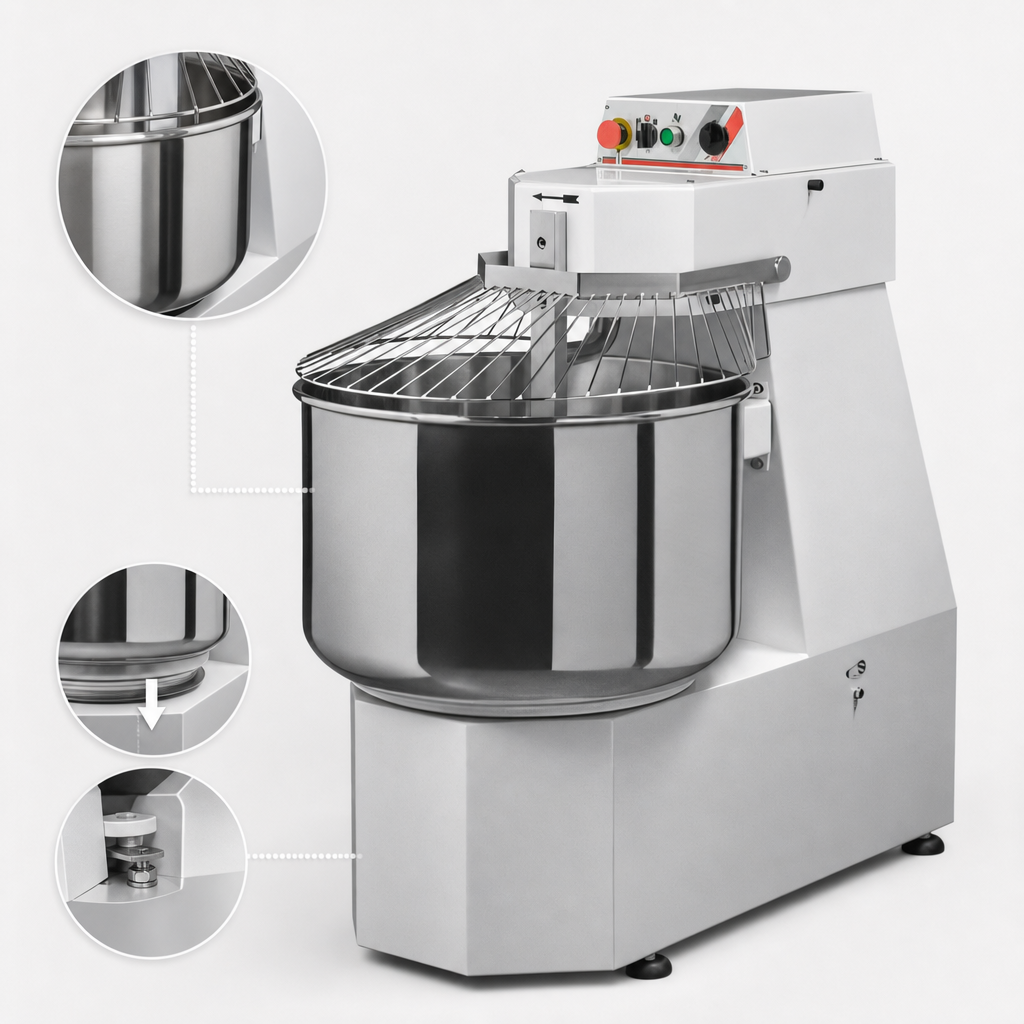

  • Durable stainless-steel bowl & high-strength spiral for hygienic, corrosion-resistant performance.
  • Grated bowl cover with safety micro-switch instantly stops the mixer when lifted.
  • Manual control panel—just set, press, and mix.
  • Greatly reduces mixing time versus planetary mixers; ideal for both hard and soft dough.
  • Ships on a pallet ready for fast installation; plug-and-play NEMA 6-15P.
Perfect For
  • Artisan & wholesale bakeries
  • Neapolitan and New York-style pizzerias
  • Bagel, pretzel, and focaccia production
  • Doughnut & pastry commissaries
Technical Specifications
Model MX-IT-0040 (Elite Series)
Bowl Capacity 52 QT (≈ 49 L)
Max Dry Flour Capacity 55 lb / 25 kg
Max Dough Capacity 88 lb / 40 kg
Speeds Single speed – 95 RPM spiral / 7 RPM bowl
Motor Power 1.5 HP  |  1100 W  |  5 A
Electrical 220 V / 60 Hz / 1-phase  |  NEMA 6-15P
Bowl Dimensions (Ø × H) 17.7″ × 12.4″ (450 × 315 mm)
Net Dimensions (W × D × H) 32″ × 19″ × 37.4″ (813 × 483 × 950 mm)
Net Weight 273 lb (124 kg)
Country of Origin Italy
Certifications CE
Warranty 1 Year Parts & Labor (Omcan USA)
Freight Notice: This mixer ships on a pallet and requires a loading dock or forklift at delivery. Please verify access before ordering to avoid redelivery fees.

All capacities are approximate and may vary with dough hydration and recipe formulation.

Features & Specs

Manufacturer

Omcan USA

Brand_name

Elite Series

Certifications

CE, Made in Italy

Height

37.4in

Width

19.0in

Depth

32.0in

Shipping Weight

330.0lbs

Housing Construction

painted

Speed

1-speed

Controls

timer

Attachments

bowl, dough hook

Bowl Type

fixed

Dough Capacity

1 - 100 lbs

Specifications

(MX-IT-0040) Elite Series Dough Mixer, 88 lb. capacity, 1 speed, fixed stainless steel spiral, safety device stops machine when cover is lifted, stainless steel bowl, 1.5 HP, 5.0 amps, 1100 watts, 220v/60/1-ph, CE, Made in Italy (shipped on pallet)
