Omcan USA 13170 Elite Series Spiral Dough Mixers
Description

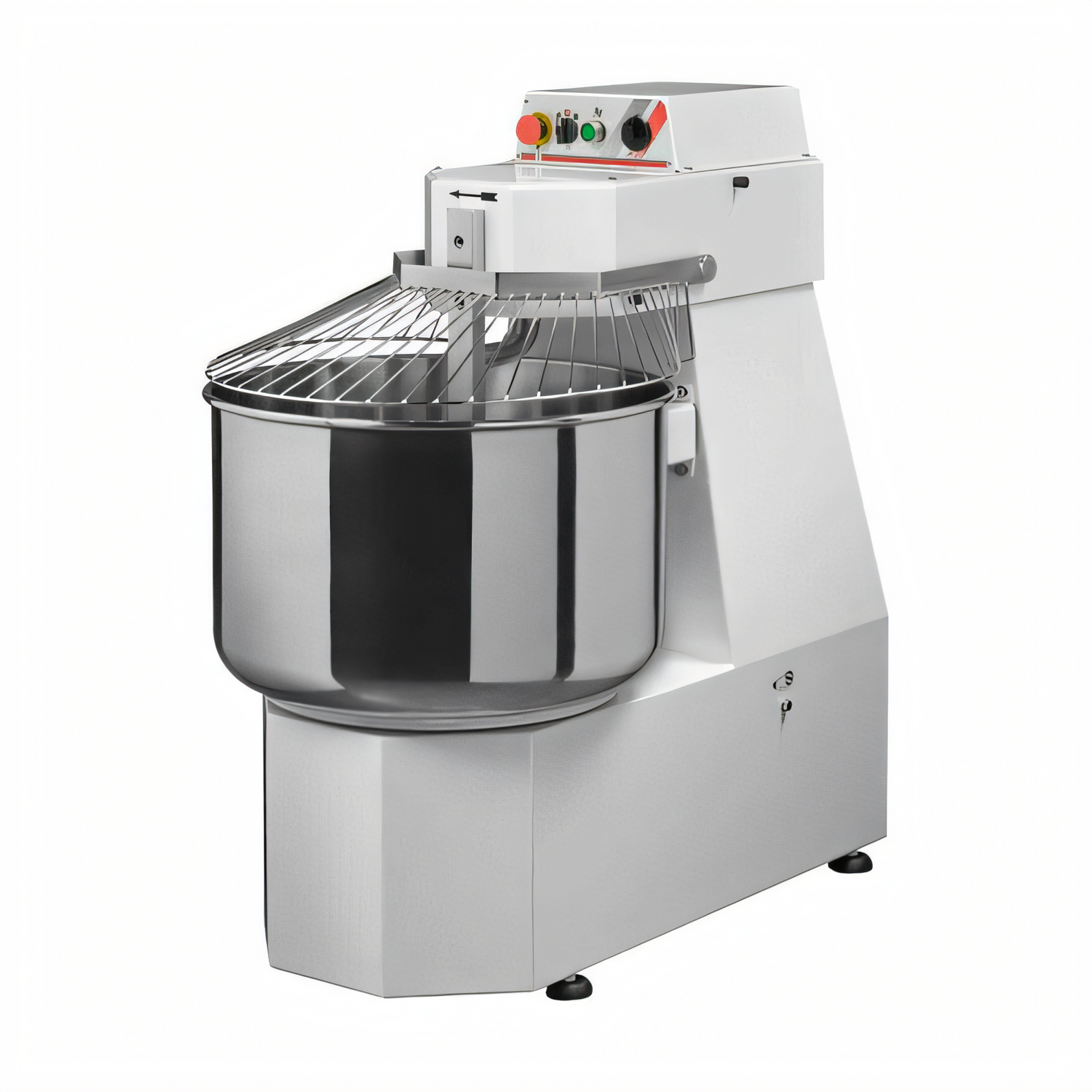

Elite Series Heavy-Duty Spiral Dough Mixer
Model MX-IT-0030-T | 66 lb Dough / 40 QT Bowl | 208 V • 3-Phase • CEEngineered for busy bakeries and pizzerias, Omcan’s Elite Series spiral mixer delivers consistent, perfectly-developed dough in a fraction of the time traditional mixers require. Its powerful dual-speed motor, fixed high-strength stainless spiral, and matching 40-quart bowl knead up to 66 lb (30 kg) of dough per batch—ideal for crusts, loaves, cookies, bagels, and more.
Why you’ll love it

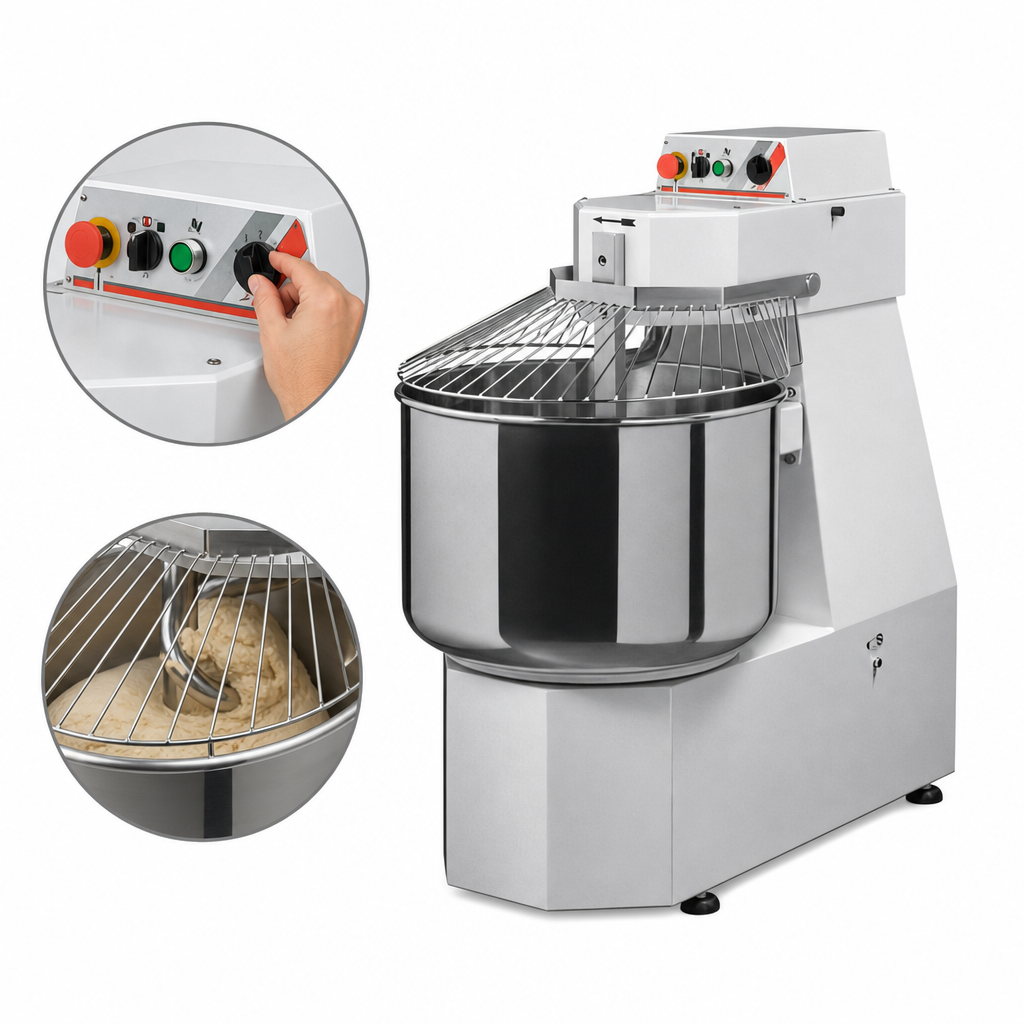

- Two-speed performance – 6 & 12 RPM bowl speeds pair with 64 & 128 RPM spiral speeds to shorten mix times and improve gluten development.

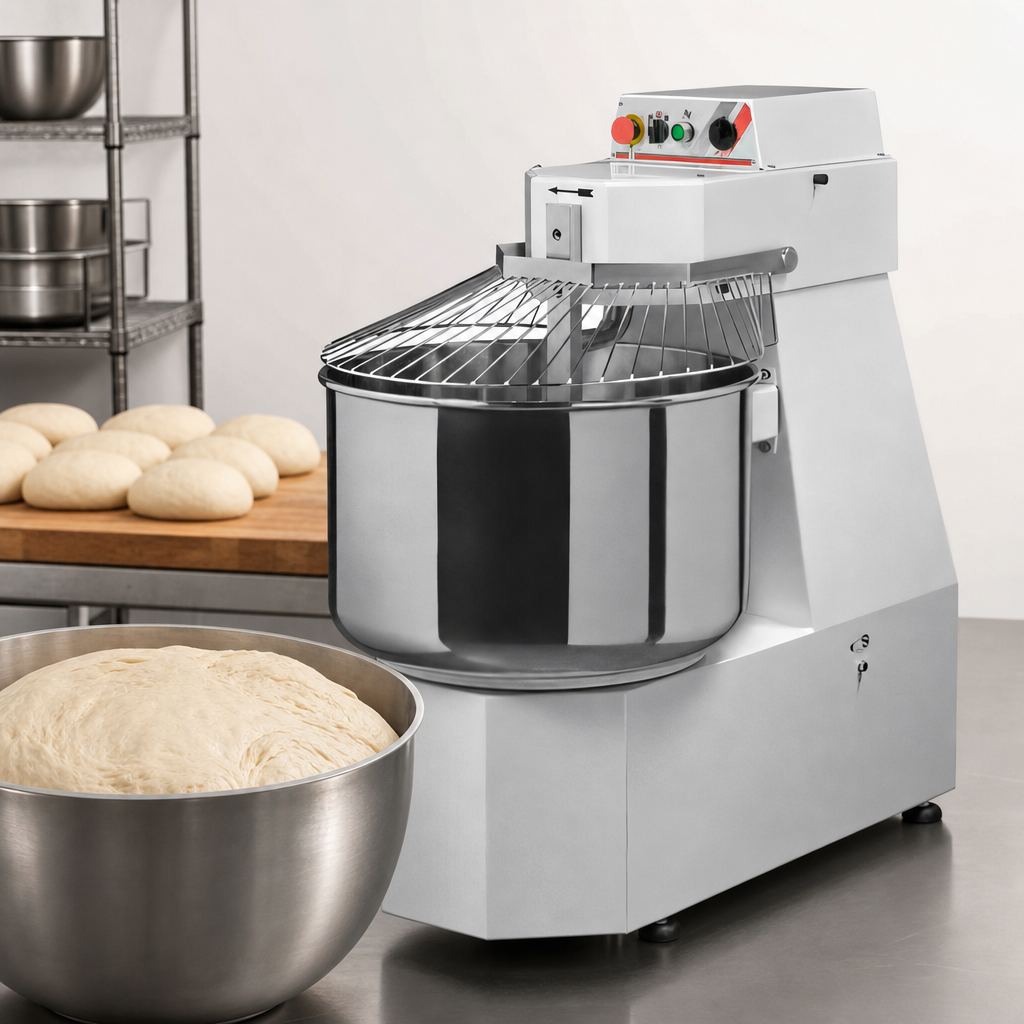

- 66 lb / 40 QT capacity meets the daily production demands of small and mid-size operations.
- Fixed stainless-steel spiral & bowl resist corrosion, wipe clean quickly, and ensure uniform kneading.
- Grated safety lid with interlock stops the motor instantly when raised—add ingredients safely while the mixer runs.
- User-friendly controls—clearly labeled switches make operation simple for new staff.
- Heavy-duty Italian build—rugged housing, ventilated motor, and industry-leading components for years of reliable service.
Technical specifications
| Capacity – Dough (Max) | 66 lb (30 kg) |
|---|---|
| Capacity – Dry Flour (Max) | 40 lb (18 kg) |
| Capacity – Bowl | 40 QT | Ø 14.7 × 11.6 in (373 × 295 mm) |
| Speeds – Bowl | 6 & 12 RPM |
| Speeds – Spiral | 64 & 128 RPM |
| Motor Power | 1.9 / 1.5 HP | 1400 / 1100 W |
| Current Draw | 4.8 / 3.8 A |
| Electrical | 208 V / 60 Hz / 3-Ph | NEMA L15-20P |
| Net Dimensions (W×D×H) | 30 × 16.5 × 36 in (762 × 419 × 914 mm) |
| Net / Gross Weight | 246 lb / 265 lb (112 kg / 120 kg) |
| Certification | CE, Made in Italy |
| Shipping | Ships on pallet – freight class equipment |
| Warranty | 1-year parts & labor (Omcan standard for electrical equipment) |
Need a different size or single-phase unit? Search our store for additional Omcan Elite Series models.
