Omcan USA 13166 Elite Series Spiral Dough Mixers
Description

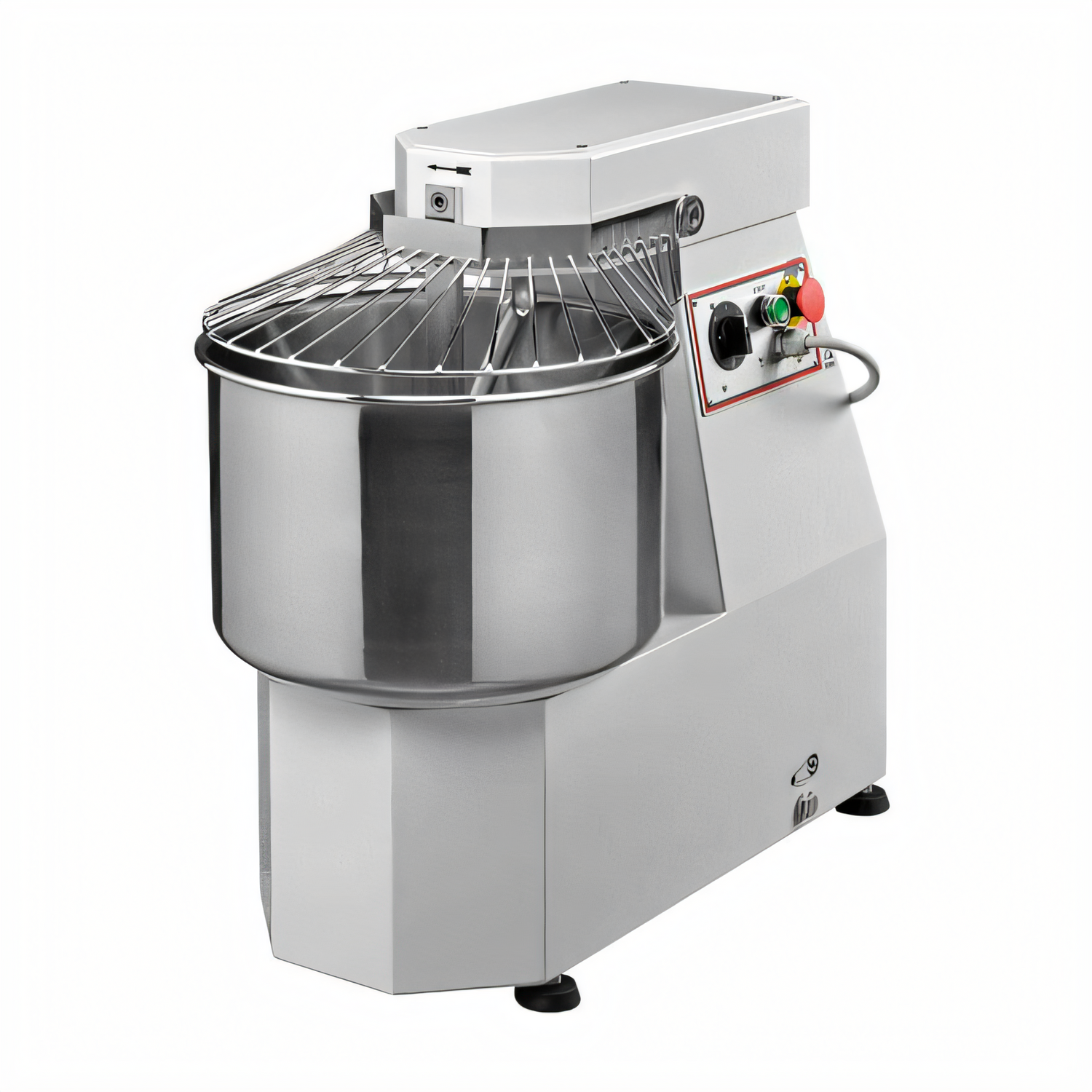

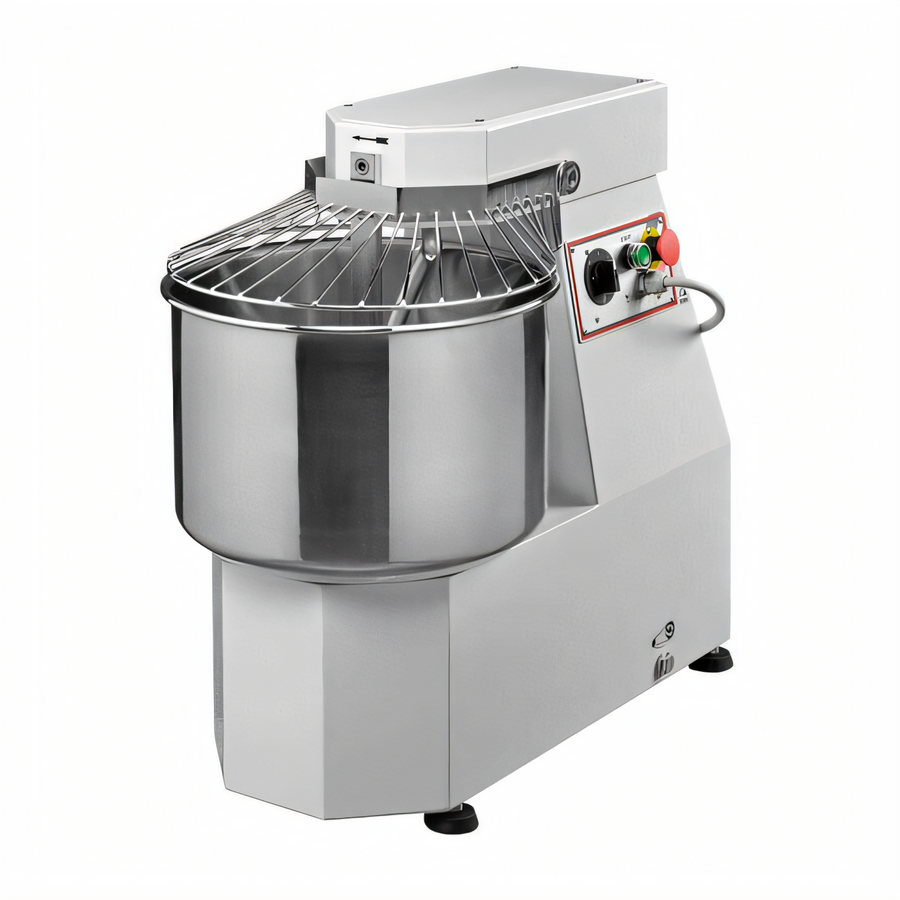

Omcan “Elite Series” Spiral Dough Mixer

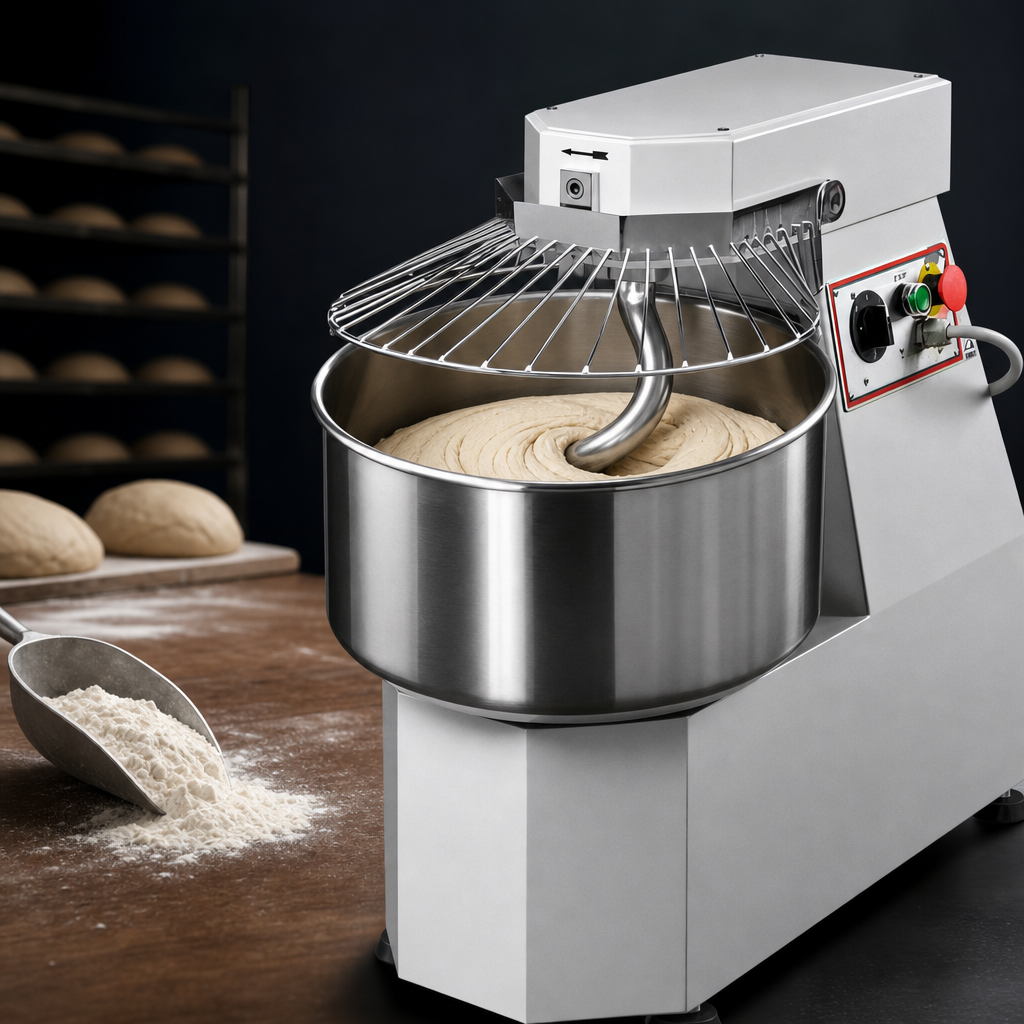

Model MX-IT-0020-T • Item 13166 • Made in ItalyPower through up to 40 lb. of dough in minutes with Omcan’s 24 QT Elite Series spiral mixer. A fixed, high–strength stainless-steel spiral and bowl team up with two mixing speeds to slash kneading time, deliver consistent gluten development, and keep your production line moving—perfect for pizza, bread, cookies, and more.
Why you’ll love it

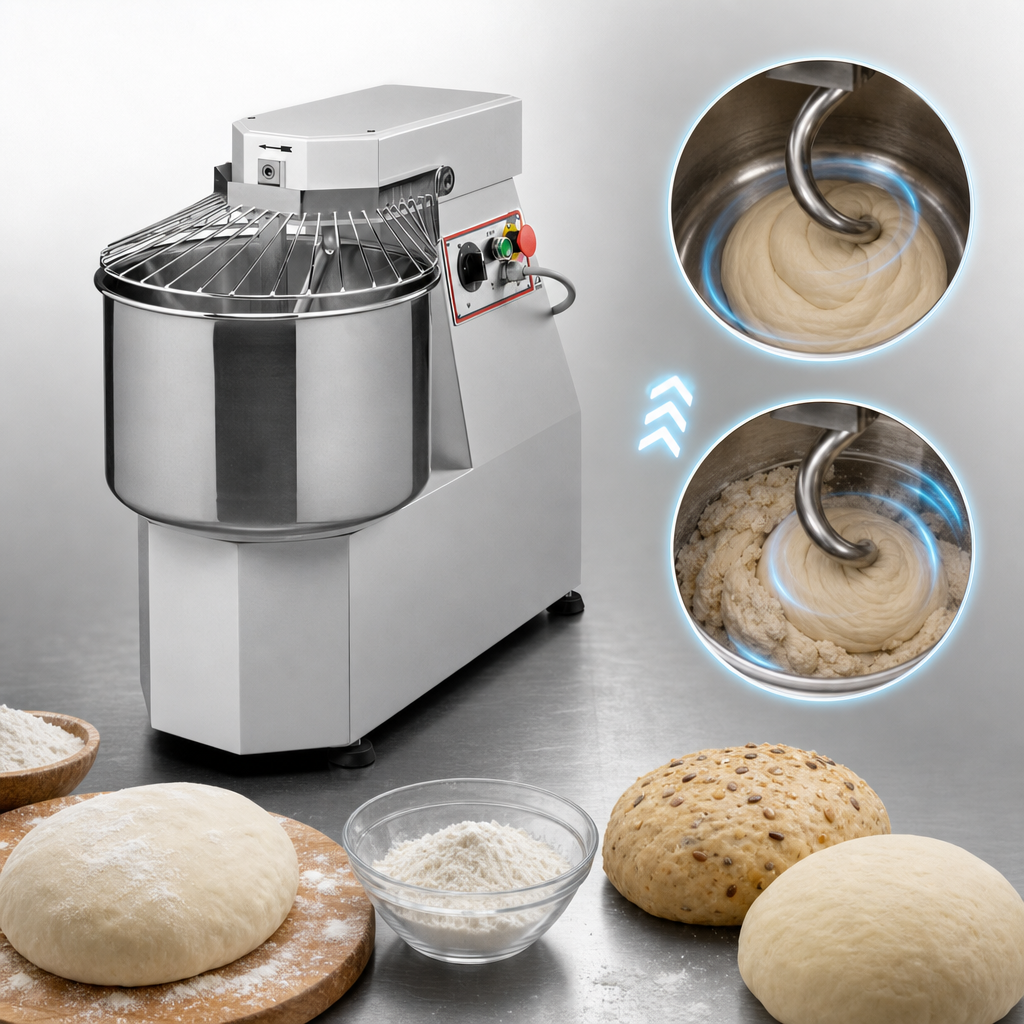

- Two-speed performance – 6 / 12 BPM bowl speeds | 60 / 120 SPM spiral speeds.
- Heavy-duty capacity – Handles 24 lb. of dry flour or 40 lb. (17 kg) of finished dough per batch.
- All-stainless build – Food-grade 24 QT (22.7 L) bowl and fixed spiral resist corrosion and clean up fast.
- Grated safety lid with interlock; the mixer stops automatically when the guard is lifted.
- Simple, intuitive controls for speed selection and emergency stop.
- High-efficiency motor – 1.5 / 1 HP (1100 / 750 W) draws just 3.8 / 2.6 A on 208 V, 3-phase power.
- CE certified and built in Italy for demanding, all-day commercial use.
Technical Specifications
| Capacity | 24 QT bowl | 24 lb. dry flour | 40 lb. dough |
|---|---|
| Speeds | 2 (Low / High) |
| Bowl RPM | 6 / 12 |
| Spiral RPM | 60 / 120 |
| Motor Power | 1.5 HP / 1 HP (1100 W / 750 W) |
| Electrical | 208 V / 60 Hz / 3-Ph • 3.8 / 2.6 A • NEMA L15-20P plug |
| Bowl Size (Ø × H) | 14.4″ × 9.64″ (366 × 245 mm) |
| Net Dimensions (W × D × H) | 27″ × 15.4″ × 26.4″ (686 × 391 × 671 mm) |
| Net / Gross Weight | 161 lb. (73 kg) / 175 lb. (79 kg) |
| Country of Origin | Italy |
Warranty & Shipping
- Backed by Omcan’s 1-year parts & labor commercial warranty.
- Ships on a pallet—lift-gate recommended if no loading dock is available.
Note: This unit requires a dedicated 208 V, 3-phase circuit. Always verify electrical compatibility before ordering.
