Omcan USA 13163 Elite Series Spiral Dough Mixers
Omcan USA 13163 Elite Series Spiral Dough Mixers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Omcan USA 13163 Elite Series Spiral Dough Mixers
Description

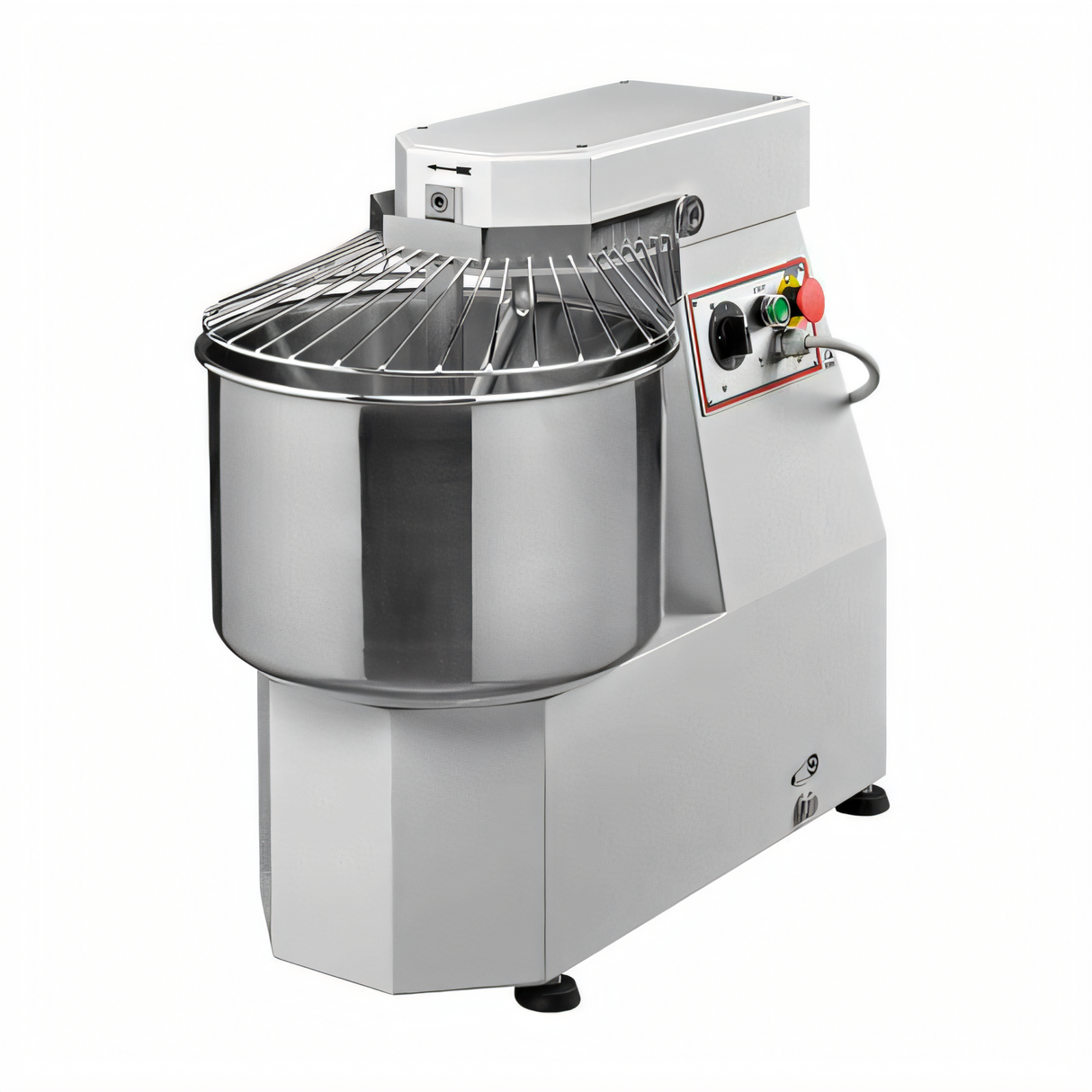

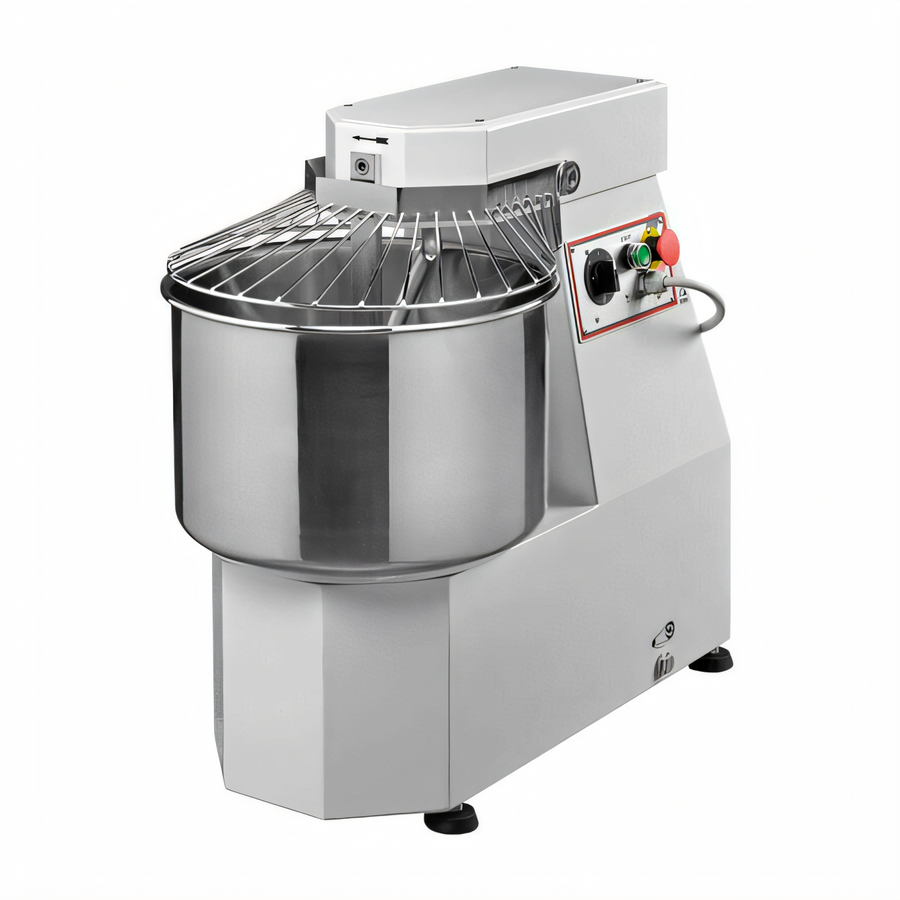

Elite Series 24 QT Spiral Dough Mixer
Model MX-IT-0020 | Omcan USAMix up to 40 lb. of dough per batch with the power, consistency, and safety today’s bakeries and pizzerias demand. Hand-built in Italy and CE certified, the Elite Series combines a rugged stainless-steel bowl with a fixed high-strength spiral to shorten mix times and achieve an even, perfectly-developed dough every time.
Why You’ll Love It
- Commercial-grade capacity – handles up to 24 lb. of dry flour or 40 lb. of finished dough.

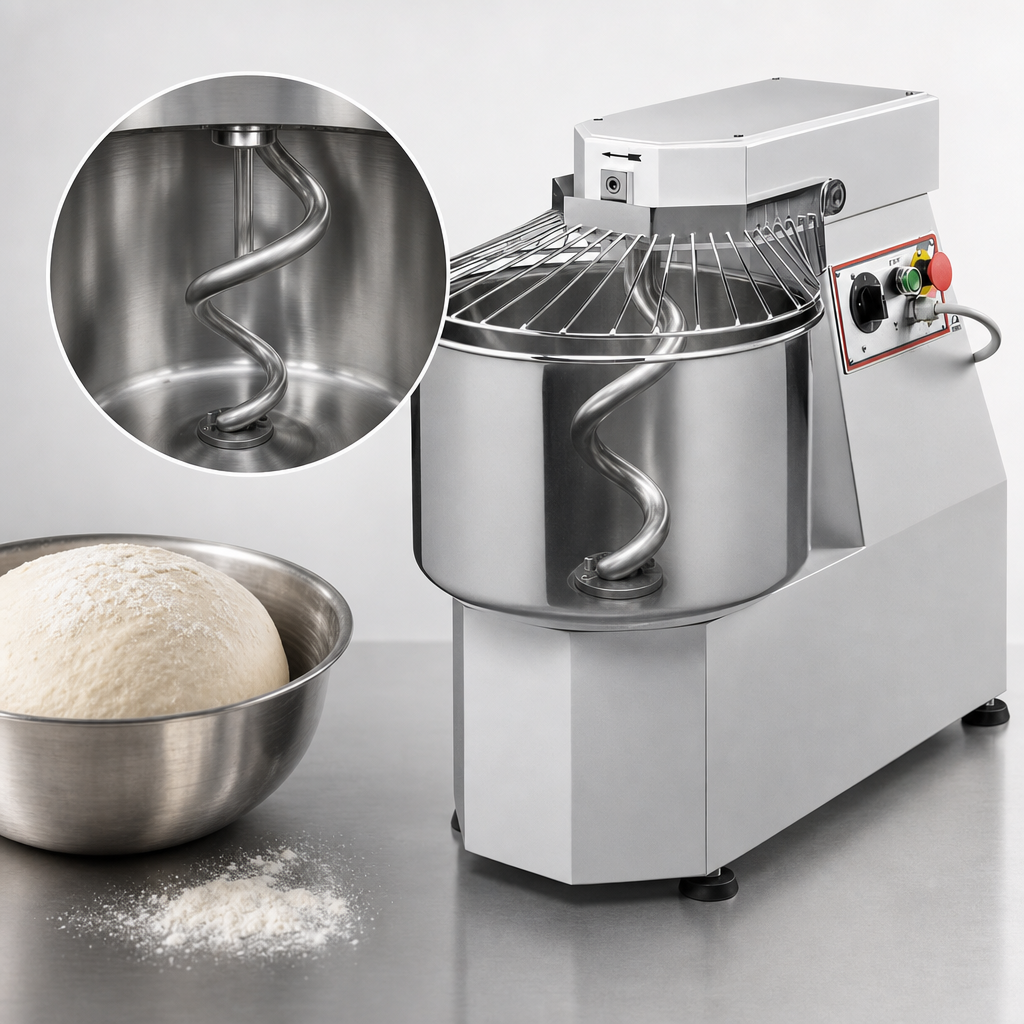

- Consistent gluten development thanks to a single, fixed stainless-steel spiral arm.

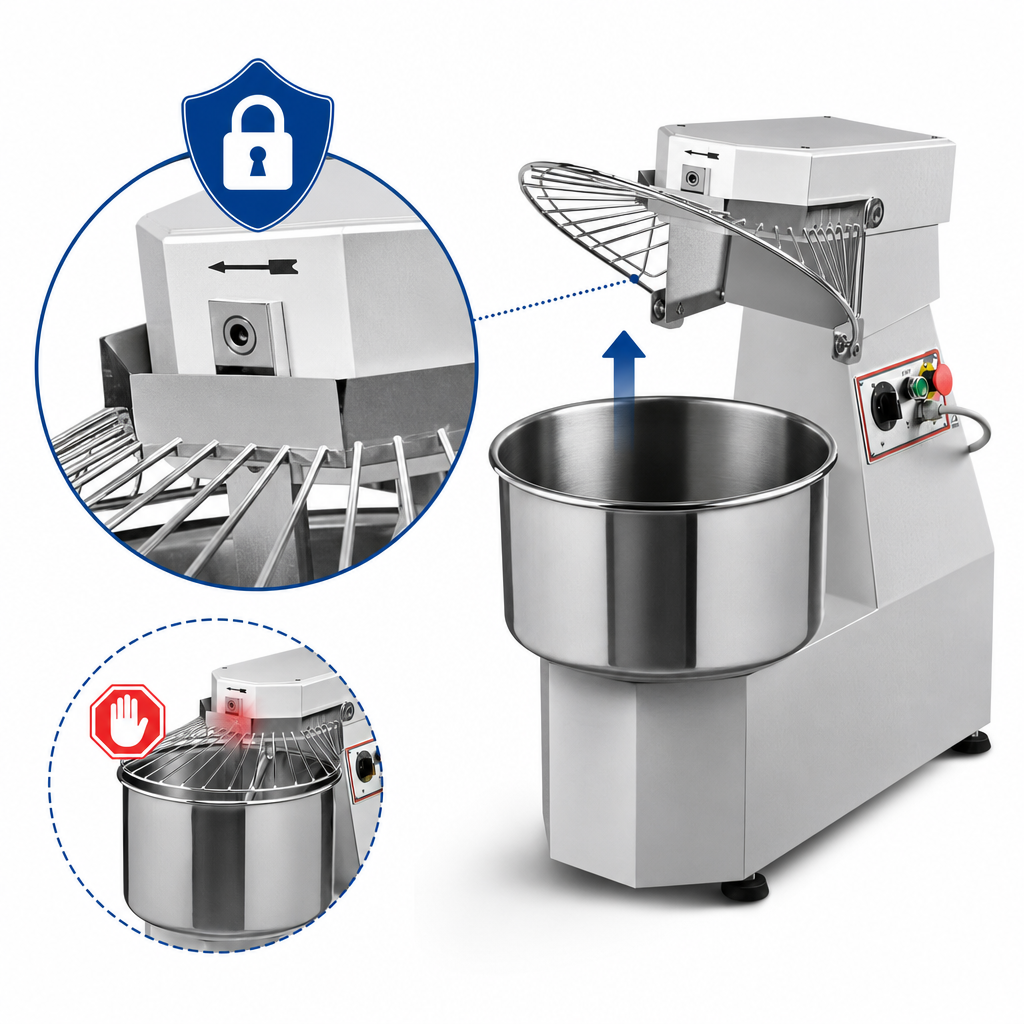

- Protective grated safety lid; built-in sensor stops the mixer the instant the cover is lifted.
- Simple 1-speed operation—ideal for everyday pizza, bread, and pastry production.
- All-stainless contact parts resist corrosion and clean up fast.
- Quiet 1 HP / 900 W motor draws just 4 A on a standard 220 V, single-phase circuit.
- Ships fully assembled on a pallet for safe, damage-free delivery.
Technical Specifications
| Batch Dough Capacity | 40 lb (17 kg) |
|---|---|
| Max Dry Flour | 24 lb (11 kg) |
| Bowl Capacity | 24 QT (22.7 L) |
| Spiral / Bowl Speeds | 1 speed – Spiral 103 RPM | Bowl 9 RPM |
| Horsepower / Wattage | 1 HP (900 W) |
| Current Draw | 4.0 A |
| Electrical | 220 V / 60 Hz / 1-Ph | NEMA 6-15P plug |
| Bowl Dimensions | Ø 14.4″ × 9.64″ H (366 × 245 mm) |
| Overall Dimensions (W × D × H) | 27″ × 15.4″ × 26.4″ (686 × 391 × 671 mm) |
| Net Weight | 161 lb (73 kg) |
| Construction | Full stainless-steel bowl, spiral, and guard |
| Certifications | CE, Made in Italy |
| Warranty | 1-year parts & labor (commercial use) |
Perfect For
- High-volume pizza dough (Neapolitan, New-York, Sicilian, & more)
- Artisan and pan breads
- Bagels, rolls, and pretzels
- Cookie and pastry doughs that benefit from gentle spiral action
Specifications are subject to change without notice. Always verify electrical requirements with a licensed electrician before installation.
