Omcan USA  |  Elite Series  |  SKU: 13160  |  UPC: 690207131609

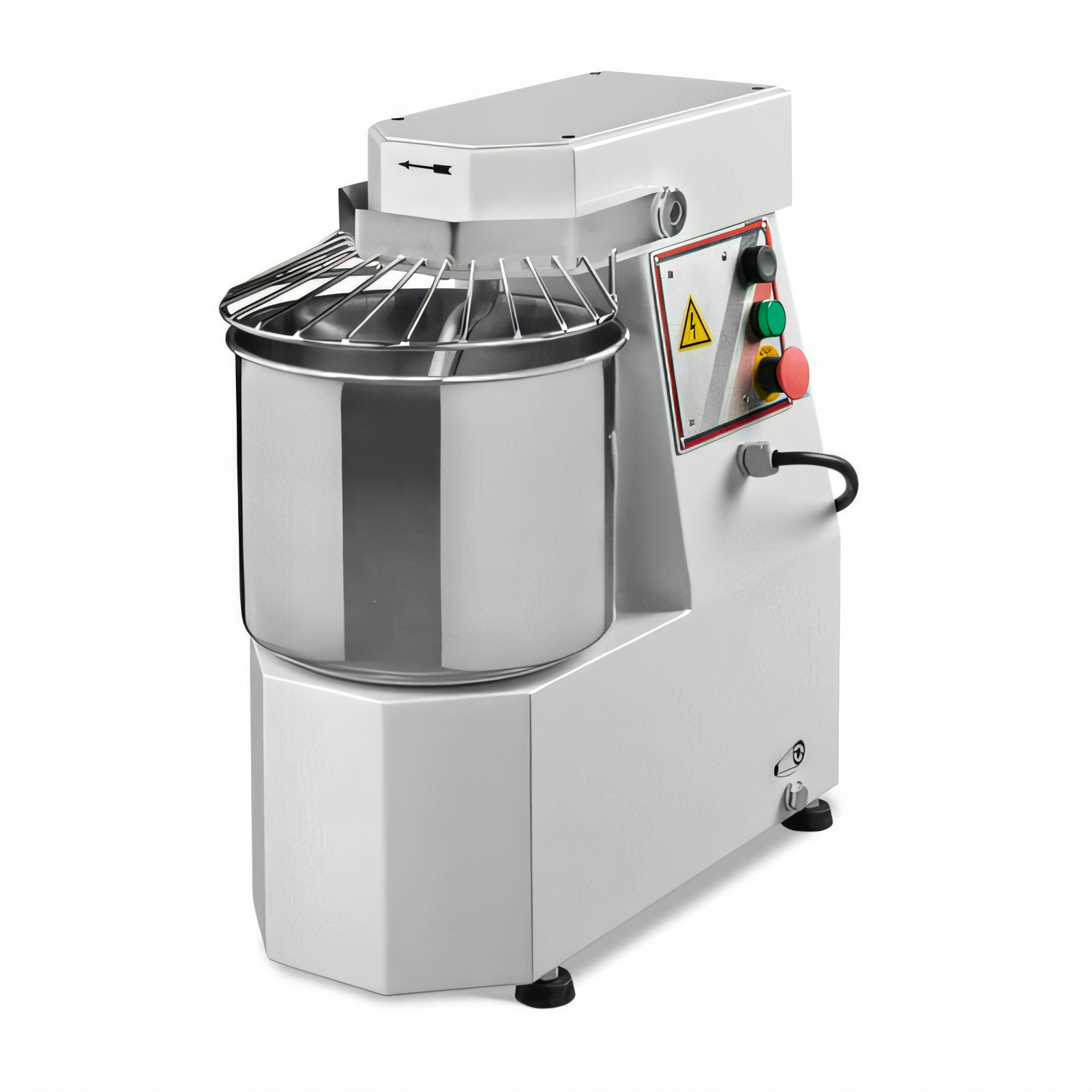

Omcan USA 13160 Elite Series Spiral Dough Mixers

$3,571.22
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Omcan “Elite Series” Spiral Dough Mixer – 22 lb Capacity (MX-IT-0010)

Made in Italy • CE Certified • Ships on Pallet

Power through small-to-medium dough batches with artisan precision. The Elite Series 13 QT spiral mixer oxygenates, kneads, and develops gluten faster than traditional planetary mixers—giving your pizza, bread, and pastry doughs perfect consistency every time.

Key Features

  • 22 lb (10 kg) finished-dough capacity—ideal for pizzerias, cafés, and R&D labs

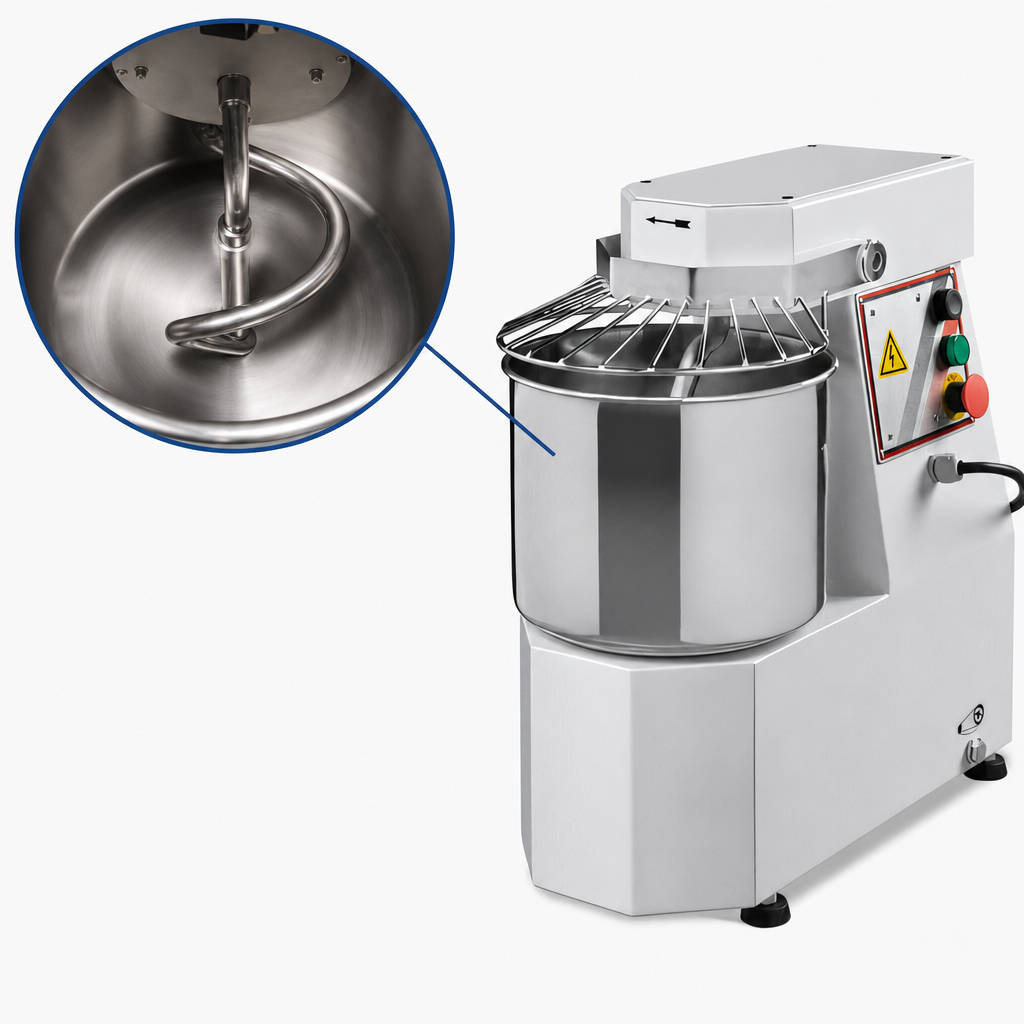

  • Fixed high-strength stainless steel spiral & bowl for even, gentle kneading
  • One optimized speed (Spiral 126 RPM / Bowl 11 RPM) handles both hard & soft doughs

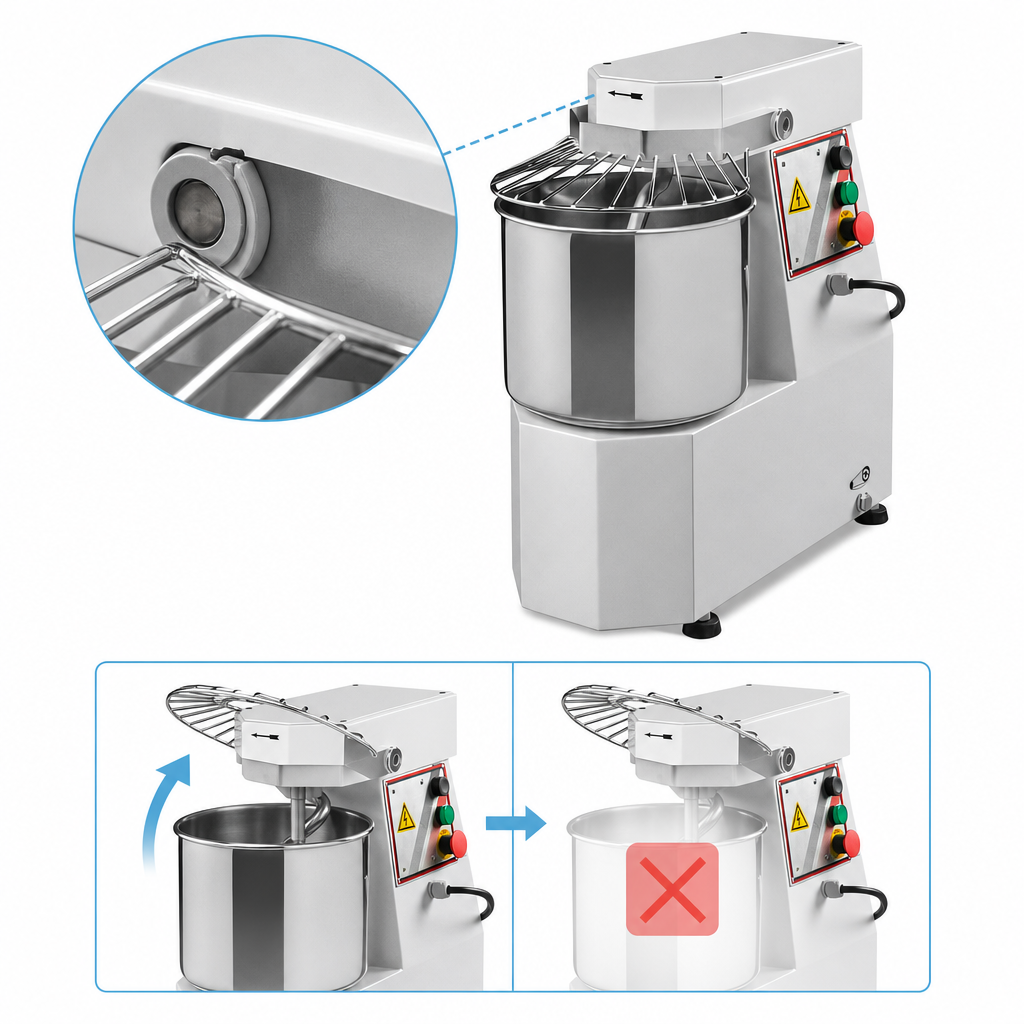

  • Interlocked grated safety guard instantly shuts off the motor when lifted
  • Robust ¾ HP motor draws just 2.5 A (550 W) on 220 V, single-phase power
  • Simple push-button controls—no steep learning curve for staff
  • Non-skid rubber feet keep the unit steady during heavy mixing cycles
  • Food-contact parts in stainless steel for effortless sanitation
  • CE listed and proudly manufactured in Italy for years of dependable service

Why Choose a Spiral Mixer?

  • Up to 40 % faster mixing than planetary models
  • Lower friction heat preserves yeast activity and dough structure
  • Produces tighter crumb, greater oven spring, and consistent hydration

Technical Specifications

Model MX-IT-0010
Dough Capacity 22 lb (10 kg)
Flour Capacity 14 lb (6 kg)
Bowl Capacity 13 QT  |  Ø 10" × 8.26" H (254 × 210 mm)
Speed 1 fixed speed – Spiral 126 RPM / Bowl 11 RPM
Motor Power 0.75 HP / 550 W
Electrical 220 V / 60 Hz / 1 Ph  |  2.5 A  |  NEMA 6-15P plug
Overall Dimensions 20.5" W × 11" D × 23" H (521 × 279 × 584 mm)
Net / Gross Weight 103 lb / 109 lb (46.7 kg / 49.4 kg)
Construction Stainless steel bowl & spiral; heavy-gauge steel cabinet
Certifications CE
Shipping Note: This unit ships on a pallet. Ensure a freight-accessible location and request lift-gate service if no loading dock is available.

Backed by Omcan’s 1-year parts & labour warranty. Always follow local electrical codes and safety guidelines when installing commercial equipment.

Features & Specs

Manufacturer

Omcan USA

Brand_name

Elite Series

Certifications

CE, Made in Italy

Height

23.0in

Width

11.0in

Depth

20.5in

Shipping Weight

124.0lbs

Attachments

bowl, dough hook

Housing Construction

painted

Speed

1-speed

Controls

timer

Bowl Type

fixed

Dough Capacity

1 - 100 lbs

Specifications

(MX-IT-0010) Elite Series Dough Mixer, 22 lb. capacity, 1 speed, fixed stainless steel spiral, safety device stops machine when cover is lifted, stainless steel bowl, 3/4 HP, 2.5 amps, 550 watts, 220v/60/1-ph, CE, Made in Italy (shipped on pallet)
