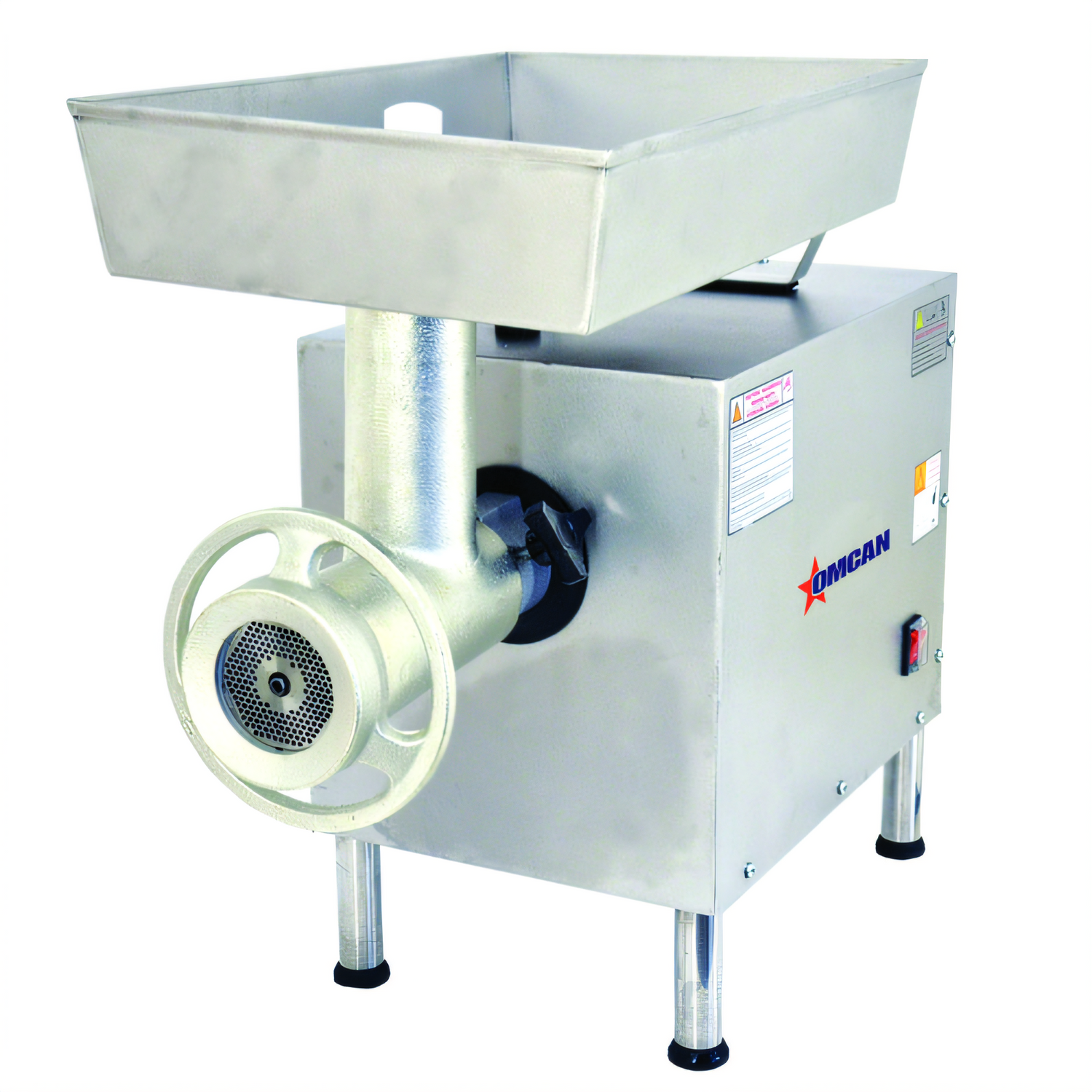

Omcan MG-BR-0022 #22 Meat Grinder – 2 HP, 110 V
Moderate-duty, gear-driven performance for busy butcher shops & kitchensPower through fresh beef, pork, poultry or game with Omcan’s MG-BR-0022. A rugged 2-horsepower motor and oversized #22 head deliver the speed and consistency professionals demand, while tool-free disassembly simplifies end-of-shift clean-up.
Key features
- 2 HP / 1.47 kW gear-drive motor keeps the worm turning at 150 RPM for swift, even grinds.
- Extra-large stainless steel hopper and 1 5/8″ (41 mm) throat reduce pre-cutting time.
- Includes two #22 plates (3 mm & 5 mm) for fine or medium textures—swap in seconds.
- Heavy-duty construction with stainless & anodized aluminum resists corrosion and wear.
- Quick-release components let you break the machine down for sanitation in moments.
- QPS safety-approved and supplied with NEMA L5-30P twist-lock cord set.
- Ships fully assembled on a pallet—just uncrate, rinse, and you’re ready to grind.
Technical specifications
| Model / Item # | MG-BR-0022 / 11067 |
|---|---|
| Horsepower | 2 HP (1.47 kW) |
| Grind head size | #22 |
| Throat opening | 1 5/8″ (41 mm) |
| Motor RPM | 1,750 |
| Worm RPM | 150 |
| Electrical | 110 V / 60 Hz / 1 Ph • NEMA L5-30P • 30 A |
| Dimensions (D × W × H) | 28″ × 13″ × 24.75″ (711 × 330 × 629 mm) |
| Unit weight | 89.8 lb (40.7 kg) |
| Shipping weight | 105 lb (47.6 kg) – palletized |
| Included accessories | (1) 3 mm plate, (1) 5 mm plate, knife & pusher |
| Certifications | QPS |
| Warranty | 1-year parts & labor (Omcan USA) |
Important: The MG-BR-0022 is engineered for use with the supplied #22 plates and knife only.
Using incompatible plates may damage the unit and void the warranty.
Questions? Contact our food-service team for expert assistance.
$3,366.70
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Omcan USA 11067 Meat Grinder — heavy-duty electric #22 grinder with extra-large hopper and additional #22 plate for high-volume processing. Powerful 2 HP motor, 110V/60Hz single-phase, NEMA L5-30P cord, commercial-grade construction; ideal for restaurants, butcher shops, and catering. QPS shipping on pallet for secure delivery.
Manufacturer
Omcan USA
Certifications
QPS
Height
24.75in
Width
13.0in
Depth
28.0in
Shipping Weight
127.0lbs
Attachment hub
#22
Motor
2 HP
Bench or Floor Model
bench
Specifications
(MG-BR-0022) Meat Grinder, electric, #22 head, extra large hopper, extra #22 machine plate, 2 HP, 110v/60/1, cord, NEMA L5-30P, QPS (shipped on pallet)
