Key specifications

Amps
4 Amps
Phase
1-Phase
Dimensions
49.3"W × 33.6"D × 50.0"H
Type
Deli Case
Installation Type
Floor Model
Material
Steel
Spec sheet
Ojeda SKU: RDCH 4

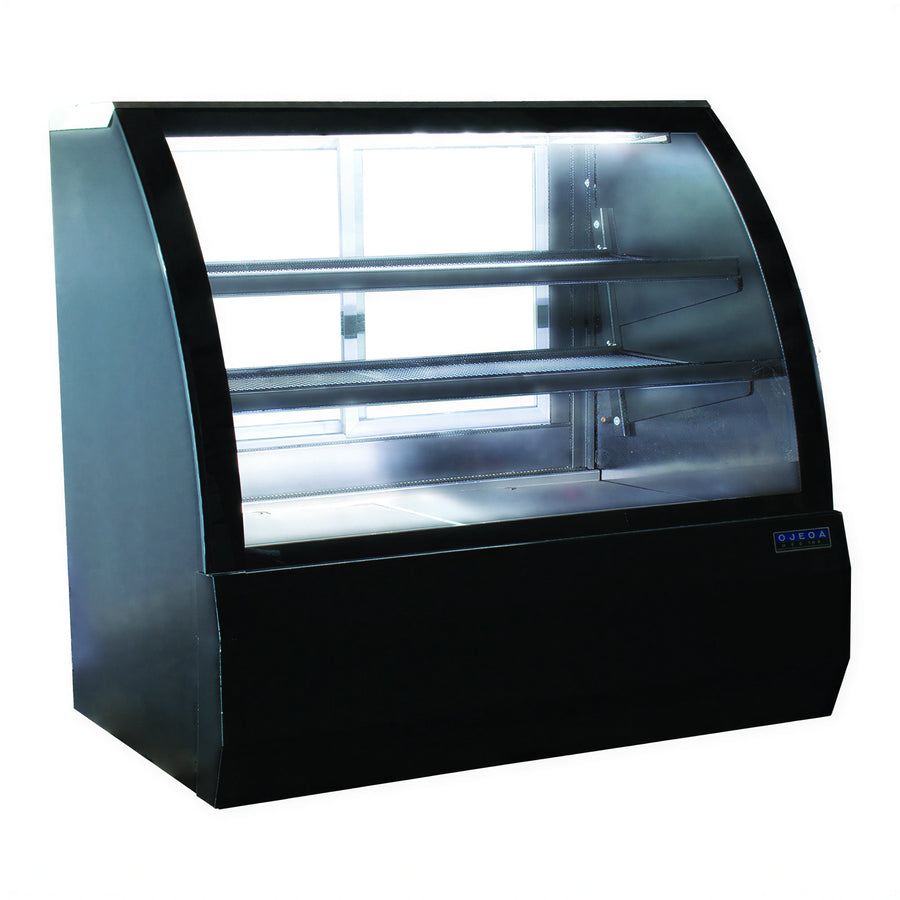

Ojeda RDCH 4 49" Full-Service Deli Case, Curved Glass

$4,056.75
/each
Estimated to ship in 16–19 business days
Capacity
Refrigeration
Included: Ojeda warranty 3-year parts and labor warranty; 5-year compressor parts warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $375/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Deli Case
Installation Type Floor Model
Material Steel
Color Black
Finish Powder Coated
Interior Finish Painted Steel
Capacity 13.1 cu. ft.
Shelf Count 2
Temperature Range 32°F to 42°F
Controls Electronic
Lighting LED
Front Type Curved Glass
Door Type Sliding Rear Doors
Service Type Full Service
Refrigeration Type Self-Contained
Refrigerant Type R-290
Condensate Management Condensate Evaporator
Voltage 120 Volts
Amps 4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Horsepower 1/6 HP
Bottom Material Stainless Steel

Description

The Ojeda RDCH 4 is a refrigerated deli case with a curved glass front, sliding rear doors, and a powder-coated black exterior.

It provides 13.1 cu. ft. of refrigerated capacity with two adjustable shelves, LED lighting, electronic controls, and a 32°F to 42°F operating temperature range. Self-contained refrigeration uses R-290 refrigerant and a condensate evaporator.

  • Painted steel interior
  • Stainless steel bottom
  • 120-volt electrical system with NEMA 5-15P plug

Overall Dimensions:

49.3"W x 33.6"D x 50.0"H

Product Weight:

490.0 lb

Curved Glass Front

The case has a curved glass front.

Sliding Rear Doors

Rear doors slide for access to the case interior.

Adjustable Shelves

Includes two adjustable shelves.

LED Lighting

LED lighting is included.

Electronic Controls

The case uses electronic controls.

Self-Contained Refrigeration

The case uses self-contained refrigeration.

Condensate Evaporator

The refrigeration system includes a condensate evaporator.

R-290 Refrigerant

Uses R-290 refrigerant.

Powder-Coated Black Exterior

The exterior is powder-coated black.

Painted Steel Interior

The interior is painted steel.

Stainless Steel Bottom

The bottom is stainless steel.

Frequently Asked Questions

The refrigerated deli case has a capacity of 13.1 cu. ft.
The operating temperature range is 32°F to 42°F.
The case includes two adjustable shelves.
It uses self-contained refrigeration with a condensate evaporator and R-290 refrigerant.
The case operates at 120 Volts, 60 Hz, single-phase, draws 4 Amps, and uses a NEMA 5-15P plug.
The product is 49.3 in wide, 33.6 in deep, and 50.0 in high, with a listed weight of 490.0 lb.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
