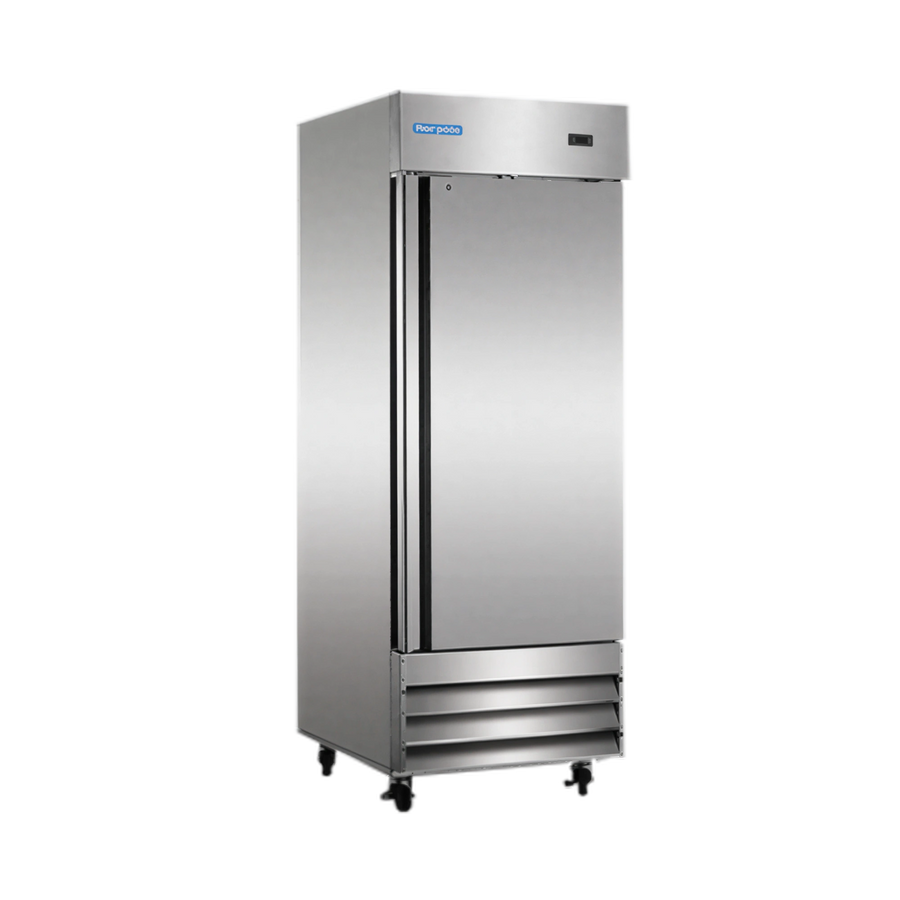

Norpole, Inc. NP1F 23 cu. ft. One-Section Reach-In Freezer, Solid Hinged Door, Stainless Steel Interior & Exterior, Bottom-Mounted Refrigeration

SKU: NP1F
$5,551.66

Want to speak to an expert?

The Norpole NP1F is a one-section, 23 cu. ft. reach-in freezer with one solid hinged door, stainless steel interior, and stainless steel front and sides.

  • Includes three PVC-coated adjustable wire shelves and interior lighting.
  • Features self-contained, bottom-mounted refrigeration with R-290 refrigerant.
  • Uses an LED digital temperature display and heavy-duty castor wheels.

Overall Dimensions:

29.0"W x 32.0"D x 82.0"H

Product Weight:

340.0 lb

One-section storage

Provides 23 cu. ft. of freezer capacity in a one-section reach-in format.

Solid hinged door

The single hinged door is self-closing, includes a 90-degree stay-open feature, and has a lock.

Stainless steel cabinet

The interior is 304 stainless steel, while the front and sides use 430 stainless steel; the back panel is stucco aluminum.

Adjustable shelving

Includes three PVC-coated adjustable wire shelves.

Digital temperature monitoring

Uses an LED digital temperature display with digital temperature control.

Bottom-mounted refrigeration

The self-contained refrigeration system uses a bottom-mounted compressor and R-290 refrigerant.

Interior lighting

Includes interior lighting.

Castor wheels

Equipped with heavy-duty castor wheels.

Product Classification Freezer
Capacity 23 cu. ft.
Configuration One section
Number of Doors 1
Door Type Solid hinged door
Door Features Self-closing; 90-degree stay-open feature
Door Lock Yes
Reversible Door Yes, left door
Shelves 3 PVC-coated adjustable wire shelves
Exterior Finish 430 stainless steel front and sides
Interior Finish 304 stainless steel
Back Panel Stucco aluminum
Refrigeration Self-contained, bottom mounted
Refrigerant R-290
Temperature Control Digital
Temperature Range -8°F to 0°F (-22°C to -18°C)
Compressor HP 1/2+ HP
Insulation 2.5 in polyurethane foam
Climate Class N
Voltage 115 V / 60 Hz / 1 phase
Current 7.1 A
Plug NEMA 5-15P
Interior Lighting Yes
Casters Heavy-duty castor wheels

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year compressor warranty and 3-year parts and labor warranty.

Frequently Asked Questions

The NP1F has a listed capacity of 23 cu. ft.
The freezer includes three PVC-coated adjustable wire shelves.
The listed temperature range is -8°F to 0°F (-22°C to -18°C).
It uses 115 V / 60 Hz / 1 phase power, draws 7.1 A, and has a NEMA 5-15P plug.
The product measures 29 in wide, 32 in deep, and 82 in high, with a listed weight of 340 lb.
The listed warranty is five years on the compressor and three years on parts and labor.
