Norlake

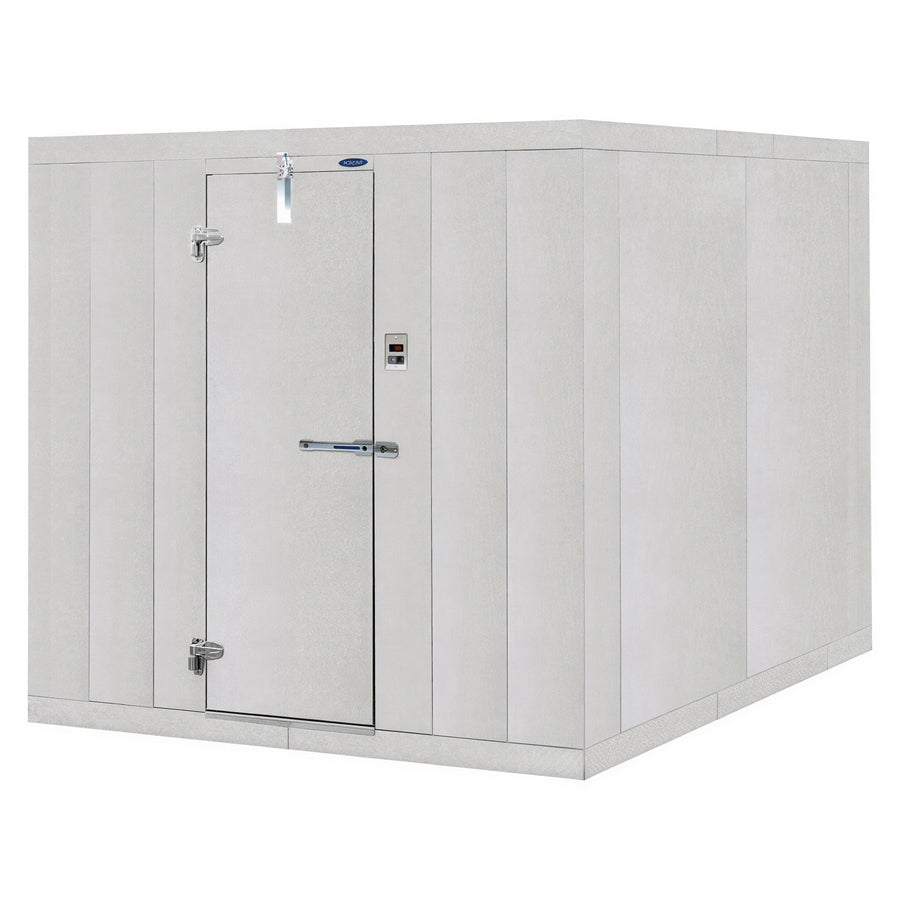

Norlake Fast-Trak FTB741013-CX-M Indoor Floorless Walk-In Cooler, 10' x 13' x 7'4", Self-Contained Refrigeration

SKU: FTB741013-CX-M
$16,585.34
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Norlake Fast-Trak FTB741013-CX-M is an indoor, floorless walk-in cooler with nominal dimensions of 10 ft x 13 ft x 7 ft 4 in and CPB100PC-S-0 self-contained refrigeration.

  • Floorless construction: Supplied with a vinyl floor sealer for installation on an existing floor.
  • Insulated panels: Fast-Trak panels are 4 in thick and foamed in place with EPA-compliant polyurethane insulation.
  • Panel finish: 26 gauge embossed coated steel is used on the interior and exterior.
  • Door: The configuration includes a self-closing door with a locking deadbolt handle.
  • Electrical specification: The refrigeration system is rated at 115 V / 60 Hz / 1 phase.

Overall Dimensions:

120.0"W x 156.0"D x 88.0"H

Product Weight:

1490.0 lb

Indoor floorless design

Configured for indoor installation without a built-in floor.

Self-contained refrigeration

Specified with the CPB100PC-S-0 self-contained Capsule Pak ECO refrigeration system.

Insulated panels

Fast-Trak panels are 4 in thick and use foamed-in-place EPA-compliant polyurethane insulation.

Coated steel finish

The interior and exterior use 26 gauge embossed coated steel.

Floor sealer

Floorless 7 ft 4 in models are supplied with a vinyl floor sealer; the sealer is NSF listed.

Self-closing door

The specified door is self-closing.

Locking deadbolt handle

The door includes a locking deadbolt handle.

Cord-and-plug refrigeration connection

The CPB100PC-S-0 system lists a 5-20P NEMA plug and 15.3 total system amps.

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Complete Walk-In Coolers Complete Walk-In Equipment New Arrivals Norlake Open-Air Coolers Refrigeration & Ice Restaurant Equipment Walk-Ins & Refrigeration Systems
Nominal dimensions 10 ft x 13 ft x 7 ft 4 in
Panel thickness 4 in
Panel finish 26 gauge embossed coated steel, interior and exterior
Insulation Foamed-in-place EPA-compliant polyurethane
Floor construction Floorless
Installation Indoor
Door type Self-closing
Door handle Locking deadbolt handle
Refrigeration system CPB100PC-S-0 self-contained Capsule Pak ECO
Electrical 115 V / 60 Hz / 1 phase
Total system amps 15.3 A
NEMA plug 5-20P
Refrigerant R290
Refrigerant charge 10.5 oz
System rating 8,800 BTUH, calculated using 90°F ambient
AWEF 5.61

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

15-year original equipment panel warranty and 18-month original equipment parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Flyer PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Door location flyer PDF Download

Frequently Asked Questions

The overall dimensions are 120 in wide x 156 in deep x 88 in high.
The nominal dimensions are 10 ft x 13 ft x 7 ft 4 in.
No. This model is floorless and is supplied with a vinyl floor sealer; the sealer is NSF listed.
The specified system is the CPB100PC-S-0 self-contained Capsule Pak ECO refrigeration system.
The system uses 115 V / 60 Hz / 1 phase electrical service, with a listed 5-20P NEMA plug and 15.3 total system amps.
The product documentation specifies a 15-year original equipment panel warranty and an 18-month original equipment parts and labor warranty.
