Norlake

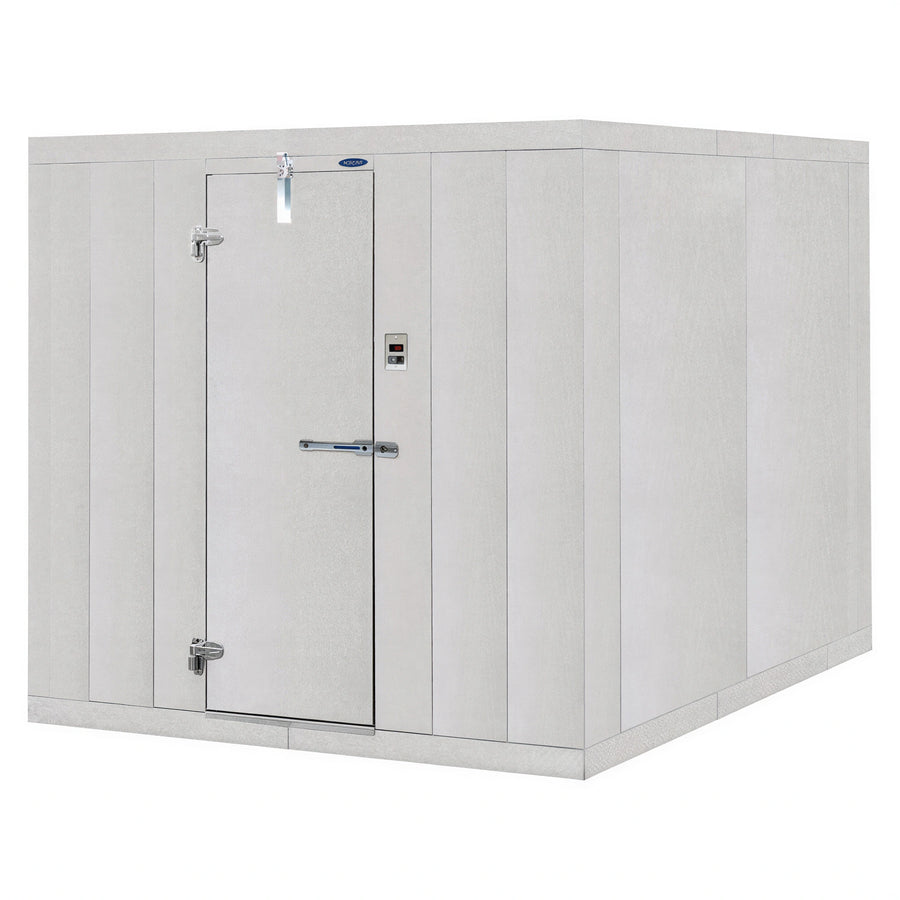

Norlake Fast-Trak FTB741012-CX-M Indoor Walk-In Cooler, 10' x 12' x 7'4", Floorless, Self-Contained Refrigeration

SKU: FTB741012-CX-M
$16,409.83
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Norlake Fast-Trak FTB741012-CX-M is an indoor, floorless walk-in cooler with a nominal 10' x 12' x 7'4" configuration and CPB100PC-S-0 self-contained refrigeration.

  • Floorless construction: Supplied with an NSF-listed vinyl floor sealer for installation on an existing floor.
  • Insulated panels: Full 4-inch panels use foamed-in-place EPA-compliant polyurethane insulation.
  • Finish: The interior and exterior use 26 gauge embossed coated steel.
  • Door: The self-closing door includes a locking deadbolt handle.
  • Refrigeration: The specified CPB100PC-S-0 system uses 115V/60/1-ph electrical service.
  • Door placement: Two 2-foot filler panels per door support field-configurable placement along a wall.

Overall Dimensions:

120.0"W x 144.0"D x 88.0"H

Product Weight:

1413.0 lb

Floorless design

The 7'4" Fast-Trak floorless configuration is supplied with an NSF-listed vinyl floor sealer.

Self-contained refrigeration

The specified refrigeration system is model CPB100PC-S-0.

Panel construction

Full 4-inch panels use foamed-in-place EPA-compliant polyurethane insulation.

Coated steel finish

26 gauge embossed coated steel is specified for the interior and exterior.

Door security

The door is self-closing and uses a locking deadbolt handle.

Field-configurable door placement

Two 2-foot filler panels are shipped per door to support placement along a wall.

Electrical connection

The specified system uses 115V/60/1-ph electrical service and a 5-20P NEMA plug.

Cooler temperature control

The system is specified for +37°F cooler operation with a LogiTemp electronic controller system.

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Complete Walk-In Coolers Complete Walk-In Equipment New Arrivals Norlake Open-Air Coolers Refrigeration & Ice Restaurant Equipment Walk-Ins & Refrigeration Systems
Installation Indoor
Floor Floorless
Nominal size 10' x 12' x 7'4"
Refrigeration system CPB100PC-S-0
Refrigeration type Self-contained
Design temperature +37°F
Panel thickness 4 in
Insulation Foamed-in-place EPA-compliant polyurethane
Interior/exterior finish 26 gauge embossed coated steel
Door Self-closing
Door handle Locking deadbolt handle
Electrical 115V/60/1-ph
Refrigerant R290
Refrigerant charge 10.5 oz
Total system amps 15.3 A
NEMA plug 5-20P
Refrigeration capacity 8,800 BTUH
AWEF 5.61 Btu/W-h

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Published warranty terms include a 15-year original equipment panel warranty and an 18-month original equipment parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Flyer PDF Download PDF Door location flyer PDF Download PDF Warranty PDF Download

Frequently Asked Questions

The authoritative dimensions are 120 inches wide by 144 inches deep by 88 inches high, corresponding to a nominal 10' x 12' x 7'4" configuration.
Yes. The FTB741012-CX-M is specified as floorless and is supplied with an NSF-listed vinyl floor sealer.
This product is specified with the CPB100PC-S-0 self-contained refrigeration system.
The specified electrical requirement is 115V/60/1-ph, and the CPB100PC-S-0 system uses a 5-20P NEMA plug.
Yes. The product specification identifies a self-closing door with a locking deadbolt handle.
The interior and exterior finish is 26 gauge embossed coated steel.
