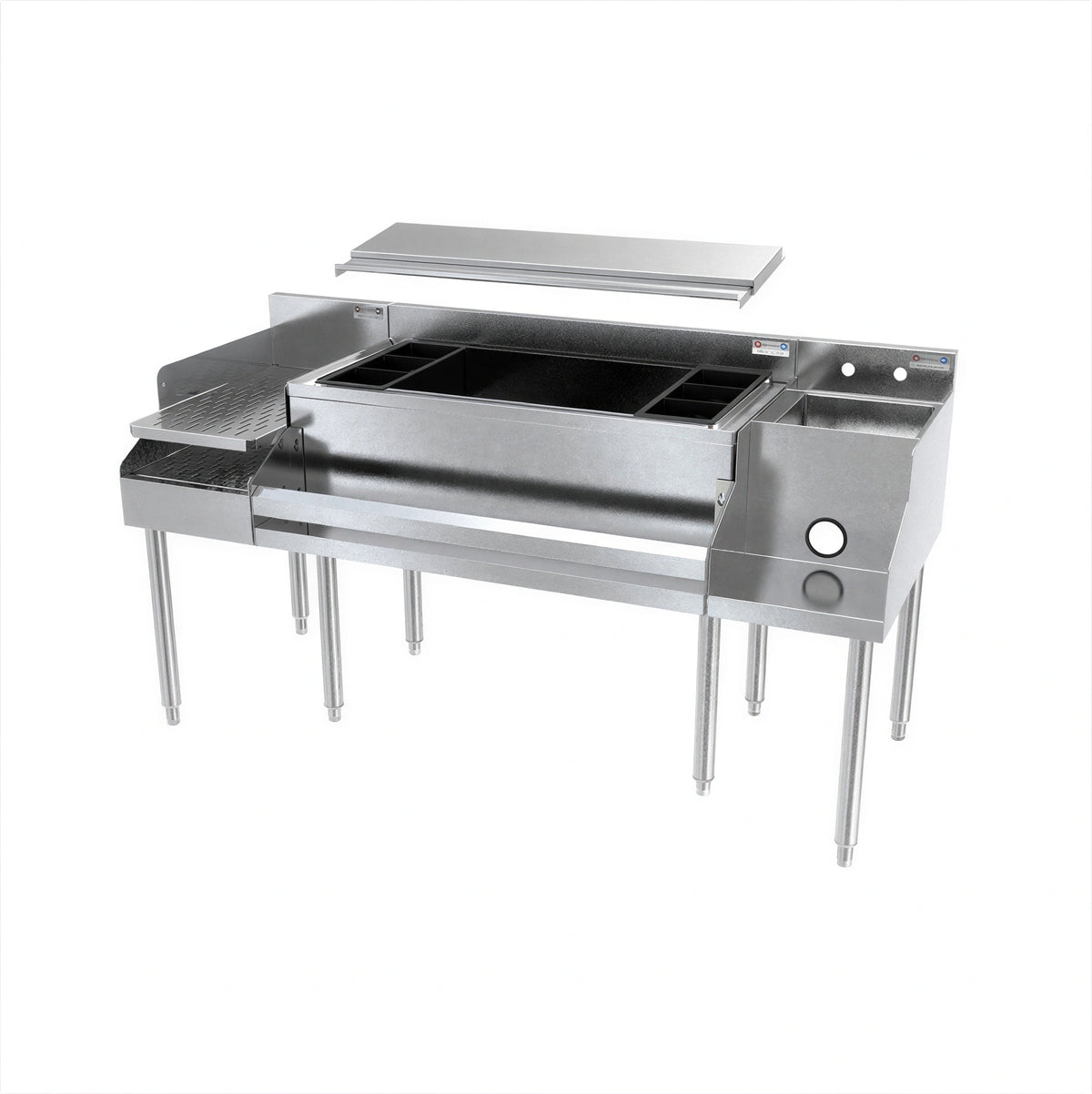

NBR Equipment N24-3DD72C10 Modular Bar Station with Blender Station, 10-Circuit Cold Plate, Stainless Steel, 72"W x 24"D x 32.5"H
- Construction
- Stainless steel
- Dimensions
- 72.0"W × 24.0"D × 32.5"H
- Overall width
- 72 in.
- Overall depth
- 24 in.
- Overall height
- 32.5 in.
- Backsplash height
- 3 in.
Specifications
Description
The NBR Equipment N24-3DD72C10 is a modular bar station with a recessed drainboard, blender station, 10-circuit cold plate, ice bin, removable bottle wells, and a 36-inch speed rail.
It features stainless steel construction with an 18-gauge T304 top and base, stainless steel legs, adjustable bullet feet, and a 3-inch backsplash. Multiple modules bolt together on site.
- Drainboard: Recessed 18-inch drainboard.
- Blender station: NBS-1824H blender station with liquid waste.
- Cold plate: 10-circuit cold plate.
- Ice bin: 12-9/16-inch deep bin with 100 lb. capacity.
- Bar components: Two removable BW3-18 bottle wells and one NSR-36 speed rail.
Overall Dimensions:
72.0"W x 24.0"D x 32.5"HProduct Weight:
246.0 lbModular assembly
Multiple modules bolt together on site.
Recessed drainboard
Includes one NDDB-1824 recessed drainboard measuring 18 inches in length.
Blender station
Includes one NBS-1824H blender station with liquid waste.
10-circuit cold plate
Includes a 10-circuit cold plate integrated with the ice bin.
Ice bin
Includes one NIB-3618C10 ice bin that is 12-9/16 inches deep with 100 lb. capacity.
Removable bottle wells
Includes two BW3-18 removable bottle wells.
Speed rail
Includes one NSR-36 speed rail.
Stainless steel construction
18-gauge T304 stainless steel top and base with stainless steel legs and adjustable bullet feet.
