NBR Equipment N24-3DD66 Stainless Steel Modular Bar Station with Ice Bin and Blender Station, 66"W x 24"D x 32.5"H, 3" Backsplash
$2,052.27
/each
Ships in 4–7 business days
- Construction
- 18GA T304 top and base; stainless steel legs
- Dimensions
- 66.0"W × 24.0"D × 32.5"H
- Overall width
- 66 in.
- Overall depth
- 24 in.
- Overall height
- 32.5 in.
- Backsplash height
- 3 in.
Specifications
Overall width
66 in.
Overall depth
24 in.
Overall height
32.5 in.
Backsplash height
3 in.
Product weight
157 lb.
Construction
18GA T304 top and base; stainless steel legs
Ice capacity
100 lb.
Ice bin depth
12-9/16 in.
Cold plate
Without cold plate
Blender unit type
With liquid waste
Drainboard style
Recessed
Drainboard model
NDDB-1824
Ice bin model
NIB-3618
Blender station model
NBS-1224H
Bottle wells
2 removable BW3-18 bottle wells
Speed rail model
NSR-36
Installation
Multiple modules bolt together on site
Description

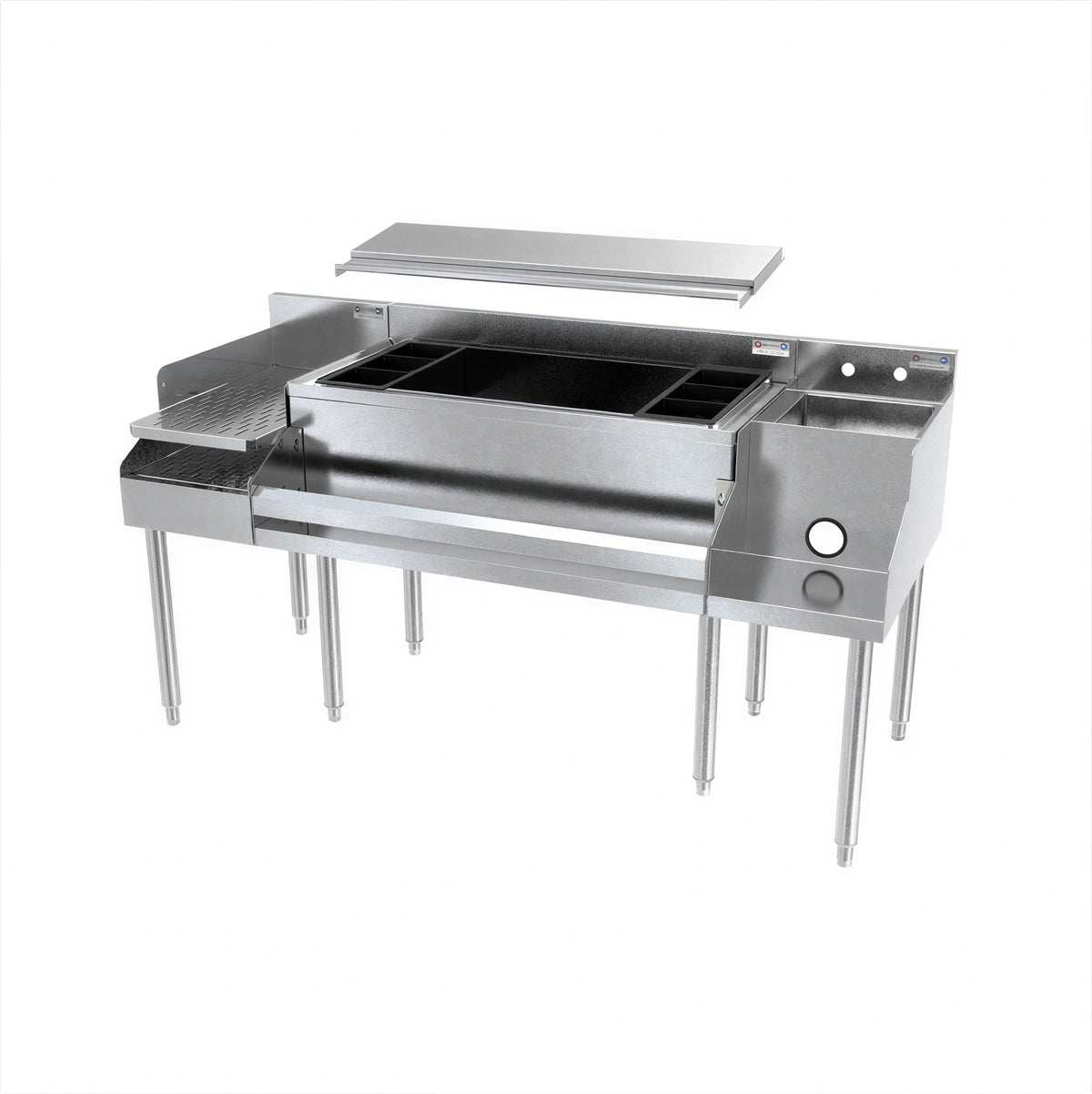

The NBR Equipment N24-3DD66 is a stainless steel modular bar station with a recessed drainboard, ice bin, blender station, bottle wells, and speed rail.
- Measures 66 inches wide, 24 inches deep, and 32.5 inches high with a 3-inch backsplash.
- Includes a NIB-3618 ice bin with 100 lb. capacity and two removable BW3-18 bottle wells.
- Includes an NDDB-1824 recessed drainboard and NBS-1224H blender station with liquid waste.
- Includes an NSR-36 speed rail.
- Multiple modules bolt together on site.
Overall Dimensions:
66.0"W x 24.0"D x 32.5"HProduct Weight:
157.0 lbStainless steel construction
The top and base are 18GA T304, with stainless steel legs and adjustable bullet feet.
Recessed drainboard
Includes one NDDB-1824 recessed drainboard.
Ice bin
Includes one NIB-3618 ice bin with 100 lb. capacity and a 12-9/16 in. depth; specified without a cold plate.
Blender station with liquid waste
Includes one NBS-1224H blender station.
Removable bottle wells
Includes two BW3-18 removable bottle wells.
Speed rail
Includes one NSR-36 speed rail.
Modular installation
Multiple modules bolt together on site.
Documentation
Certifications & Compliance
Frequently Asked Questions
The station is 66 inches wide, 24 inches deep, and 32.5 inches high, with a 3-inch backsplash.
The included NIB-3618 ice bin has a 100 lb. capacity.
No. The N24-3DD66 is specified without a cold plate.
The product includes an NDDB-1824 recessed drainboard, NIB-3618 ice bin, two BW3-18 removable bottle wells, an NBS-1224H blender station, and an NSR-36 speed rail.
Yes. The blender unit type is specified as with liquid waste.
Multiple modules bolt together on site.
Yes. NSF is listed for this exact product.
