NBR Equipment 3SS-203014LR20 3-Compartment Stainless Steel Sink, 20"W x 30"D x 14" Deep Compartments, Left & Right Drainboards, 103-1/4"W

SKU: 3SS-203014LR20
$1,778.88
/each
Enter ZIP for a shipping estimate

Want to speak to an expert?

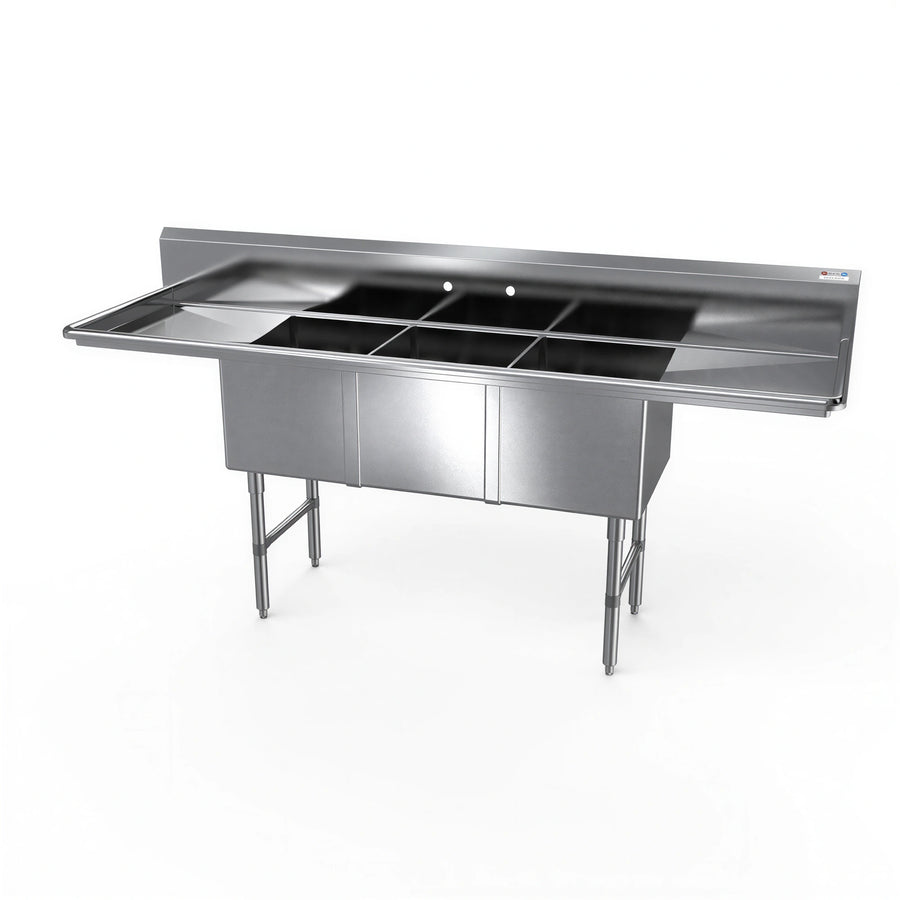

The NBR Equipment 3SS-203014LR20 is a three-compartment stainless steel sink with left and right drainboards.

  • Three compartments: Each compartment measures 20 inches wide by 30 inches front-to-back by 14 inches deep.
  • Stainless steel construction: Fabricated from 16-gauge 300 series stainless steel with stainless steel legs, gussets, and bracing.
  • Integrated features: Includes a 10-inch backsplash with a 2-inch return, splash-mount faucet holes with 8-inch centers, and 3-1/2-inch die-stamped drain openings.
  • Adjustable support: Stainless steel adjustable bullet feet.

Overall Dimensions:

103.25"W x 35.5"D x 44.06"H

Product Weight:

177.5 lb

Three compartments

Three compartments measure 20 inches wide by 30 inches front-to-back by 14 inches deep.

Left and right drainboards

Includes a 20-inch drainboard on each side.

Stainless steel construction

Fabricated from 16-gauge 300 series stainless steel with stainless steel legs, gussets, and bracing.

Backsplash

Features a 10-inch backsplash with a 2-inch return.

Faucet holes

Includes one set of splash-mount faucet holes with 8-inch centers.

Drain openings

Features 3-1/2-inch die-stamped drain openings.

Adjustable bullet feet

Uses adjustable stainless steel bullet feet.

Overall width 103-1/4 in
Overall depth 35-1/2 in
Overall height 44-1/16 in
Compartment quantity 3
Compartment width 20 in
Compartment front-to-back 30 in
Compartment depth 14 in
Drainboard configuration Left and right
Drainboard width 20 in each
Backsplash height 10 in
Backsplash return 2 in
Faucet-hole centers 8 in
Drain opening 3-1/2 in
Top gauge 16 gauge
Stainless steel series 300 series
Base construction Stainless steel
Base type Legs with side crossrails
Product weight 177.5 lb

Frequently Asked Questions

The 3SS-203014LR20 has three compartments.
Each compartment measures 20 inches wide by 30 inches front-to-back by 14 inches deep.
Yes. It has a 20-inch drainboard on both the left and right sides.
The sink is fabricated from 16-gauge 300 series stainless steel.
The overall dimensions are 103-1/4 inches wide by 35-1/2 inches deep by 44-1/16 inches high.
Yes. It has a 10-inch backsplash with a 2-inch return.
It has one set of splash-mount faucet holes with 8-inch centers.
