NBR Equipment 1SG-162012R18 1-Compartment Stainless Steel Sink with Right Drainboard, 18-Gauge, 36-1/2"W x 25-1/2"D x 43-3/4"H
SKU: 1SG-162012R18
$369.76

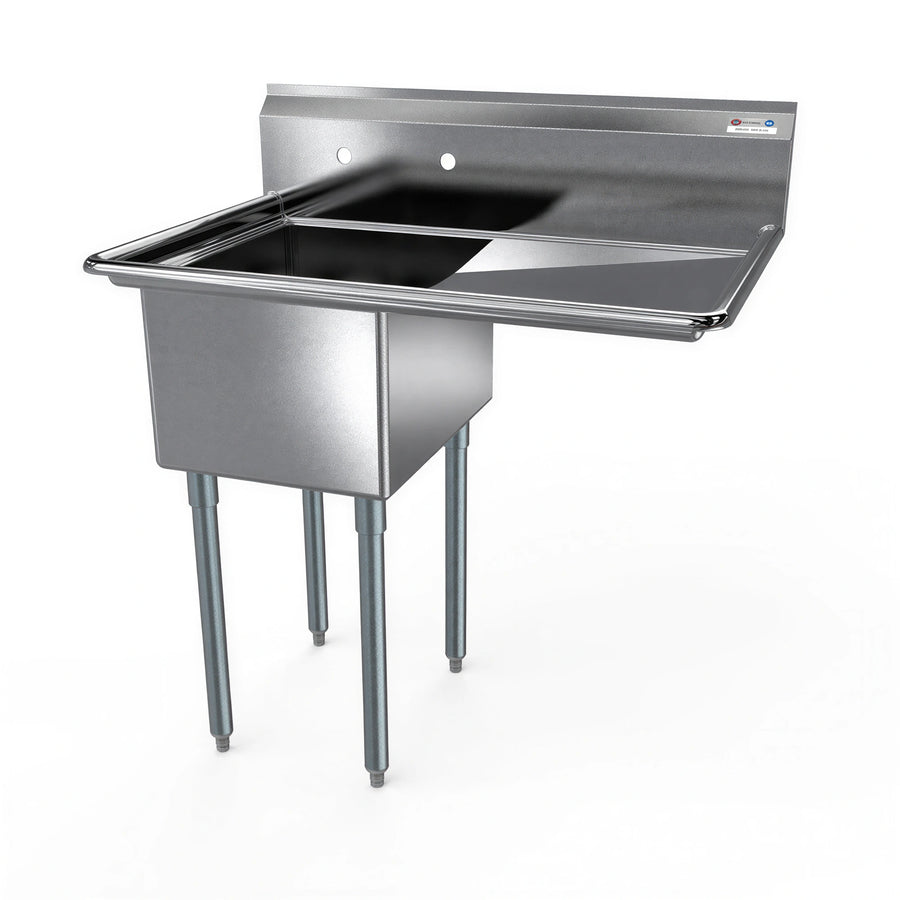

The NBR Equipment 1SG-162012R18 is an economy, one-compartment sink with an 18-inch right drainboard.
- Construction: 18-gauge 304 stainless steel.
- Compartment: 16 inches wide x 20 inches front-to-back x 12 inches deep.
- Backsplash: 10 inches high with a 2-inch return.
- Faucet mounting: One set of splash-mount faucet holes with 8-inch centers.
- Base: Galvanized legs and gussets with adjustable plastic bullet feet.
- Drain: 3.5-inch die-stamped drain opening.
- Certification: NSF.
Overall Dimensions:
36.5"W x 25.5"D x 43.75"HProduct Weight:
44.1 lbSingle compartment
The sink has one compartment measuring 16 inches wide x 20 inches front-to-back x 12 inches deep.
Right-side drainboard
An 18-inch drainboard is positioned on the right side.
Stainless steel construction
The sink is constructed from 18-gauge 304 stainless steel.
Backsplash
The 10-inch backsplash includes a 2-inch return.
Faucet holes
One set of splash-mount faucet holes is provided with 8-inch centers.
Die-stamped drain opening
The sink has a 3.5-inch die-stamped drain opening.
Galvanized support
The legs and gussets are galvanized.
Adjustable bullet feet
The sink includes adjustable plastic bullet feet.
NSF
NSF is specified as a certification for this model.
Overall width
36.5 in
Overall depth
25.5 in
Overall height
43.75 in
Compartment size
16 in W x 20 in front-to-back x 12 in deep
Drainboard length
18 in
Drainboard position
Right
Backsplash height
10 in
Backsplash return
2 in
Faucet hole centers
8 in
Drain opening
3.5 in, die-stamped
Stainless steel construction
18-gauge 304 stainless steel
Base construction
Galvanized legs and gussets
Feet
Adjustable plastic bullet feet
Certifications & Compliance
Frequently Asked Questions
It has one compartment measuring 16 inches wide x 20 inches front-to-back x 12 inches deep.
The 18-inch drainboard is on the right side.
The overall dimensions are 36.5 inches wide x 25.5 inches deep x 43.75 inches high.
Yes. It has one set of splash-mount faucet holes with 8-inch centers.
The sink has 18-gauge 304 stainless steel construction, with galvanized legs and gussets.
NSF is specified as a certification for this model.
