Key specifications

Dimensions
52.0"W × 25.5"D × 43.75"H
Type
Compartment Sink
Style
Economy
Installation Type
Floor Model
Material
304 Stainless Steel
Compartments
1
Spec sheet
NBR Equipment SKU: 1SG-162012LR18

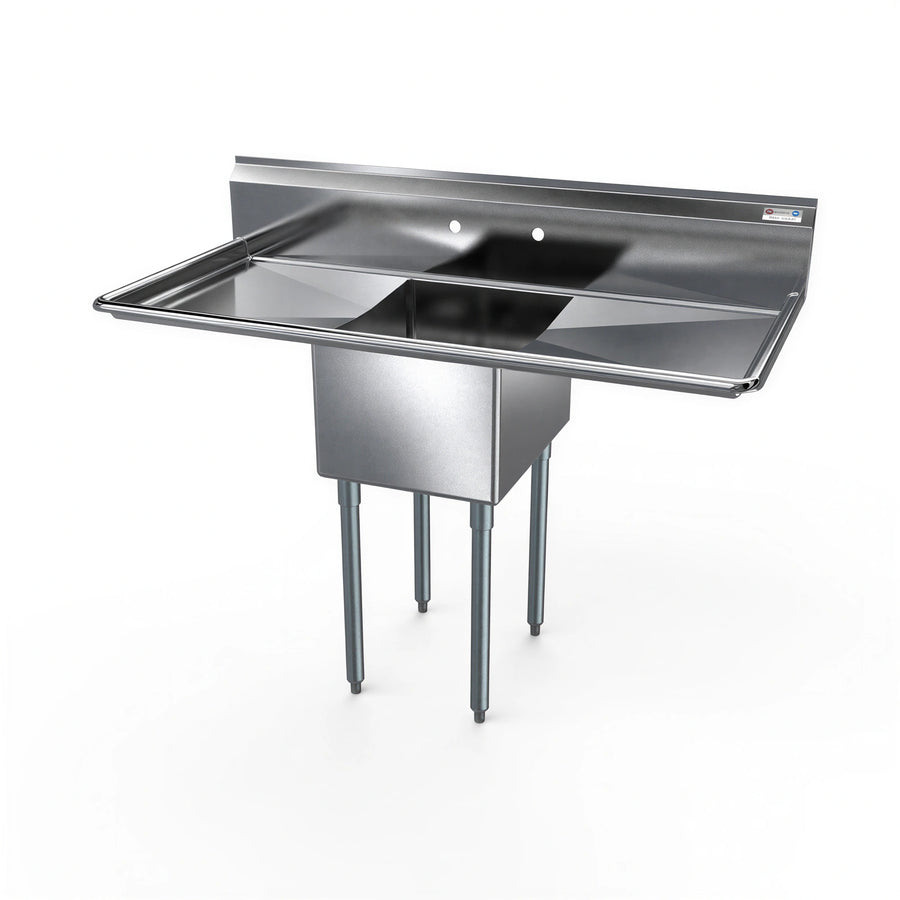

NBR Equipment 1SG-162012LR18 1-Compartment Stainless Steel Sink with Left & Right Drainboards, 52"W x 25-1/2"D x 43-3/4"H

$433.88
/each
Estimated to ship in 4–7 business days

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $40/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Style Economy
Installation Type Floor Model
Material 304 Stainless Steel
Compartments 1
Compartment Size 16 in W x 20 in D x 12 in deep
Drainboard Configuration Left and Right
Drainboard Size 18 in Each
Backsplash Height 10 in
Backsplash Return 2 in
Faucet Mounting Splash Mount
Faucet Hole Centers 8 in
Drain Opening 3.5 in
Leg Material Galvanized Steel
Feet Type Adjustable Plastic Bullet Feet
Top Gauge 18 Gauge

Description

The NBR Equipment 1SG-162012LR18 is an economy compartment sink with one 16 in W x 20 in front-to-back x 12 in deep basin and 18 in drainboards on both sides.

  • Fabricated from 18-gauge 304 stainless steel.
  • Includes a 10 in high backsplash with a 2 in return.
  • Features splash-mount faucet holes with 8 in centers and a 3-1/2 in die-stamped drain opening.
  • Supported by galvanized legs and gussets with adjustable plastic bullet feet.
  • NSF certified.

Overall Dimensions:

52.0"W x 25.5"D x 43.75"H

Product Weight:

55.0 lb

One Compartment

The sink compartment measures 16 in W x 20 in front-to-back x 12 in deep.

Left and Right Drainboards

Two 18 in drainboards provide a drainboard on each side of the compartment.

304 Stainless Steel Construction

The sink is fabricated from 18-gauge 304 stainless steel.

Backsplash

The backsplash is 10 in high and has a 2 in return.

Splash-Mount Faucet Holes

The sink has splash-mount faucet holes with 8 in centers.

Die-Stamped Drain Opening

The sink has a 3-1/2 in die-stamped drain opening.

Galvanized Base

Galvanized legs and gussets support the sink.

Adjustable Bullet Feet

Adjustable plastic bullet feet are provided.

Drain Basket

A drain basket is included.

Frequently Asked Questions

The sink measures 52 in W x 25.5 in D x 43.75 in H overall.
The compartment measures 16 in W x 20 in front-to-back x 12 in deep.
Yes. It has one 18 in drainboard on the left and one 18 in drainboard on the right.
The sink is fabricated from 18-gauge 304 stainless steel and has galvanized legs and gussets.
It has splash-mount faucet holes with 8 in centers.
Yes. The drain basket is included.
