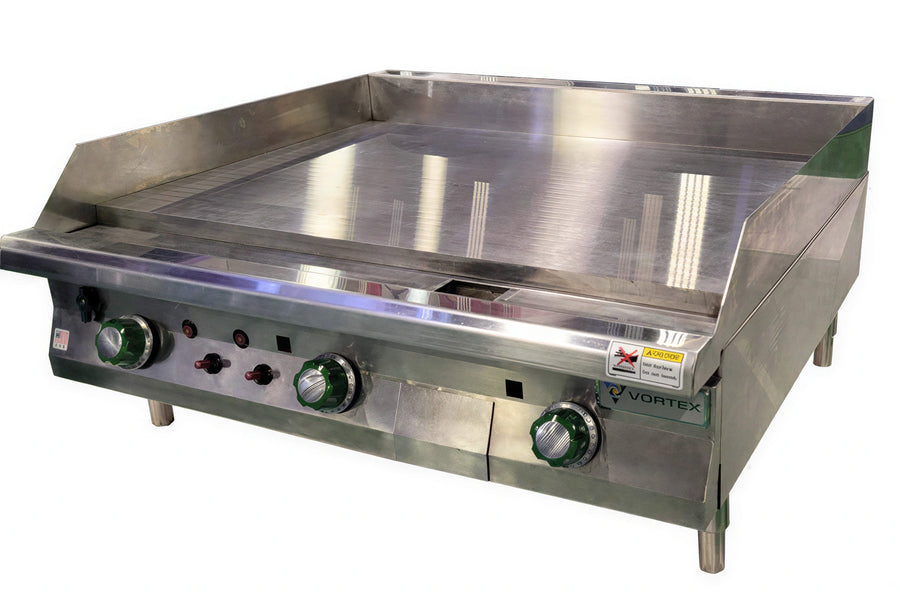

MVP Group LLC Vortex VRX-36-TG Countertop Gas Griddle, 36 x 24 in Cooking Area, 3 Burners, Thermostatic Control

SKU: VRX-36-TG
$13,757.90

Want to speak to an expert?

The Vortex VRX-36-TG is a heavy-duty countertop gas griddle with a 36 x 24 in. cooking area, three burners, and thermostatic control from 200°F to 550°F.

It features a 1 in. thick smooth steel griddle plate, welded grease gutter, large-capacity grease drawer, Piezo ignition, built-in safety valves, and 4 in. adjustable legs.

  • Construction: 14-gauge 304 stainless steel front and sides.
  • Fuel: Operates on natural gas or propane; conversion components are included.
  • Utilities: 78,000 BTU/hr gas input and 120 V electrical connection with a NEMA 5-15P plug.

Overall Dimensions:

36.0"W x 33.0"D x 15.0"H

Product Weight:

256.0 lb

Thermostatic control

Snap-action thermostats provide a 200°F to 550°F temperature range.

Three-burner cooking system

The griddle has three burners and a total gas input of 78,000 BTU/hr.

Steel griddle plate

The 1 in. thick griddle plate has a smooth steel finish.

Grease management

A welded grease gutter and large-capacity grease drawer collect cooking grease.

Stainless steel construction

The front and sides use heavy-duty 14-gauge 304 stainless steel.

Ignition and safety

Piezo ignition and built-in safety valves are included.

Fuel flexibility

The unit operates on natural gas or propane, with conversion components included.

Adjustable legs

Four-inch adjustable legs are included.

Configuration Countertop
Fuel Type Natural gas or propane; conversion components included
Cooking Area 36 x 24 in.
Number of Burners 3
Control Type Thermostatic; snap-action thermostats
Temperature Range 200°F to 550°F
Gas Input 78,000 BTU/hr
Griddle Plate Thickness 1 in.
Griddle Plate Finish Smooth steel
Exterior Material 14-gauge 304 stainless steel front and sides
Grease Management Welded grease gutter and large-capacity grease drawer
Ignition Piezo
Safety Valves Built-in
Legs 4 in. adjustable
Gas Connection 3/4 in. NPT rear manifold
Natural Gas Manifold Pressure 5.0 in. W.C.
Propane Gas Manifold Pressure 10.0 in. W.C.
Electrical Requirements 120 V, 50/60 Hz, 1 A, single phase
Plug NEMA 5-15P
Energy Efficiency ENERGY STAR®
Required Clearance 6 in. from combustible surfaces; 0 in. from non-combustible surfaces on the left, right, and back

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Standard one-year parts and labor warranty from MVP Group.

Frequently Asked Questions

The cooking area is 36 x 24 in.
The thermostatic control range is 200°F to 550°F.
Yes. It operates on natural gas or propane, and conversion components are included.
It requires 120 V, 50/60 Hz, 1 A, single-phase power and uses a NEMA 5-15P plug.
The product measures 36 in. wide by 33 in. deep by 15 in. high.
MVP Group provides a standard one-year parts and labor warranty.
