Key specifications

Amps
16.42 Amps
Dimensions
35.86"W × 37.05"D × 59.25"H
Type
Open-Air Merchandiser
Style
Over-Under
Installation Type
Floor Model
Material
PVC Coated Steel
Spec sheet
MVP Group SKU: KGL-OU-36-S

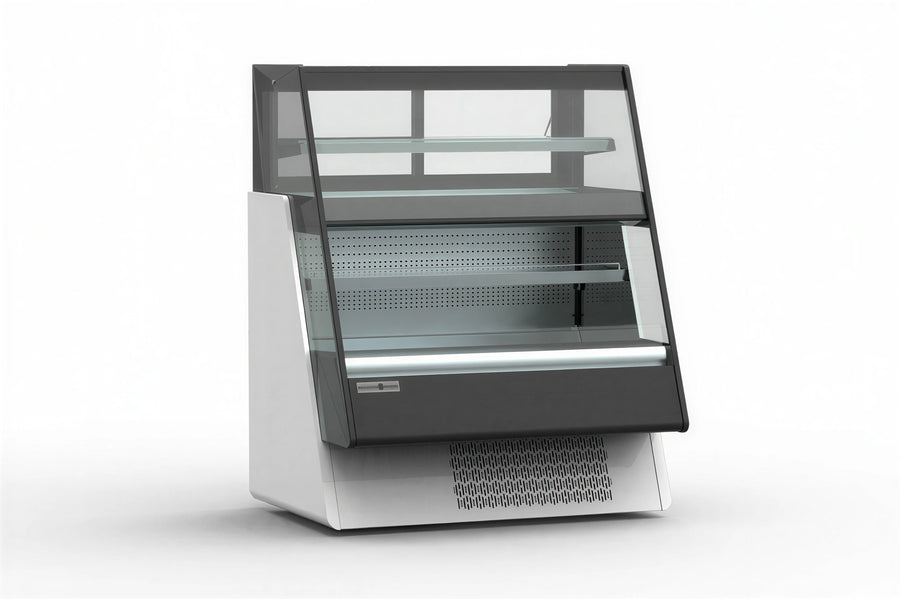

MVP Group Hydra-Kool KGL-OU-36-S Open-Air Over-Under Merchandiser, Self-Contained Refrigeration, 36"W

$13,244.33
/each
Estimated to ship in 4–7 business days
Width
Size
Folding rear shelf
Finish
Front panel
Interior
Upper rear doors

Need something else? Contact us.

Included: MVP Group warranty One year parts and labor with an additional four years on the compressor part only

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,225/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Open-Air Merchandiser
Style Over-Under
Installation Type Floor Model
Material PVC Coated Steel
Finish Silver & Gray
Interior Finish Gray
Capacity 7.73 cu. ft.
Shelf Count 2 Shelves
Display Tiers 4 Tiers
Refrigeration Type Self-Contained
Refrigeration Method Forced Air
Temperature Range 36°F to 40°F
Refrigerant Type R404a
Controls Digital Temperature Controller
Lighting LED
Amps 16.42 Amps
Plug Type NEMA 5-20P
Compressor Horsepower 1/2 HP
Upper Section Mode Refrigerated or Ambient
Lower Section Configuration Open Front
Rear Door Type Tempered Glass Sliding Doors
Condensate Pan Removable Evaporating Pan

Description

The Hydra-Kool KGL-OU-36-S is a 7.73 cu. ft. open-air over-under merchandiser with self-contained forced-air refrigeration. The case holds 36°F to 40°F, and the upper section can be operated in refrigerated or ambient mode.

  • Upper section with one shelf and deck plus tempered glass rear sliding doors
  • Lower open-front section with one adjustable shelf and deck
  • LED lighting in the canopy and under all shelves
  • Digital temperature controller and adjustable feet

Overall Dimensions:

35.86"W x 37.05"D x 59.25"H

Product Weight:

617.0 lb

Over-Under Configuration

The combination case has an upper section and an open-front lower section.

Self-Contained Refrigeration

The merchandiser uses self-contained forced-air refrigeration.

Flexible Upper Section

The upper section can be operated in refrigerated or ambient mode.

Adjustable Shelving

The unit includes one shelf and deck in each section; the lower shelf is adjustable, and the shelves can be height adjusted and tilted.

LED Lighting

LED lighting is installed in the canopy and under all shelves.

Digital Temperature Controller

Temperature and defrost are regulated by a digital controller.

Tempered Glass Rear Sliding Doors

The upper section has tempered glass rear sliding doors.

Adjustable Feet

The merchandiser includes adjustable feet.
