Key specifications

BTU
5,112 BTU
Amps
0.91 Amps
Dimensions
101.2"W × 43.31"D × 47.06"H
Type
Refrigerated Display Case
Style
Service Type
Installation Type
Floor Model
Spec sheet
MVP Group SKU: KFM-SF-100-R

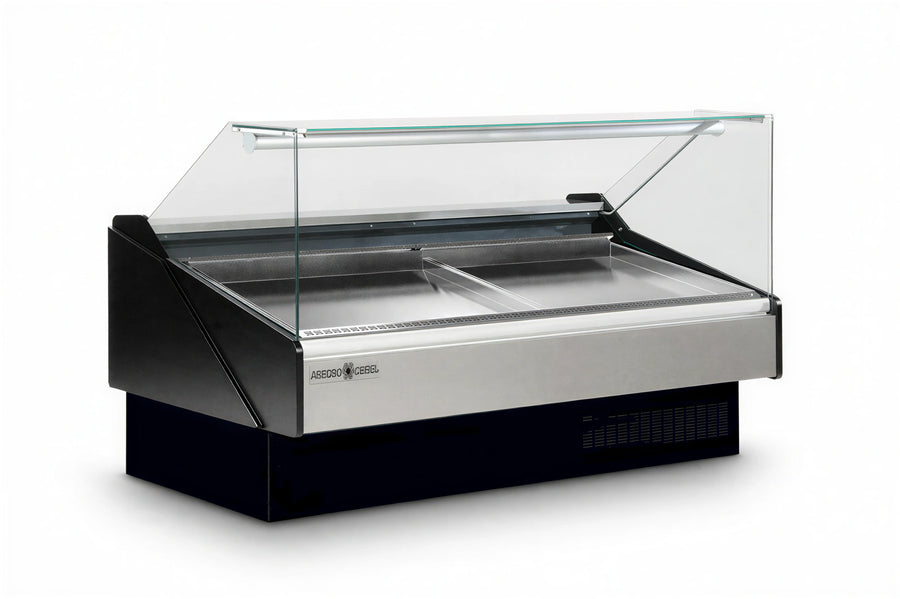

MVP Group Hydra-Kool KFM-SF-100-R Fresh Seafood Refrigerated Display Case, Service Type, Straight Glass, Remote Refrigeration, 101.2"W

$15,770.06
/each
Estimated to ship in 4–7 business days
Size
Refrigeration
Refrigerant
Exterior finish
Mounting
Included: MVP Group warranty One year parts and labor, plus four additional years on the compressor part only

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,459/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Refrigerated Display Case
Style Service Type
Installation Type Floor Model
Material PVC Coated Steel
Finish Painted
Interior Finish Stainless Steel
Width 101.2 in.
Depth 43.31 in.
Height 47.06 in.
Capacity 40.45 cu. ft.
Front Glass Straight Tempered Glass
Side Glass Tempered Glass
Rear Door Type Sliding Tempered Glass
BTU 5,112 BTU
Voltage 115 Volts
Amps 0.91 Amps
Refrigeration Type Remote
Refrigerant Type R404a
Controls Digital Controller
Lighting LED
Power Connection Hardwired
Power Outlets Required 2
Drains Required 2

Description

This service-type refrigerated display case is designed for fresh seafood and remote refrigeration. It features a 101.2-inch overall width, straight tempered front glass, tempered glass sides, and rear tempered sliding glass doors.

  • 40.45 cu. ft. capacity with included ice fish pans
  • LED interior lighting and digital temperature and defrost control
  • PVC-coated steel exterior with stainless steel interior
  • Multiplexed construction with a center join
  • Requires two power outlets and two drains

Overall Dimensions:

101.2"W x 43.31"D x 47.06"H

Product Weight:

919.0 lb

Remote Refrigeration

Designed for remote refrigeration; refrigeration is not included.

Service Type

Provides service access for fresh seafood display.

Straight Tempered Glass

Includes straight tempered front glass and tempered glass sides.

Rear Sliding Doors

Features removable rear tempered glass sliding doors.

LED Lighting

Provides LED lighting in the display canopy and interior.

Digital Controller

Regulates temperature and defrost functions.

Ice Fish Pans

Ice fish pans are included.

Multiplexed Design

The 100-inch model is multiplexed and joined in the center.

Frequently Asked Questions

No. The case is designed for remote refrigeration, and refrigeration is not included.
The overall dimensions are 101.2 inches wide by 43.31 inches deep by 47.06 inches high.
It has straight tempered front glass, tempered glass sides, and rear tempered glass sliding doors.
Ice fish pans are included.
The specification calls for two power outlets and two drains. Remote cases must be hardwired and have no plugs.
The warranty provides one year of parts and labor, plus an additional four years on the compressor part only.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.

Need help deciding?

Our specialist can help you confirm dimensions, building requirements, and other important details before you buy. We usually reply within 1 hour.

or call (888) 307-5030
