Key specifications

BTU
2,621 BTU
Amps
0.95 Amps
Dimensions
40.4"W × 34.17"D × 53.73"H
Type
Bakery Display Case
Style
Full Service
Installation Type
Floor Model
Spec sheet
MVP Group SKU: KBD-FG-40-R

MVP Group Hydra-Kool KBD-FG-40-R Bakery Display Case, Full-Service, Straight Tempered Glass, 3 Shelves, Remote Refrigeration, 40.4"W

$10,548.92
/each
Estimated to ship in 4–7 business days
Size
Refrigeration
Exterior
Interior
Mounting
Included: MVP Group warranty One year parts and labor, with an additional four years on the compressor part only

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $976/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Bakery Display Case
Style Full Service
Installation Type Floor Model
Material PVC Coated Steel
Color Silver / Gray / Black
Finish Painted
Interior Finish Painted
Front Glass Straight Tempered Glass
Shelf Count 3
Refrigeration Type Remote
Refrigerant Type R404a
Temperature Range 36°F to 40°F
Voltage 115 Volts
Amps 0.95 Amps
BTU 2,621 BTU
Controls Digital
Lighting LED Interior
Door Type Rear Sliding Glass Doors
Connection Type Hardwired
Width 40.4 in

Description

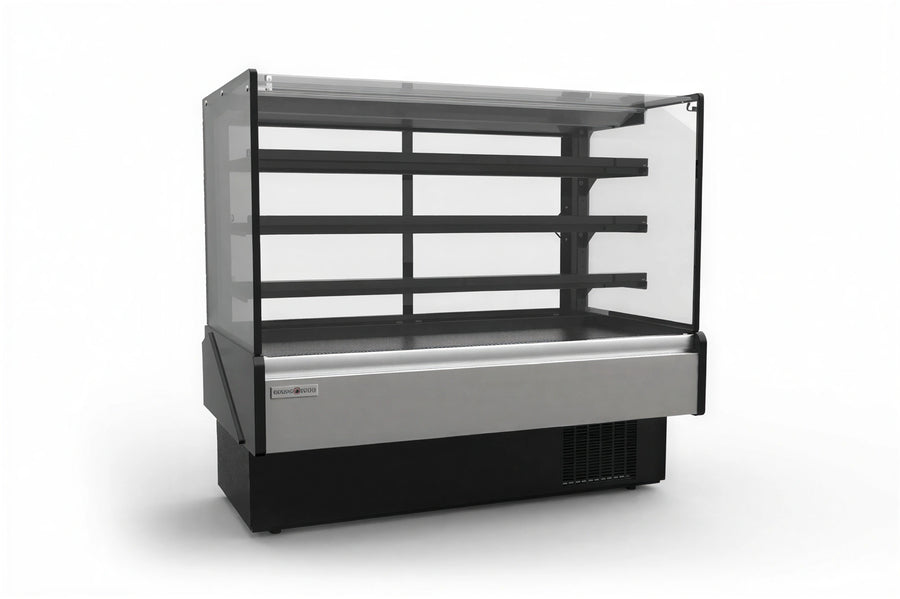

The MVP Group Hydra-Kool KBD-FG-40-R is a full-service bakery display case with straight tempered glass, three adjustable removable shelves, LED interior lighting, and a remote refrigeration design.

  • Tempered glass sides and removable rear sliding glass doors
  • PVC-coated steel gray interior with three tempered glass shelves
  • Silver front panel, gray kick plate, and black ends
  • Adjustable leveling feet and a 9-inch top sill
  • Remote refrigeration is not included; remote cases must be hardwired

Overall Dimensions:

40.4"W x 34.17"D x 53.73"H

Product Weight:

484.0 lb

Full-Service Design

Built for full-service bakery display applications.

Straight Tempered Glass

Features a straight tempered glass front with tempered glass sides.

Remote Refrigeration

Designed for remote refrigeration; the refrigeration system is not included.

Adjustable Shelves

Includes three adjustable and removable tempered glass shelves.

Rear Sliding Doors

Includes removable rear tempered glass sliding doors.

LED Interior Lighting

Provides LED lighting inside the display case.

Digital Controls

The cutsheet lists a digital temperature controller and digital temperature display.

Multiplexable Cases

The cutsheet states that the cases can be multiplexed.

Adjustable Leveling Feet

Includes adjustable feet for leveling.

Temperature Range

The case holds 36°F to 40°F according to the cutsheet.

Frequently Asked Questions

No. The KBD-FG-40-R is designed for remote refrigeration, and the authoritative specification states that refrigeration is not included.
It includes three adjustable and removable tempered glass shelves.
It has removable rear tempered glass sliding doors.
The cutsheet lists 115 Volts and 0.95 Amps for this model and states that remote cases must be hardwired with no plug.
The cutsheet states that the case holds 36°F to 40°F.
Yes. The cutsheet states that the cases can be multiplexed.
