Description

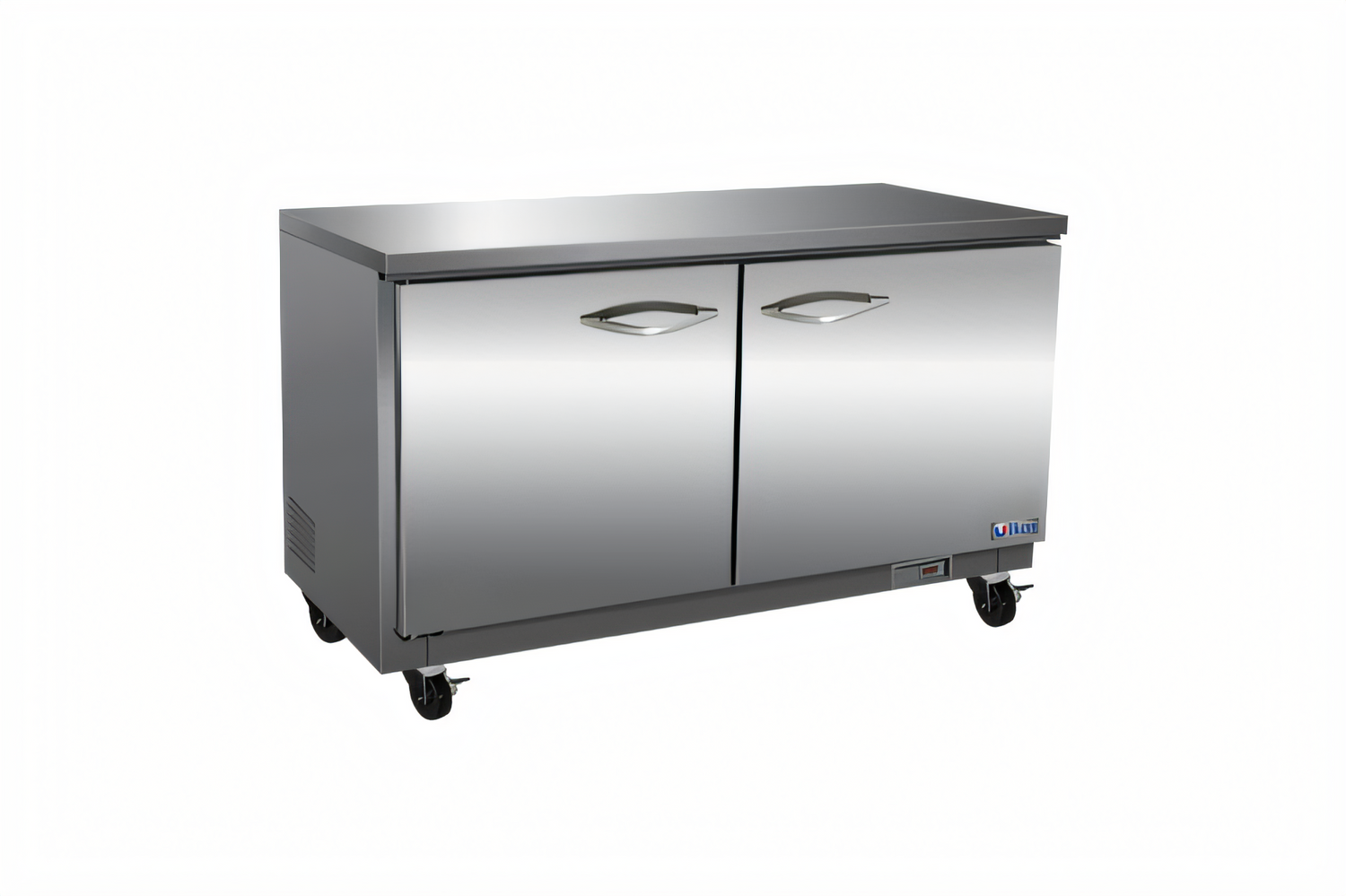

Ikon IUC36F 36" Undercounter Freezer – 7.7 cu ft

Two-section, self-contained, commercial freezer with R-290 natural refrigerant

Bring dependable frozen storage right to the prep line. The Ikon IUC36F fits beneath standard counters yet delivers 7.7 cu ft of ice-cold capacity, digital precision control and a rugged stainless work surface—ideal for cafés, concession stands and restaurant kitchens that demand efficiency without sacrificing space.

Key features
  • Low-profile 35-1/2" tall cabinet saves valuable floor and prep space

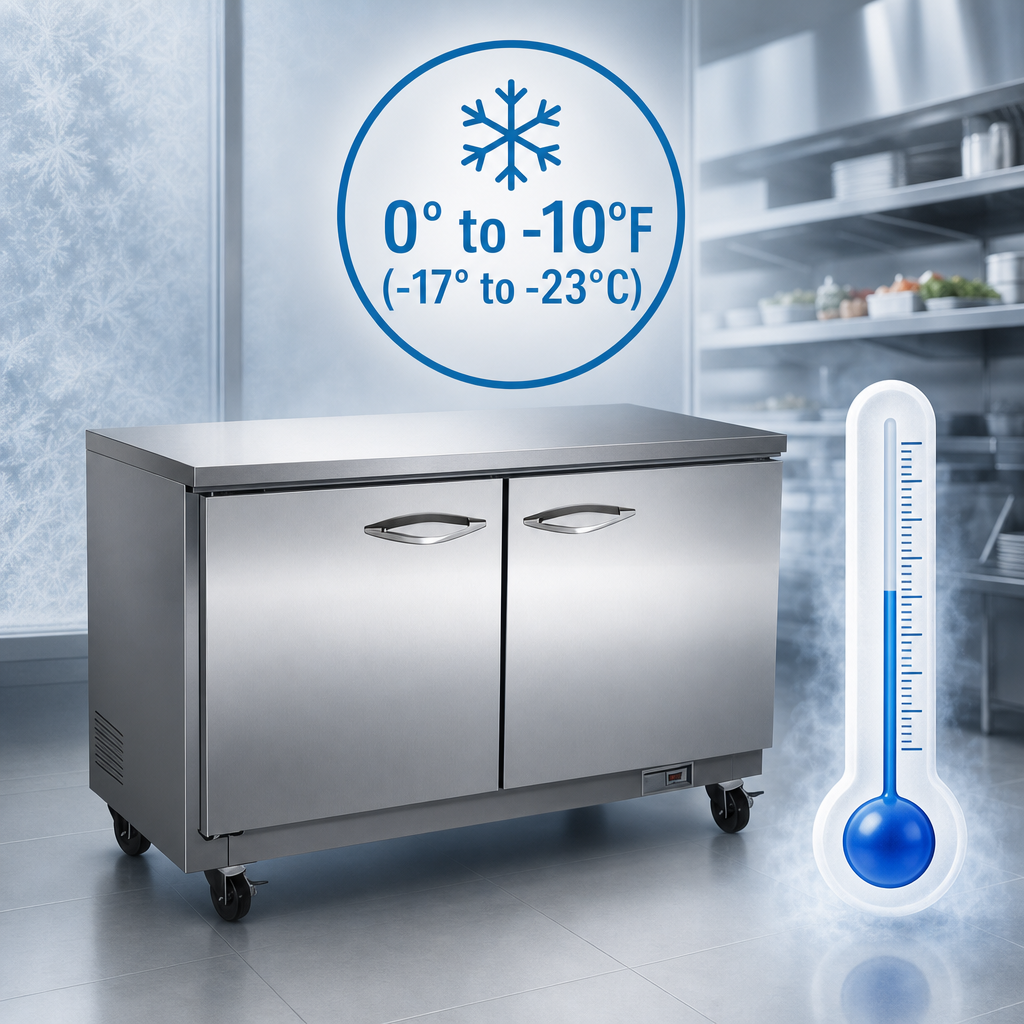

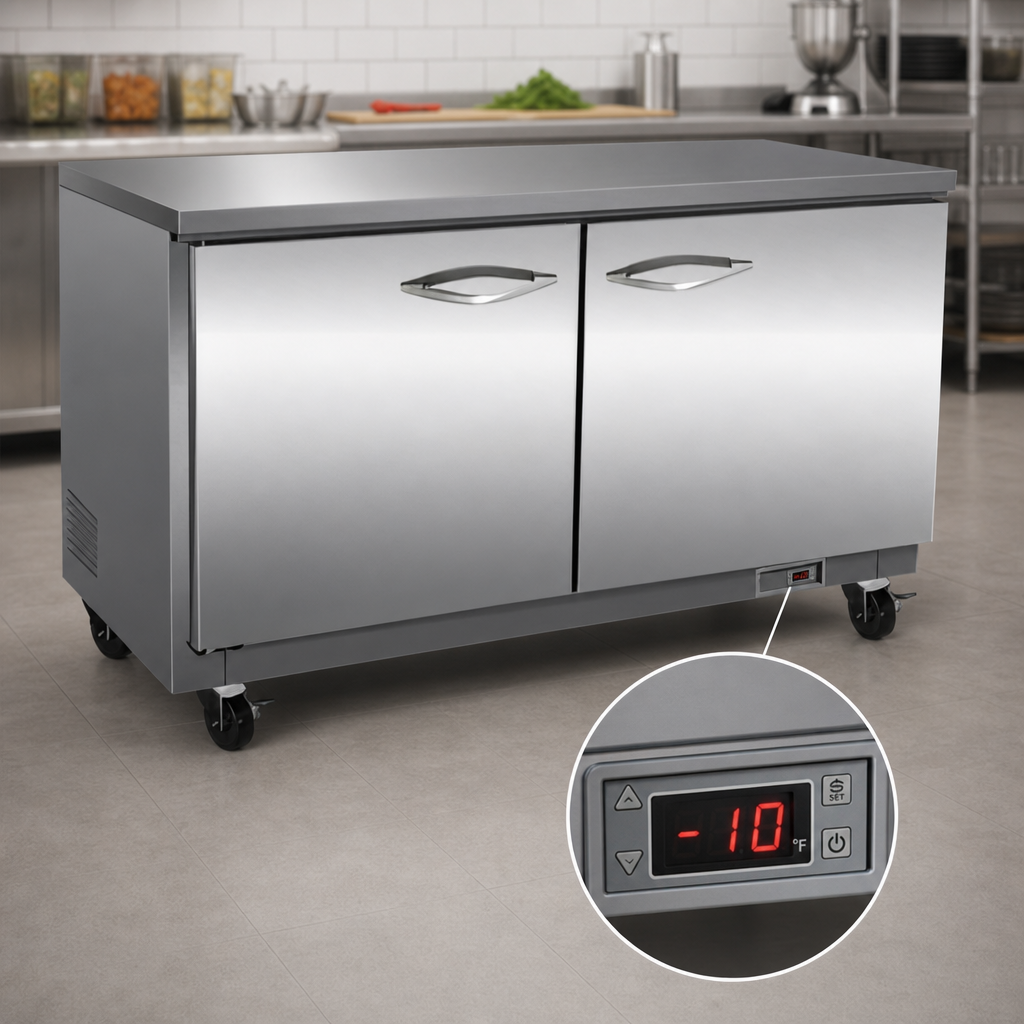

  • Temperature range 0 °F to –10 °F (–17 °C to –23 °C) maintained by an electronic thermostat with LED read-out
  • (2) self-closing, anti-frost solid doors stay open at 90° and use tool-free magnetic gaskets
  • (2) adjustable, heavy-duty epoxy-coated wire shelves included
  • Automatic defrost & condensate evaporation for simplified maintenance
  • 304 stainless interior floor and 430 stainless exterior front, sides & top for long-term durability
  • Factory-installed 2.5" swivel casters (front locking) for easy cleaning and repositioning
  • High-efficiency 1/2 HP rear-mounted compressor charged with eco-friendly R-290 refrigerant
  • CFC-free foam insulation; certified cETLus, ETL-Sanitation & ANSI/NSF-7 compliant
At-a-glance specifications
Model IUC36F
Capacity 7.7 cu ft (218 L)
Exterior dimensions (W × D × H) 36.4" × 29.9" × 35.5" (925 × 760 × 902 mm)
Interior dimensions (W × D × H) 31.5" × 24.9" × 24.2" (800 × 632 × 615 mm)
Doors / Shelves 2 solid hinged doors / 2 adjustable wire shelves
Temperature range 0 °F to –10 °F (–17 °C to –23 °C)
Refrigeration system Rear-mounted, self-contained, 1/2 HP compressor
Refrigerant R-290 (natural hydrocarbon)
Electrical 115 V / 60 Hz / 1-ph, 7.7 A, NEMA 5-15P (10 ft cord)
Ambient rating Optimized for 40 °F – 90 °F (4 °C – 32 °C) kitchens
Casters (4) 2.5" swivel, front two locking
Shipping weight 203 lb (92 kg)
Included warranty

• 2-year parts & labor coverage
• Additional 3-year compressor parts warranty (total 5 years on compressor)
Service available throughout the United States and Canada via MVP Group’s authorized network.

Have questions? Contact our food-service experts for fast, friendly assistance.

Features & Specs

Manufacturer

MVP Group LLC

Brand_name

IKON Refrigeration

Certifications

cETLus, ETL-Sanitation

Height

35.5in

Width

36.4in

Depth

29.9in

Size

2 section

Exterior Finish

all stainless steel exterior

Compressor HP

1/2 HP

Width

36" - 44"

Refrigeration

self-contained, rear mounted

Doors

solid door(s)

Access Type

doors

Specifications

IKON Refrigeration Undercounter Freezer, two-section,7.7 cu. ft. capacity, 36-2/5"W x 29-9/10"D x 35-1/2"H, stainless steel top, (2) solid hinged anti-frost doors, (2) epoxy coated wire shelves, electronic thermostat, 0° to -10°F temperature range, digital LED temperature display, automatic defrost, interior: 304 stainless steel floor, aluminum back wall, ABS side walls & door backs, stainless steel front & sides, 2-1/2" swivel casters (2) braked, rear mounted self-contained refrigeration system, R290 refrigerant, 1/2 HP, 115v/60/1-ph, 7.7 amps, NEMA 5-15P, cETLus, ETL-Sanitation
