MVP Group LLC ITG-48 IKON Cooking Gas Griddles
$2,646.26
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
MVP Group LLC ITG-48 IKON Cooking Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
MVP Group LLC ITG-48 IKON Cooking Gas Griddles
$2,646.26
Unit price
/
Unavailable
Description

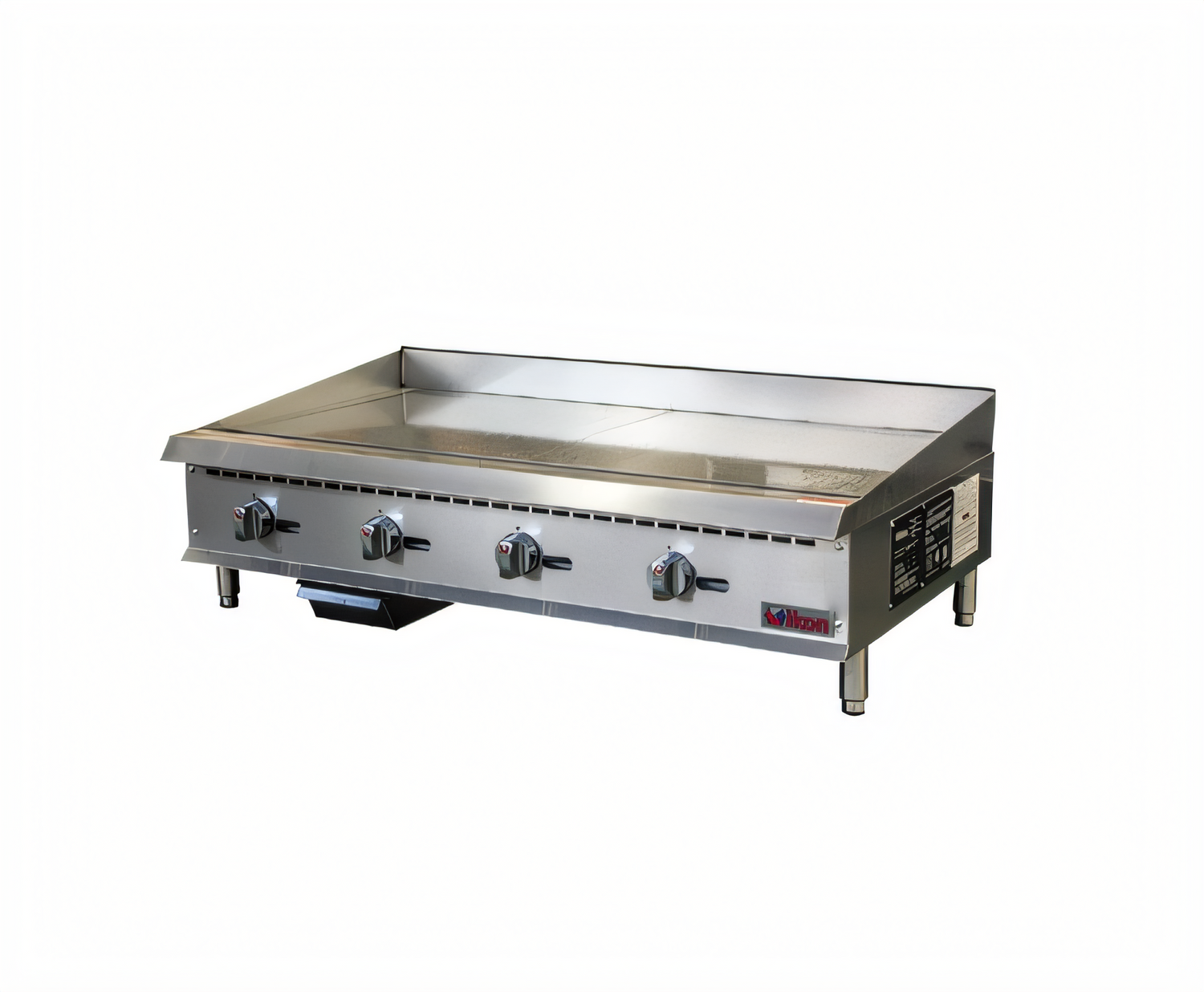

Ikon ITG-48 Countertop Gas Griddle – 48" / 120,000 BTU
1" polished steel plate · thermostatic control · 4 U-shape burnersBuilt for busy diners, cafés and food-service kitchens, the Ikon ITG-48 delivers consistent sear zones, rapid recovery times and chef-friendly clean-up—all in a stainless-steel package that stands up to daily abuse.
Highlights
- Four 30,000 BTU U-shape burners spaced every 12" for even heat distribution
- 1" thick polished steel griddle plate for superior heat retention
- Manual thermostatic gas controls with front-lit pilot lights—precise temps at a glance
- Double-wall insulated sides & “cool-to-the-touch” front edge for a safer cookline
- Fully welded 3-sided splash guards plus rear flue for proper ventilation
- 4" wide grease trough feeds a 3-1/4" deep removable drawer with weep hole & baffle
- All stainless-steel cabinet, adjustable 4" legs & non-skid feet
- Ships ready for NG; LP conversion kit included
- Certified: CSA Flame, CSA Star & CSA-Sanitation
Technical Specifications
| Model | ITG-48 |
|---|---|
| Overall dimensions (W × D × H) | 48.0" × 34.4" × 15.5" (1219 mm × 874 mm × 394 mm) |
| Cooking surface | 48" × 20.5" |
| Burners / controls | 4 U-shape burners · 4 control knobs · 1 pilot light per burner |
| Heat output | 30,000 BTU per burner (120,000 BTU total) |
| Plate thickness | 1" polished steel |
| Gas connection | ¾" NPT (rear) |
| Manifold pressure | NG: 4" W.C. · LP: 10" W.C. |
| Unit weight / shipping weight | 253 lb / 304 lb (115 kg / 138 kg) |
Gas Requirements & Certifications
- Factory-set for Natural Gas; LP conversion kit supplied
- Minimum clearance: 6" sides & rear (combustible surfaces)
- Certified to CSA Flame, CSA Star & CSA-Sanitation standards
Freight note: This griddle ships crated on a pallet for LTL transport.
Please arrange a forklift or lift-gate at delivery location.
Professional installation by a licensed gas technician is required to maintain warranty coverage.
Features & Specs
Features & Specs
Manufacturer
MVP Group LLC
Brand_name
IKON Cooking
Certifications
CSA-Sanitation, CSA Star, CSA Flame
Height
15.5in
Width
48.0in
Depth
34.4in
Shipping Weight
304.0lbs
Cooking Surface Width (side - side)
43" - 48"
Griddle Plate Finish
smooth steel
Cooking Surface Depth (front - back)
20" - 23"
Plate Thickness
1"
Controls
thermostat / solid state controls
Exterior Finish
stainless steel front & sides
Specifications
IKON Cooking Griddle, gas, countertop, 48" W x 34.4" D, adjustable manual thermostatic control, front lit pilot light, (4) 30,000 BTU U-shape burners, 1" thick polished steel griddle plate, (4) gas control knobs, double wall insulated sides, welded back & side splash guards, rear flue, removable 3-1/4" grease drawer with weep hole & baffle, 4" wide grease trough, stainless steel cabinet, stainless steel adjustable legs, non-skid feet, 120,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame
