MVP Group LLC ITG-24 IKON Cooking Gas Griddles
Description

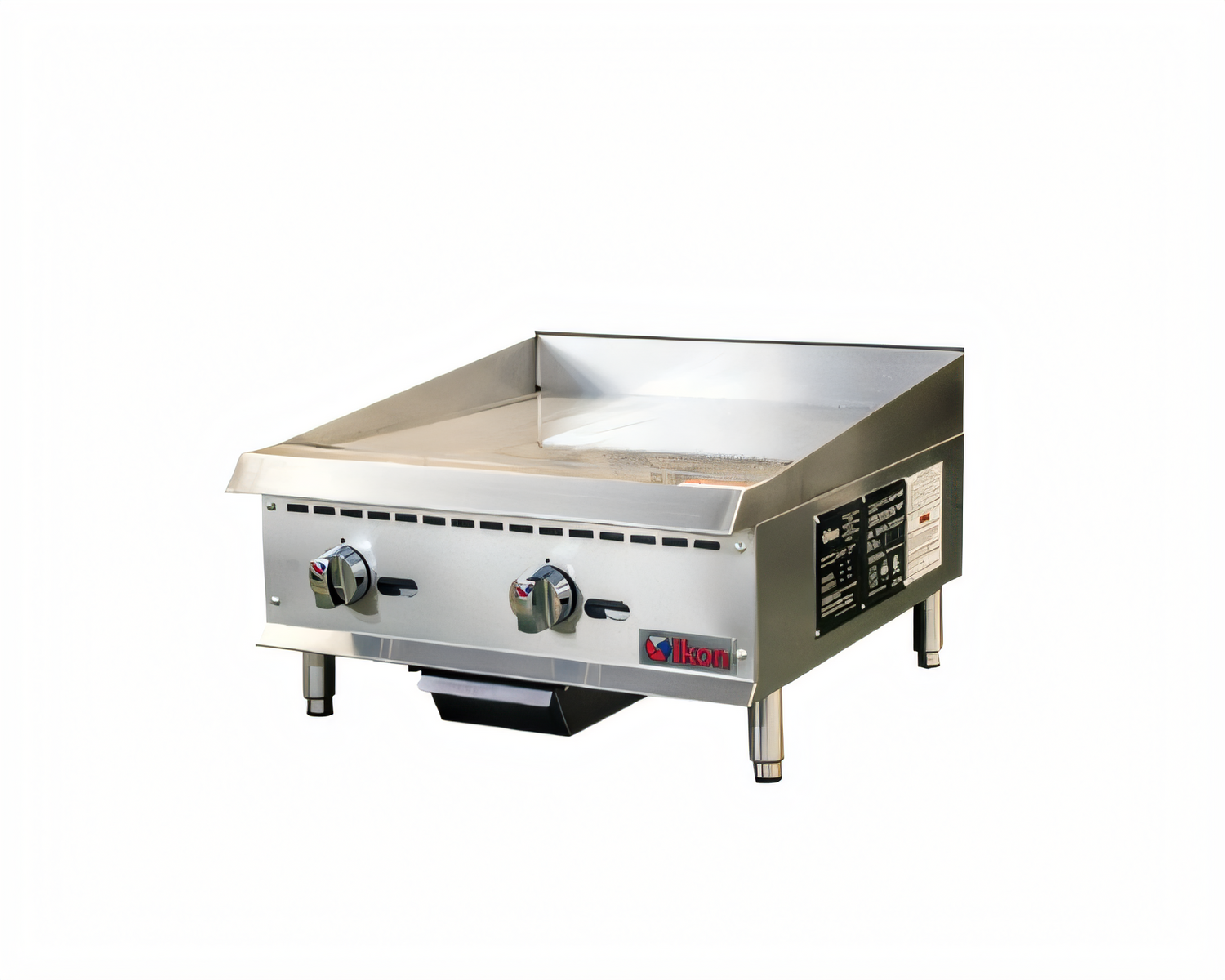

Ikon ITG-24 Countertop Gas Griddle – 24"
60,000 BTU | Thermostatic Manual Control | Natural Gas / LP ConvertibleBuilt for cafés, diners, concession stands and food trucks, the Ikon ITG-24 delivers the power of a full-size grill in a compact 24" footprint. Two high-output U-shape burners blanket the 1" thick polished steel plate with consistent heat, while precision thermostatic knobs give you the control you need for everything from delicate eggs to sizzling burgers.
Chef-Focused Benefits
- 1" thick polished steel griddle plate holds & distributes heat for rapid temperature recovery.

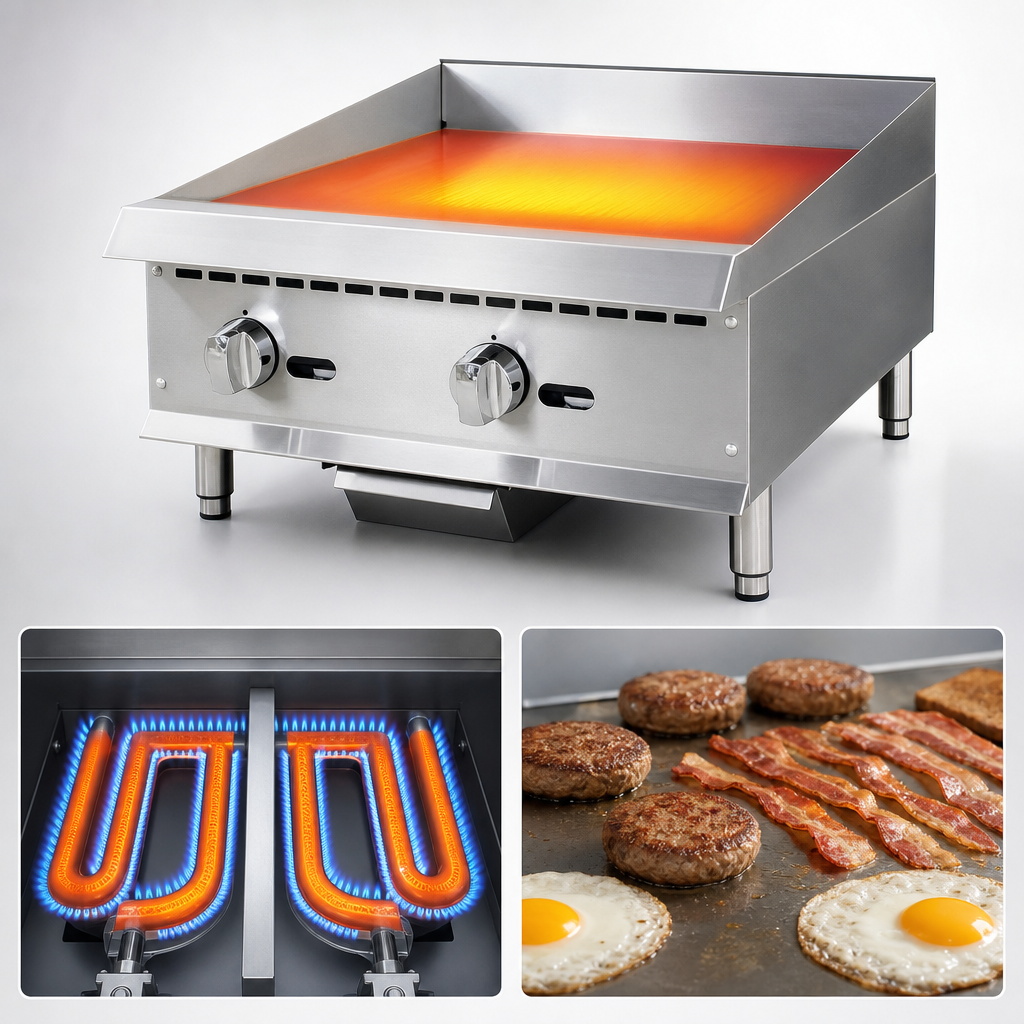

- (2) 30,000 BTU U-shape burners (every 12") ensure even cooking edge-to-edge.

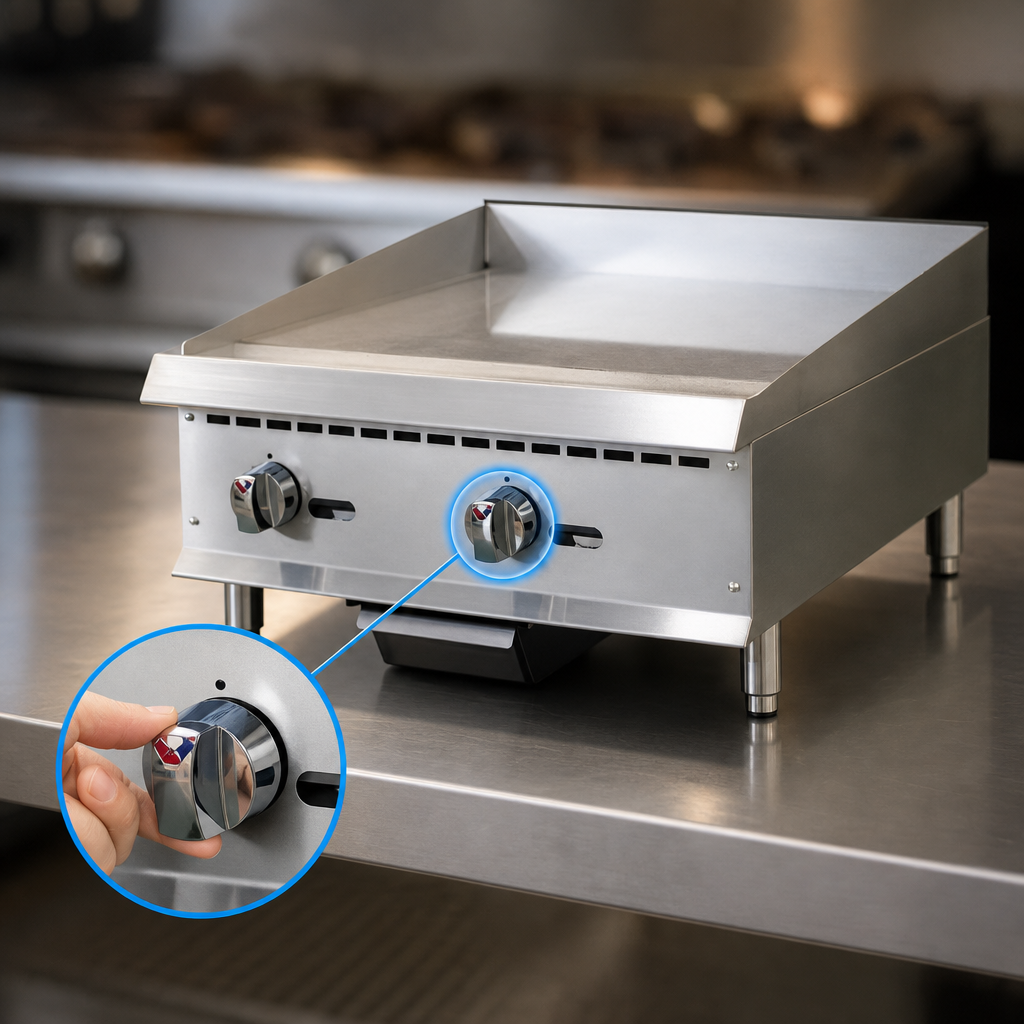

- Adjustable manual thermostatic controls with front-lit pilot lights for quick status checks.
- Cool-to-the-touch stainless front edge improves operator safety & comfort.
- Welded 3-sided splash guards and rear flue channel grease & heat away from staff.
- 4" wide grease trough plus removable 3-1/4" drawer with weep hole & baffle for fast clean-up.
- Double-wall insulated sides and all-stainless cabinet stand up to commercial abuse.
- Adjustable stainless legs with non-skid feet let you level the unit on any counter.
- Completely front-serviceable design minimizes downtime during routine maintenance.
Specifications
| Model | ITG-24 |
|---|---|
| Cooking surface | 24" W × 20.5" D (492 sq in / 0.32 m²) |
| Burners / Output | (2) U-shape burners @ 30,000 BTU each – 60,000 BTU total |
| Plate thickness | 1" (25 mm) polished steel |
| Controls | Manual thermostatic, 2 knobs (one every 12") |
| Gas type | Natural Gas (standard) – LP conversion kit included |
| Gas connection | 3/4" NPT, 4" W.C. (NG) / 10" W.C. (LP) |
| Overall dimensions | 24.0" W × 34.4" D × 15.5" H |
| Footprint (counter) | 23.5" W × 21.0" D |
| Net / Ship weight | 143 lb / 174 lb (crated on pallet) |
| Certifications | CSA-Sanitation • CSA Star • CSA Flame |
Perfect For
- Short-order breakfast lines & all-day brunch menus
- Food trucks & concession trailers with limited counter space
- Bistro, bar or brewery add-on menus (smash burgers, tacos, grilled cheese)
- Prep kitchens needing an auxiliary griddle during peak periods
Shipping & Installation
The ITG-24 ships crated on a pallet for LTL protection. To keep your warranty intact, any conversion from natural gas to LP must be performed by an authorized Ikon service agent. Always connect the unit to a regulated 3/4" gas line and follow local codes.
Need a wider model? Ikon thermostatic griddles are also available in 36", 48" and 60" widths. Search “ITG series” on our store or contact us for details.
