Description

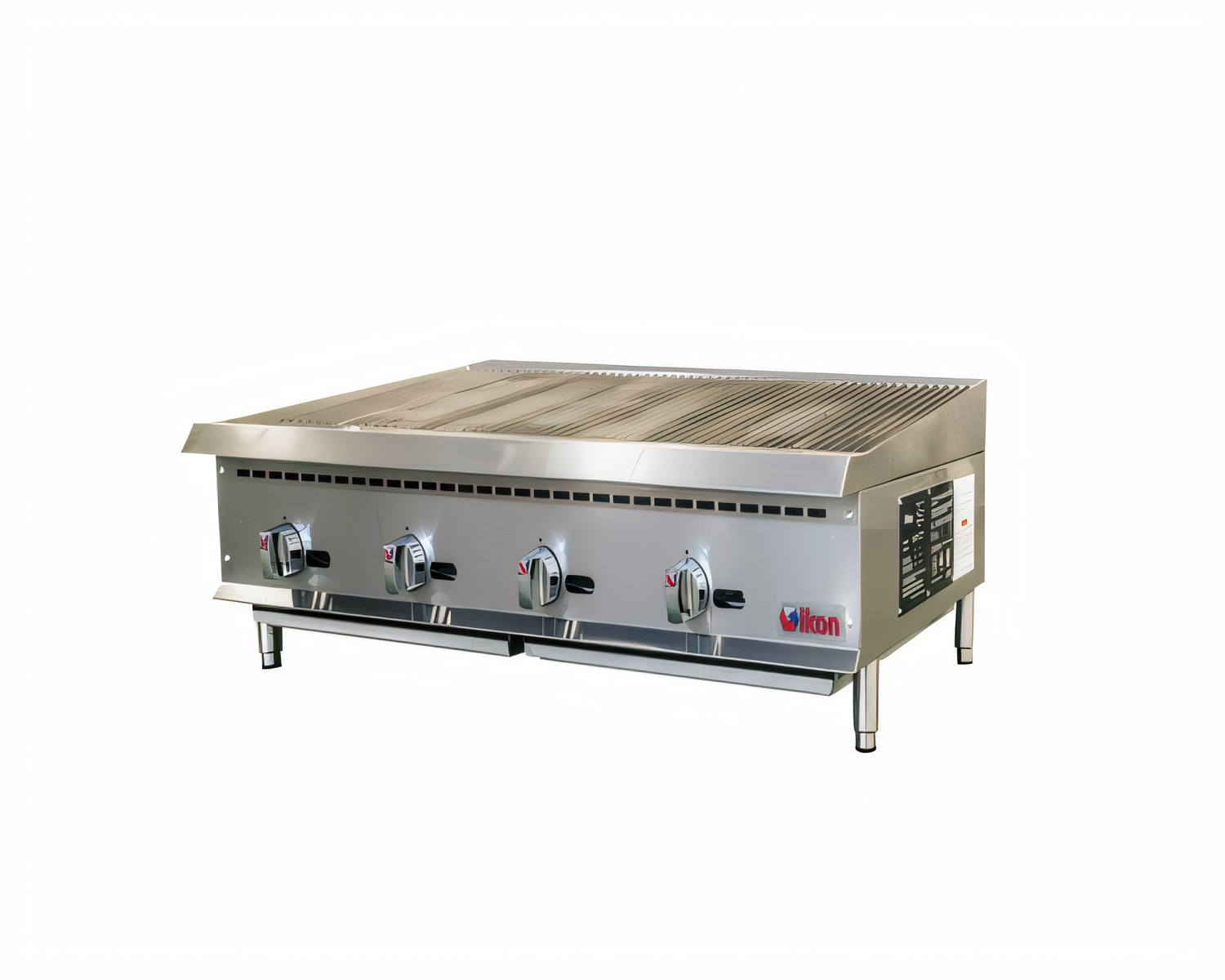

Ikon IRB-48 Gas Radiant Broiler – 48 Inch

140,000 BTU • Natural Gas / LP Convertible

Built for steakhouses, diners, and high-volume kitchens, the Ikon IRB-48 delivers intense, even heat across a full 48-inch cooking surface. Heavy-duty cast-iron components lock in heat and flavor, while a stainless cabinet stands up to the daily grind of commercial service.

Key Features

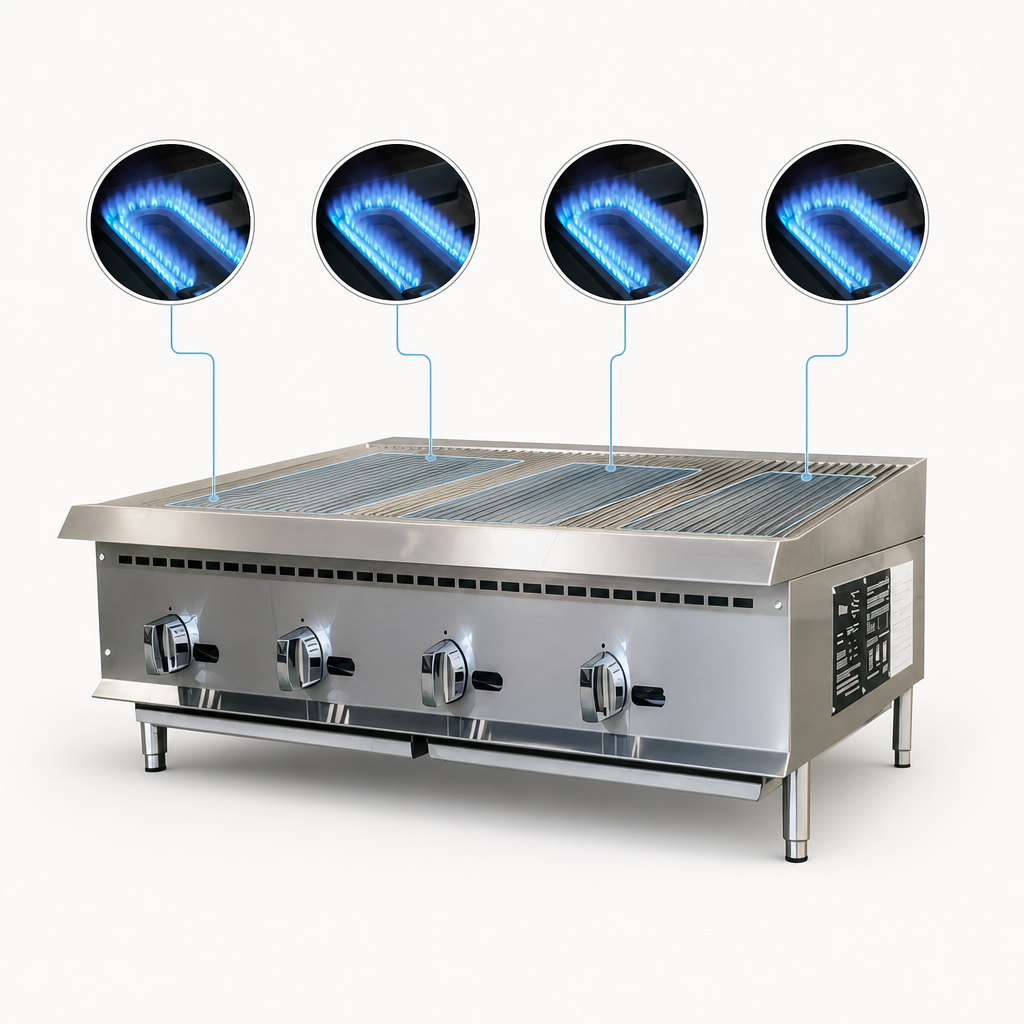

  • Four 35,000 BTU “U”-shaped burners spaced every 12 inches for balanced heat (140,000 BTU total)

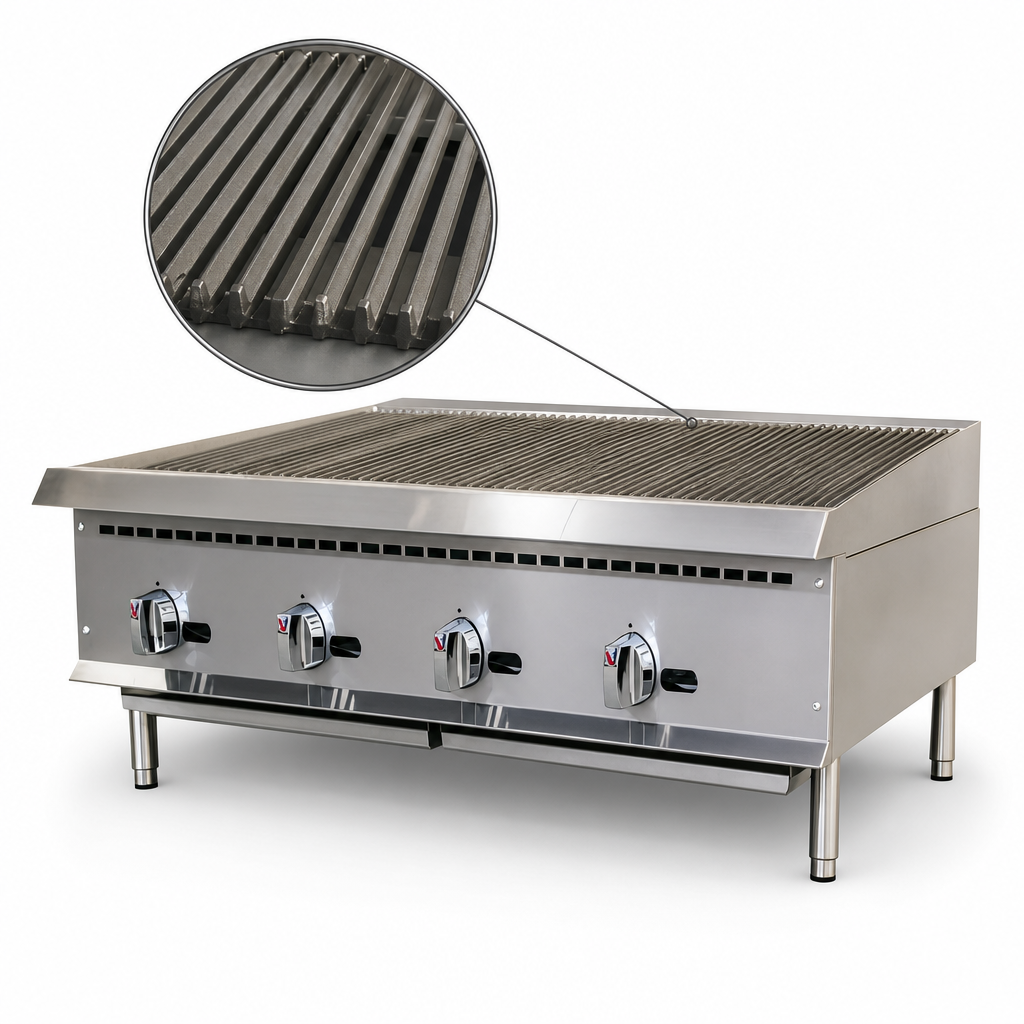

  • 10 ga. cast-iron radiants for superior heat retention & sizzling grill marks
  • Reversible cast-iron grates with 3 height positions to match product thickness
  • Front-access pilot lights for fast, safe ignition
  • Independent manual gas controls and a cool-to-the-touch stainless front edge
  • Double-wall insulated sides, plus integral back & side splash guards
  • Full-width removable crumb tray simplifies end-of-shift clean-up
  • Rear flue and rear-mounted gas regulator for proper ventilation & easy connection
  • Adjustable 4" stainless steel legs with non-skid feet
  • All-stainless steel cabinet resists corrosion and wipes clean
  • Ships for Natural Gas; LP conversion kit included at no extra charge
  • CSA-Sanitation, CSA Star & CSA Flame certified

Technical Specifications

Model IRB-48
Cooking Surface 48" W × 20" D (≈ 848 in²)
Overall Dimensions 48.0" W × 34.4" D × 15.2" H
Number of Burners 4 “U”-shaped
BTU / Burner 35,000
Total BTU Input 140,000
Gas Connection 3/4" NPT (rear)
Manifold Pressure NG 4" W.C. • LP 10" W.C.
Unit Weight 237 lb
Shipping Weight 288 lb (crated on pallet)
Construction Stainless cabinet, 10 ga. cast-iron radiants & grates
Certifications CSA-Sanitation • CSA Star • CSA Flame
Installation Notice: Gas conversion and hookup must be performed by a qualified technician in accordance with local codes to maintain warranty coverage.

Looking for a different footprint? Ikon Radiant Broilers are also available in 24" and 36" widths.

Features & Specs

Manufacturer

MVP Group LLC

Brand_name

IKON Cooking

Certifications

CSA-Sanitation, CSA Star, CSA Flame

Height

15.2in

Width

48.0in

Depth

24.4in

Shipping Weight

288.0lbs

Heating Source

radiant

Control Type

manual controls

Width (side - side) OA

43 - 48"

Specifications

IKON Cooking Radiant Broiler, gas, 48" W x 34.4" D, (4) 35,000 BTU 'U' shape burners, 10 gauge cast iron radiants, rear flue, adjustable manual controls, 3-position cast iron grates, front lit pilot light, double wall insulated sides, back & side splash guards, removable full width crumb tray, rear gas regulator, stainless steel cabinet, adjustable stainless steel legs, non-skid feet, 140,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame
